Pinout Values and Diagnostic Parameters

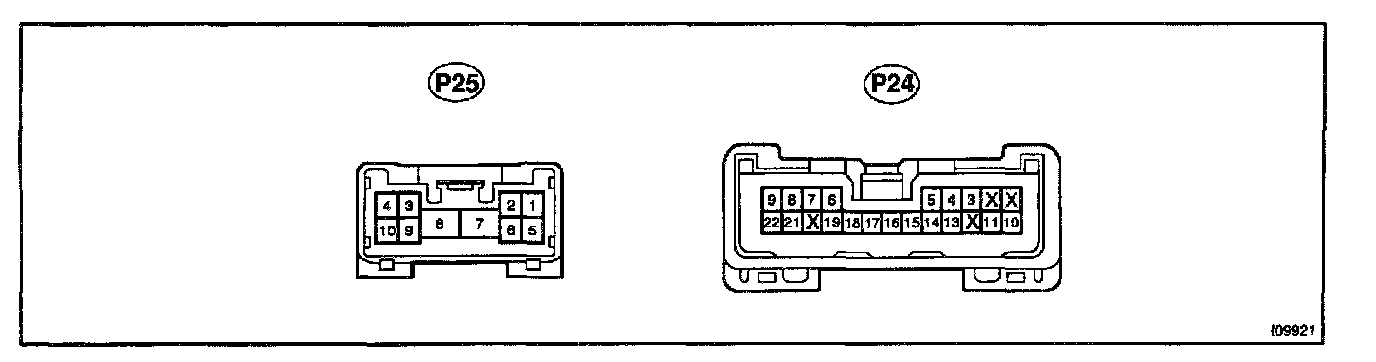

Terminals Of ECU (P25, P24) - View:

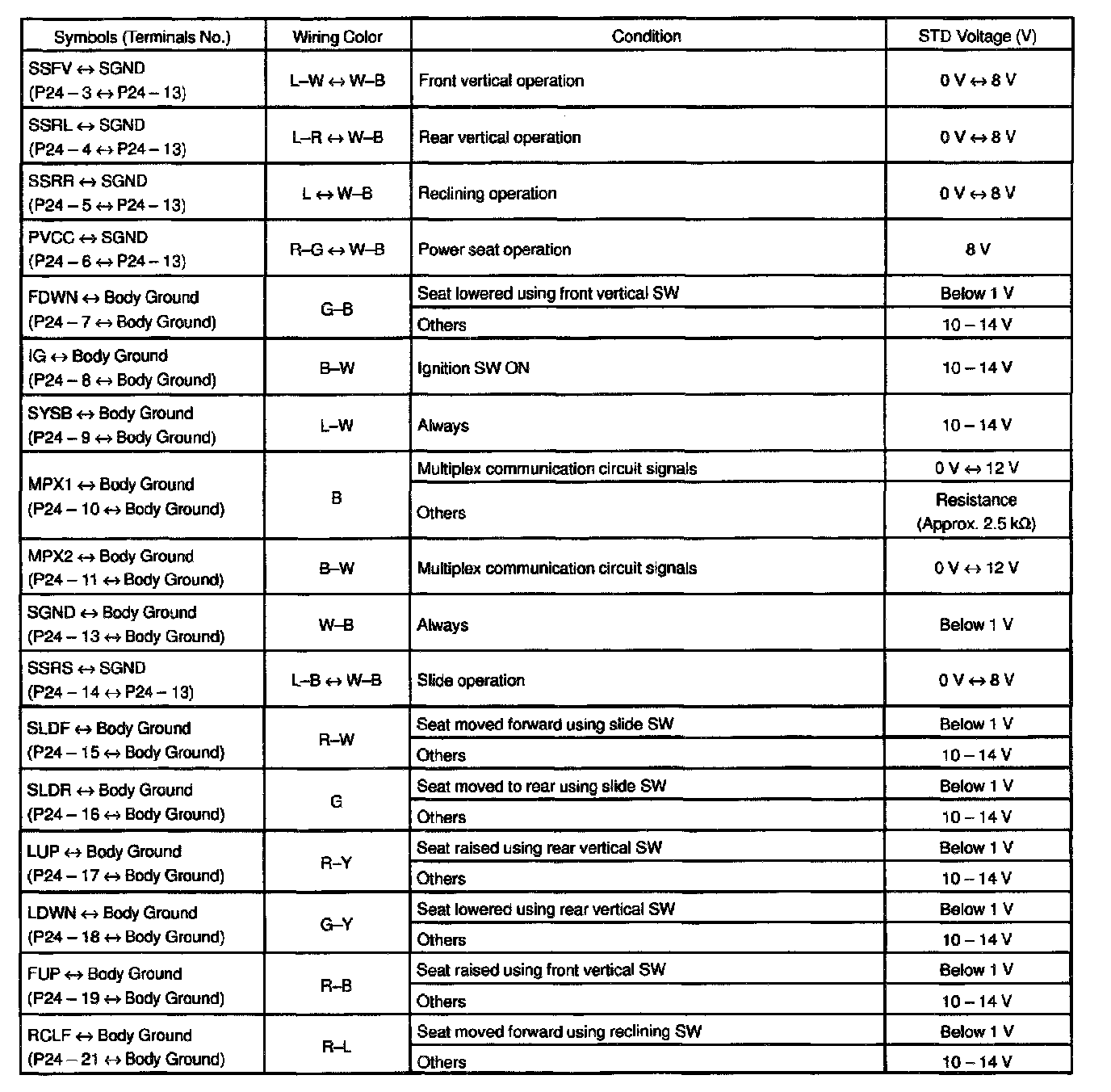

Terminals Of ECU (P25, P24) - Pinouts (Part 1 Of 2):
ECU Pinouts - (P25, P24) (Part 2 Of 2):
ECU TERMINAL VALUES
