Deceleration Sensor Check

DECELERATION SENSOR CHECK

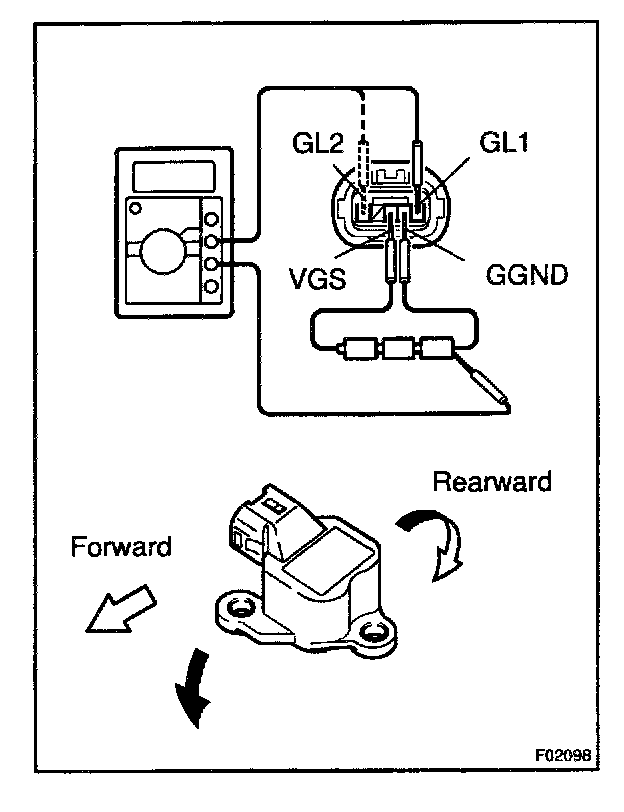

a. Connect 3 dry batteries of 1.5 V in series.
b. Connect VGS terminal to the batteries' positive (+) terminal, and GGND terminal to the batteries' negative (-) terminal, apply about 4.5 V between VGS and GGND terminals.

NOTE: Do not apply voltage of 6 V or more to terminals VGS and GGND.

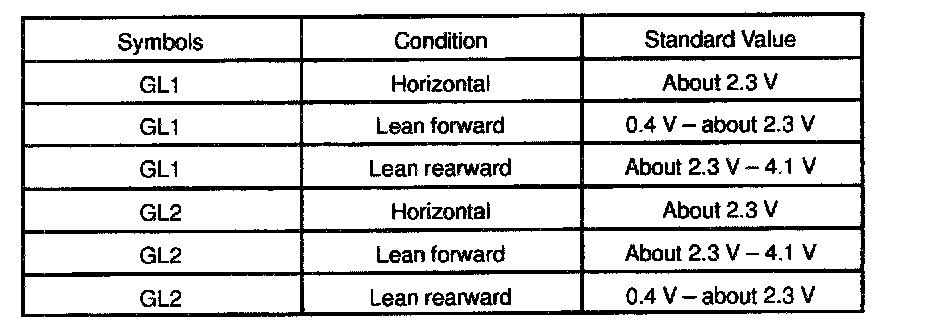

c. Check the output voltage of GL1 and GL2 terminals.

HINT:
- If the sensor is tilted too much it may show the wrong value.
- If dropped, the sensor should be replaced with a new one.
- The sensor removed from the vehicle should not be placed upside down.

d. When replacing the deceleration sensor:
Shift the shift lever in P position and turn the ignition switch ON, repeat connecting and releasing Ts and E1 terminals of DLC1 4 times or more for 8 sec. After that do not move the vehicle for 15 sec. or more.
