Home >> Lexus >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starter Motor

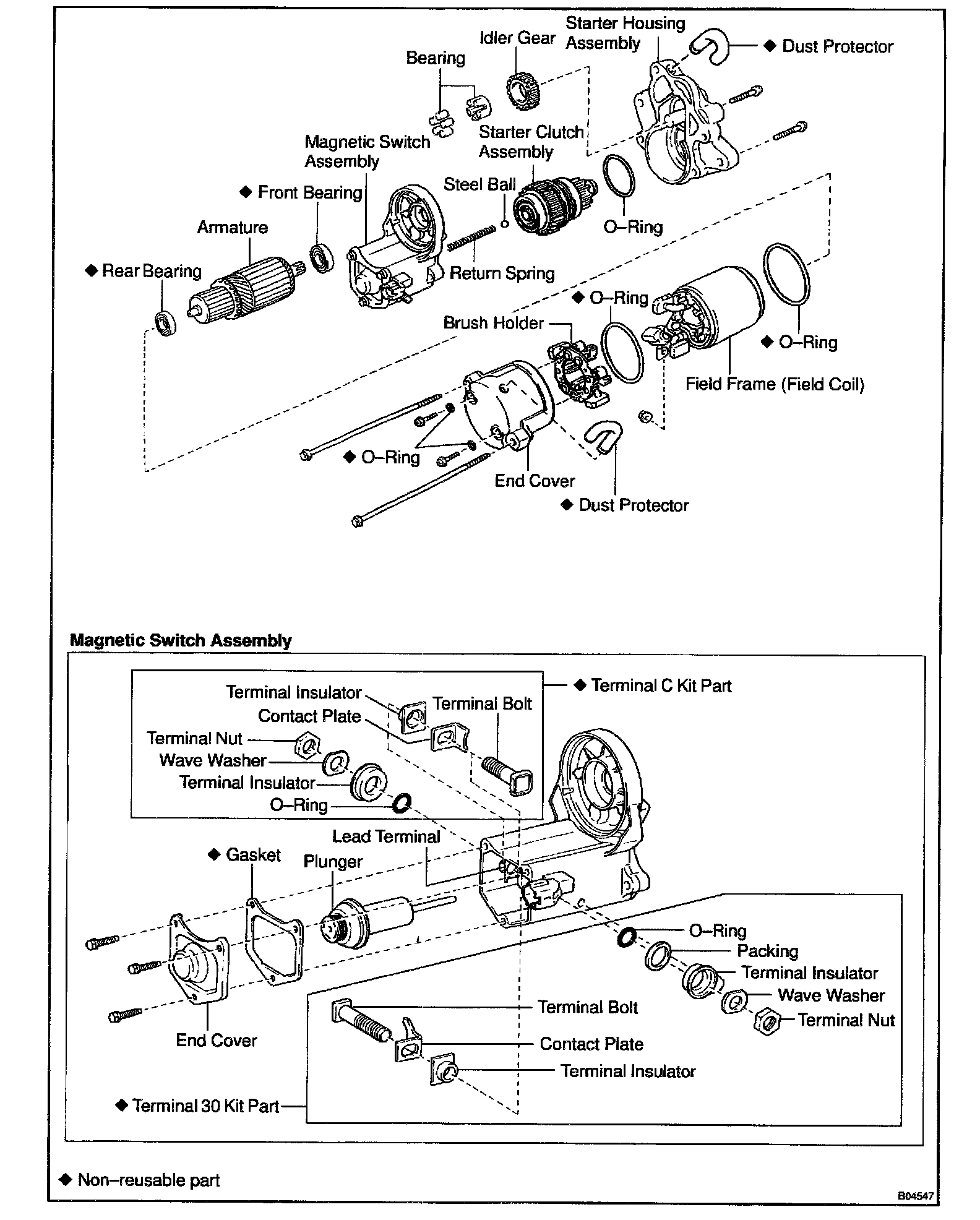

Starter Motor

Part 3 Of 3:
