Home >> Lexus >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Connector Locations

Connector Locations

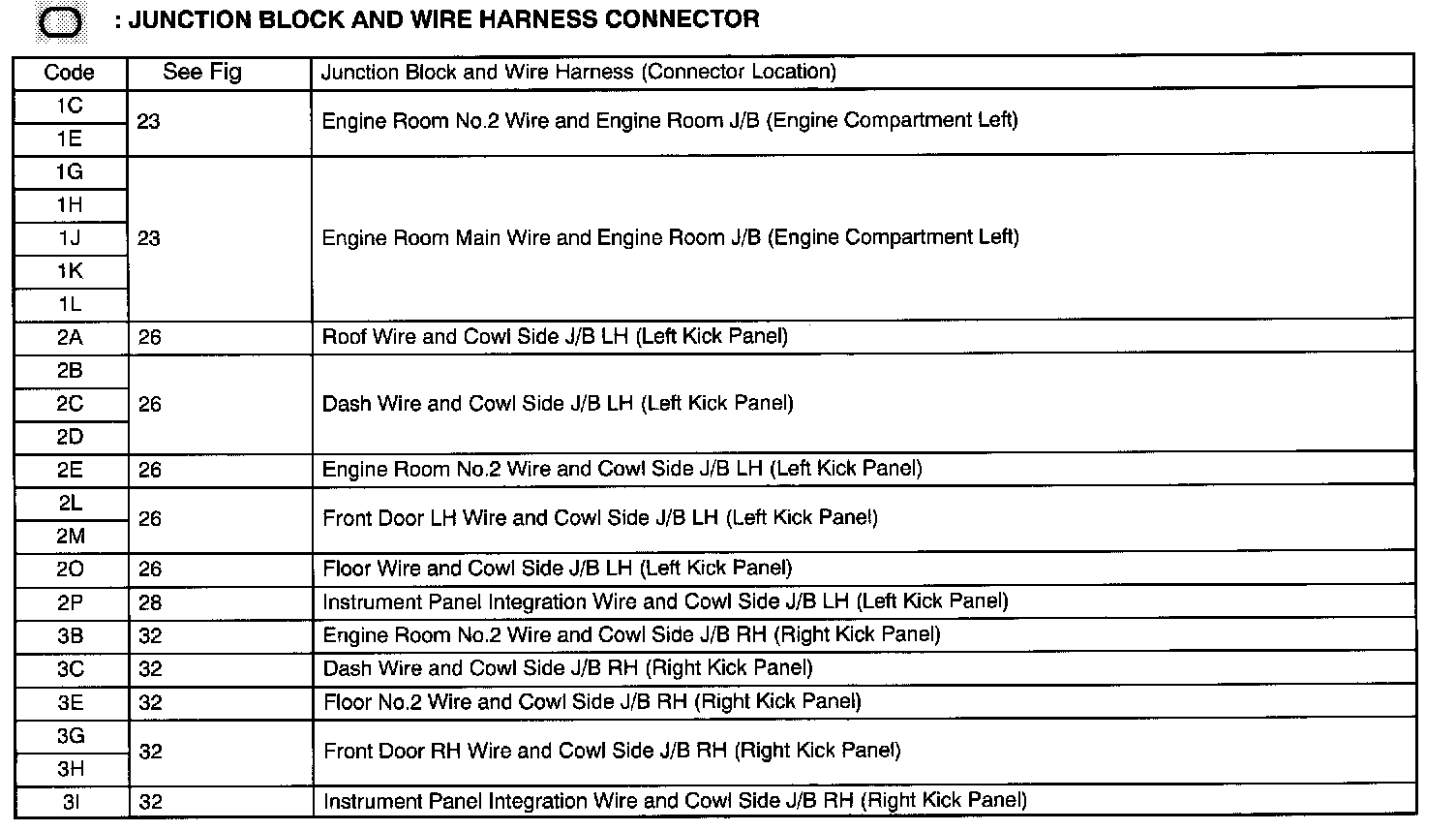

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR




FIG 23




FIG 26




FIG 28




FIG 32
