Home >> Lexus >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Locations

Alternator: Locations

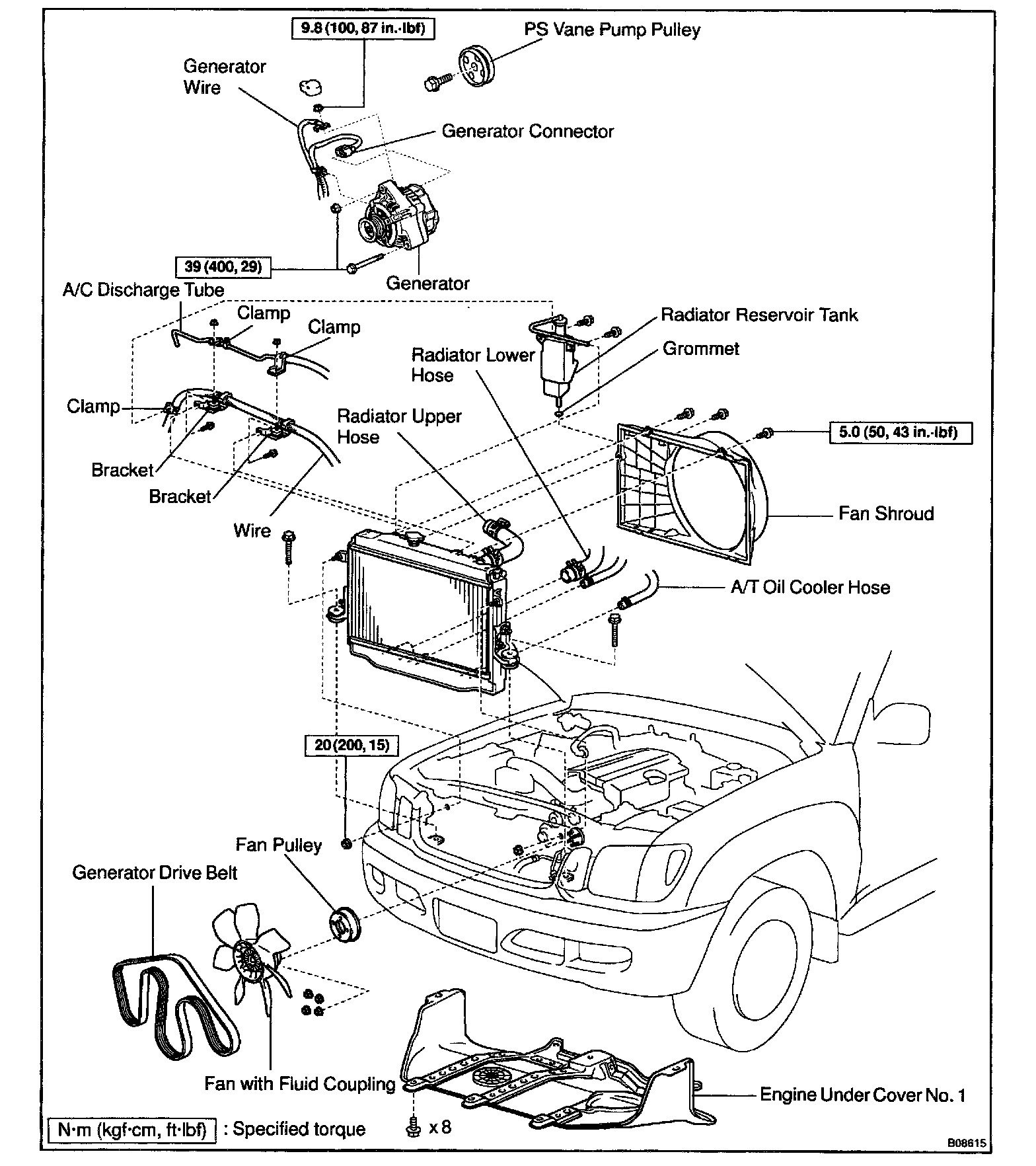

Part 1 Of 2:

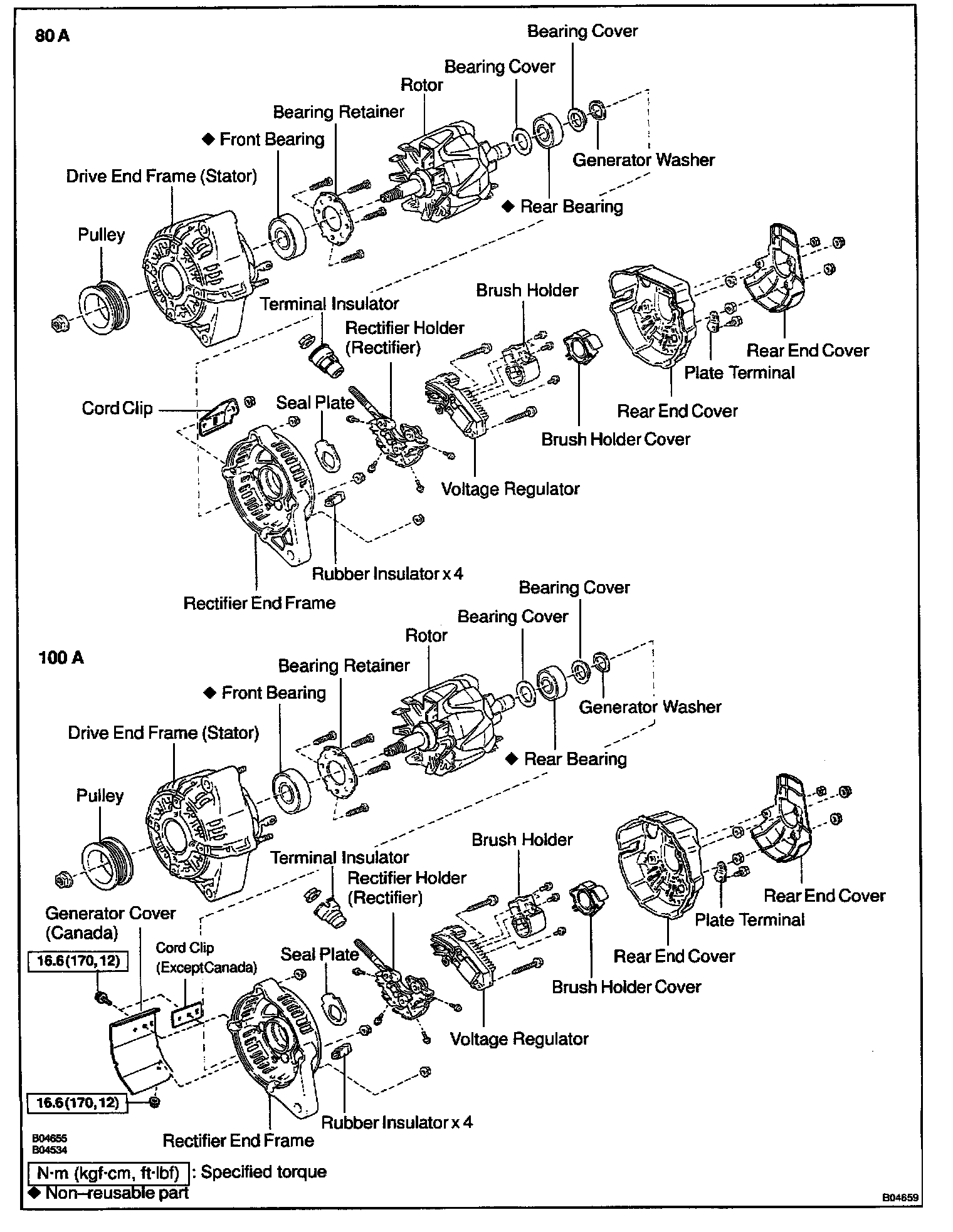

Part 2 Of 2:
