Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2000
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
Exploded Views

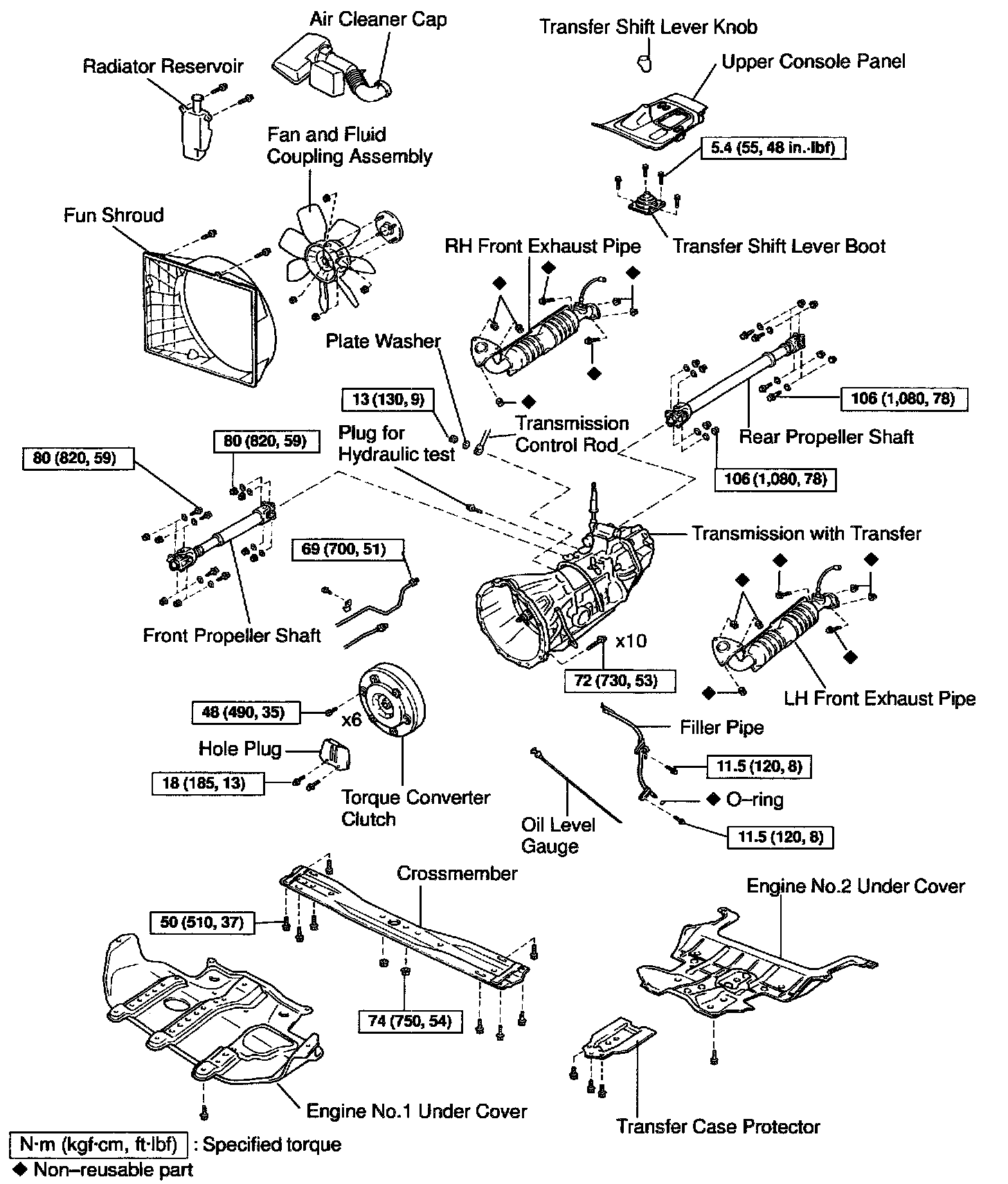

External Components:
Internal Components:
