ABS (Antilock Brake System)

CIRCUIT DESCRIPTION

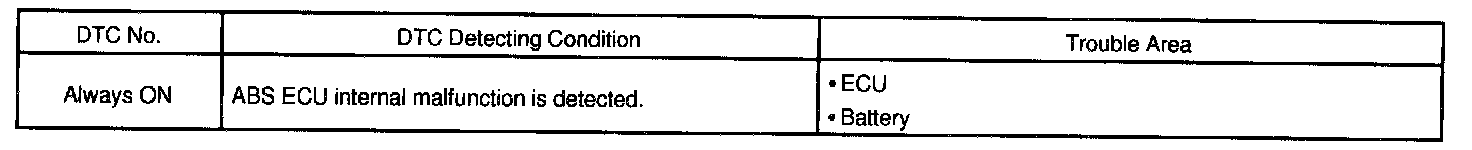

DETECTING CONDITION

Fail Safe Function:
If trouble occurs in the ECU, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.

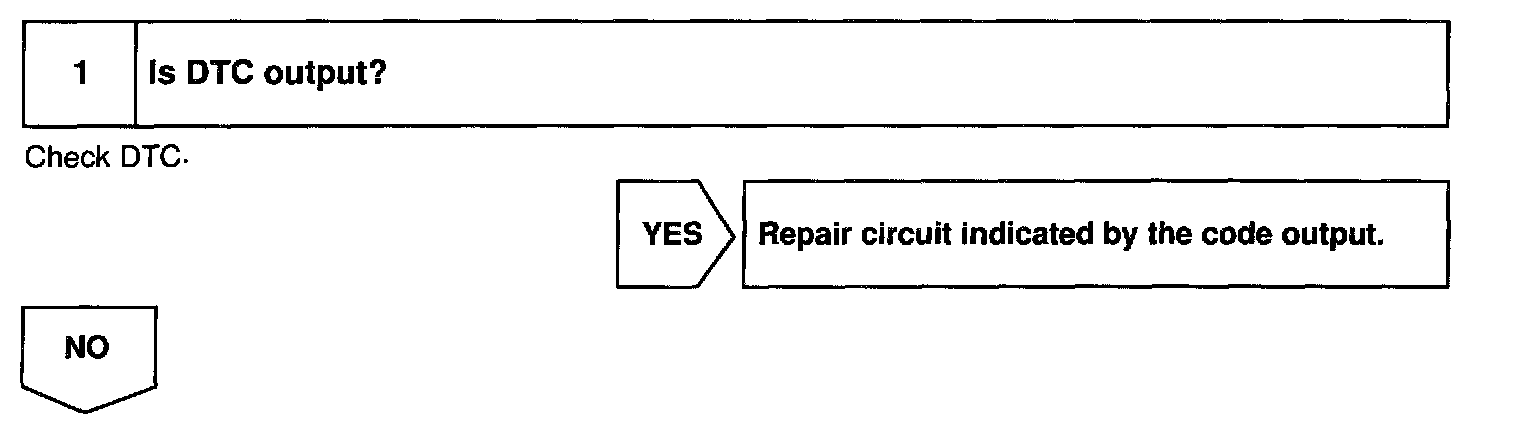

Step 1:

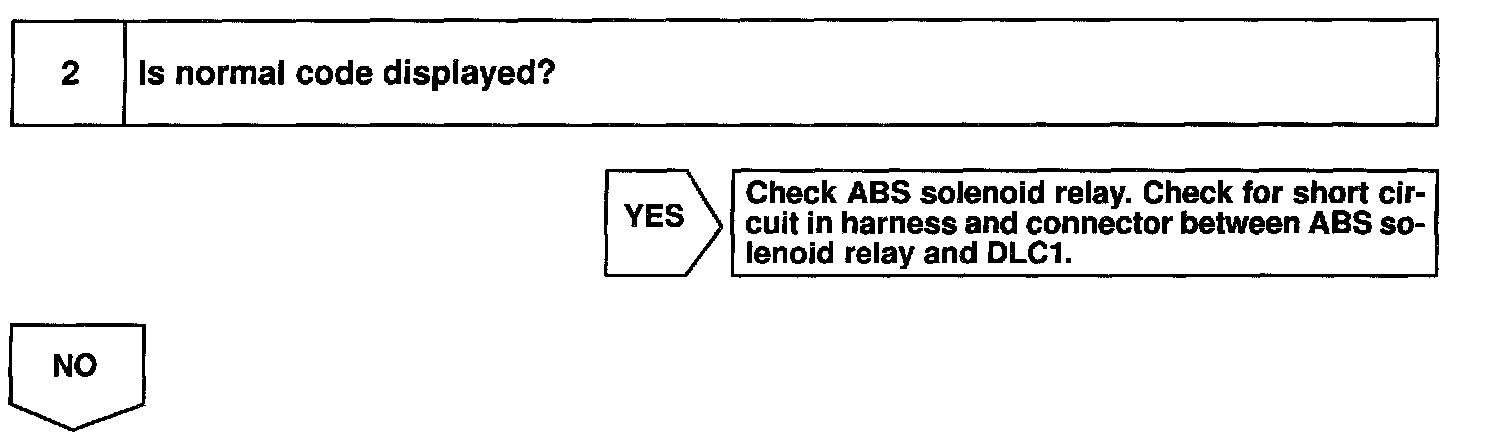

Step 2:

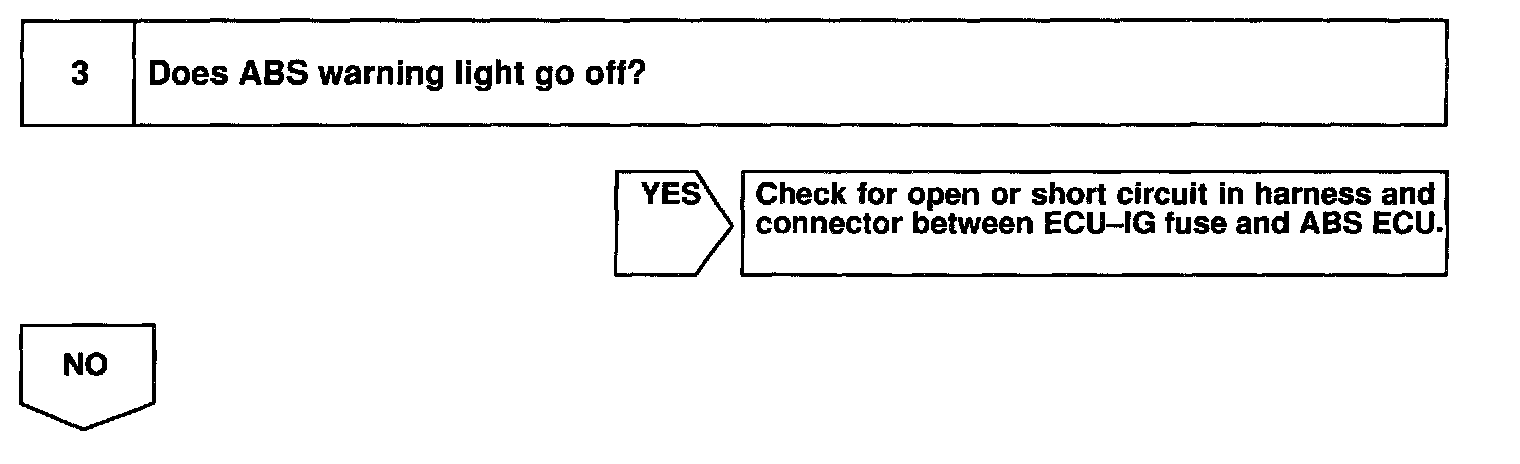

Step 3:

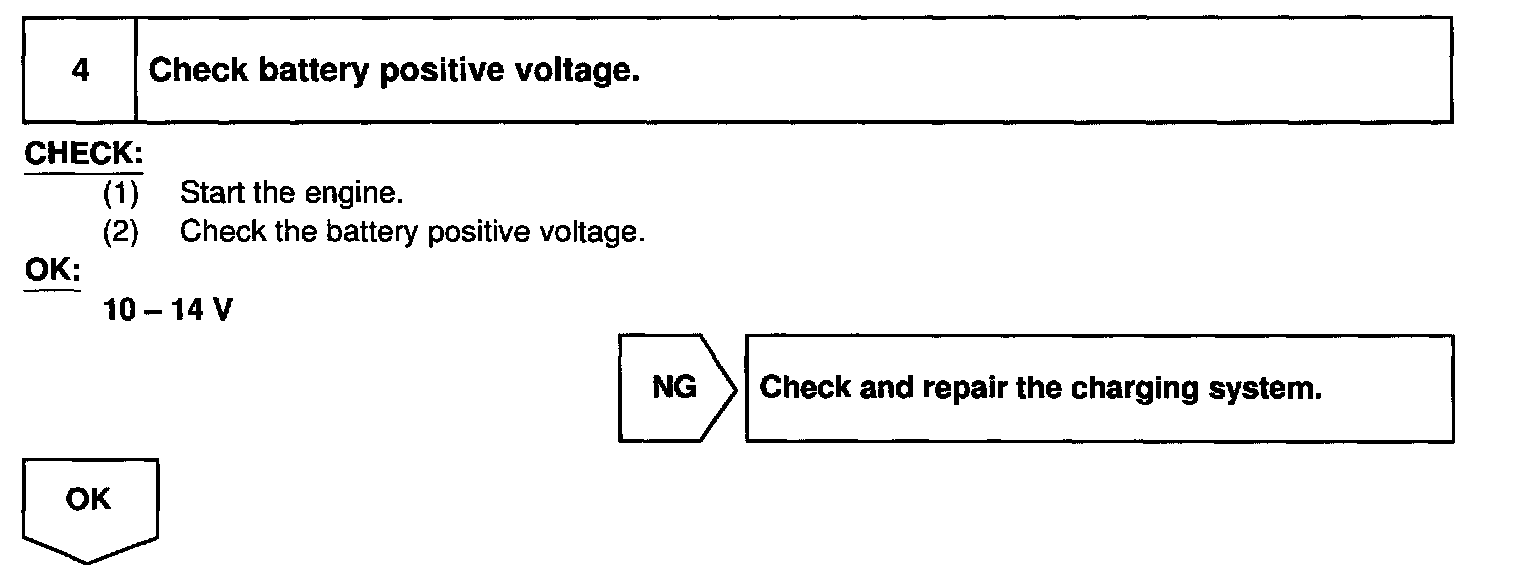

Step 4:

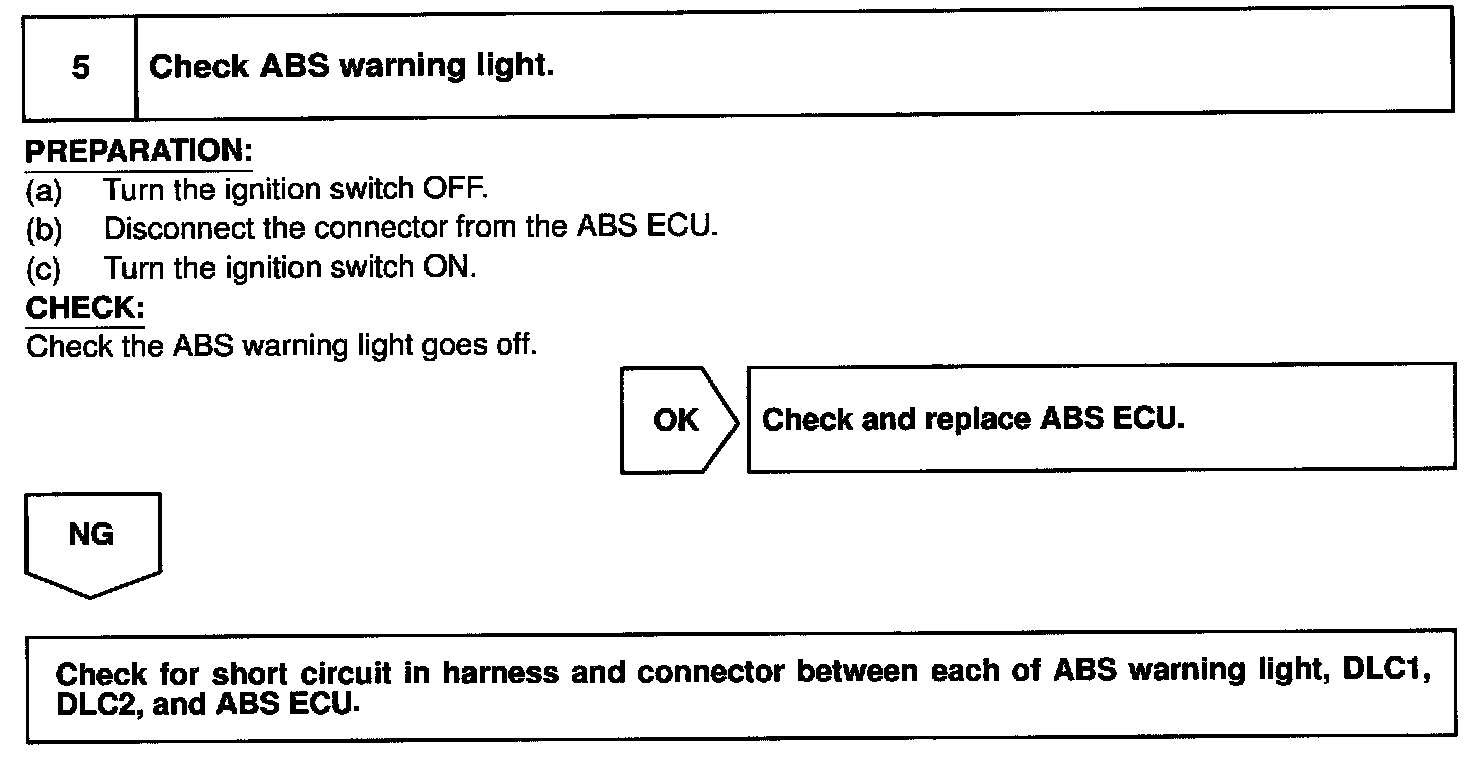

Step 5:




INSPECTION PROCEDURE
