Initial Inspection and Diagnostic Overview
>>
Fail-Safe Operation
Fail-Safe Operation
Part 1:
Part 2:

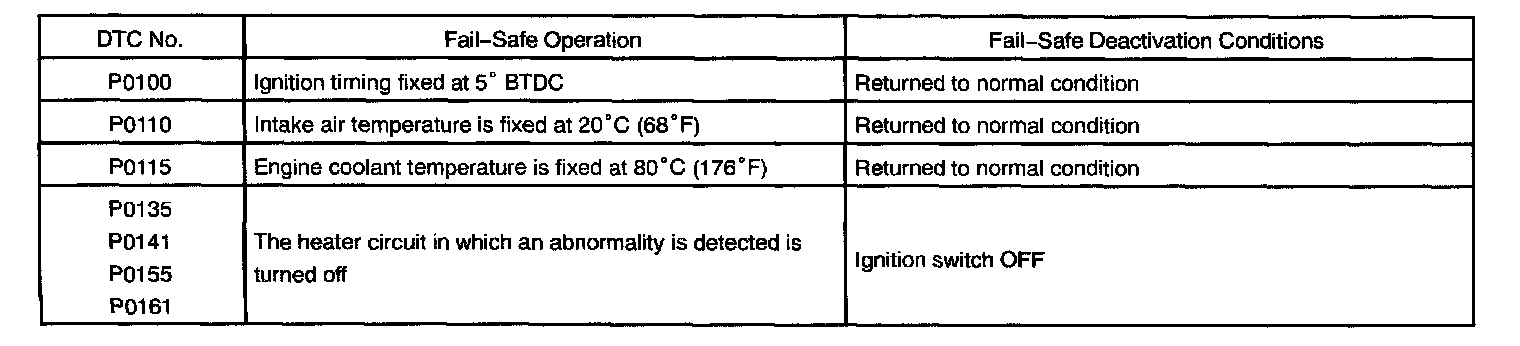

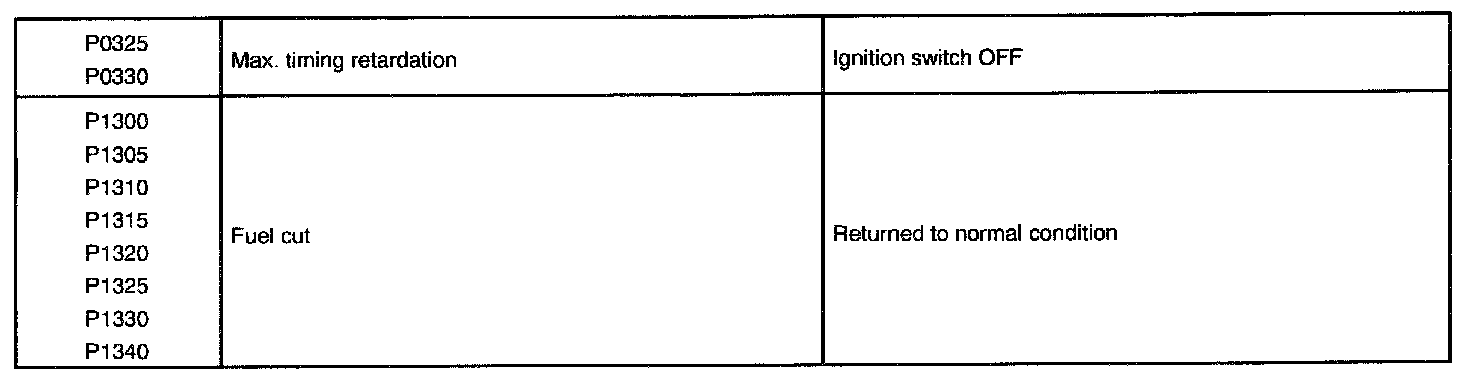

FAIL-SAFE CHART
If any of the codes shown is recorded, the ECM enters fail-safe mode.
