Bulb Circuit

CIRCUIT DESCRIPTION

Some warnings and indicators on the combination meter can be active-tested with the LEXUS hand-held tester.

The procedure is as follows:

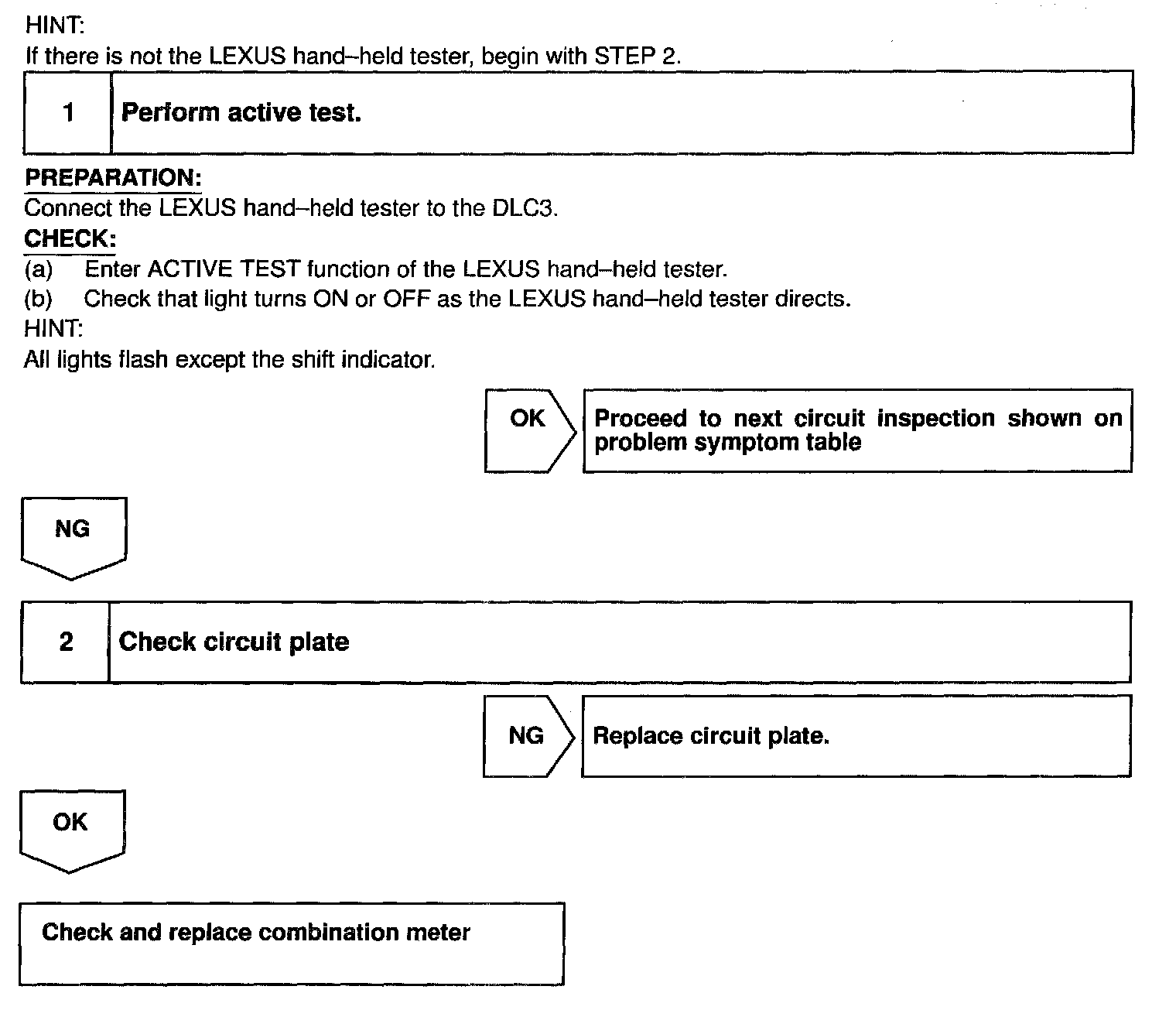

Step 1 - 2:




INSPECTION PROCEDURE
