Mirror Defogger Circuit
CIRCUIT DESCRIPTIONThe Driver Door ECU receives signals from the defogger switch, the wiper switch and the rain sensor to operate the mirror heater.

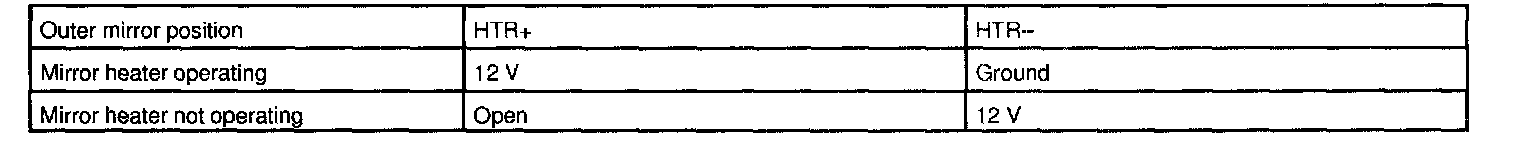

When the battery voltage is supplied to the terminal as follows, the mirror heater functions accordingly.

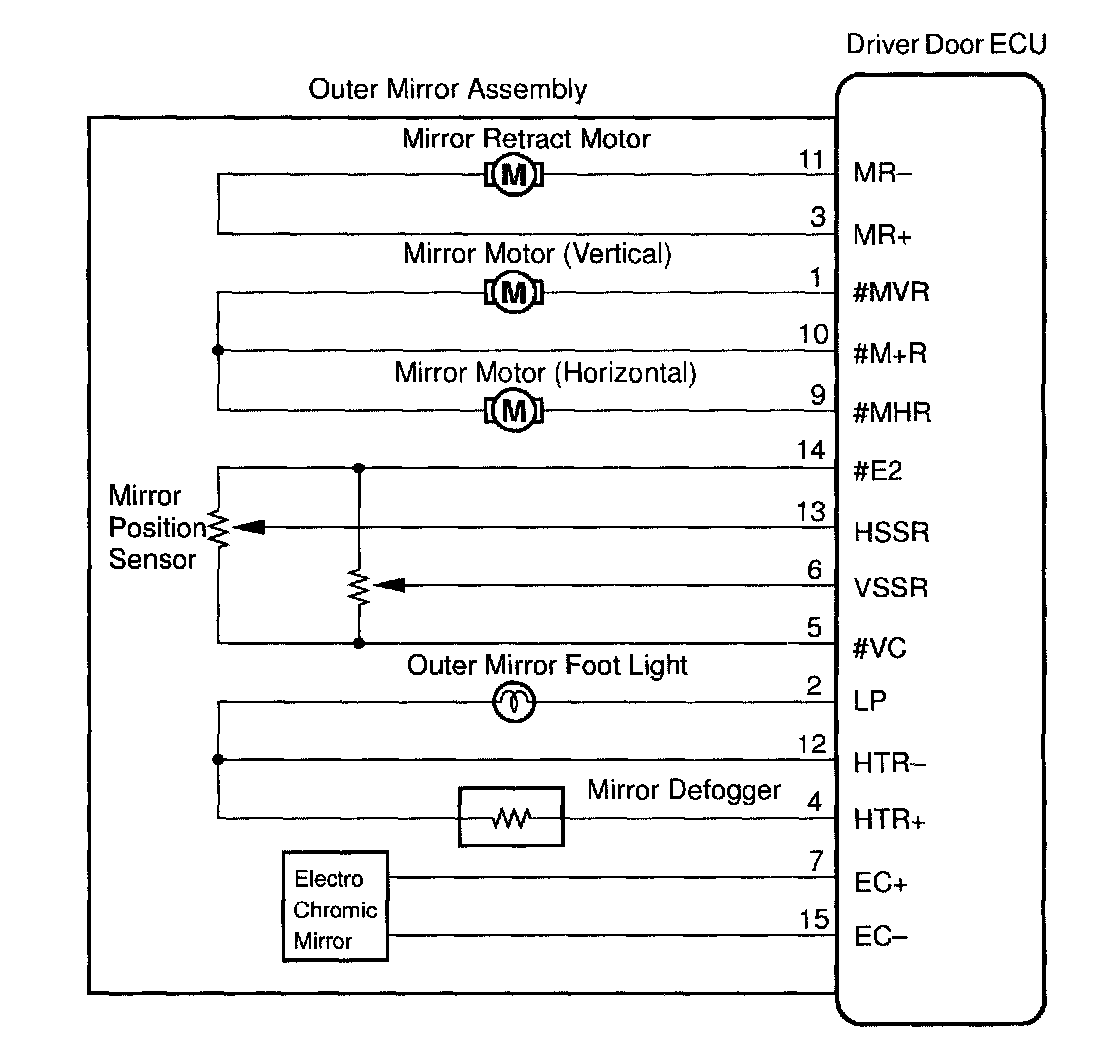

Wiring Diagram:

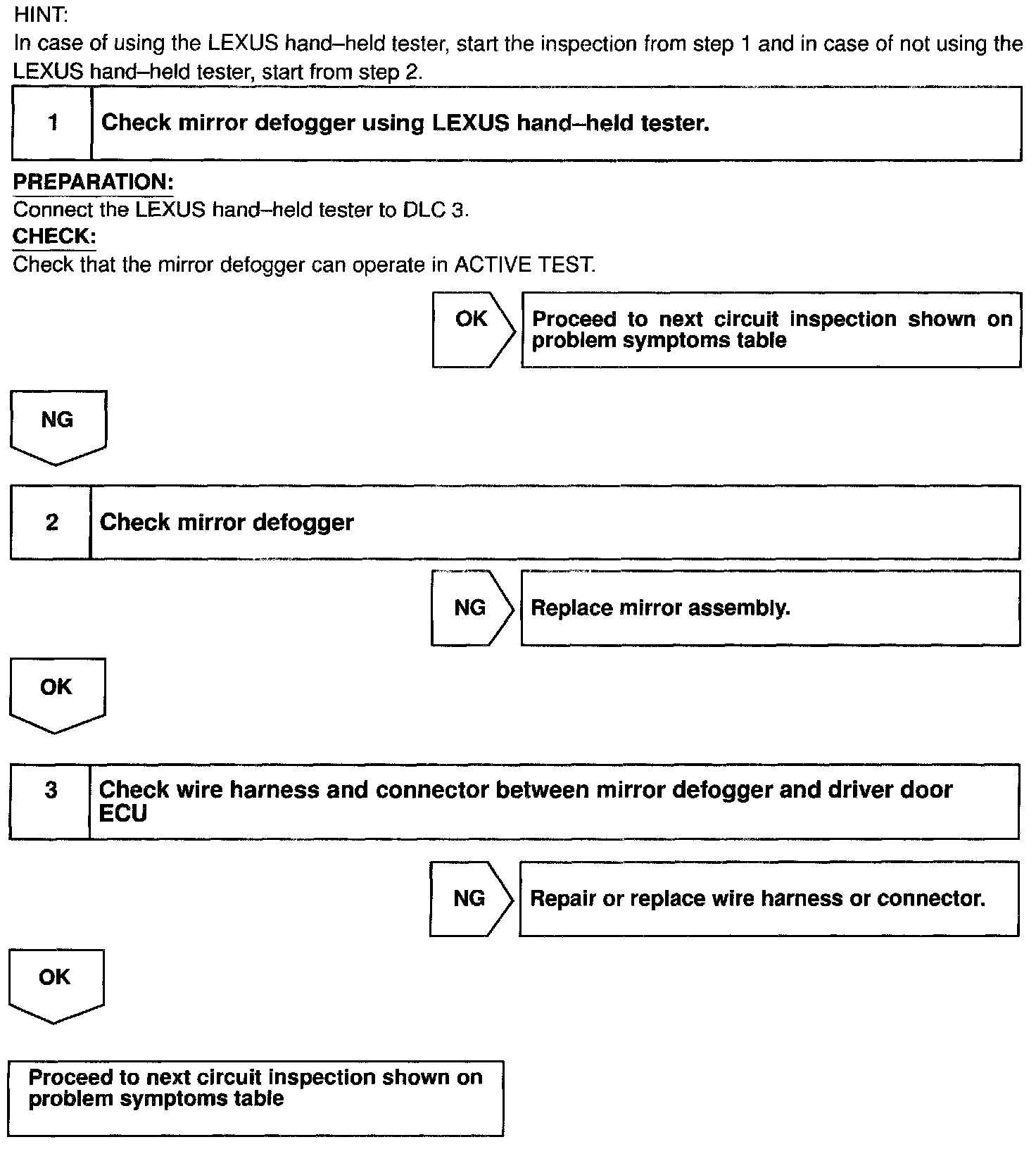

Step 1 - 3:
INSPECTION PROCEDURE
