Power Window Master Switch Circuit

CIRCUIT DESCRIPTION

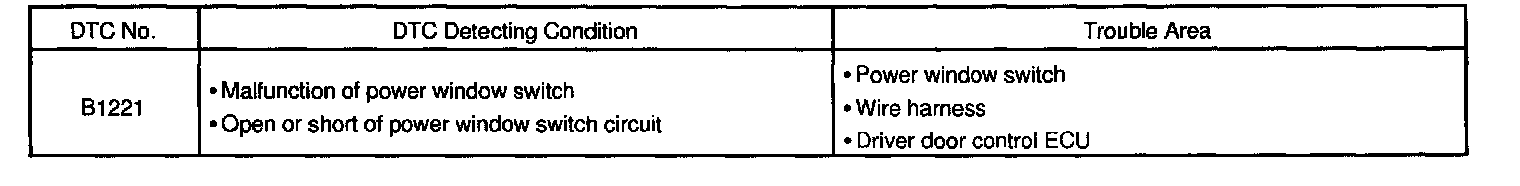

DTC Detecting Condition:

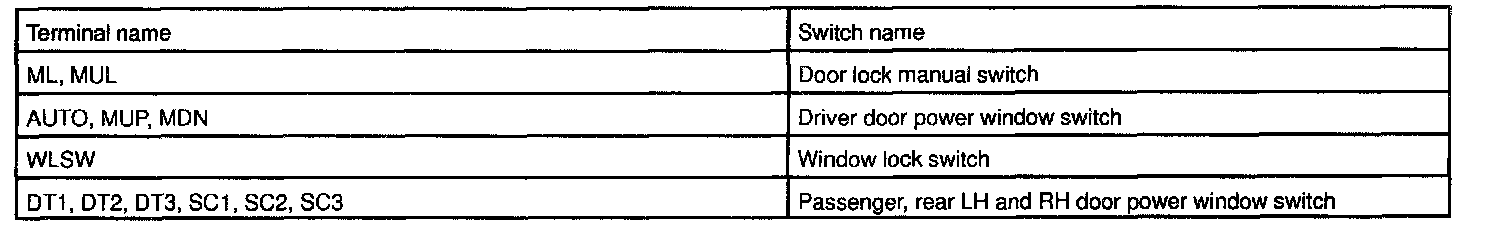

Each terminal sends the following information to the Driver Door ECU.




WLSW:
Pressing the window lock switch of the master switch sends a signal to the ECU. This cuts the electricity to switches of the passenger, rear LH and RH door power windows, which forbids the power window control system operation with these switches.

DT1, DT2, DT3, SC1, SC2, SC3:

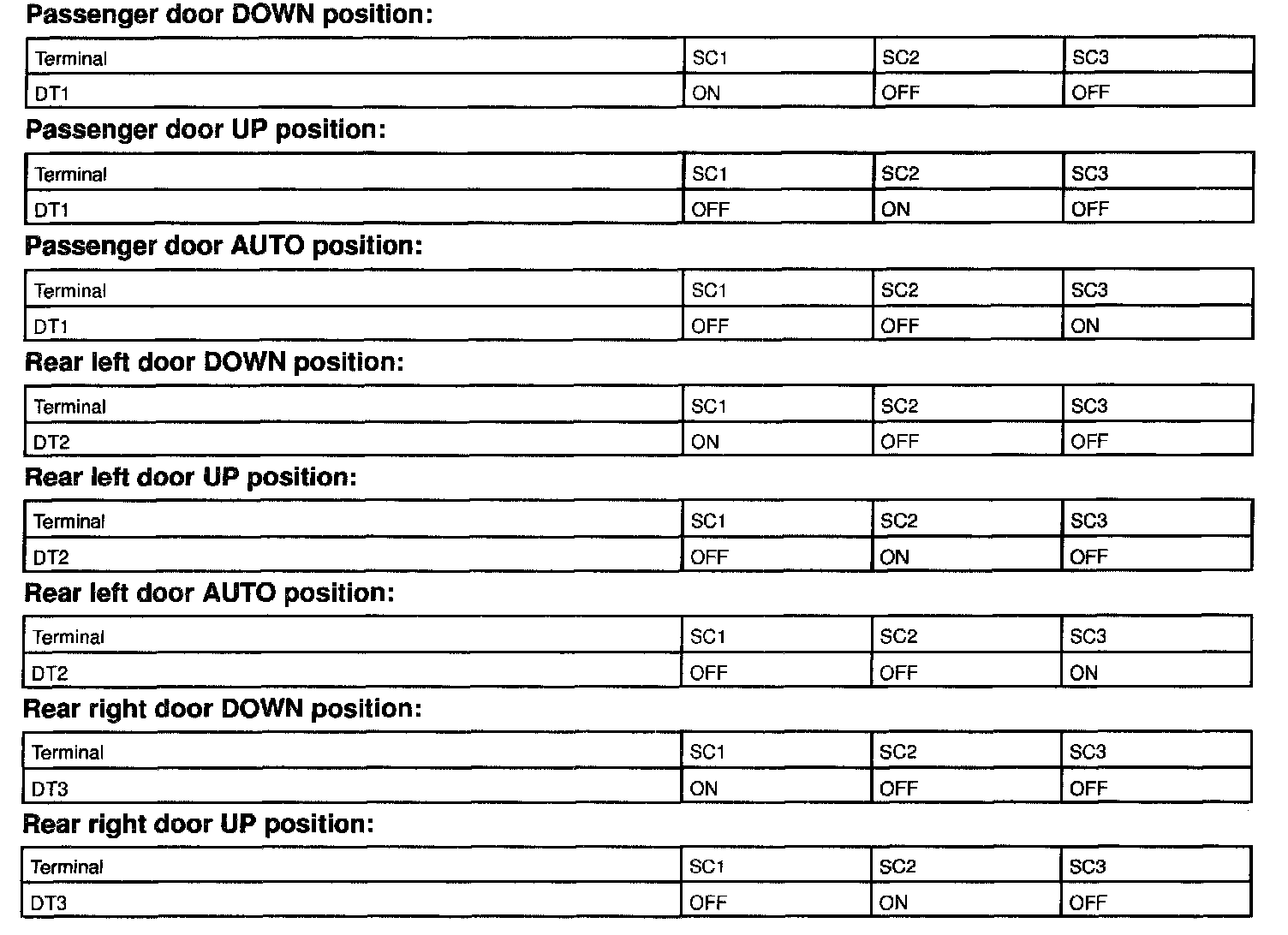

The Driver Door ECU distinguishes UP, DOWN and AUTO positions of the power window in the passenger and rear LH and RH door according to the combination matrix of terminals.

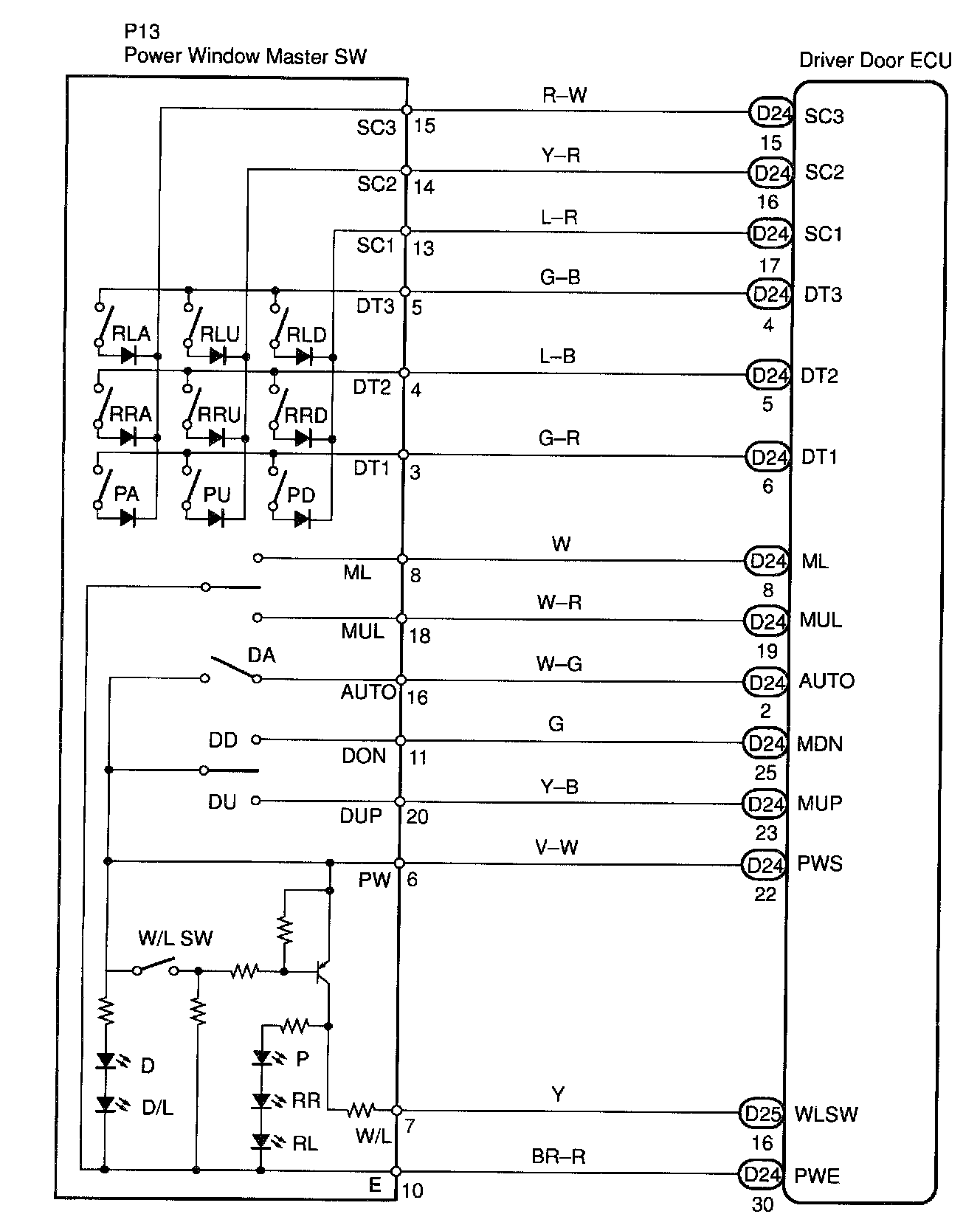

Wiring Diagram:

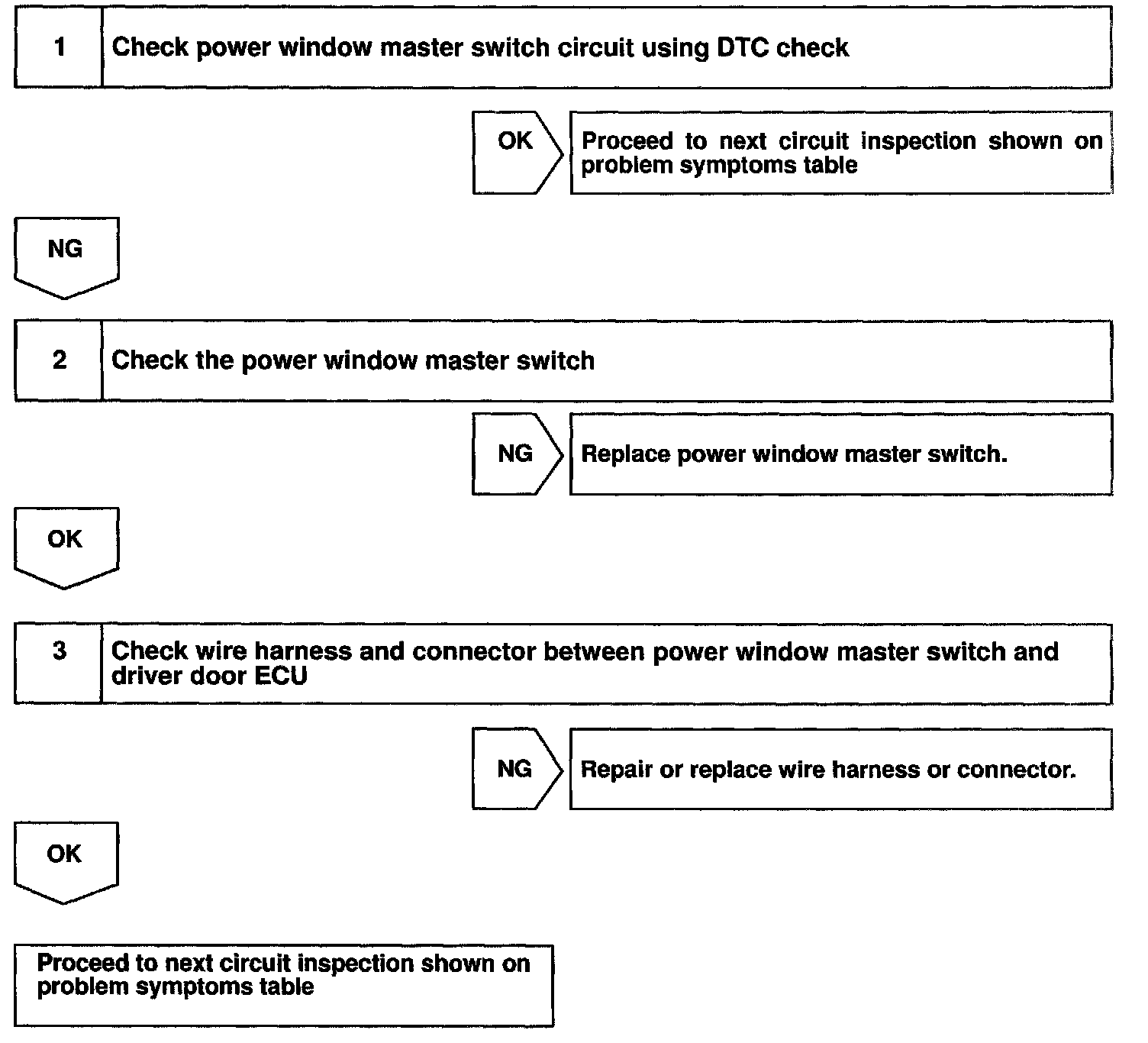

Step 1 - 3:




INSPECTION PROCEDURE
