Mirror Defogger Circuit
CIRCUIT DESCRIPTIONThe passenger door ECU receives signals from the defogger switch, the wiper switch and the rain sensor to operate the mirror defogger.

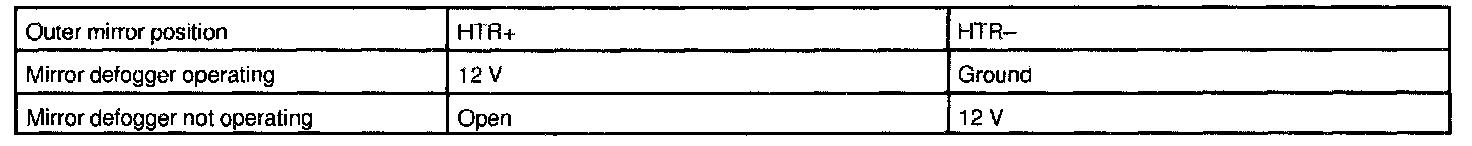

When the battery voltage is applied to the terminal as follows, the mirror defogger functions accordingly.

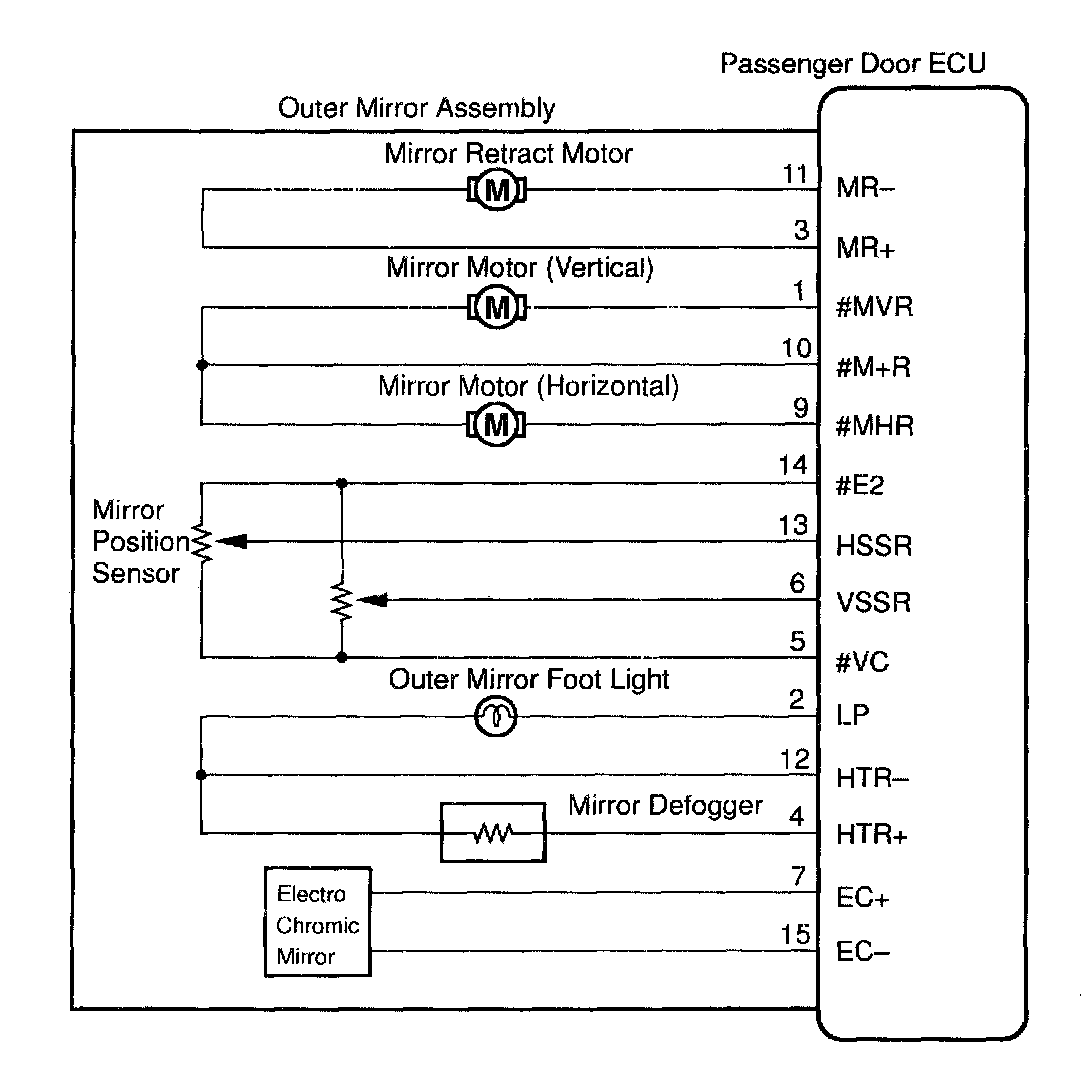

Wiring Diagram:
Step 1 - 3:

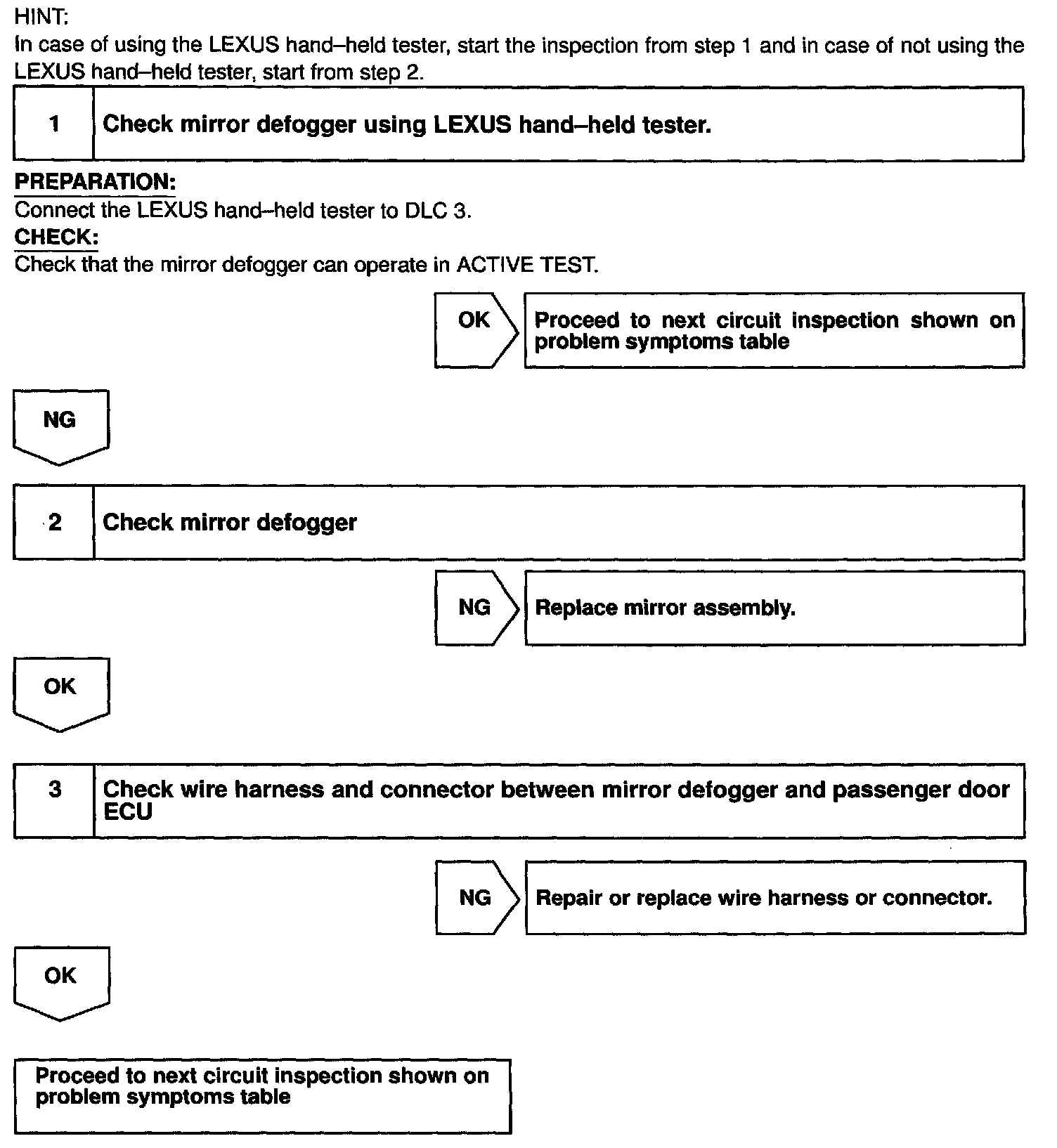

INSPECTION PROCEDURE
