Mirror Position Sensor Circuit (w/ Memory)

CIRCUIT DESCRIPTION

The mirror position sensor is built in the outer mirror assembly.

The position detected by the mirror position sensor will be memorized in the driver seat ECU.

This sensor is equipped in the mirror to operate memory function.
HSSR: horizontal direction & position sensor
VSSR: vertical direction & position sensor

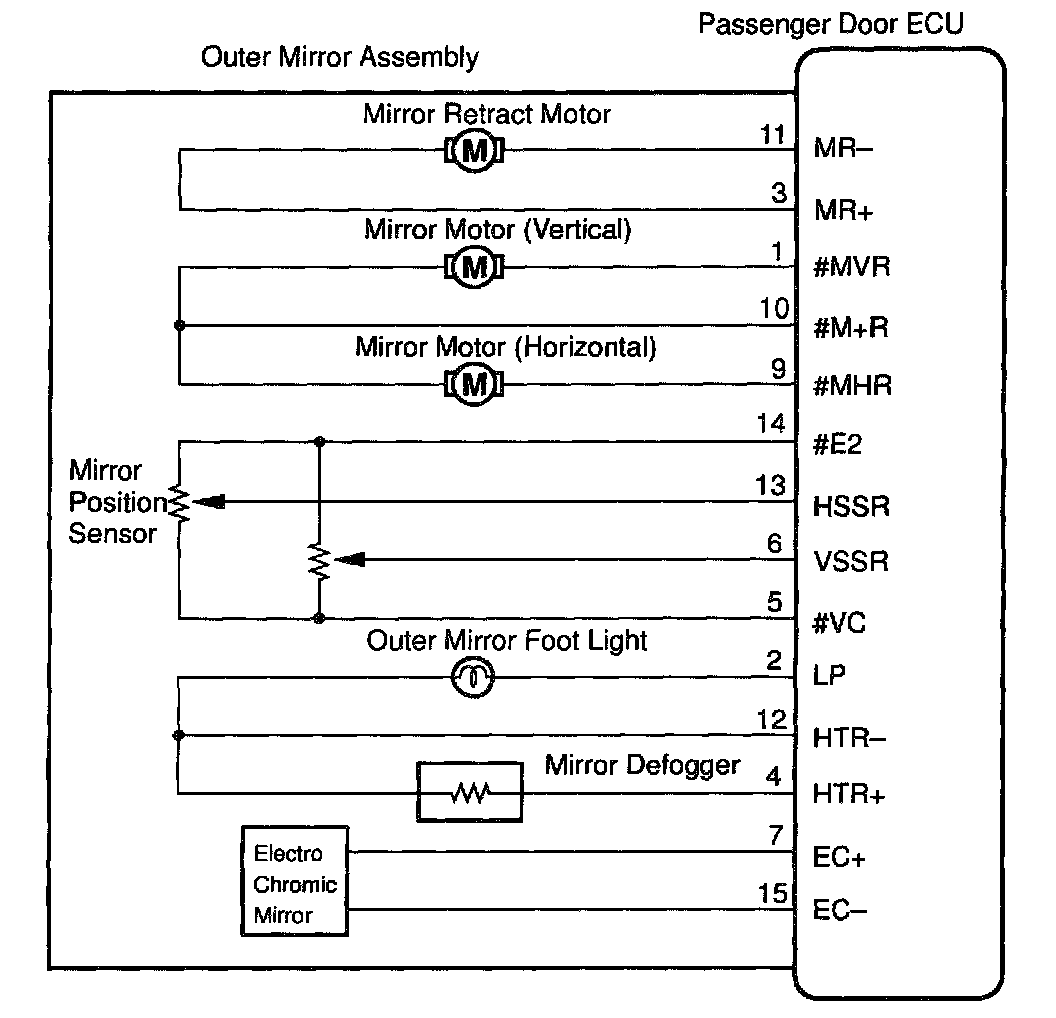

Wiring Diagram:

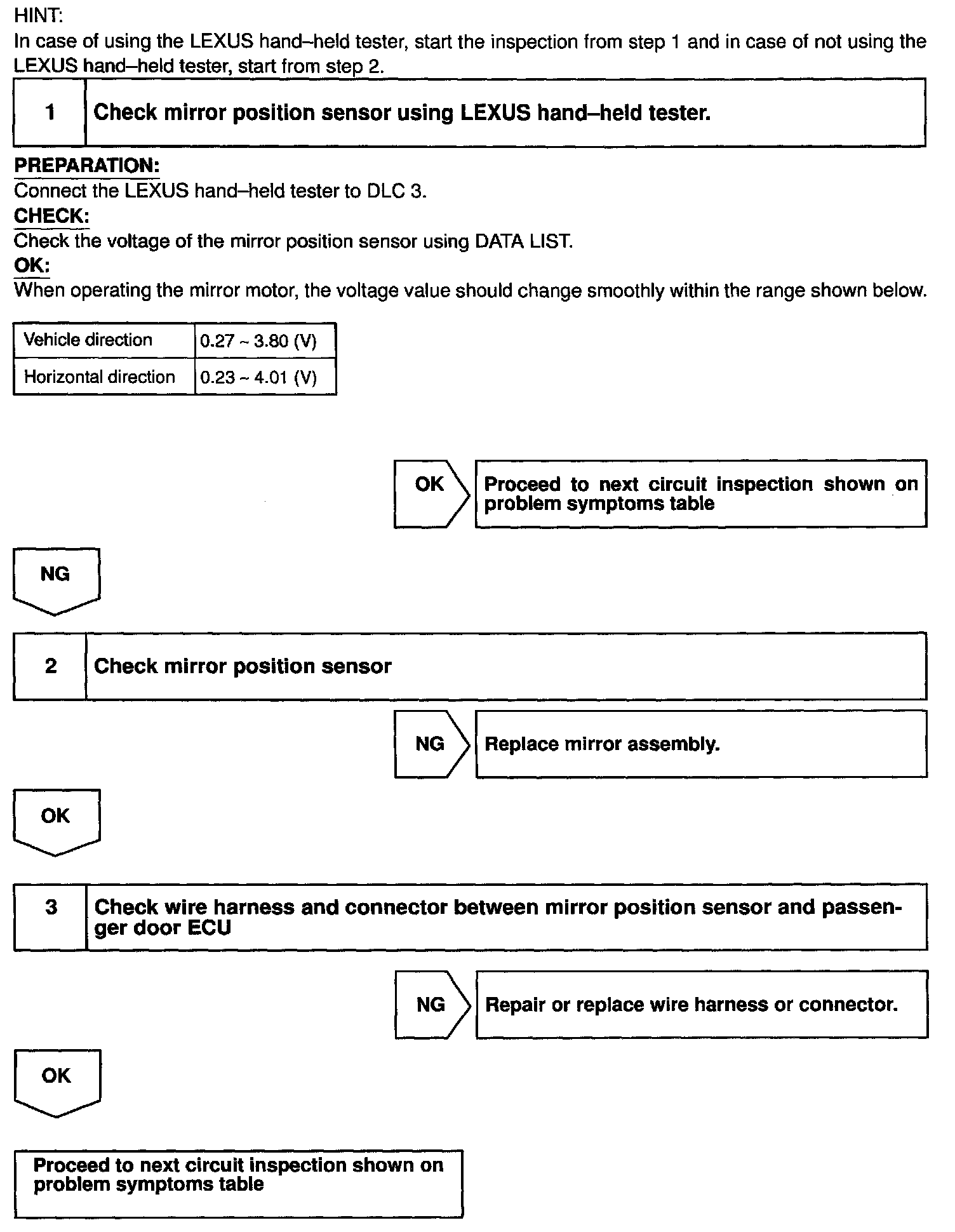

Step 1 - 3:

INSPECTION PROCEDURE
