Power Window Motor Circuit

CIRCUIT DESCRIPTION

The passenger door ECU receives the passenger door power window switch signal from the master switch to operate the power window motor.

Wiring Diagram:

Step 1 - 3:

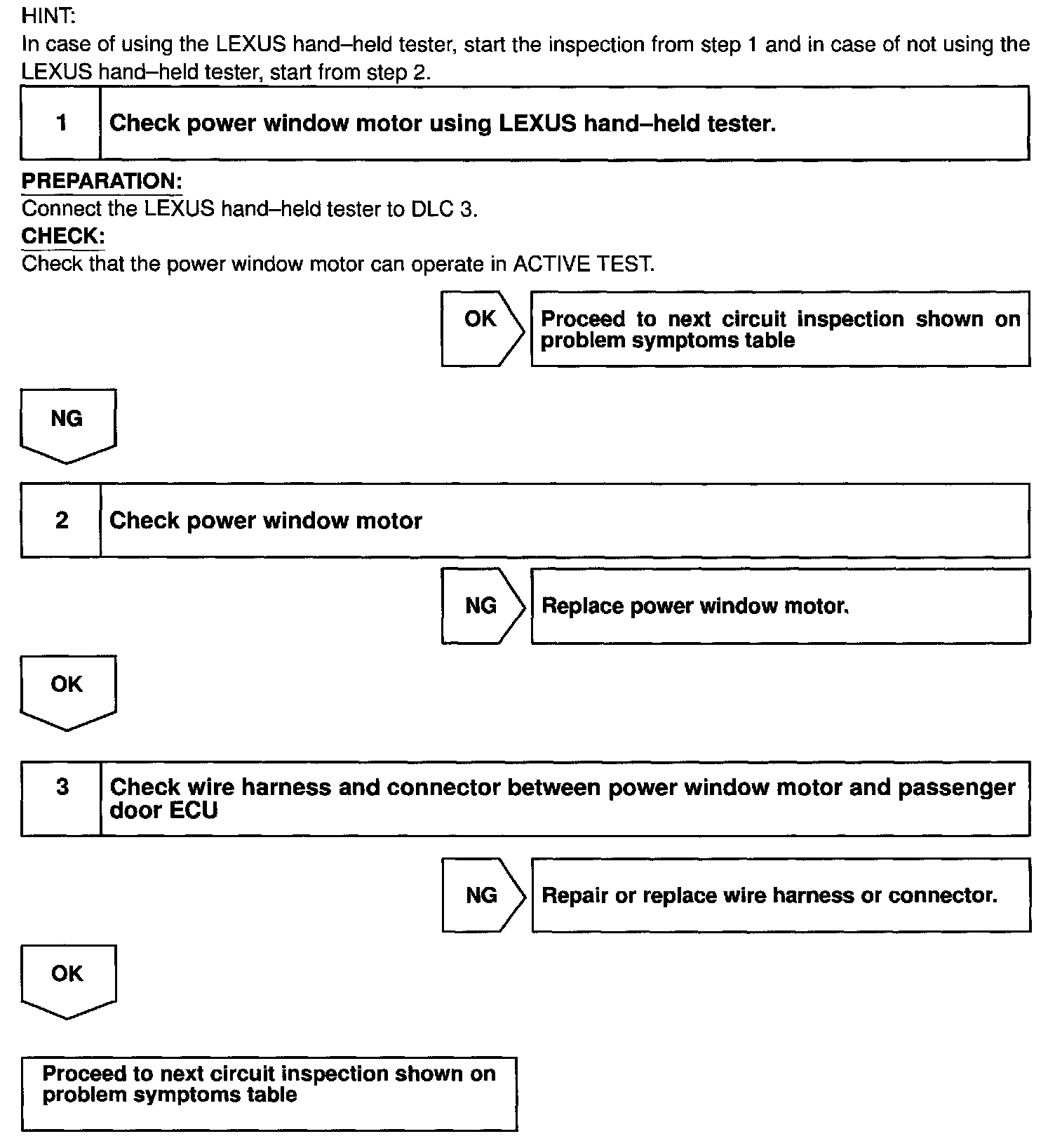

INSPECTION PROCEDURE
