Retract Motor Circuit

CIRCUIT DESCRIPTION

The retract motor is built in the outer mirror assembly.

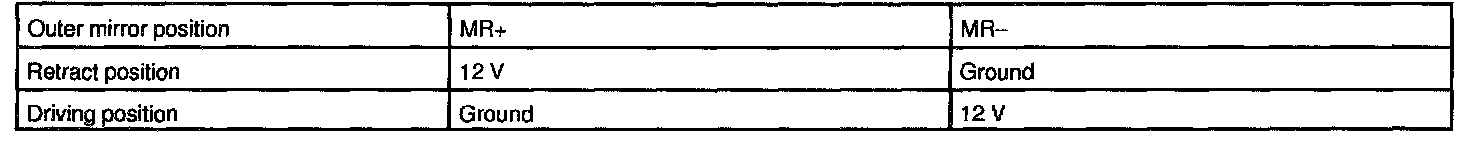

When the battery voltage is applied to the terminal as follows, the outer mirror moves accordingly.

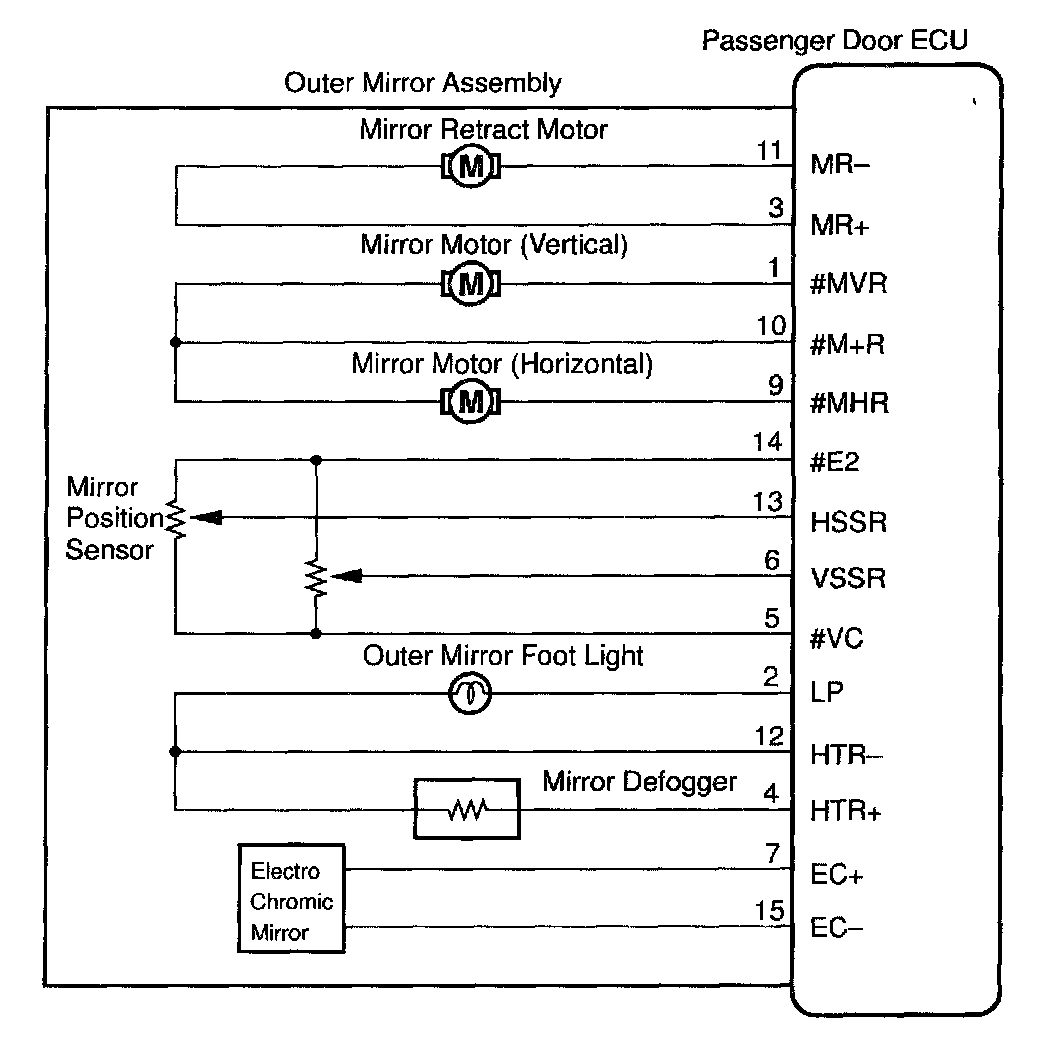

Wiring Diagram:

Step 1 - 3:

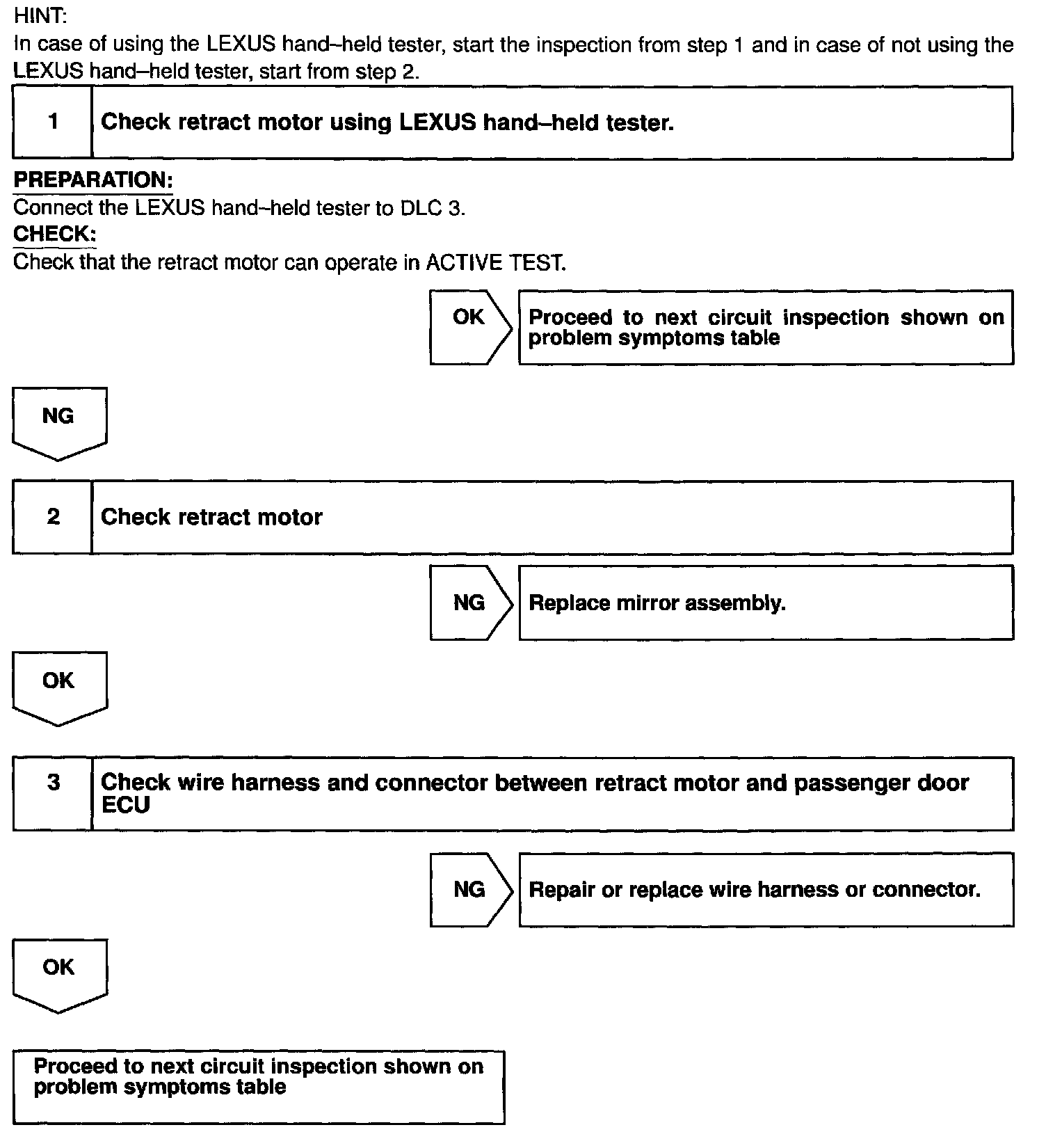

INSPECTION PROCEDURE
