Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

HINT: Related Systems are mentioned in (- system).

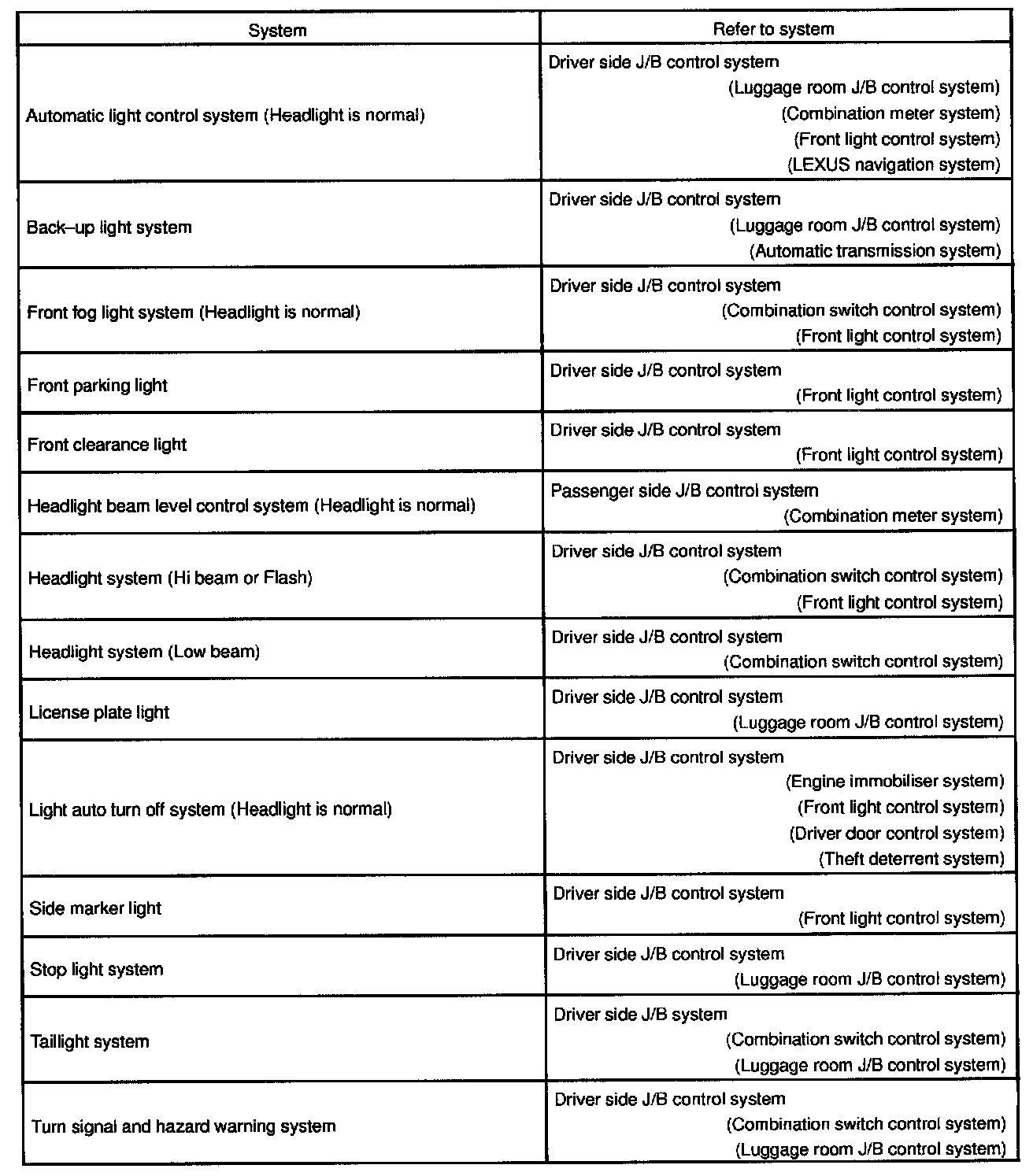

Problem Symptoms Table - Lighting System:

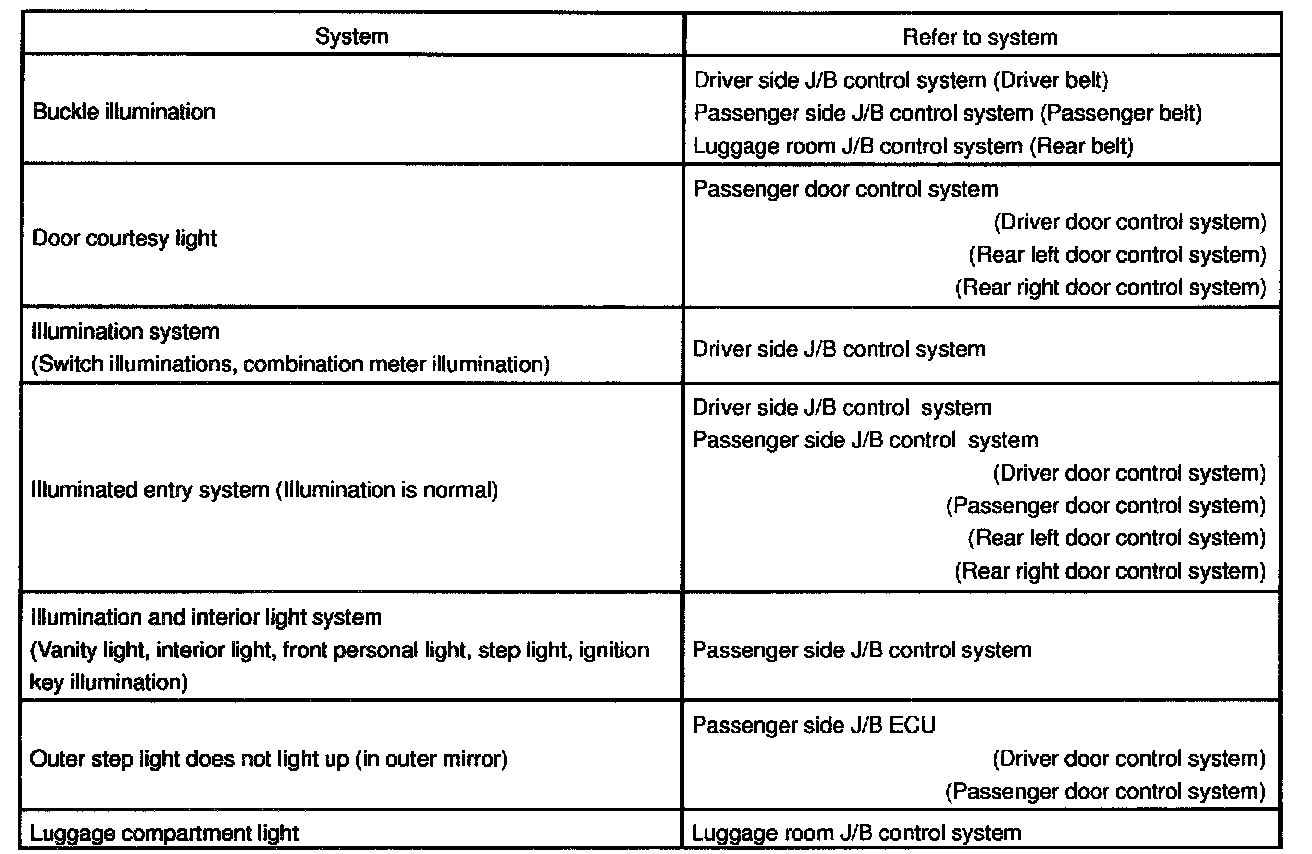

Problem Symptoms Table - Illumination System:

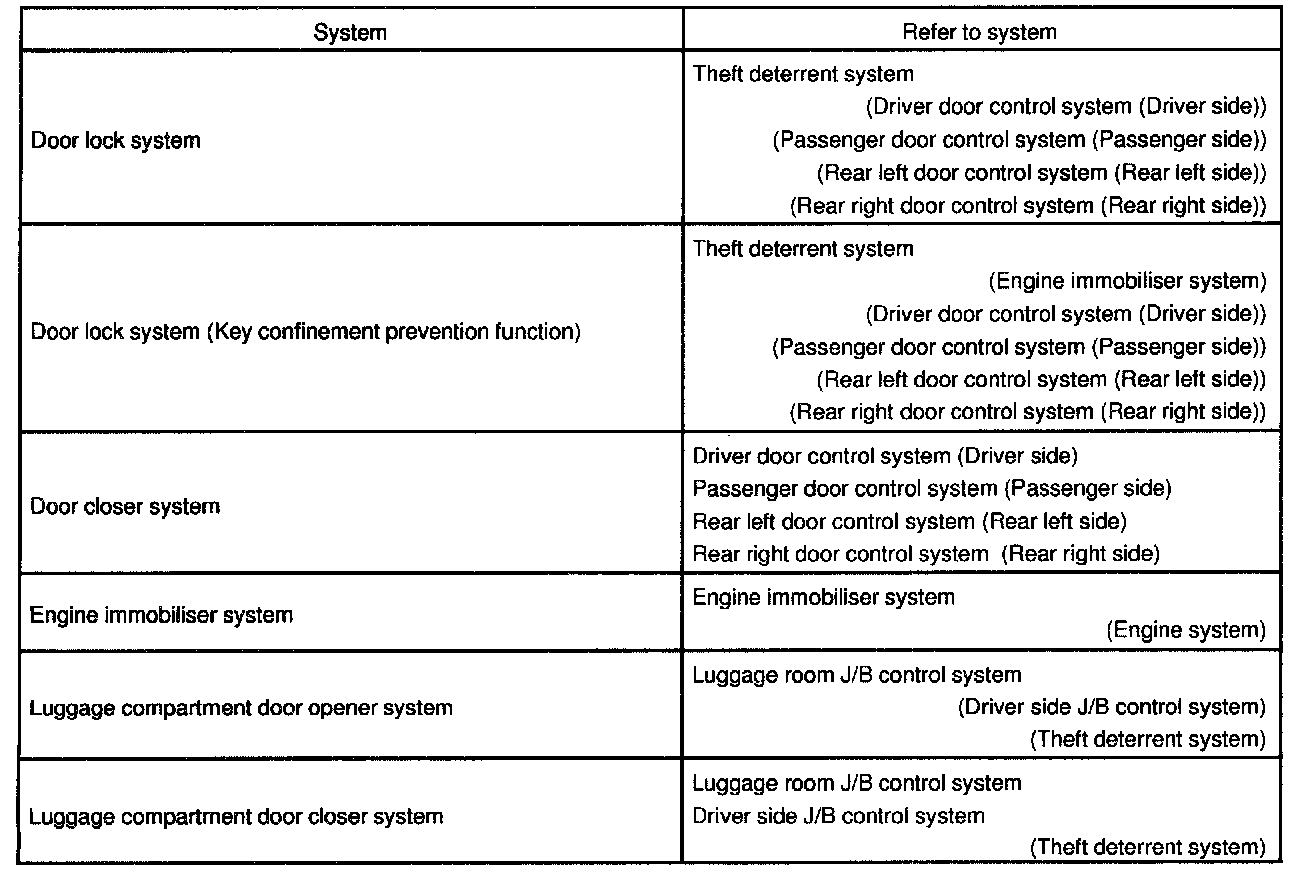

Problem Symptoms Table - Window, Door Lock And Security System Part 1:

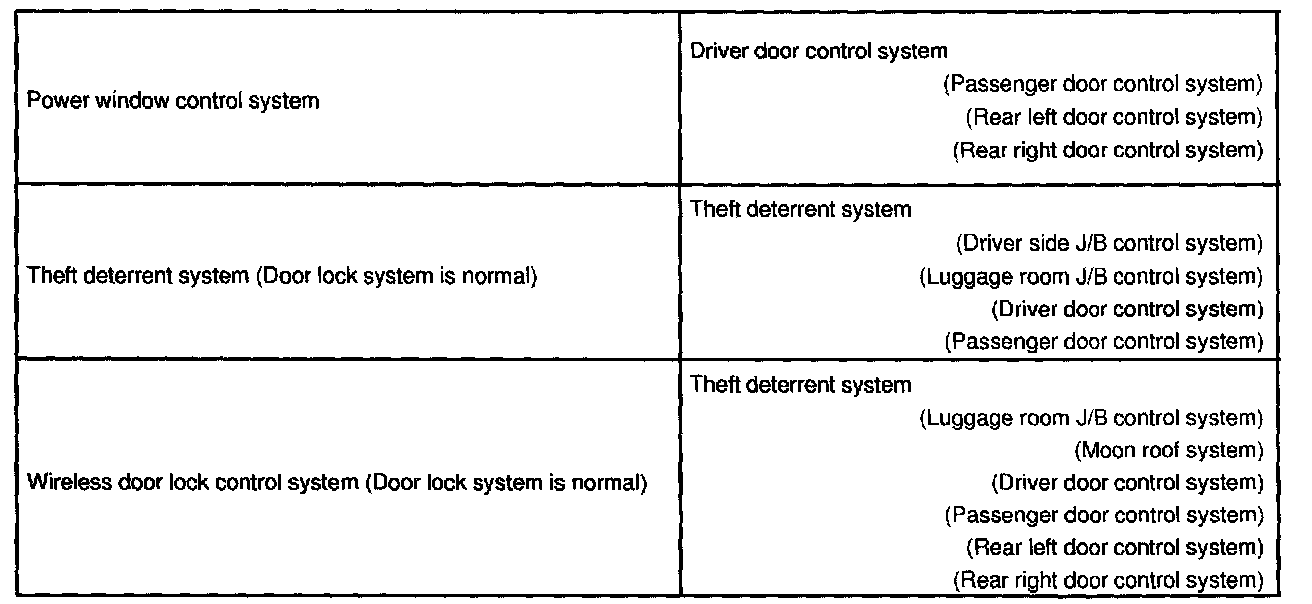

Problem Symptoms Table - Window, Door Lock And Security System Part 2:

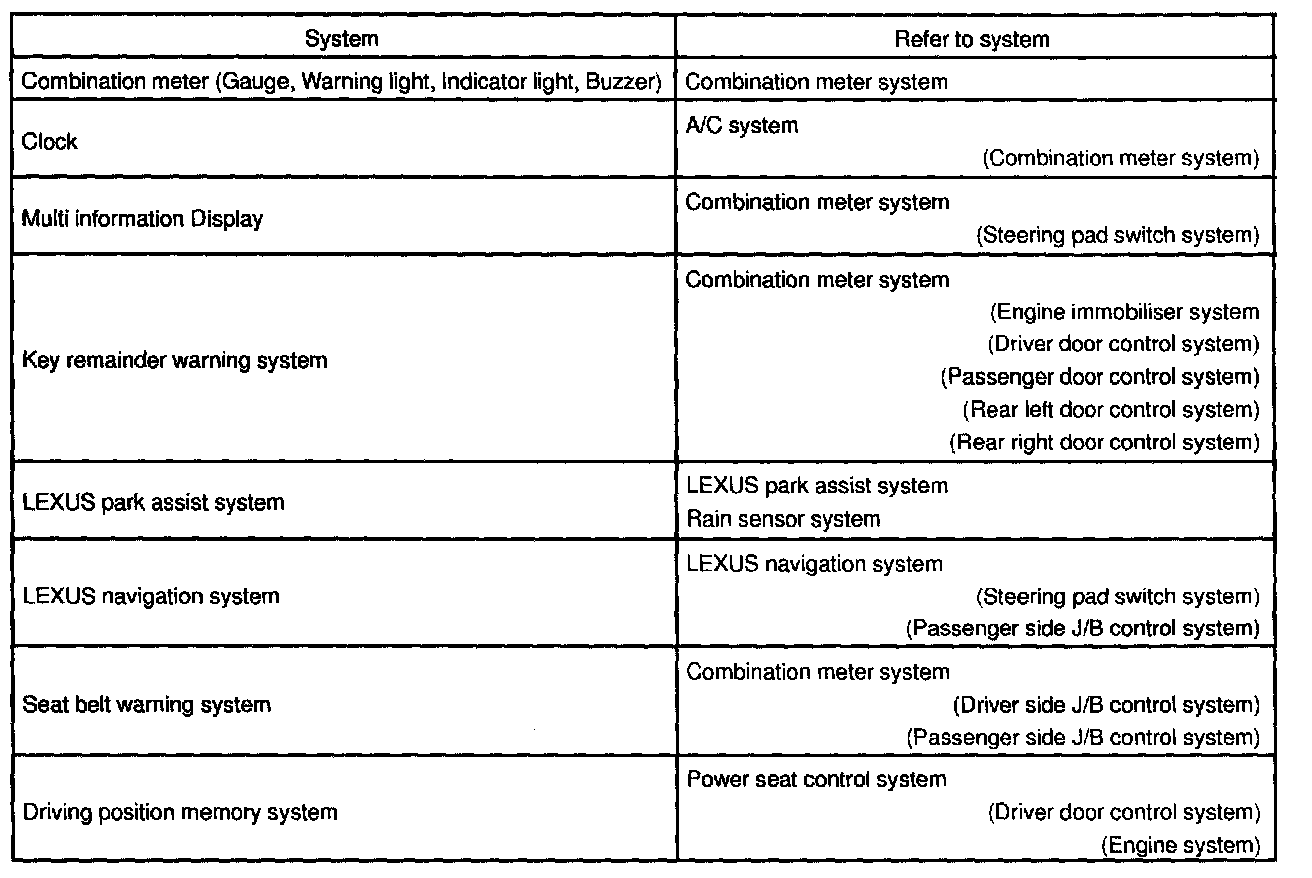

Problem Symptoms Table - Driver Information Systems:

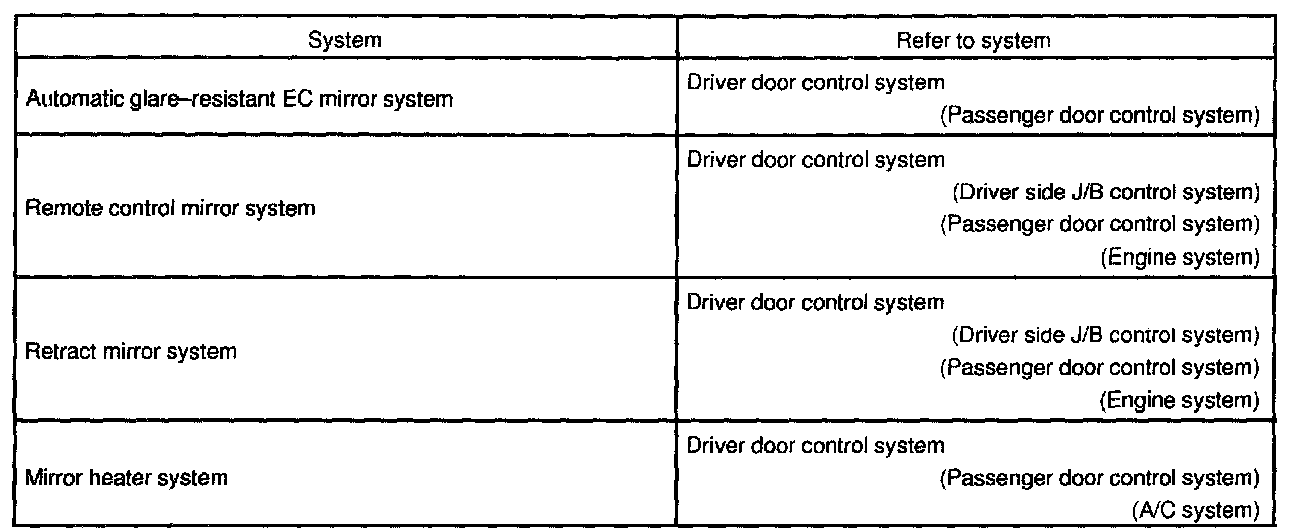

Problem Symptoms Table - Mirror System:

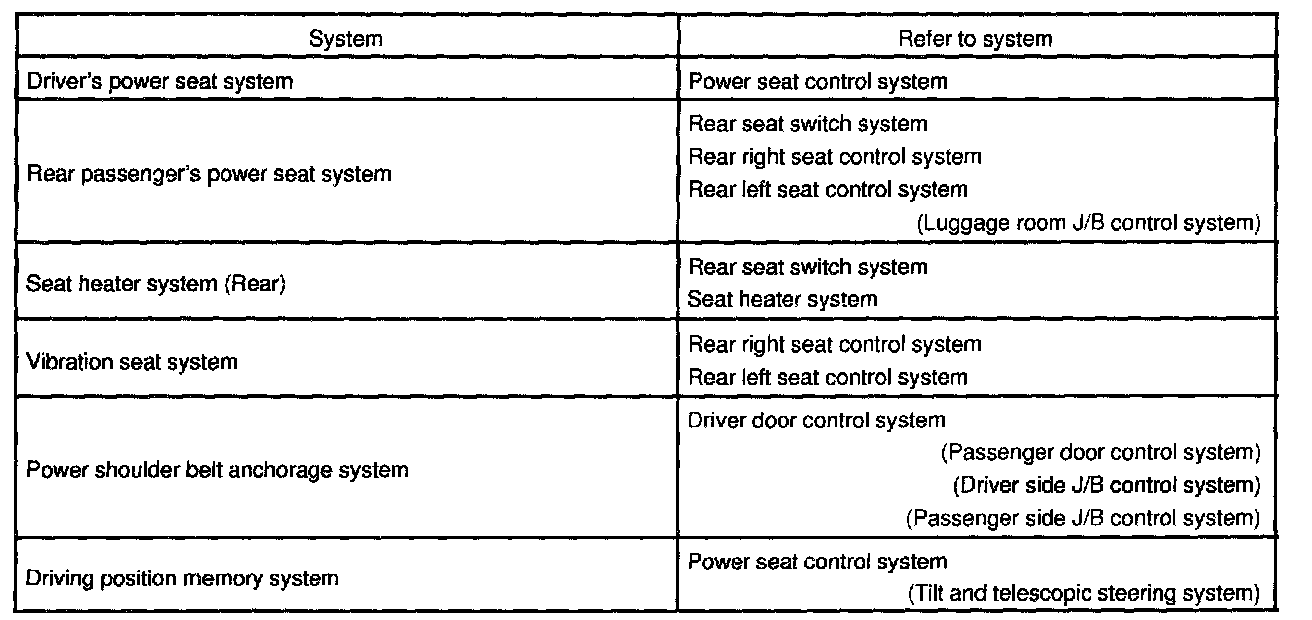

Problem Symptoms Table - Seat And Seat Belt System:

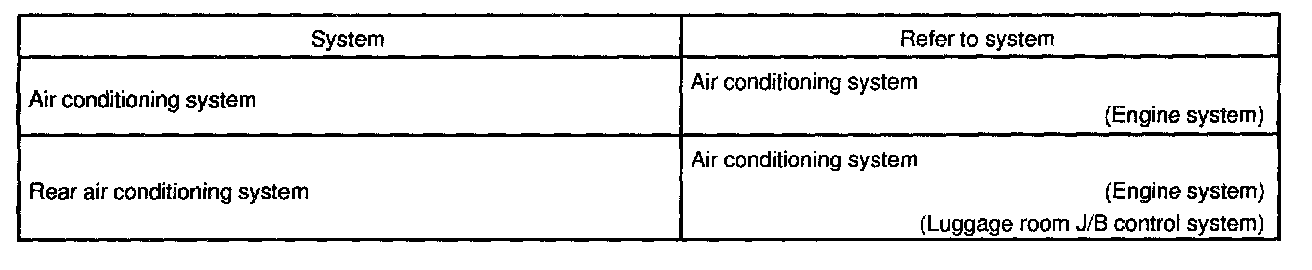

Problem Symptoms Table - Air Conditioning System:

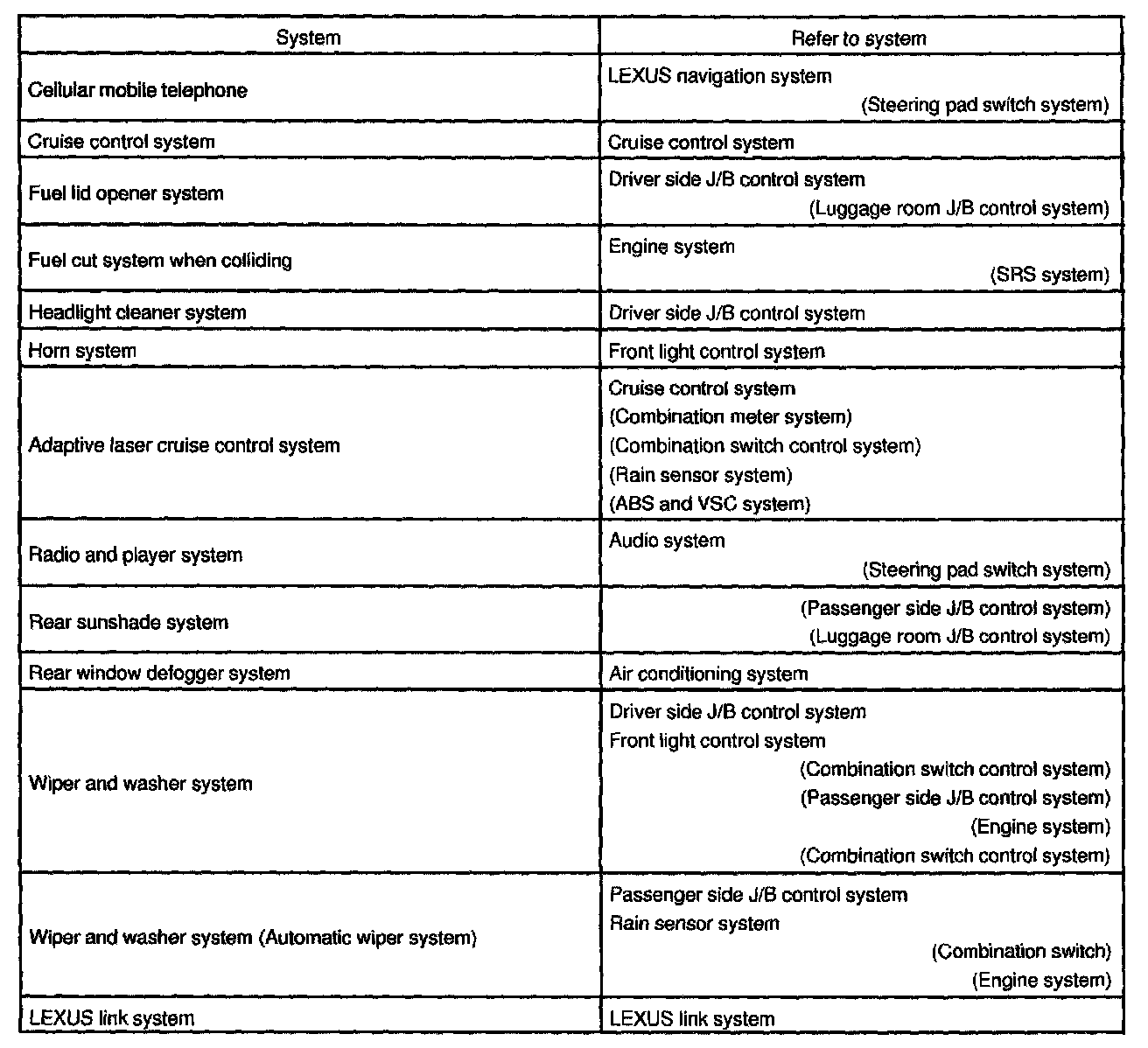

Problem Symptoms Table - Other Systems:
