Inspection
INSPECTIONINSPECT OIL CONTROL VALVE OPERATION

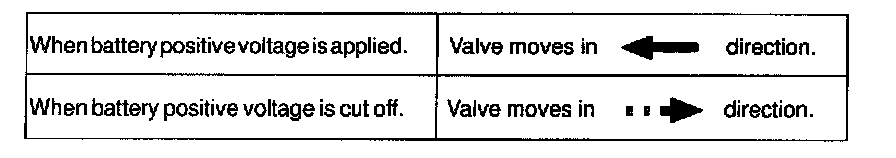

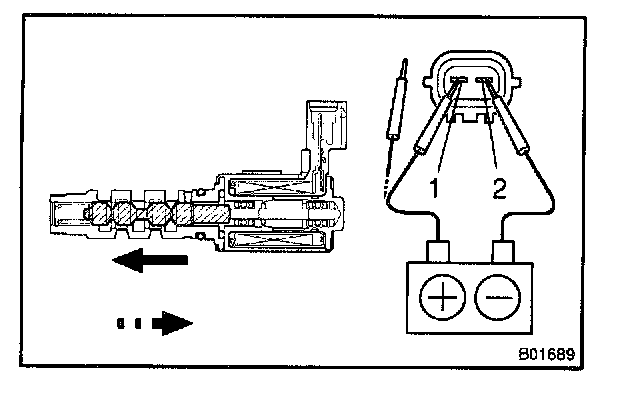

Connect positive (+) lead to terminal 1 of connector and negative (-) lead to terminal 2, then check the movement of the valve.
If operation is not as specified, replace the oil control valve.
