Locations
>>
Component Locations
Component Locations

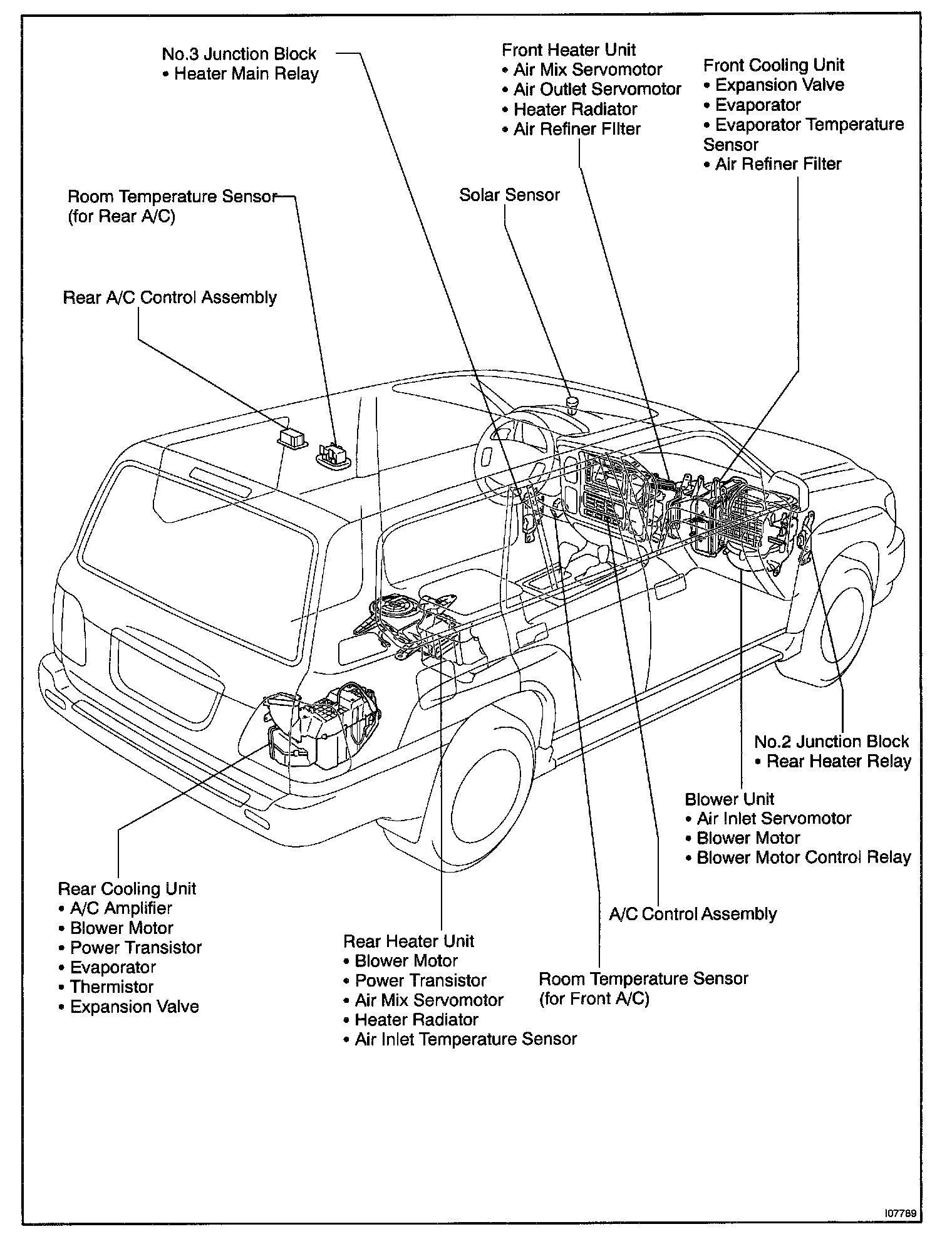

Air Conditioning System (Part 1):

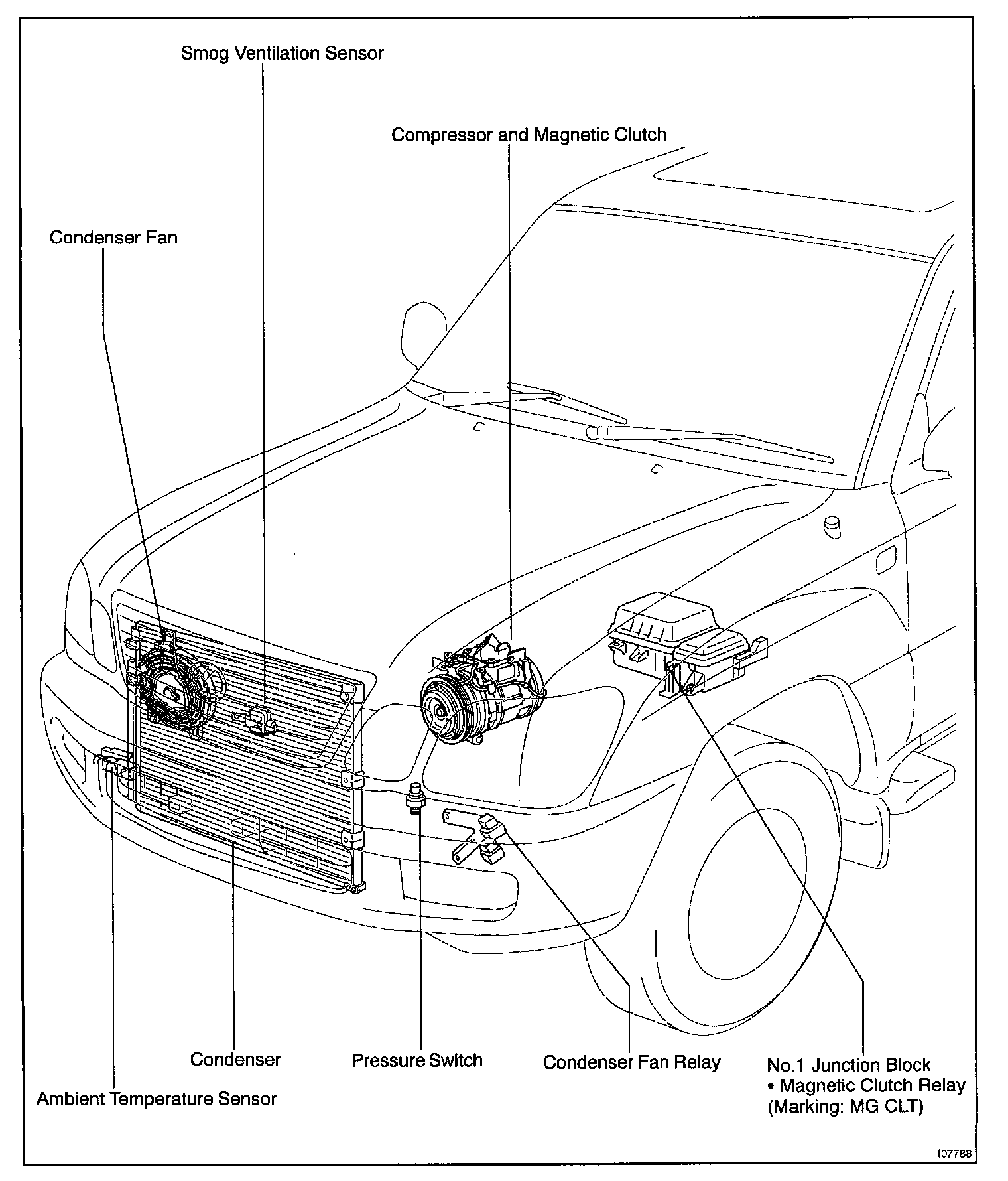

Air Conditioning System (Part 2):
