Impact Sensor
Impact Sensor
Center Airbag Sensor Assembly:
Front Airbag Sensor:
Side Airbag Sensor:

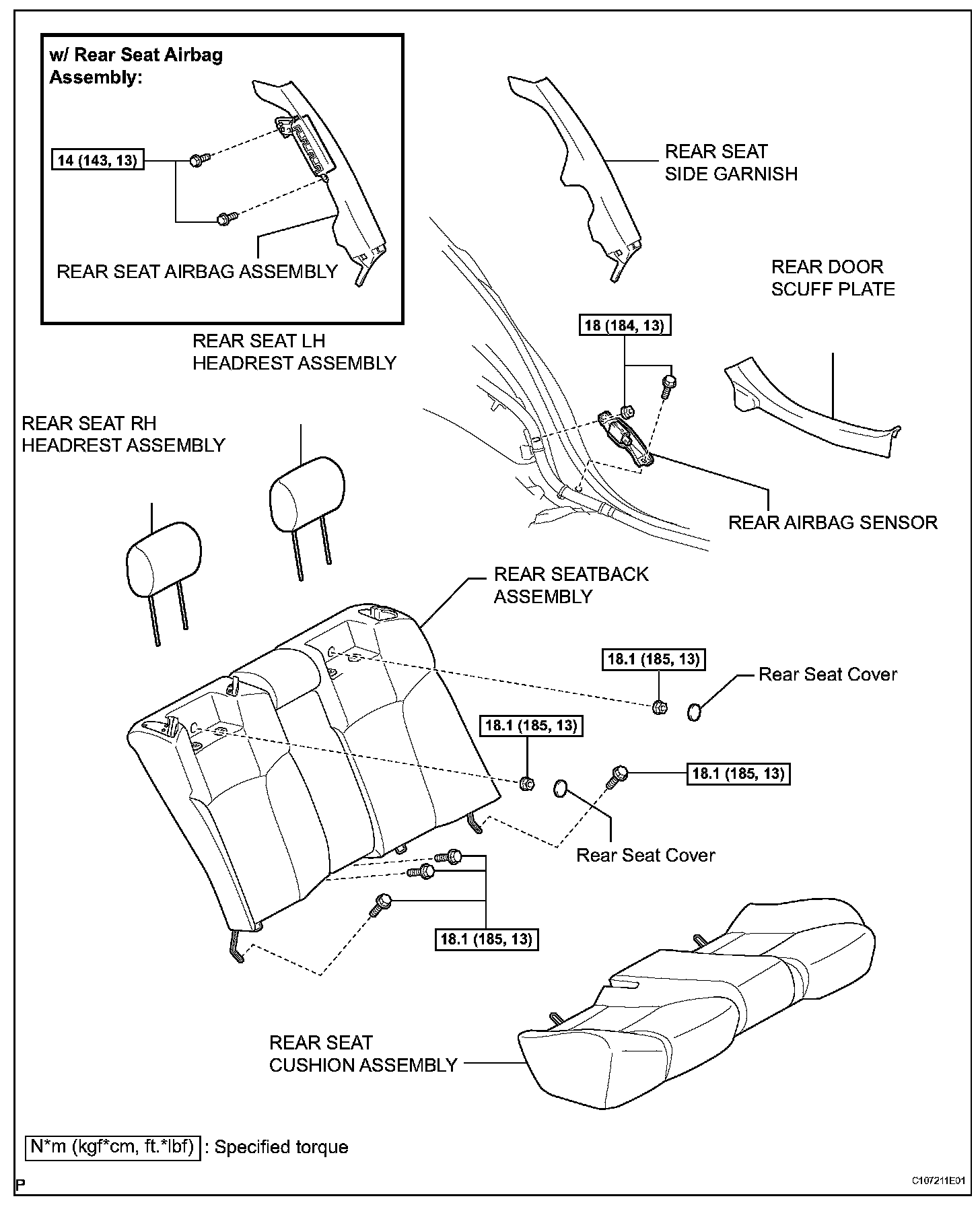

Rear Airbag Sensor:
