Air Register: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE FRONT BUMPER COVER

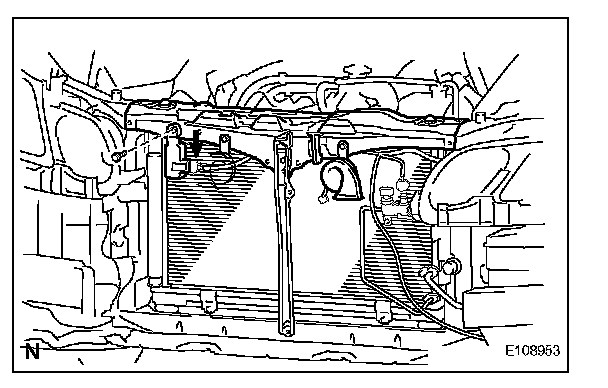

4. REMOVE SMOG VENTILATION SENSOR
a. Disconnect the connector.
b. Remove the bolt and sensor.
INSTALLATION
1. INSTALL SMOG VENTILATION SENSOR
a. Install the sensor with the bolt and connect the connector.
2. INSTALL FRONT BUMPER COVER
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
