Global Positioning System Module: Service and Repair

MAYDAY ECU

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE REAR NO.1 SEAT LH
2. REMOVE REAR NO.1 SEAT RH
3. REMOVE QUARTER SCUFF PLATE INSIDE LH
4. REMOVE QUARTER SCUFF PLATE INSIDE RH




5. REMOVE NO.3 SEAT ANCHOR RAIL
a. Remove the screw.

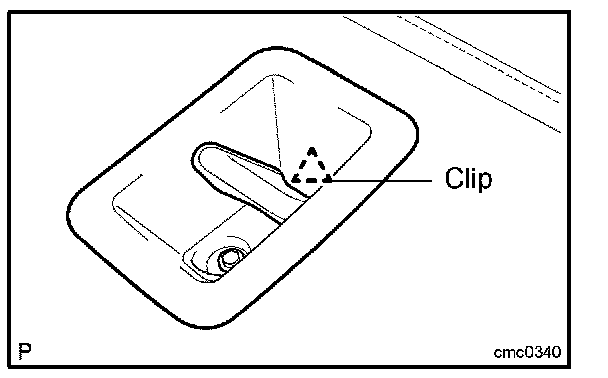

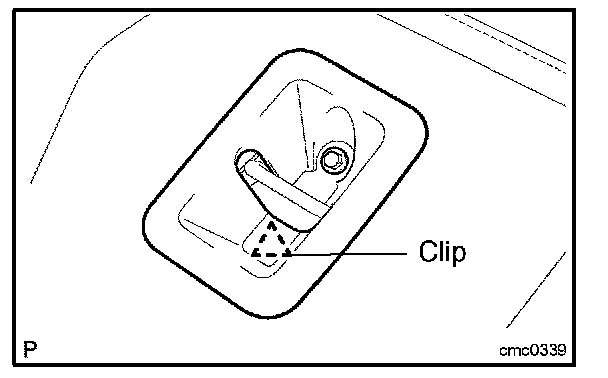

b. Disengage the clip and remove the No.3 seat anchor rail.




6. REMOVE NO.1 SEAT ANCHOR RAIL
a. Remove the screw.

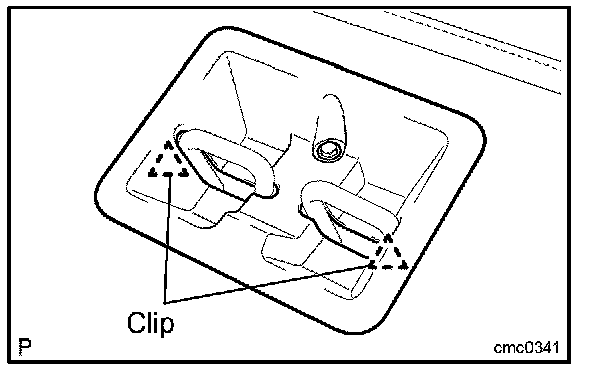

b. Disengage the 2 clips and remove the No.1 seat anchor rail.




7. REMOVE NO.2 SEAT ANCHOR RAIL RH
a. Remove the screw.
b. Disengage the clip and remove the No.2 seat anchor rail RH.




8. REMOVE MOBILEPHONE COVER

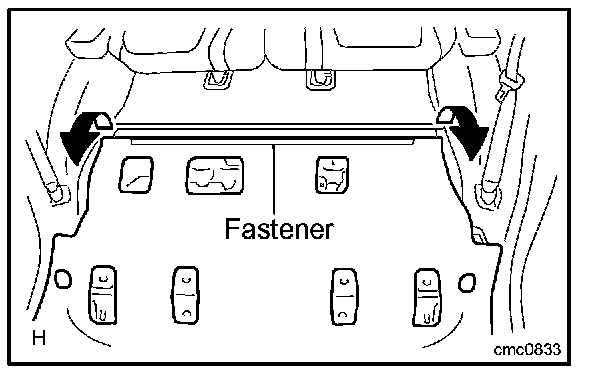

a. Turn back the floor carpet.

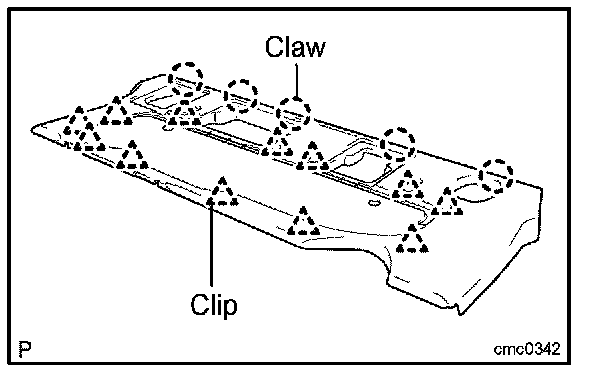

b. Disengage the 12 clips.
c. Disengage the 5 claws and remove the mobilephone cover.




9. REMOVE MAYDAY ECU

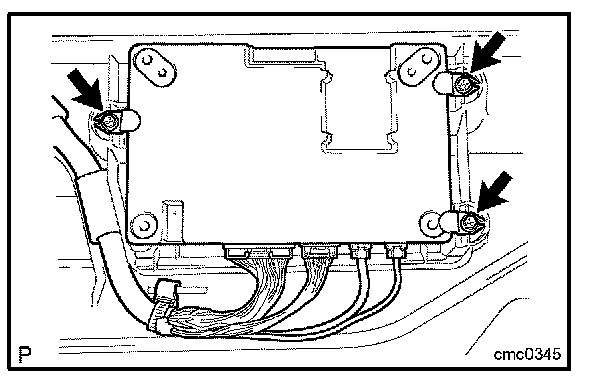

a. Remove the 3 screws and the 3 mobilephone brackets.
b. Disconnect the 4 connectors and remove the mayday ECU.




10. REMOVE MAYDAY BATTERY

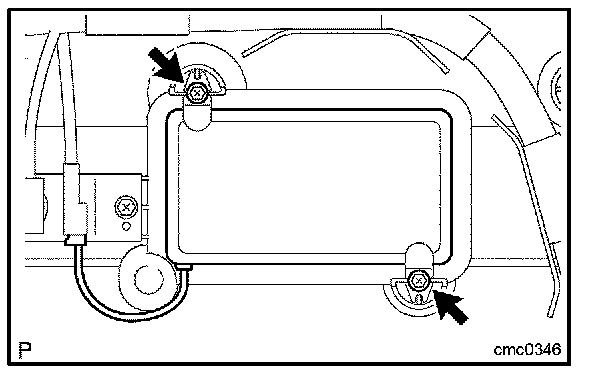

a. Remove the 2 screws and the 2 mobilephone brackets.
b. Disconnect the connector and remove the mayday battery.




11. REMOVE MAYDAY WIRE

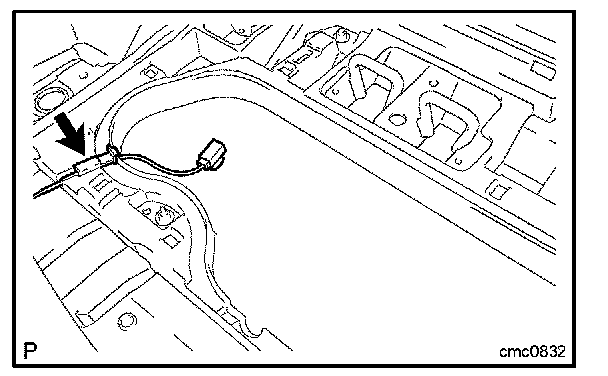

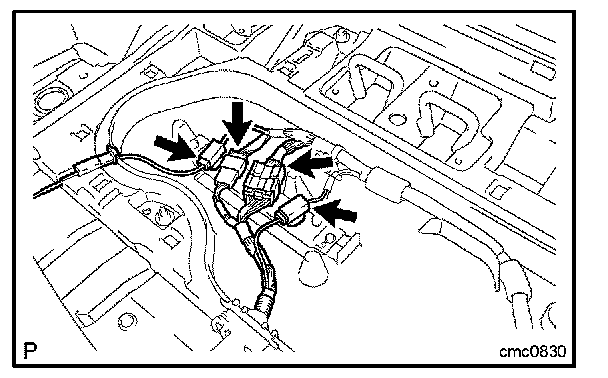

a. Disconnect the 4 connectors.

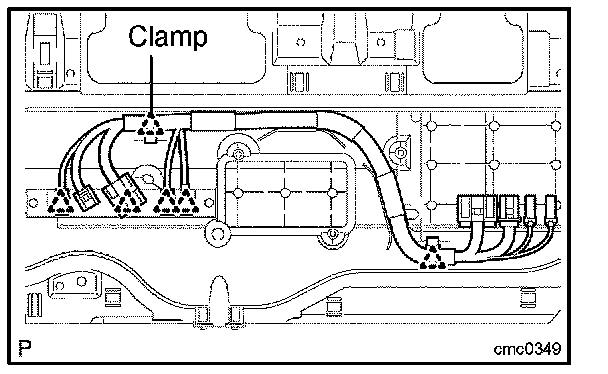

b. Disengage the 6 clamps and remove the mayday wire.




12. REMOVE MOBILEPHONE BRACKET
a. Disengage the wire harness clamp from the mobilephone bracket.
b. Remove the 2 screws and the mobilephone bracket.




13. REMOVE TELEPHONE BRACKET

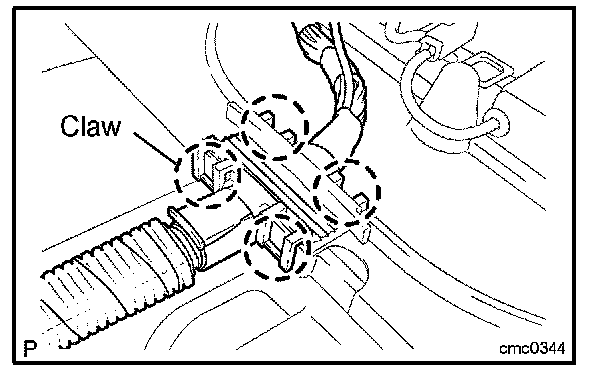

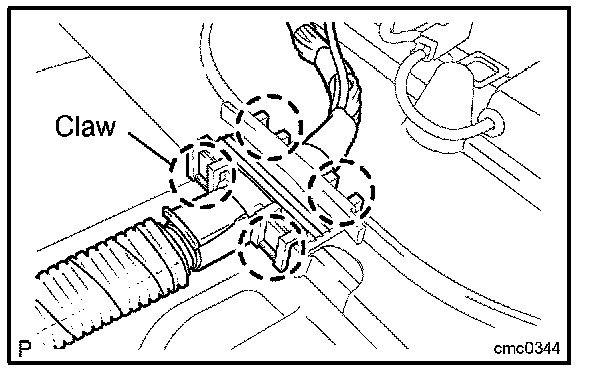

a. Disengage the 4 claws of the wire harness clamp and dis connect the wire harness.




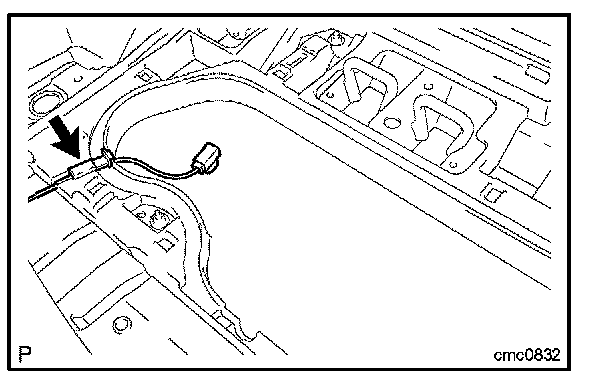

b. Disengage the wire harness clamp.

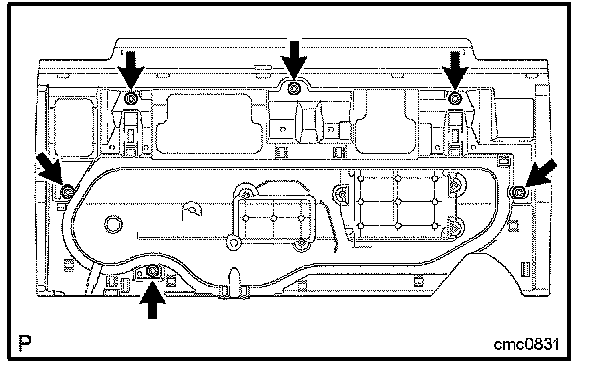

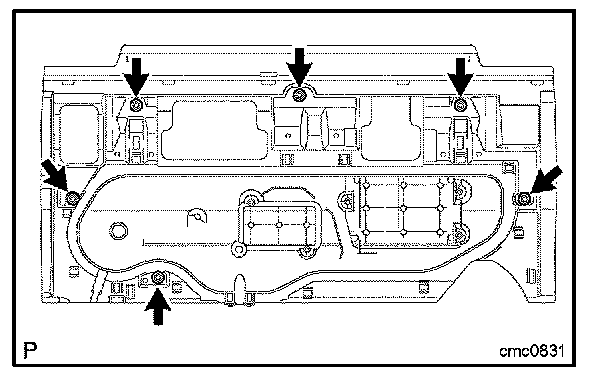

c. Remove the 6 nuts and the telephone bracket.




14. INSTALL TELEPHONE BRACKET
a. Install the telephone bracket with the 6 nuts.




b. Securely engage the wire harness clamp.




c. Securely engage the 4 claws of the wire harness clamp.




15. INSTALL MOBILEPHONE COVER

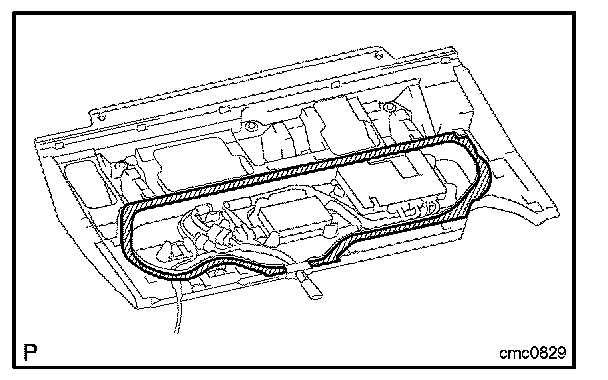

a. Make sure that there is no foreign matter in the shaded area as shown in the illustration.

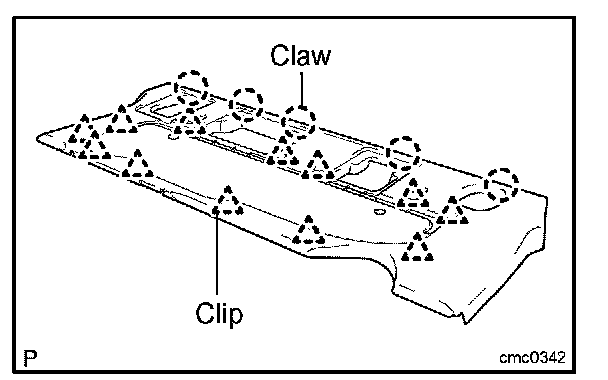

b. Fit the 5 claws into the holes of the telephone bracket.
c. Push in the 12 clips of the mobilephone cover to securely engage the cover.
