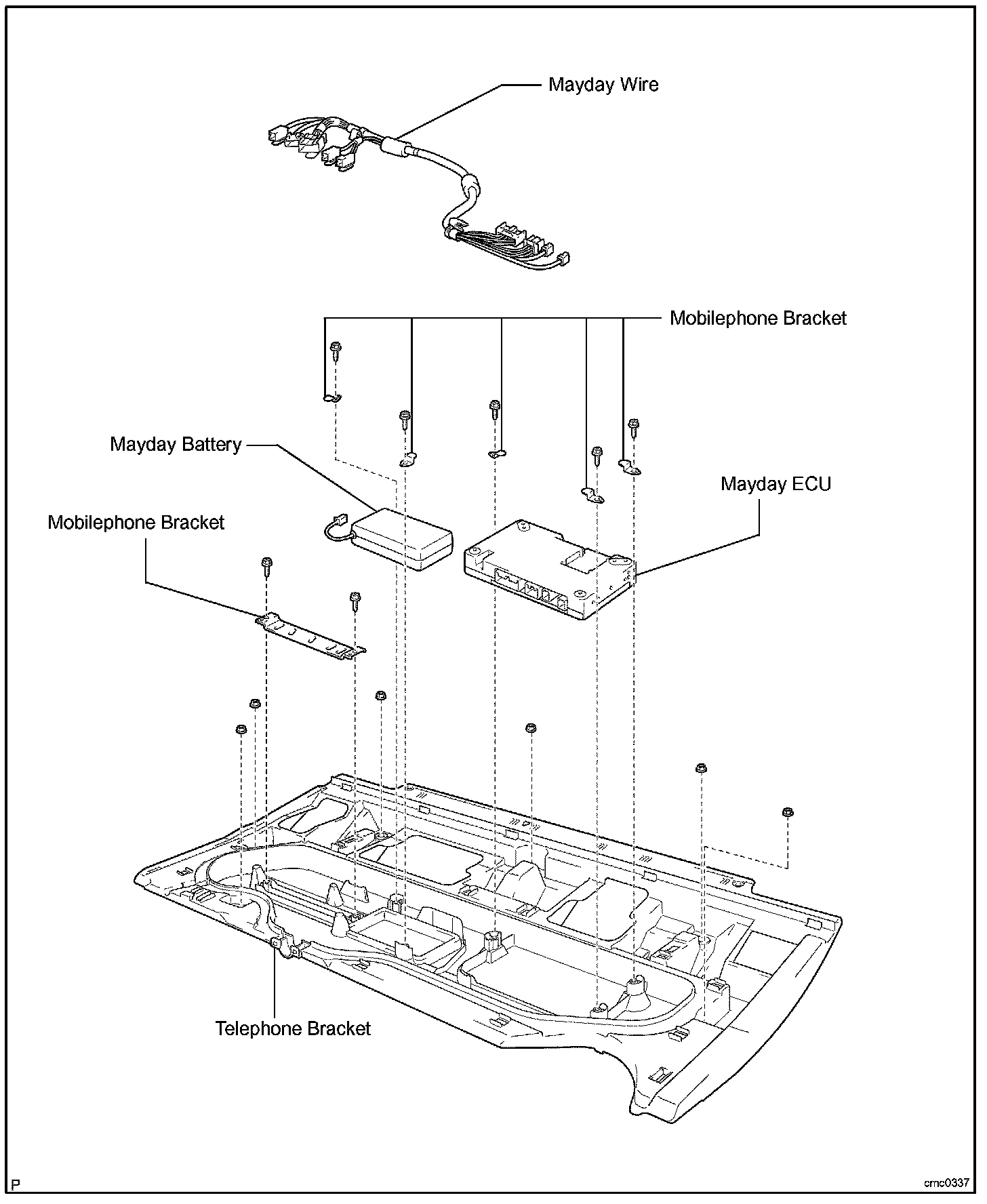

Global Positioning System Module
Global Positioning System Module
Mayday ECU:
Mayday ECU:
Mayday ECU:
