Instrument Cluster / Carrier
Instrument Cluster / Carrier

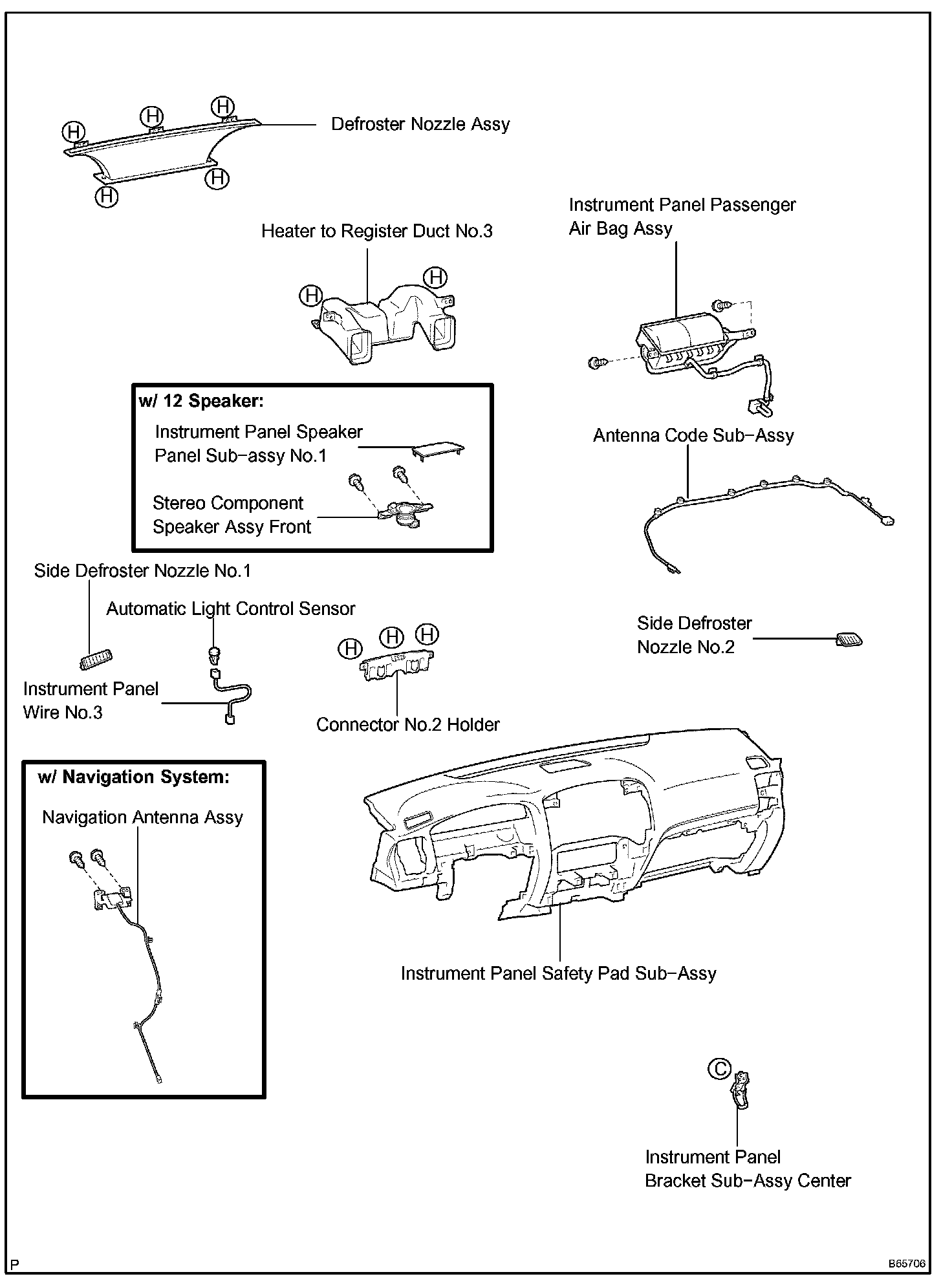

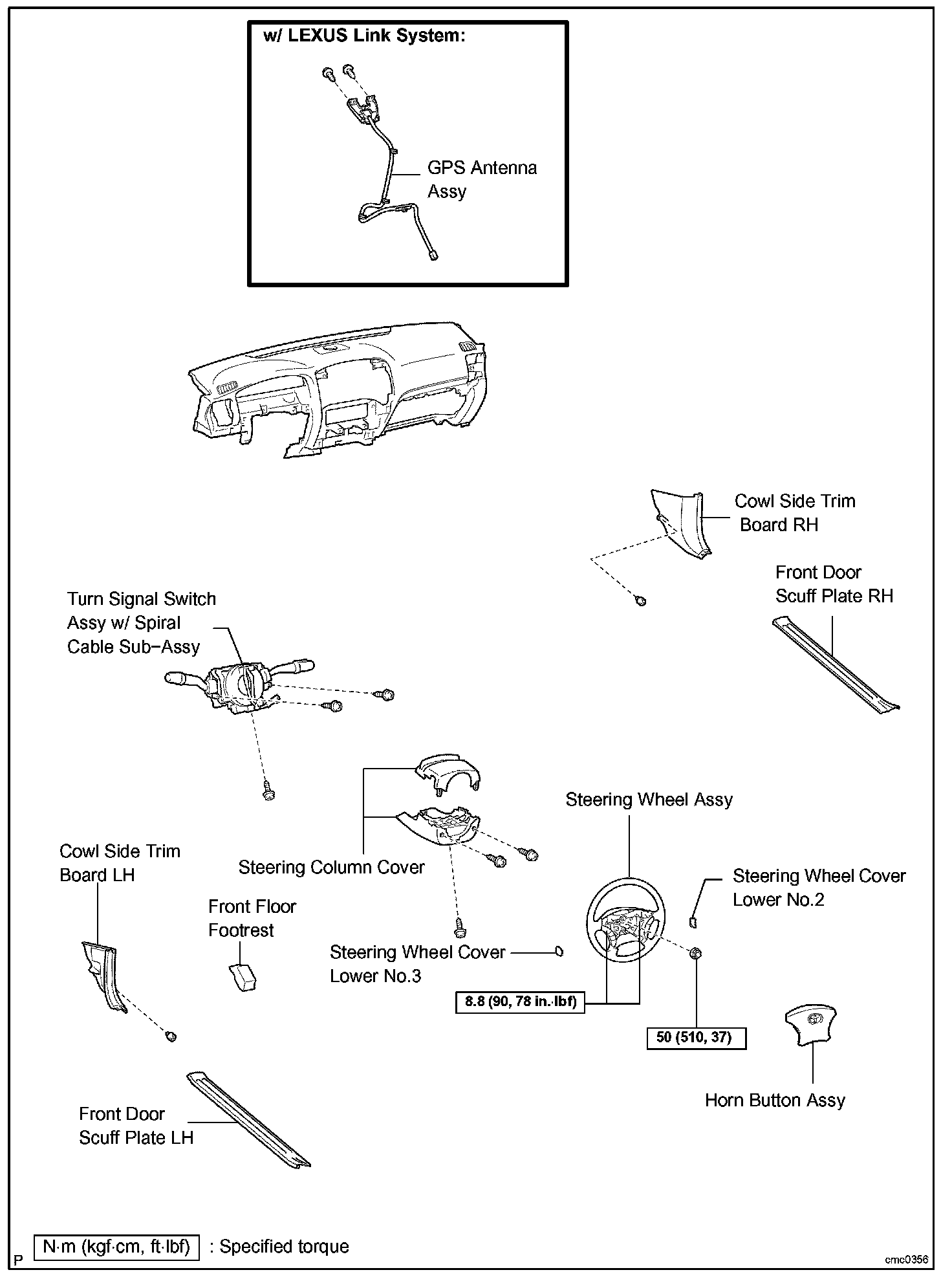

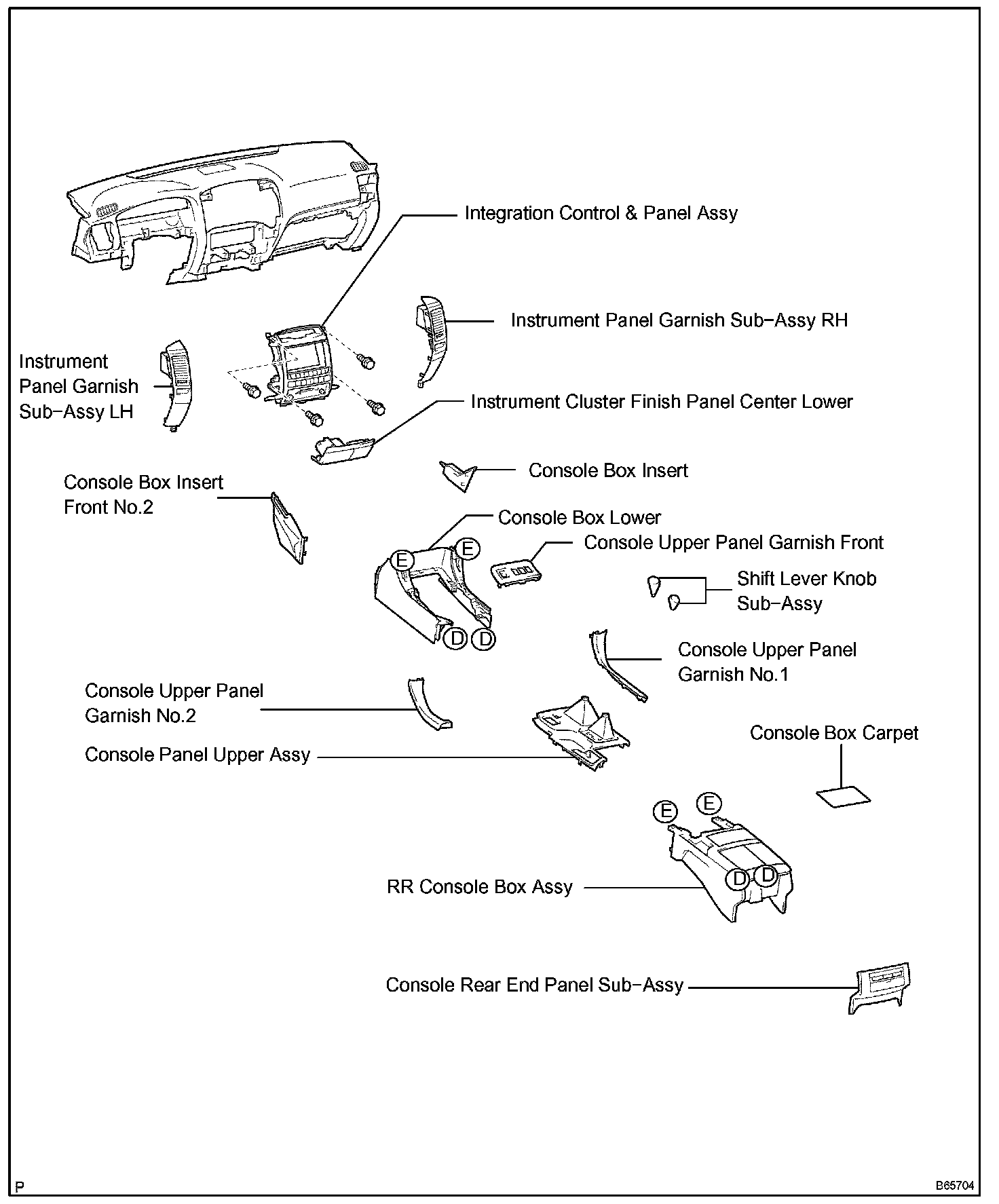

Instrument Panel/Meter:
Instrument Panel/Meter:
Instrument Panel/Meter:
Instrument Panel/Meter:

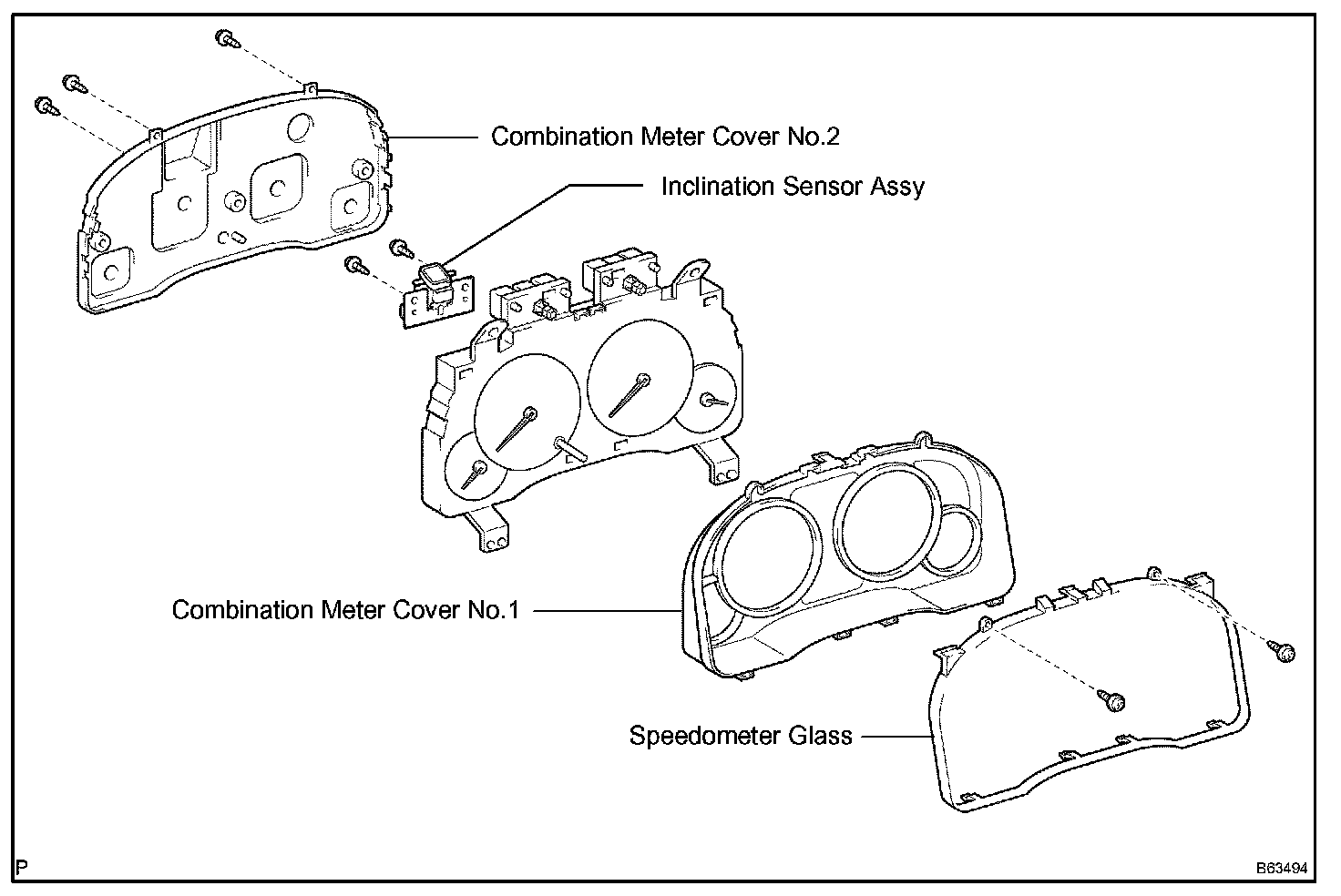

Combination Meter Assy:

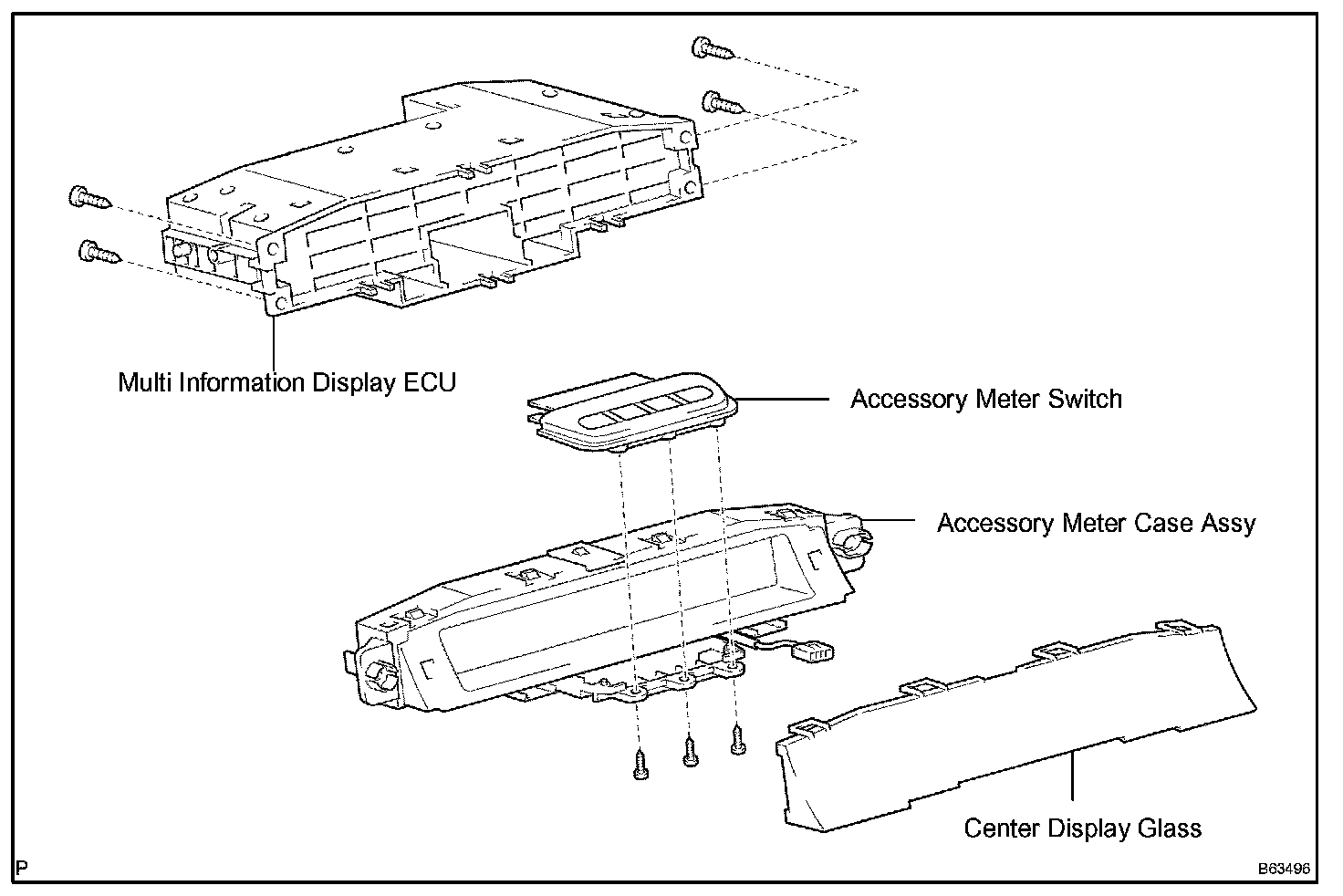

Accessory Meter Assy (Multi Information):
