Relay Box: Locations

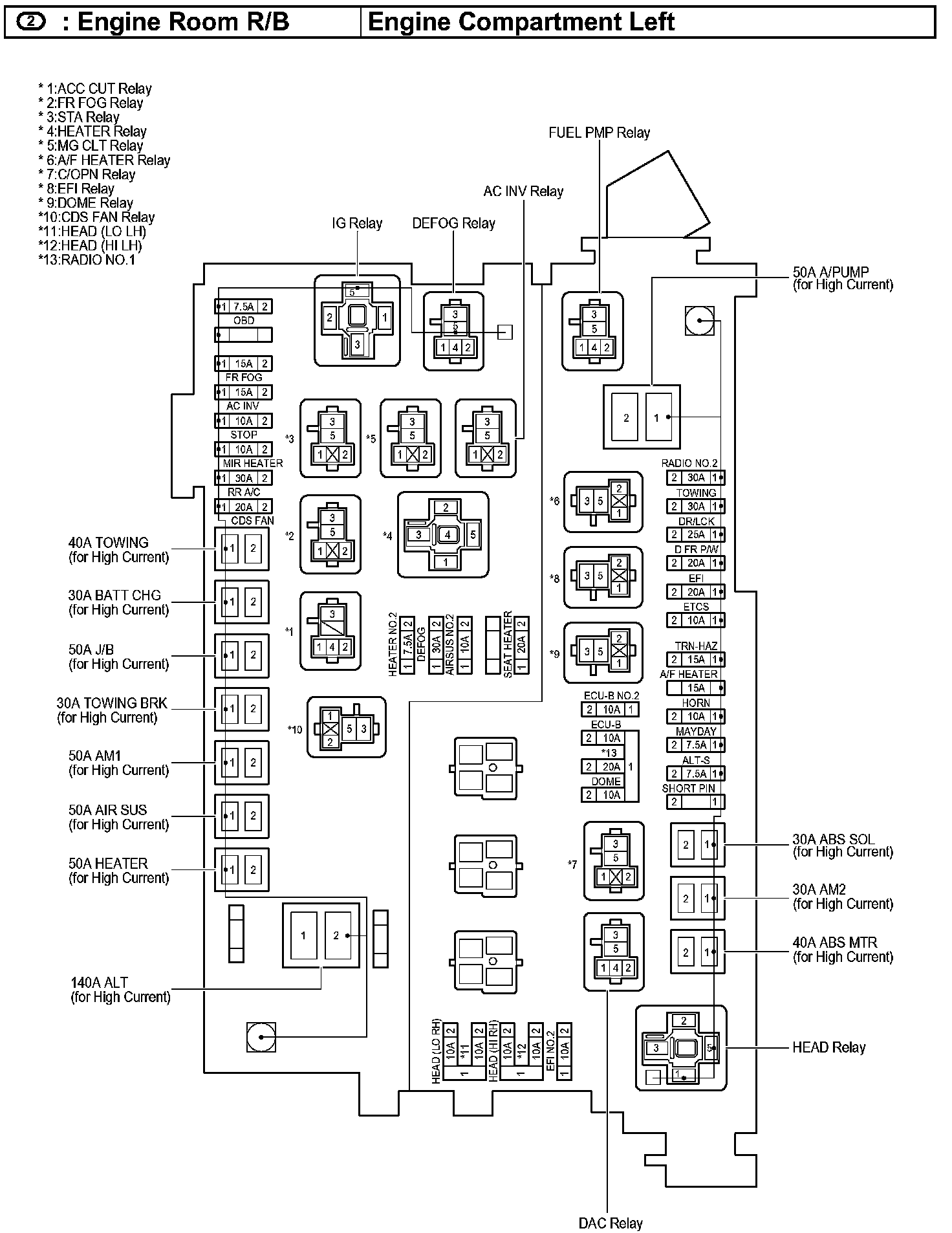

Engine Room R/B Left:

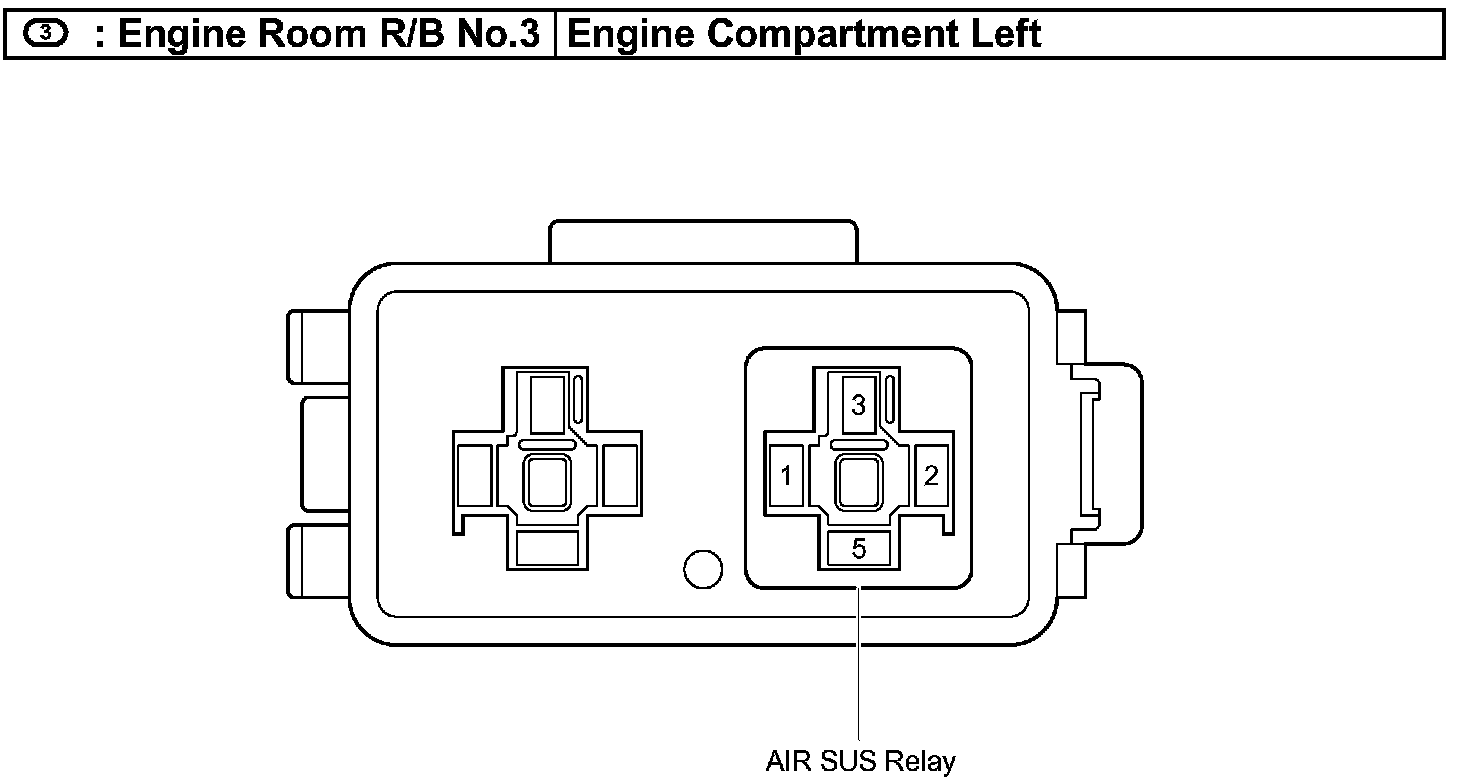

Engine Room R/B 3 Left:

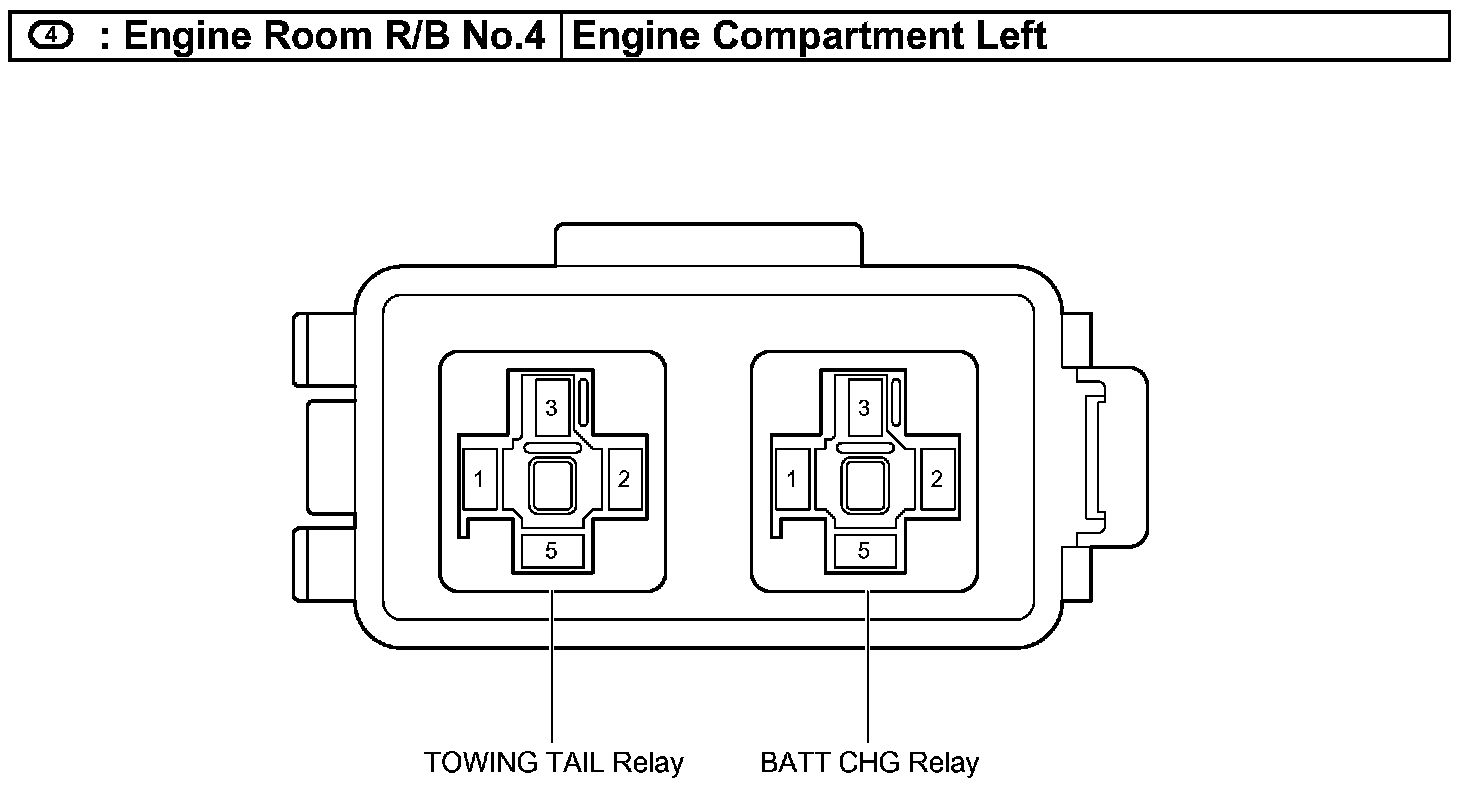

Engine Room R/B 4 Left:

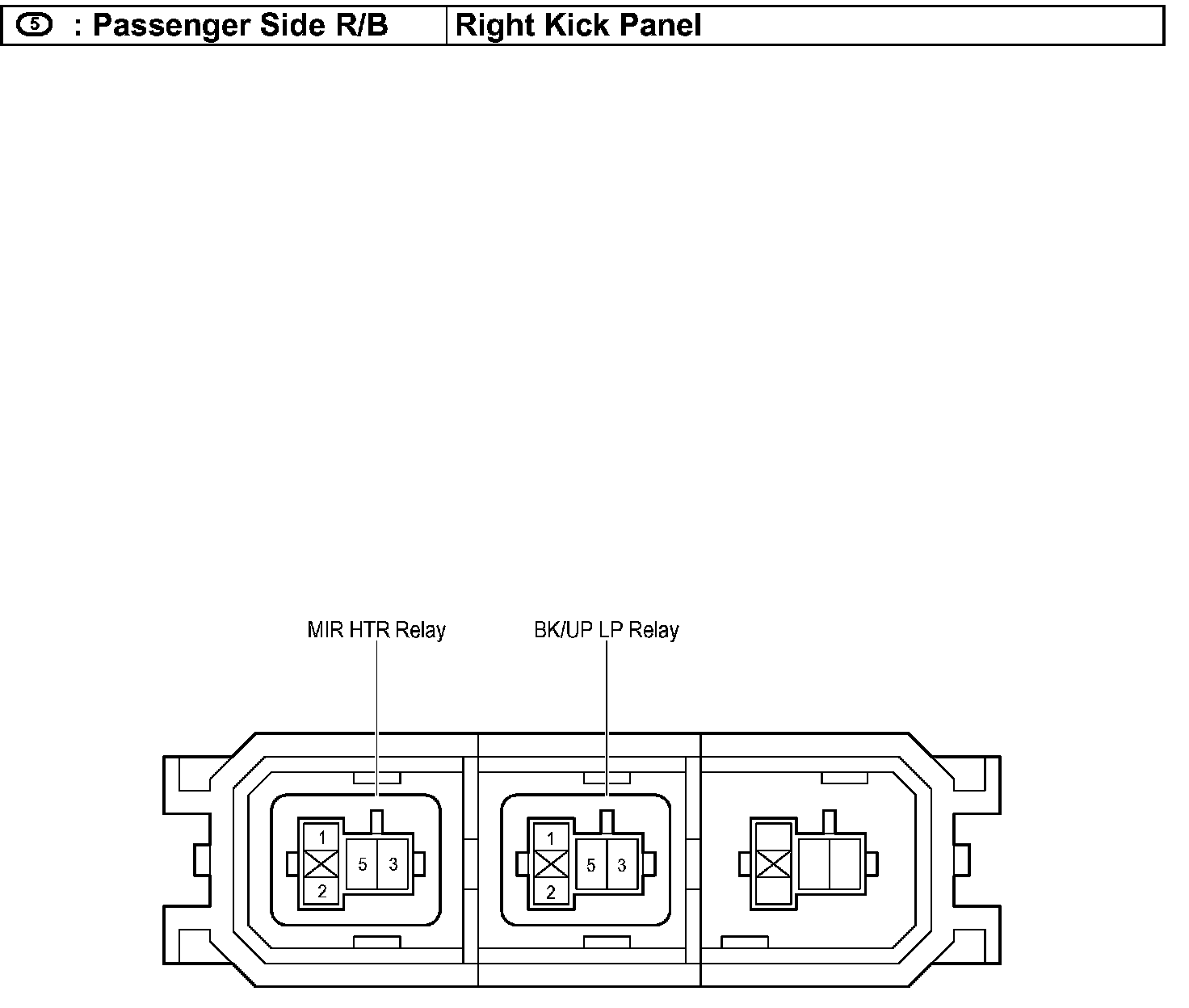

Passenger Side R/B:

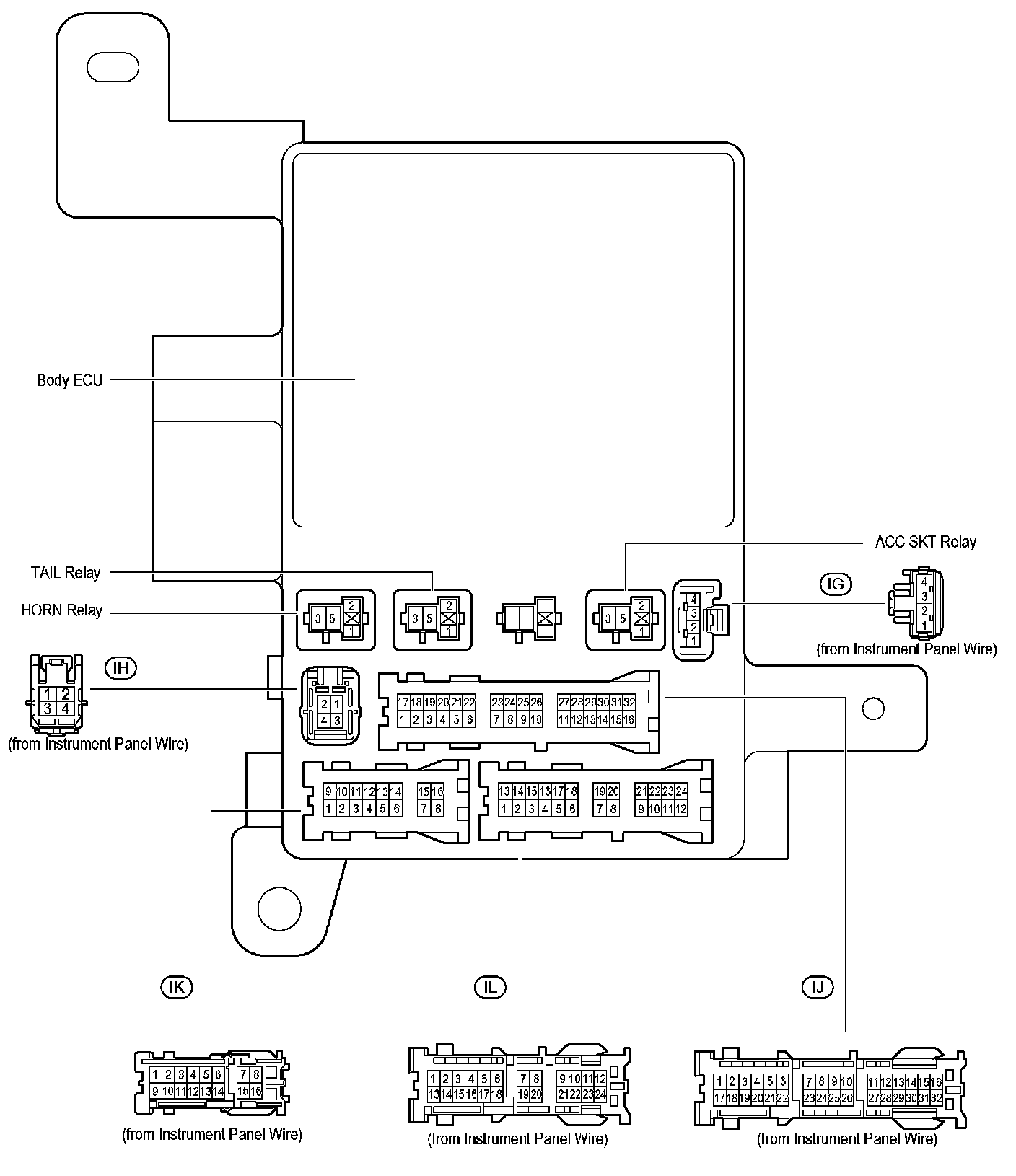

Driver Side J/B:

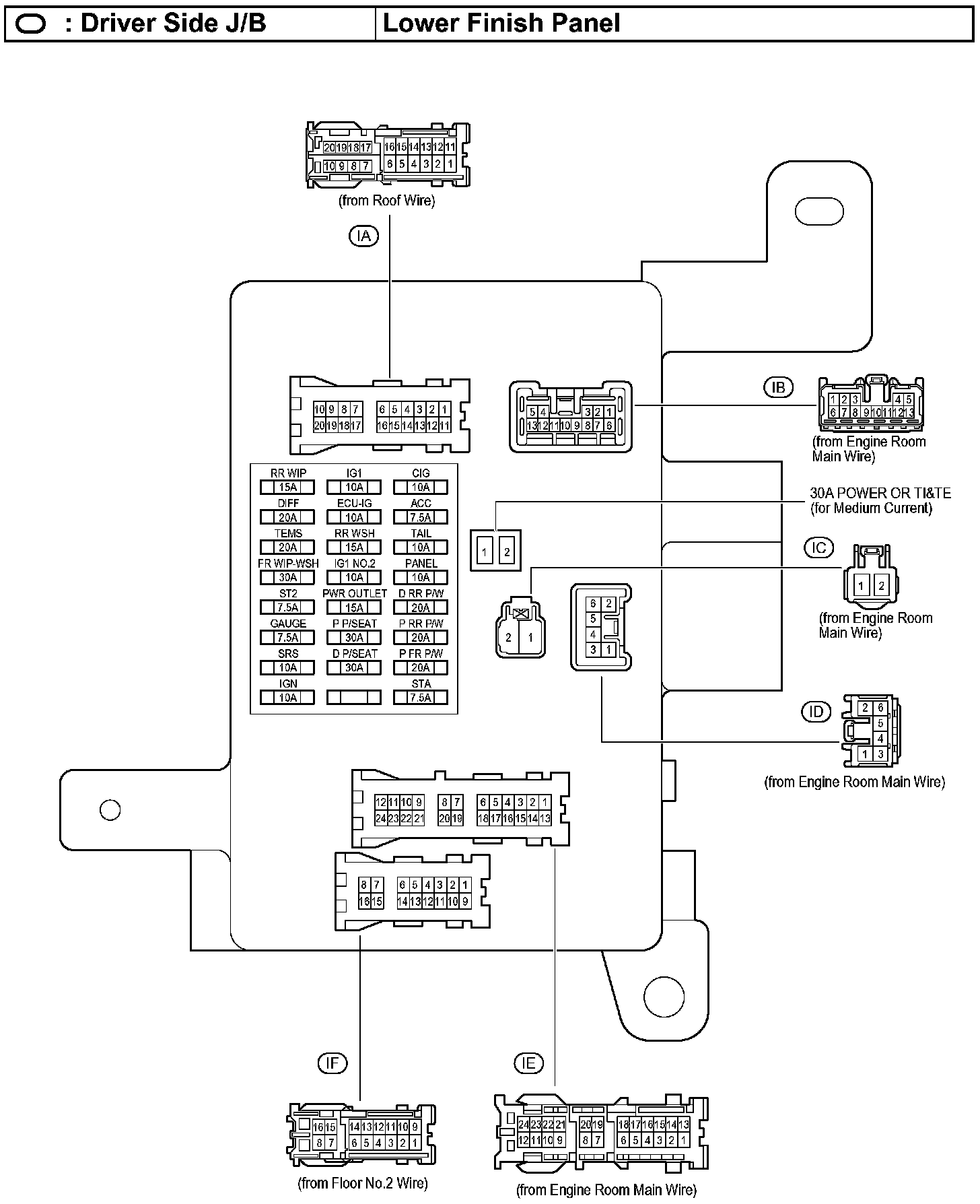

Driver Side J/B:

Fuse Details

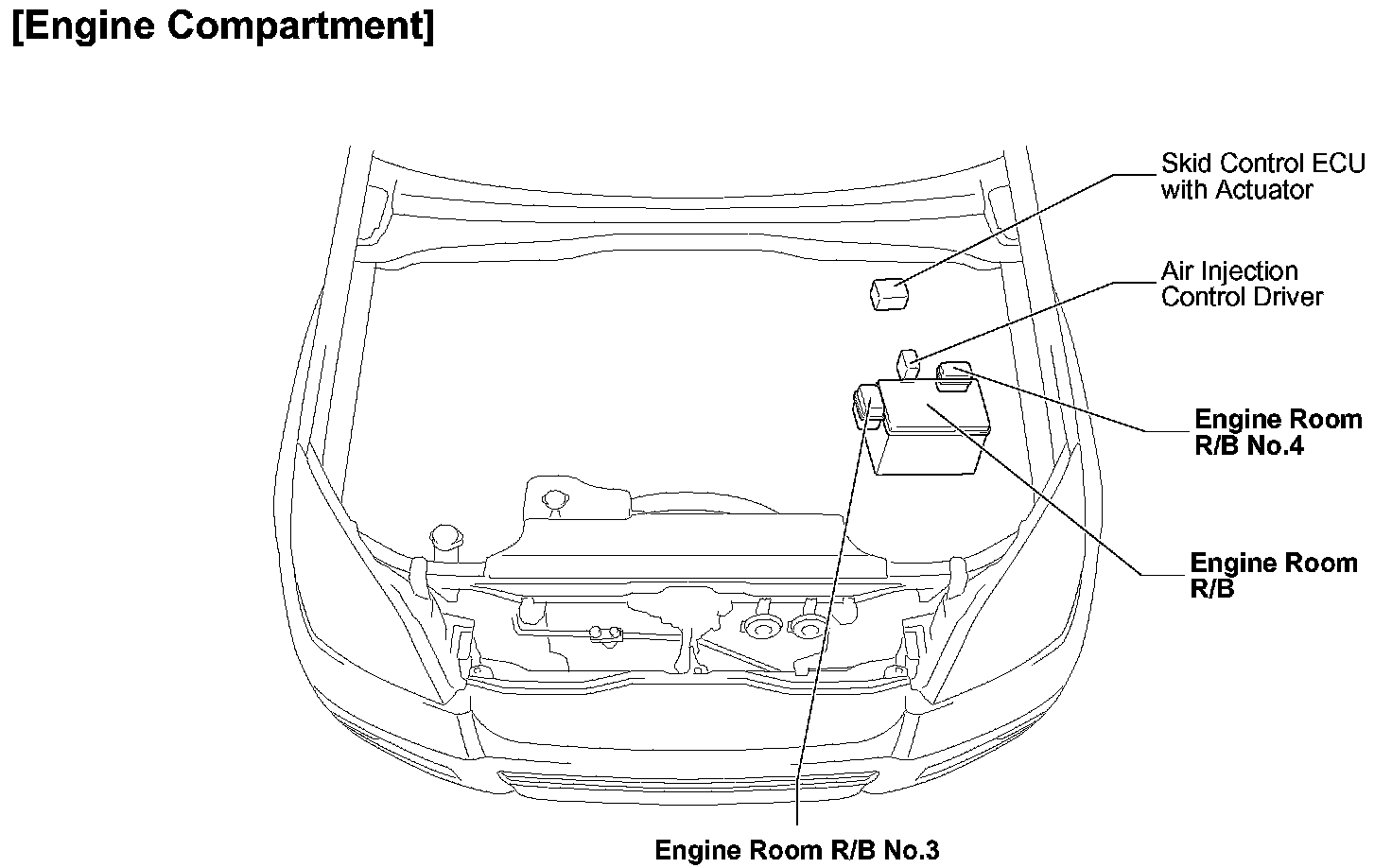

Engine Compartment:

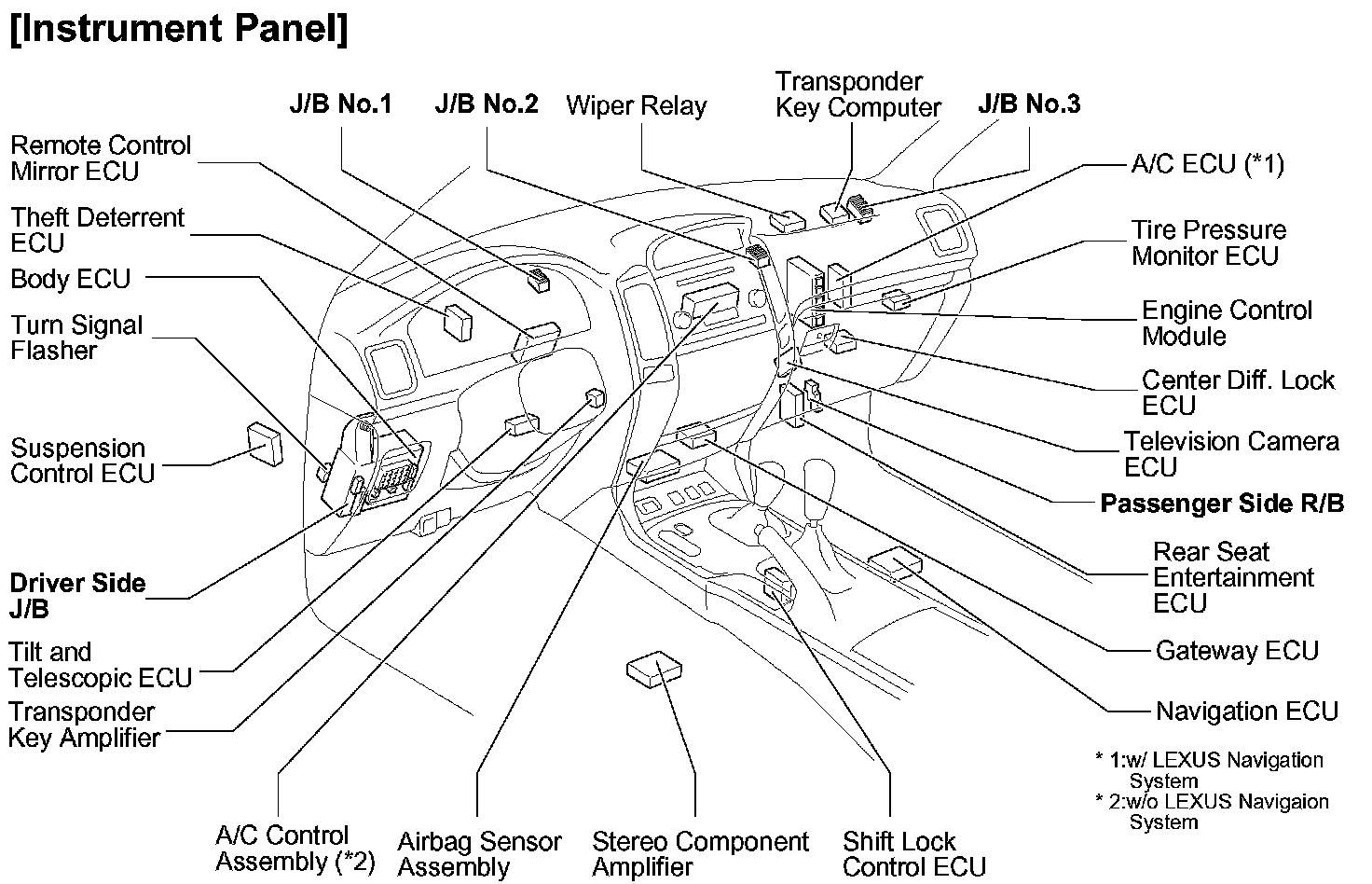

Instrument Panel:

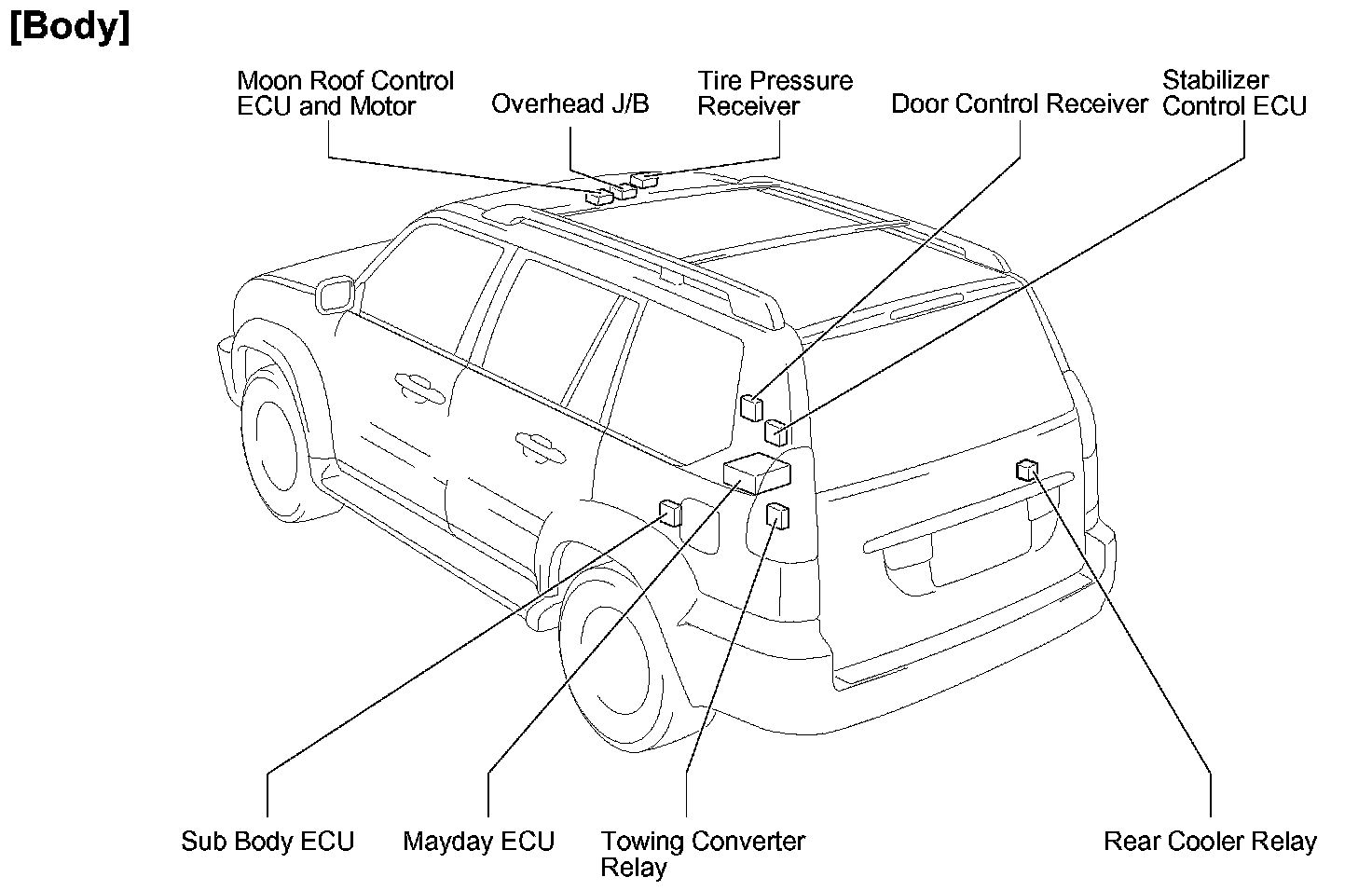

Body:

Locations
