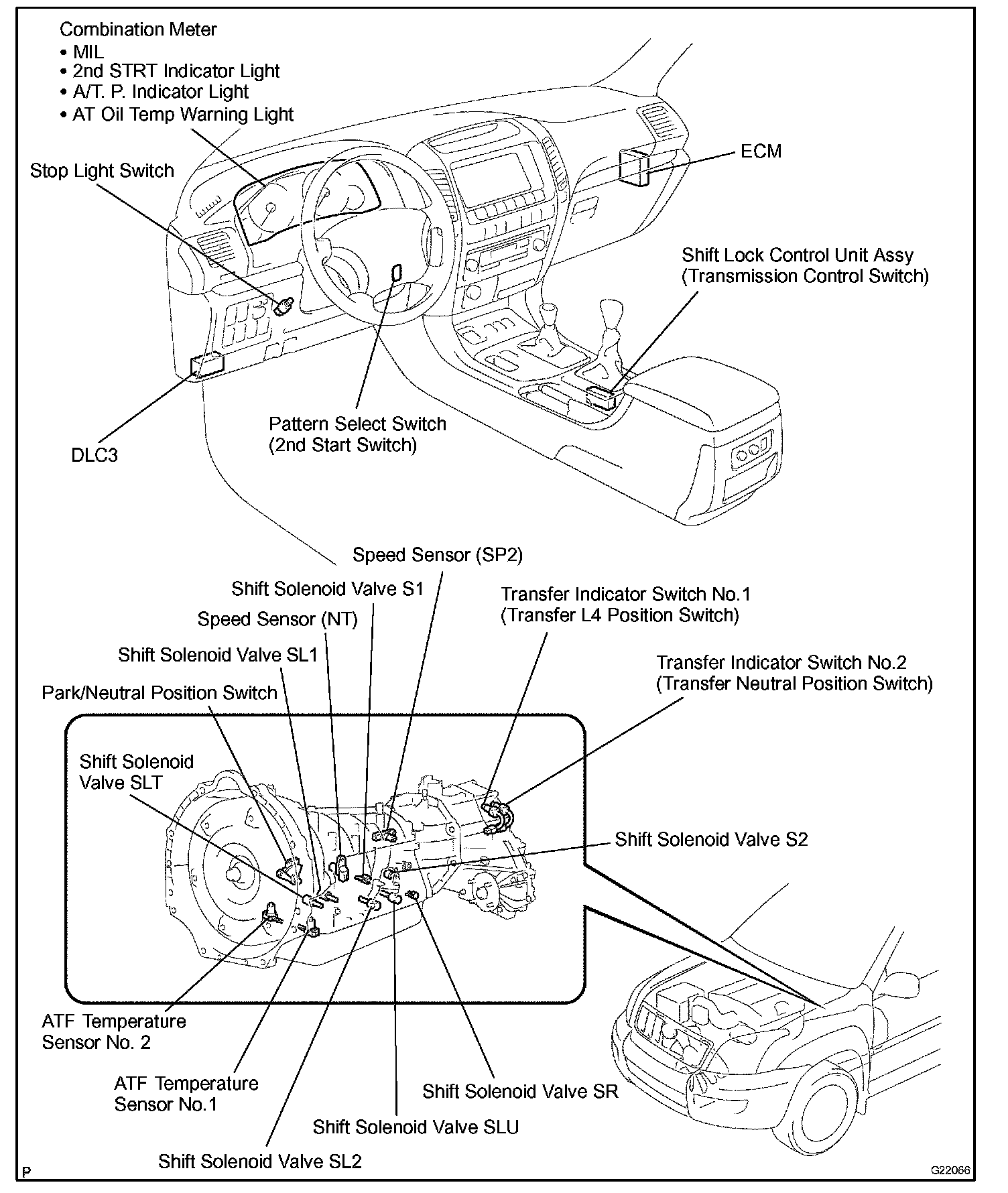

Transmission Position Sensor/Switch: Locations

Ra - Ya:



Electronic Controlled Automatic Transmission:
