Check Active Test With Hand-Held Tester

CHECK ACTIVE TEST WITH HAND-HELD TESTER

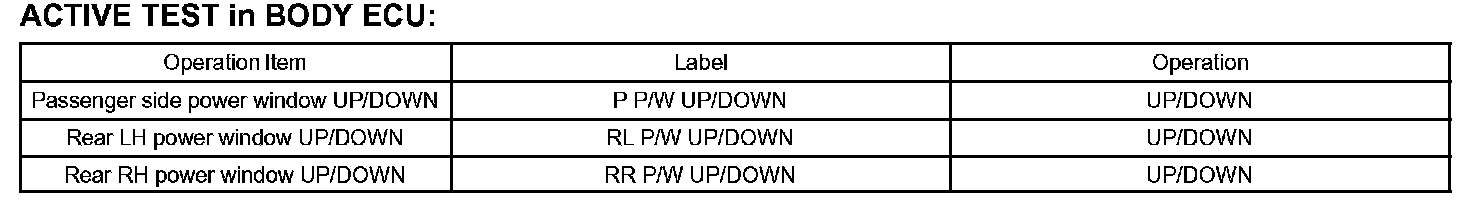

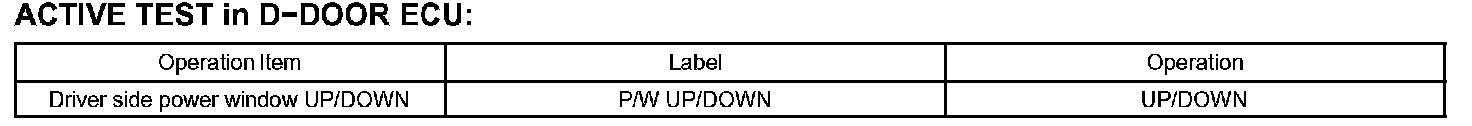

HINT: Performing the ACTIVE TEST using the hand-held tester allows you to operate the relay, VSV, actuator, etc. without parts removal. Performing the ACTIVE TEST as the first step of trouble shooting is one way to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.
