Remote Up / Down Function Does Not Operate

REMOTE UP/DOWN FUNCTION DOES NOT OPERATE

CIRCUIT DESCRIPTION

If the remote control does not operate, the remote function may have been disabled by a malfunction that was detected in the power window circuit. Also, when any power window switch or the wire harness has a malfunction, the remote control for the applicable power window does not function.

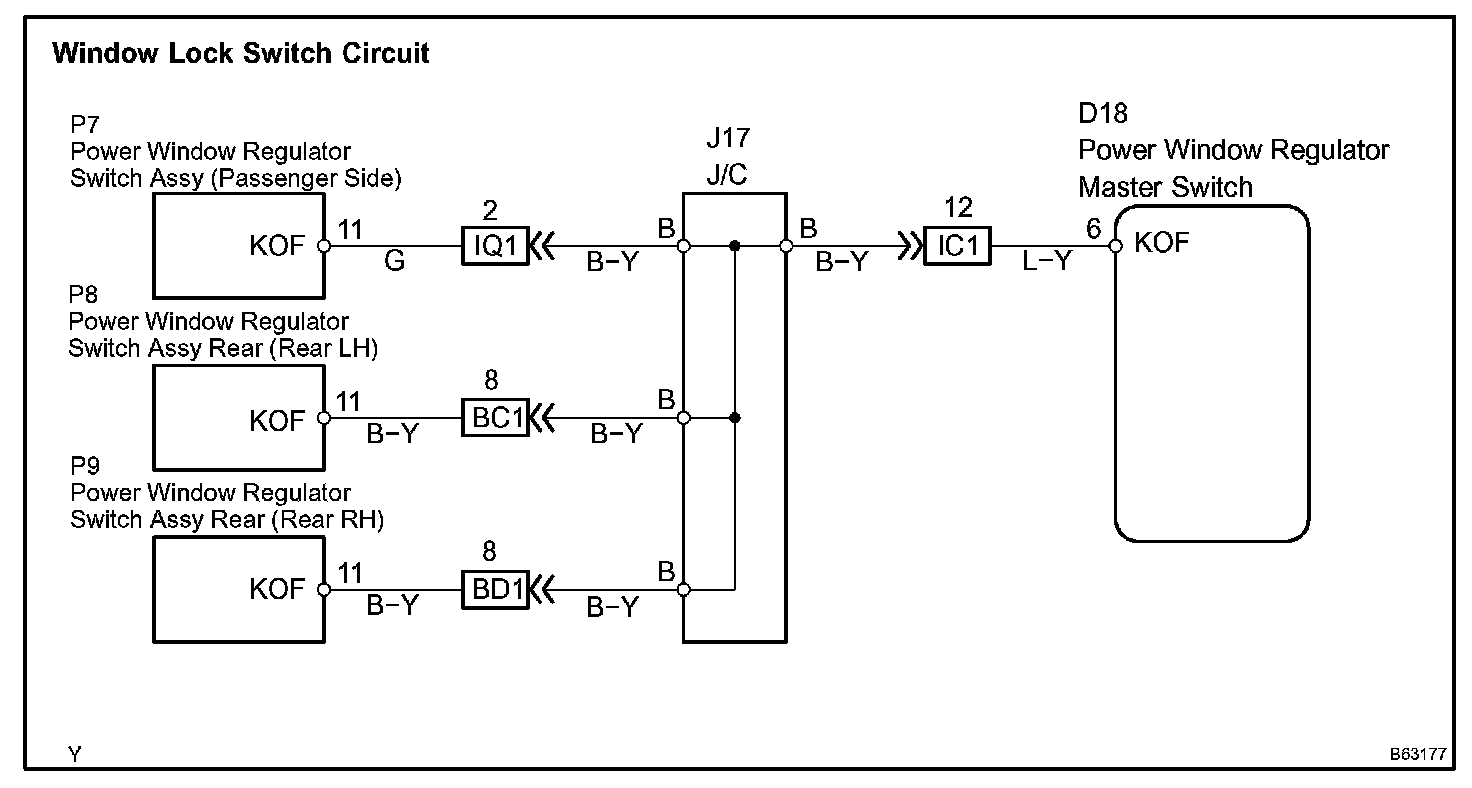

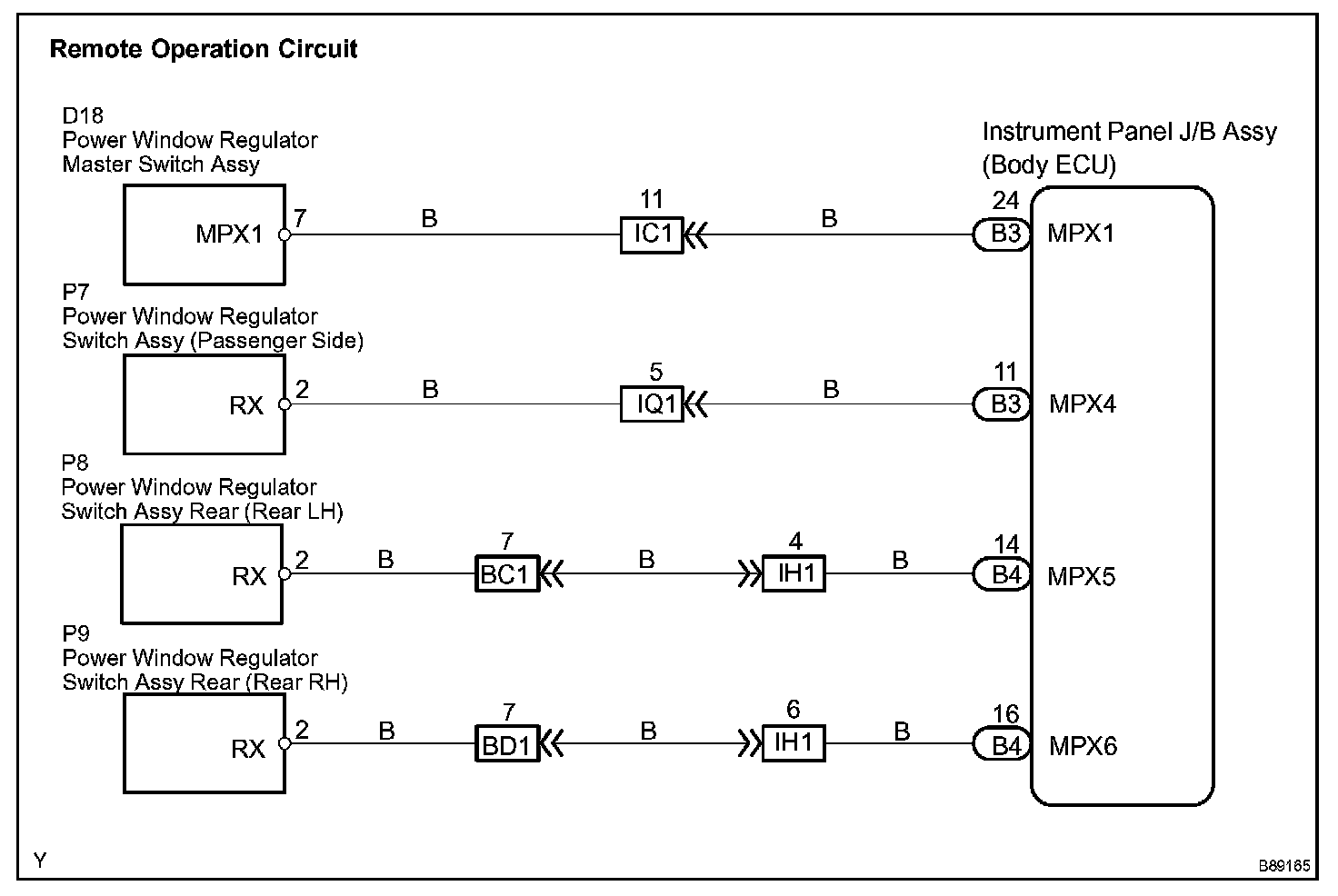

Wiring Diagram:

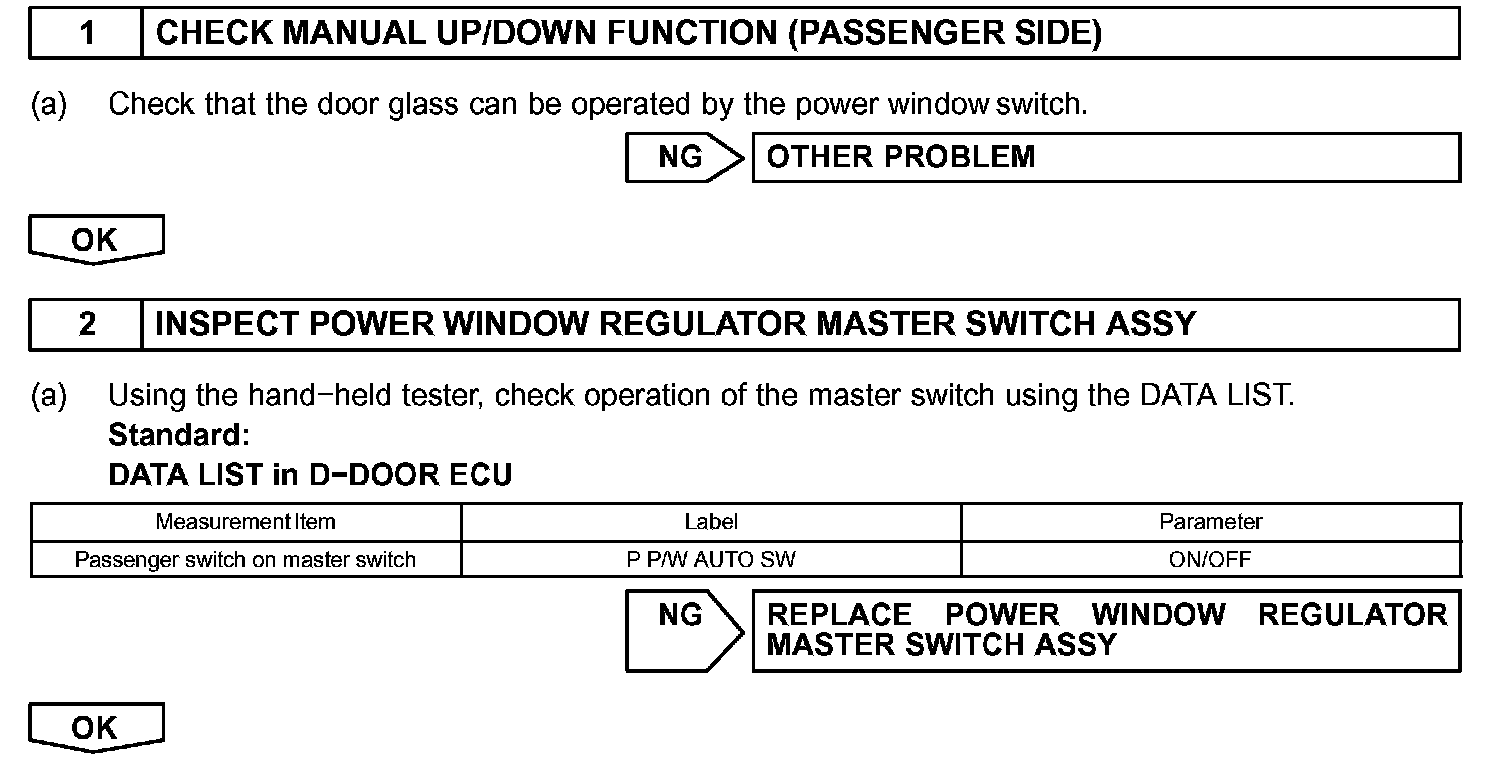

Step 1-2:

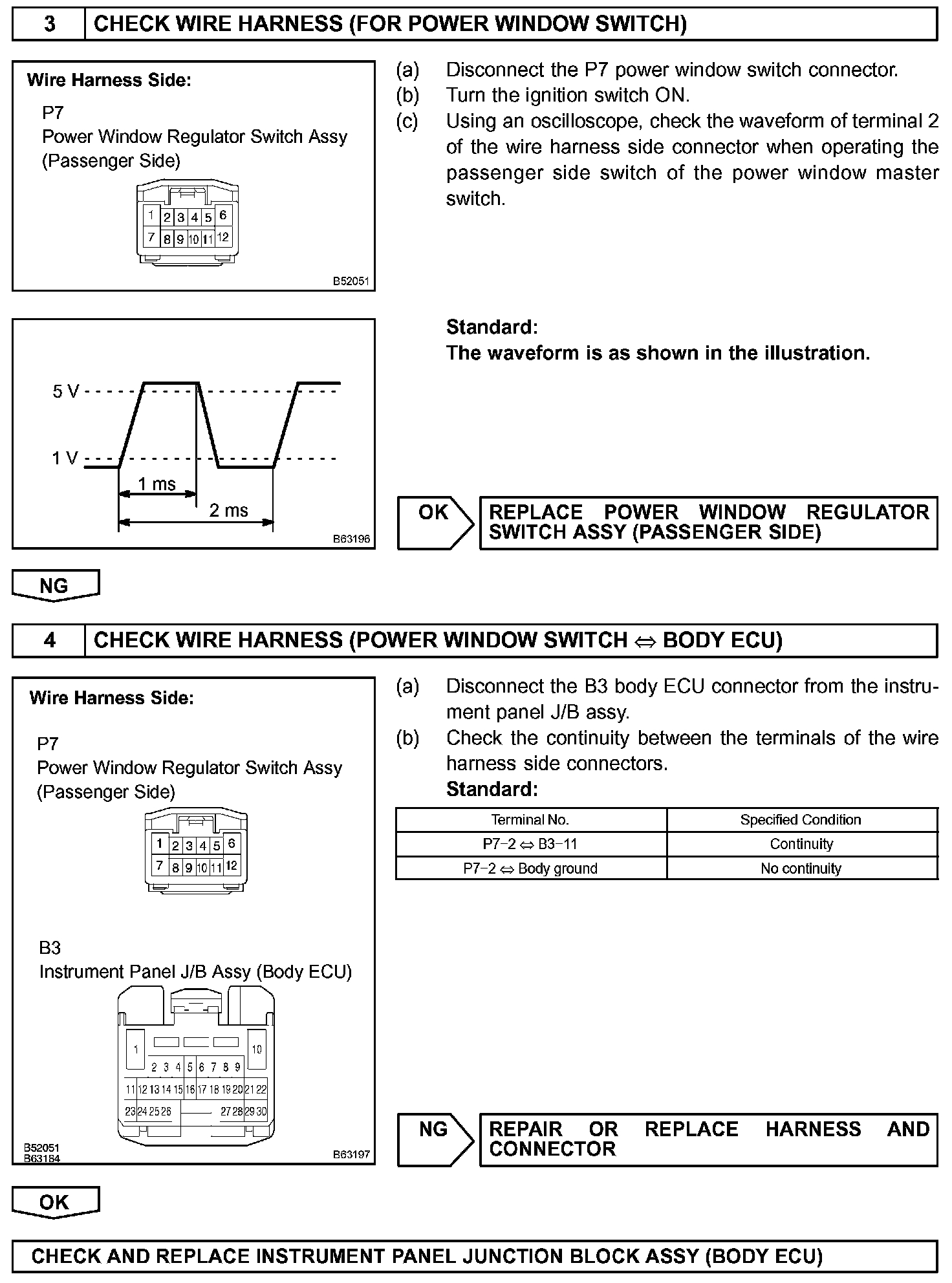

Step 3-4:

Step 5-7:

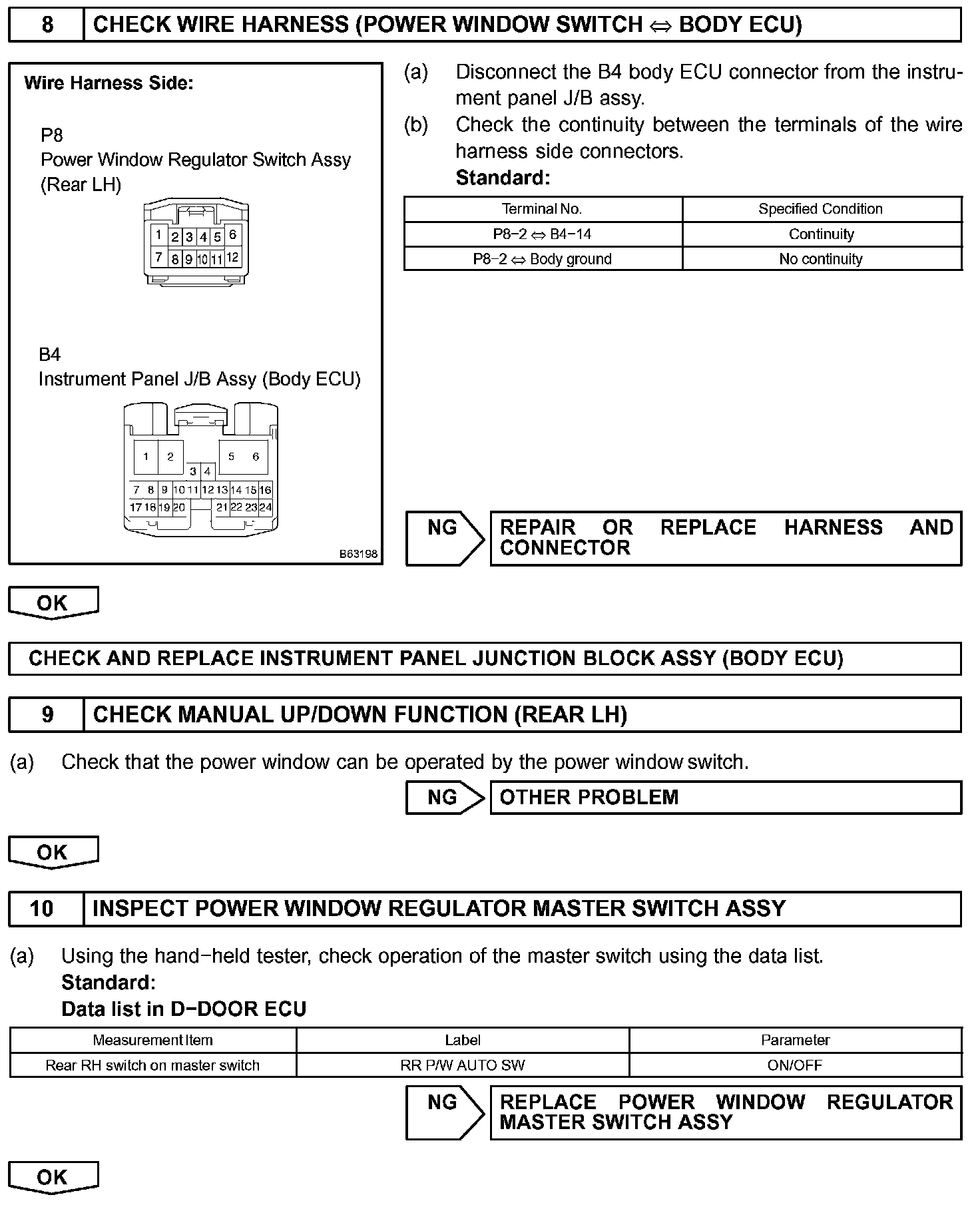

Step 8-10:

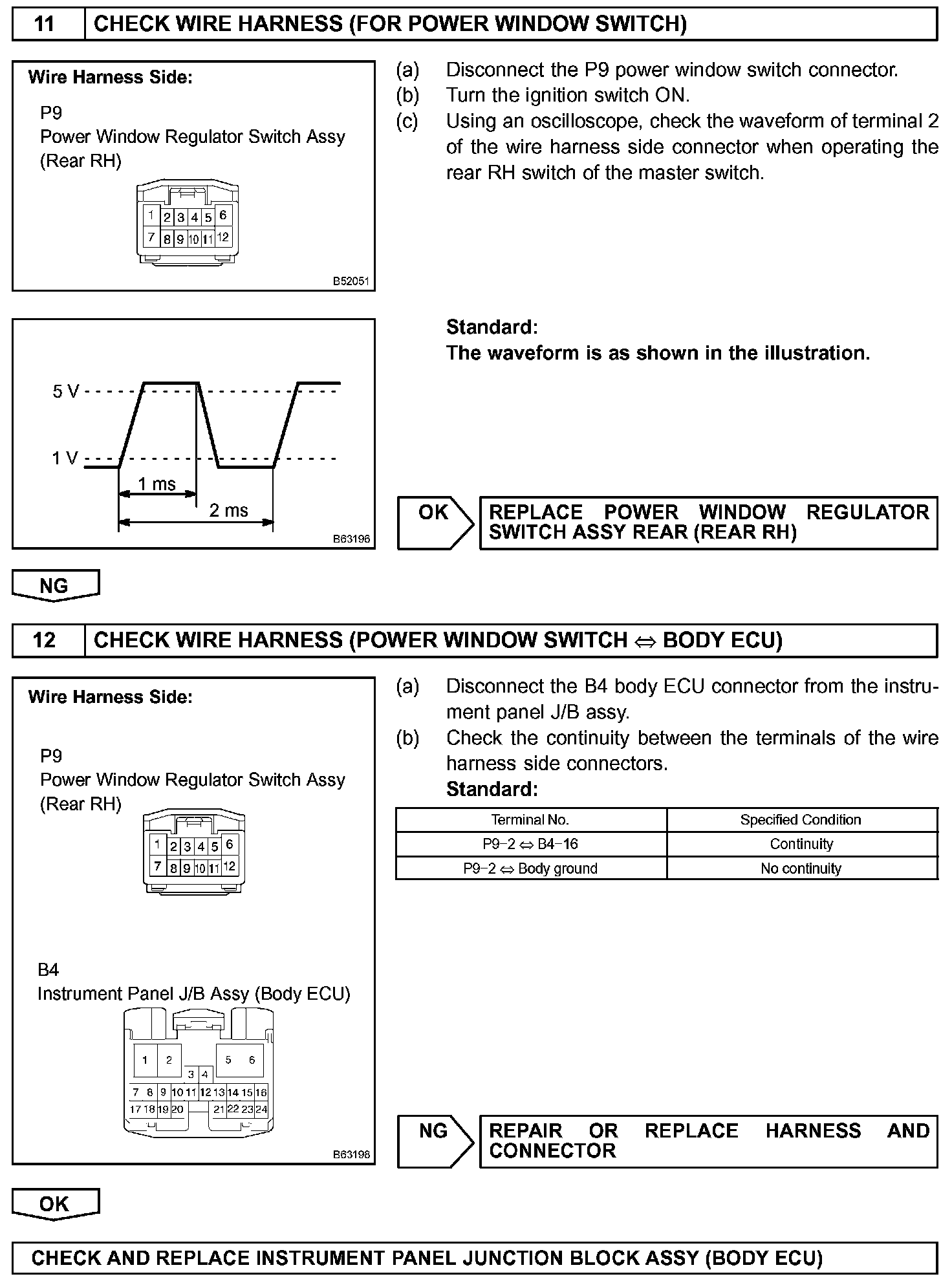

Step 11-12:

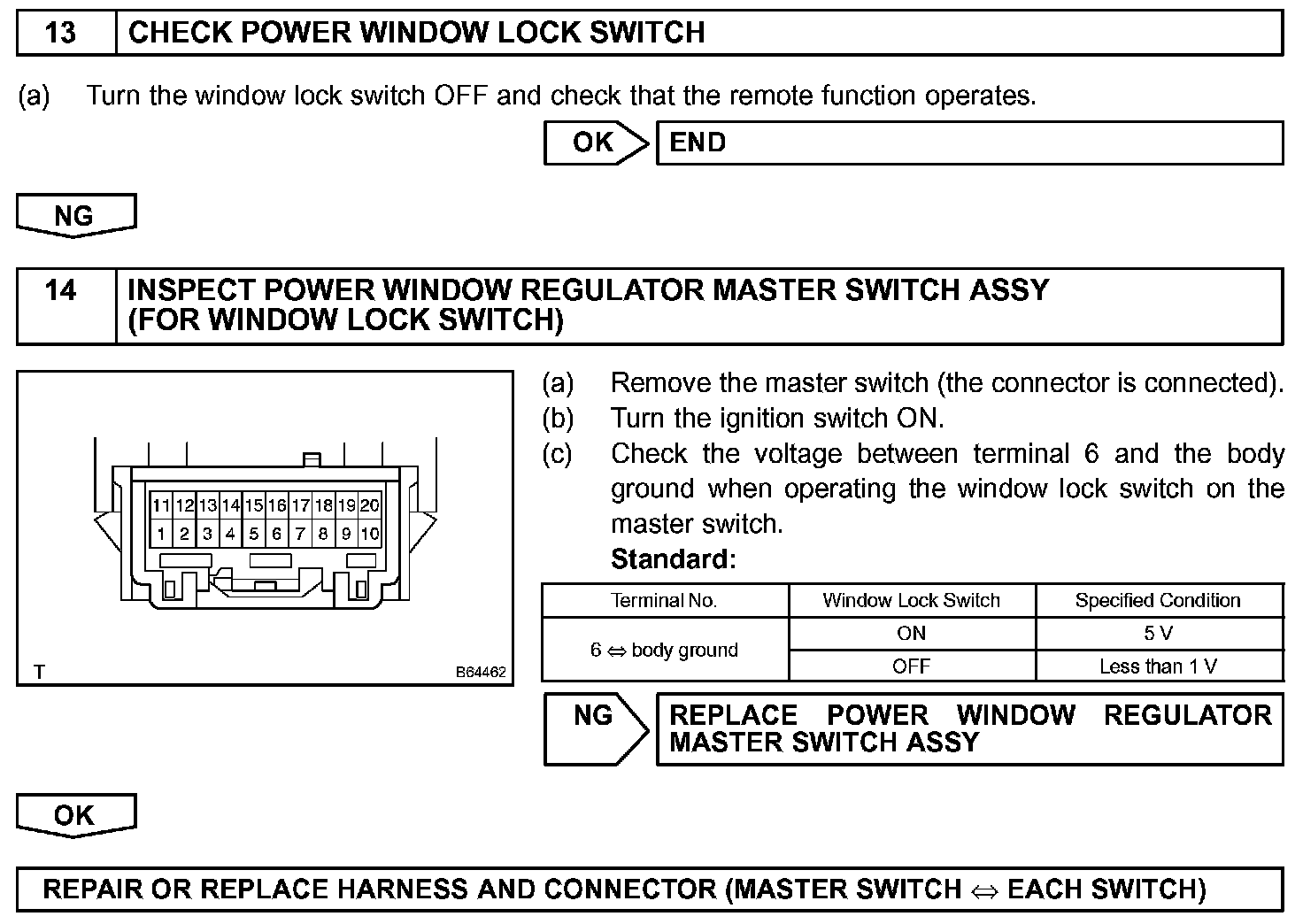

Step 13-14:

INSPECTION PROCEDURE

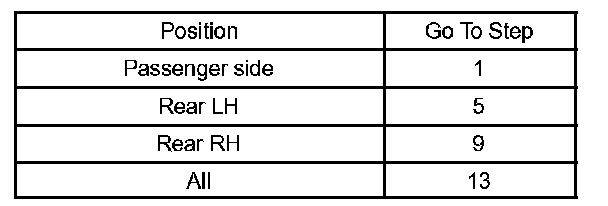

HINT: Check which power window cannot be operated, and then proceed with the troubleshooting for the applicable power window as shown in the table.
