Wiper Control Module: Testing and Inspection

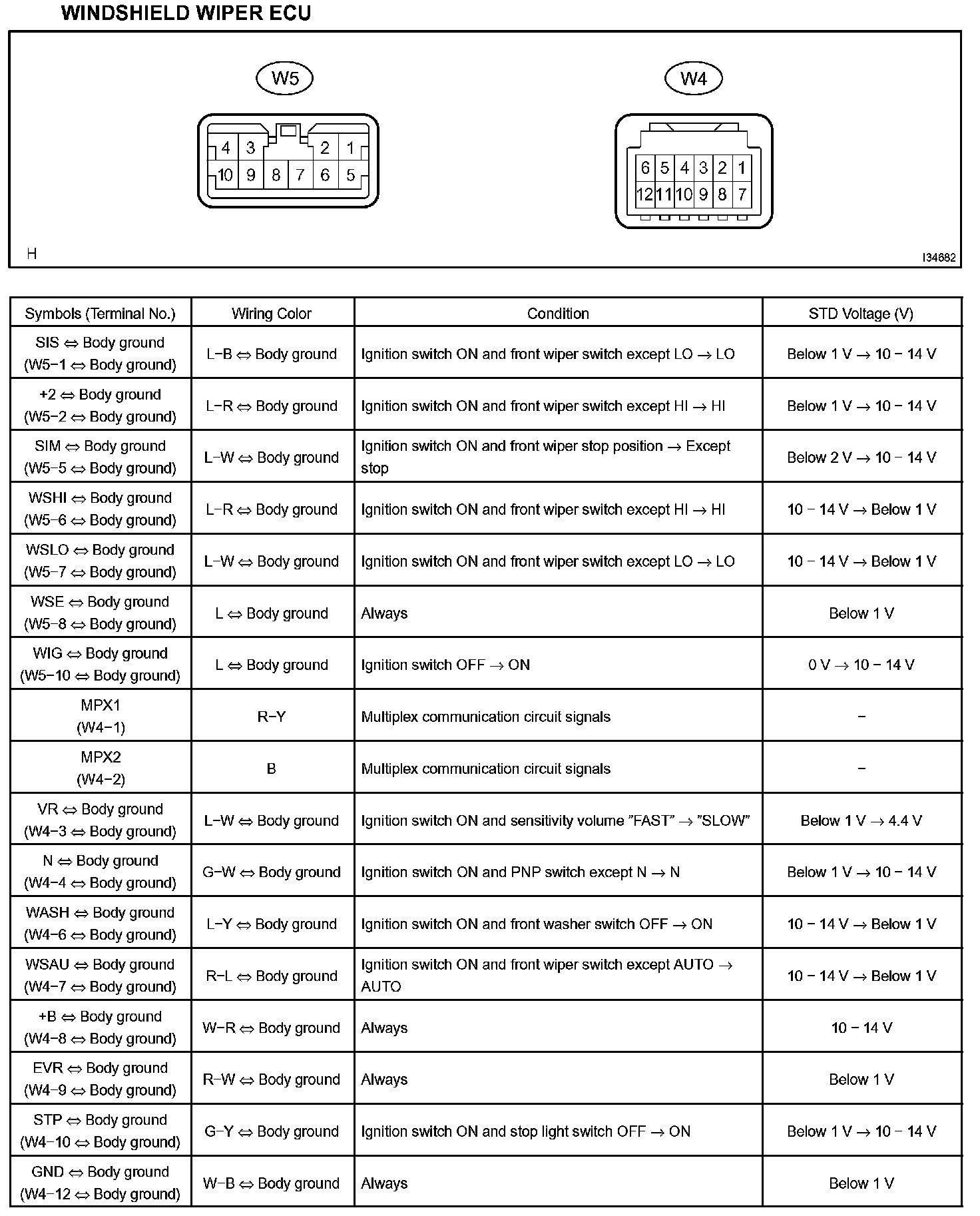

Terminals Of Control Module/Pinouts-Windshield Wiper ECU:

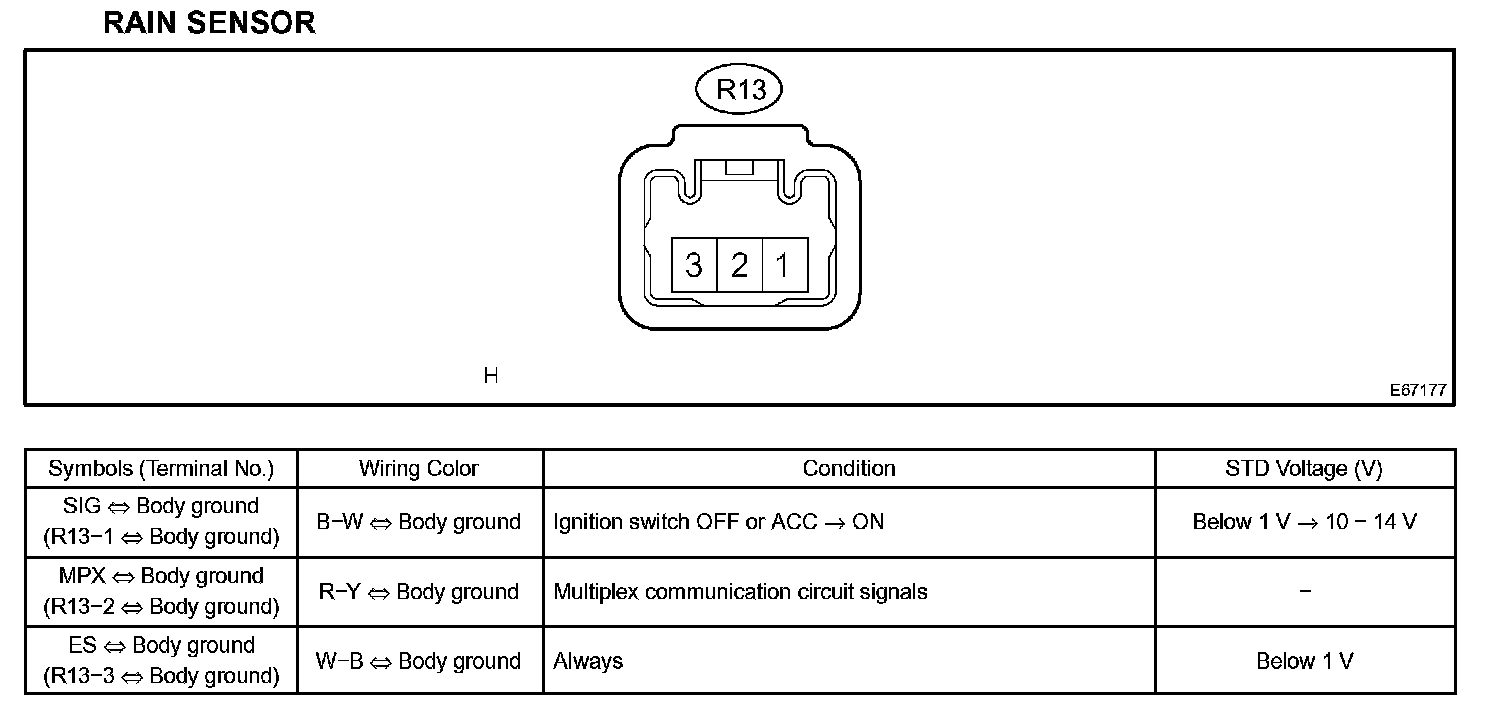

Terminals Of Control Module/Pinouts-Rain Sensor:

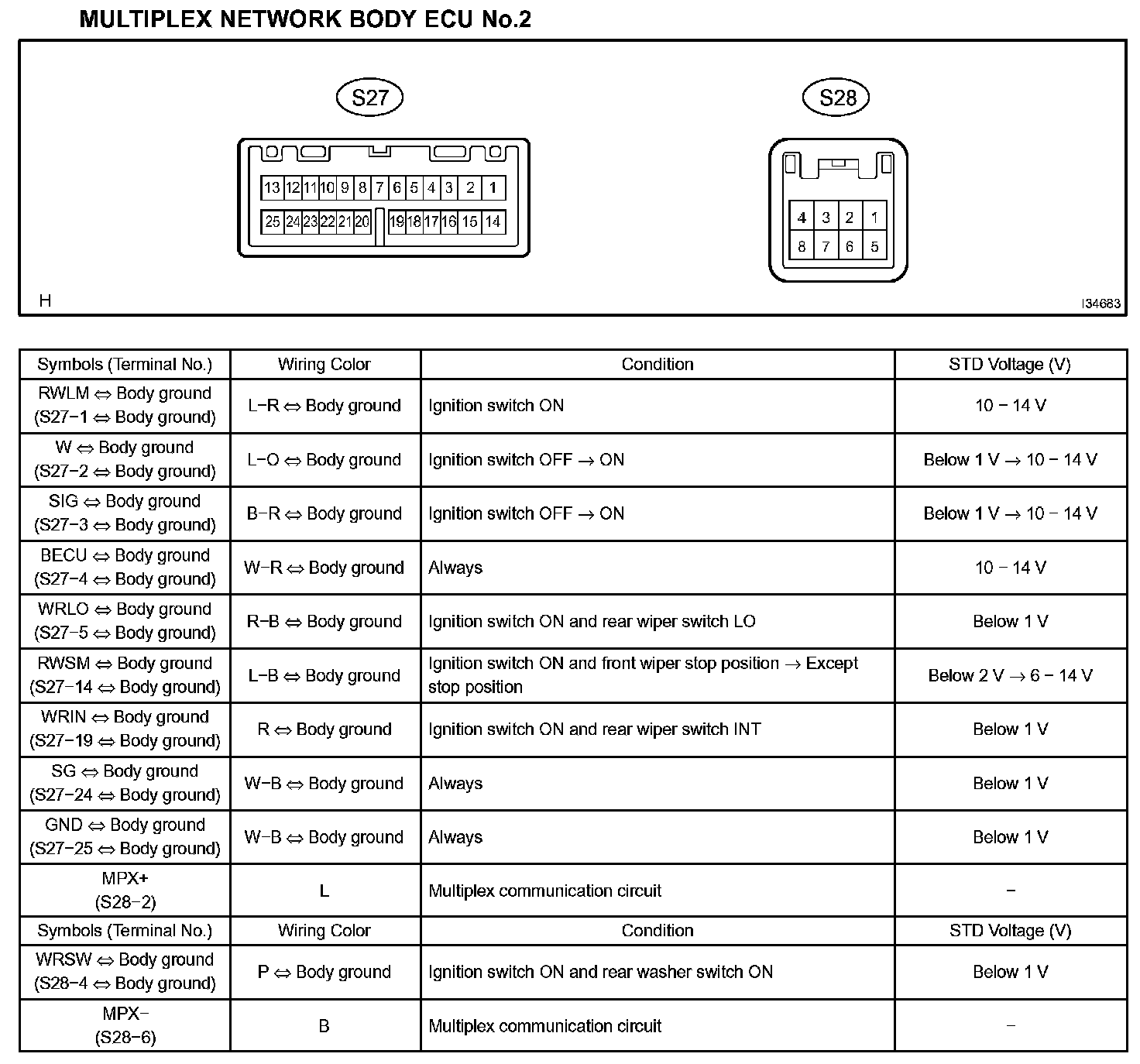

Terminals Of Control Module/Pinouts-Multiplex Network Body ECU No.2:
