Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2006
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Differential Carrier Assembly
Rear Differential Carrier Assembly

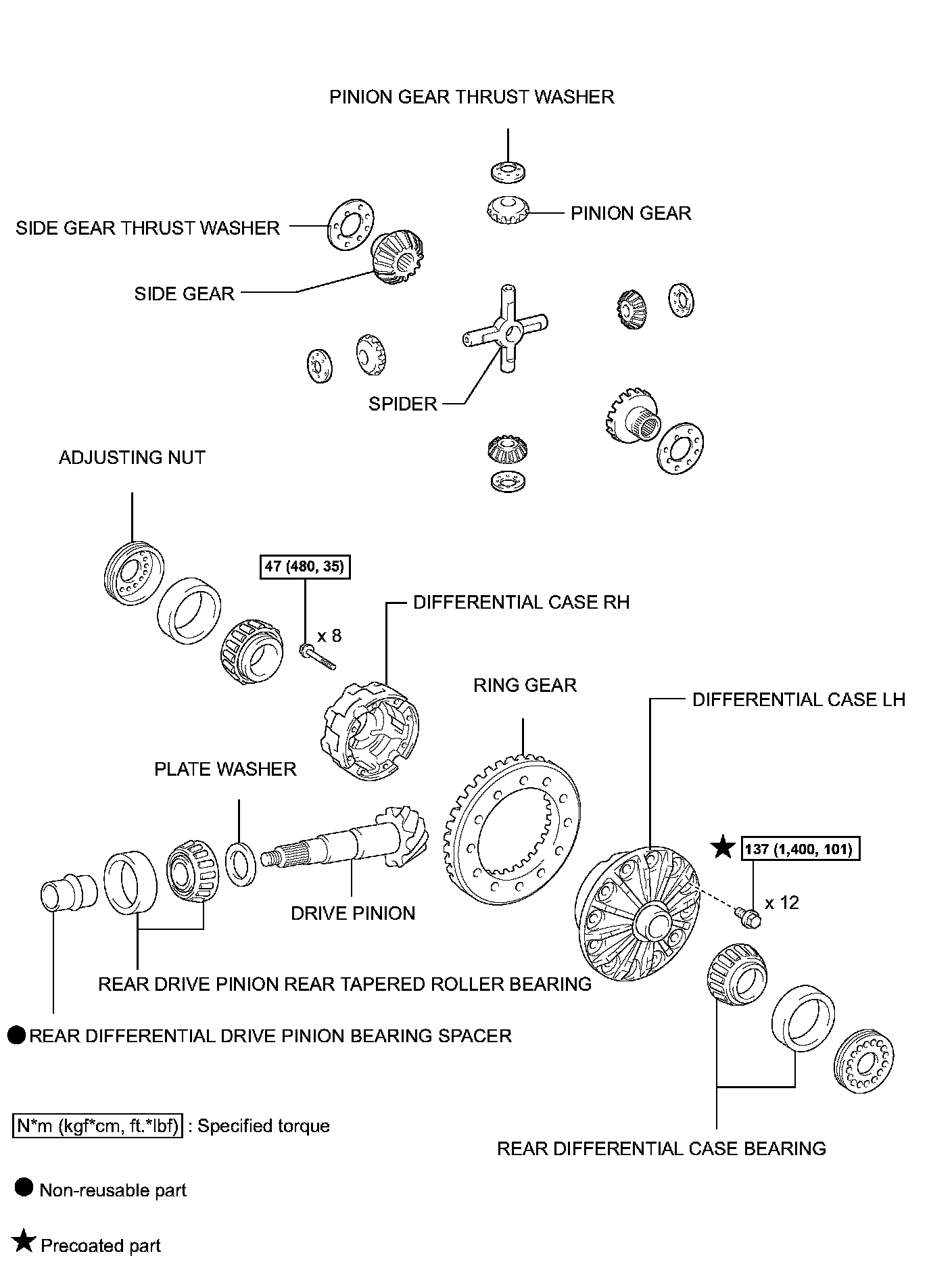

Components:

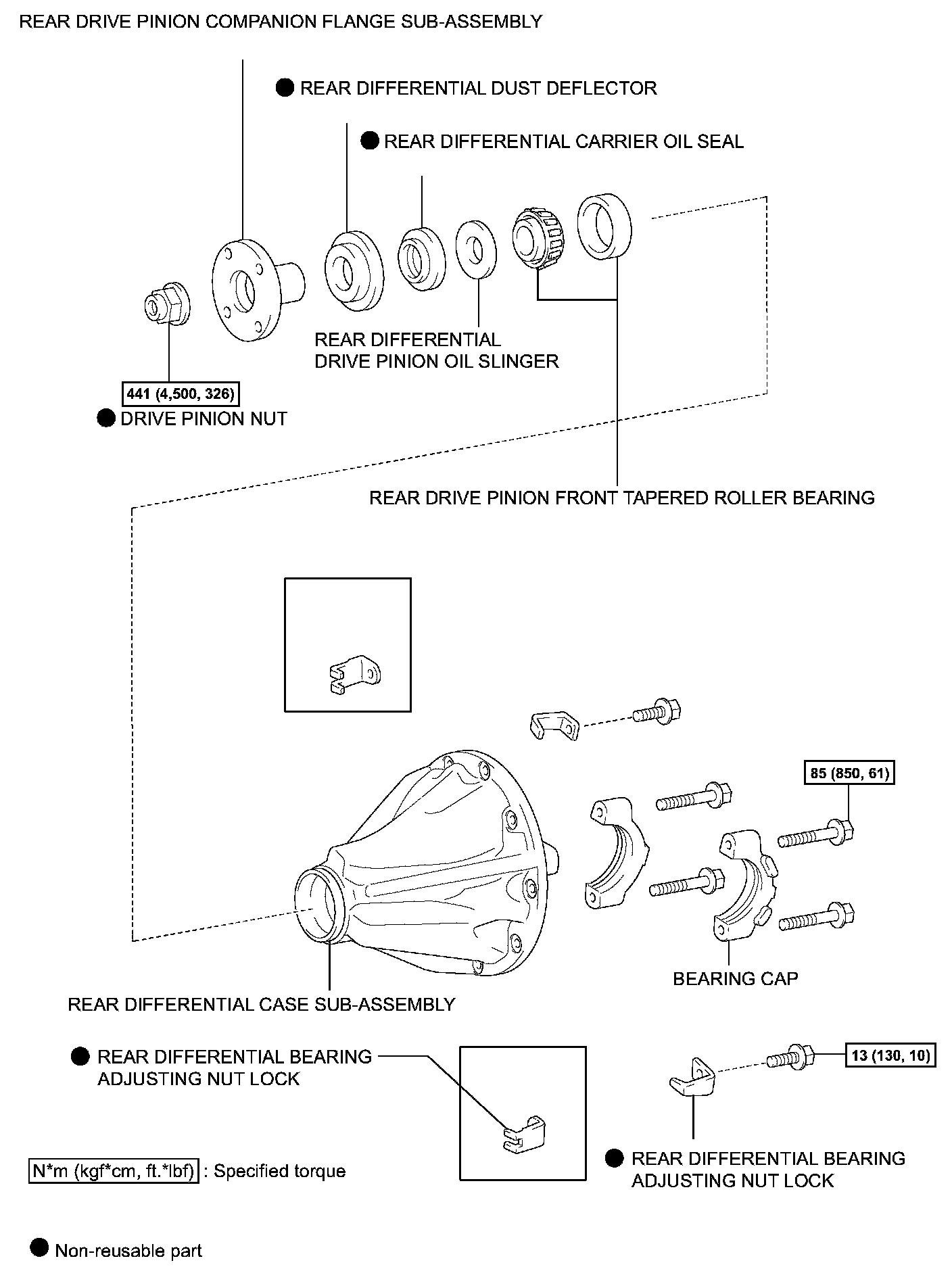

Components:

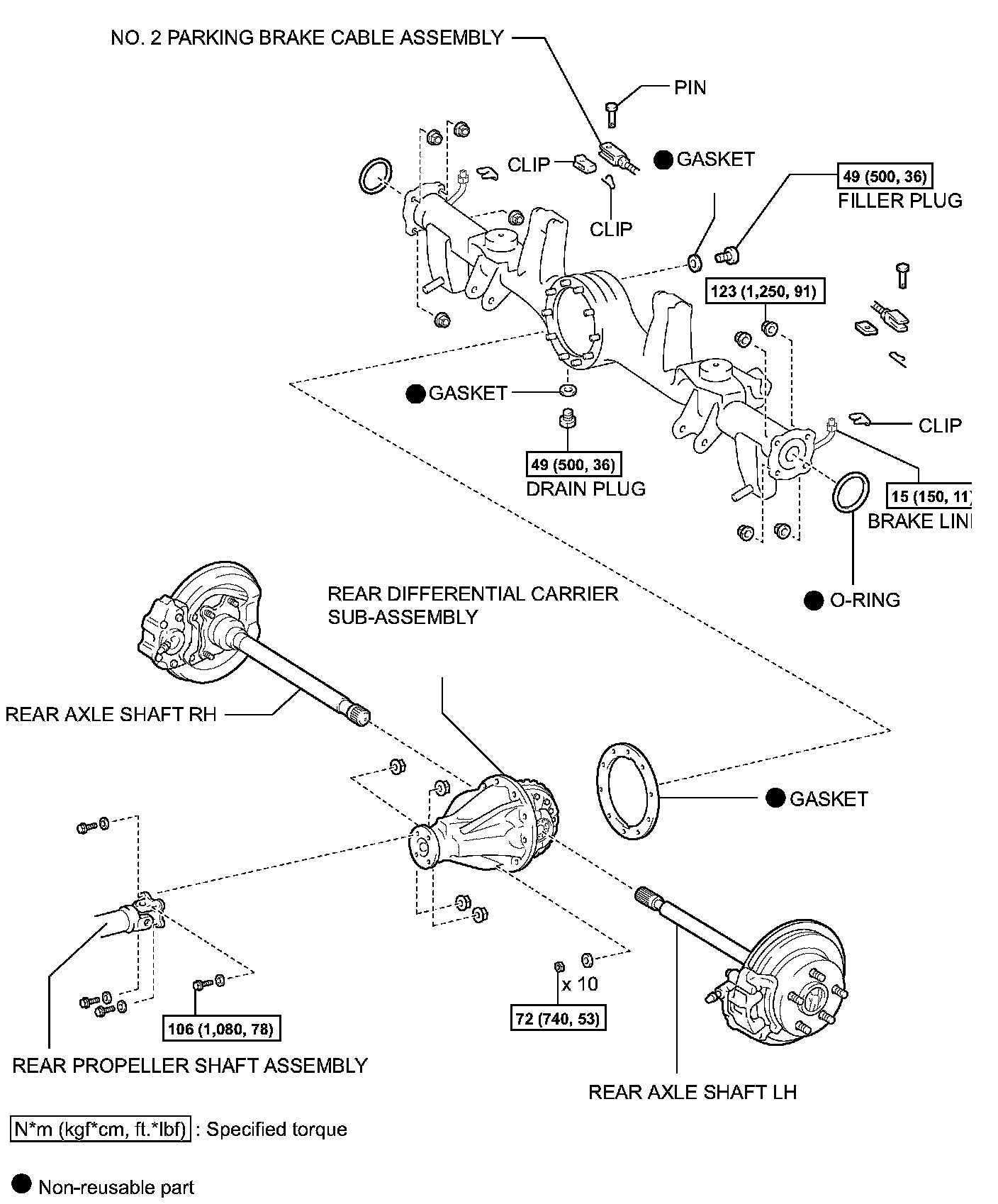

Components:
