Housing Assembly HVAC

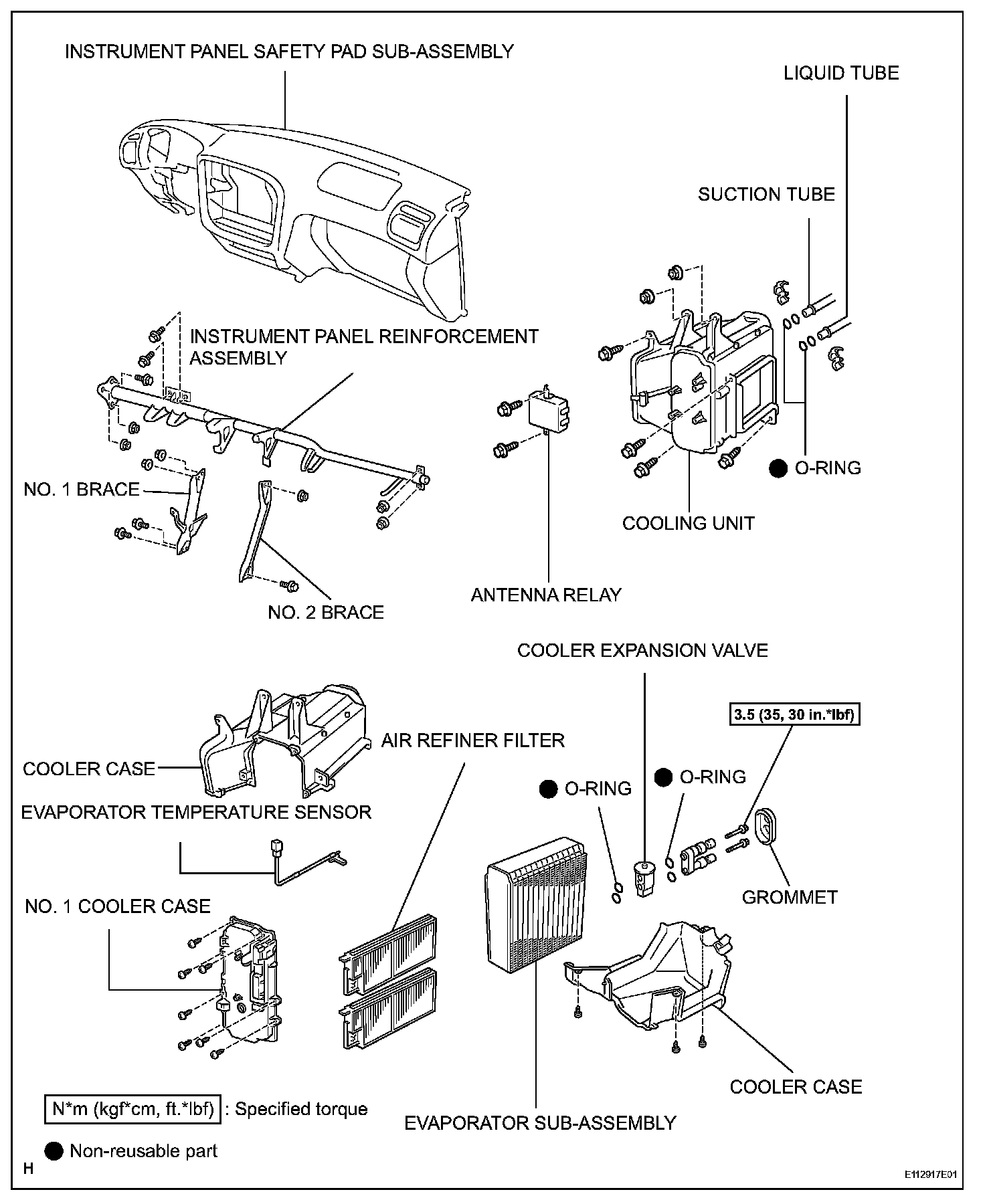

Front Cooling Unit:

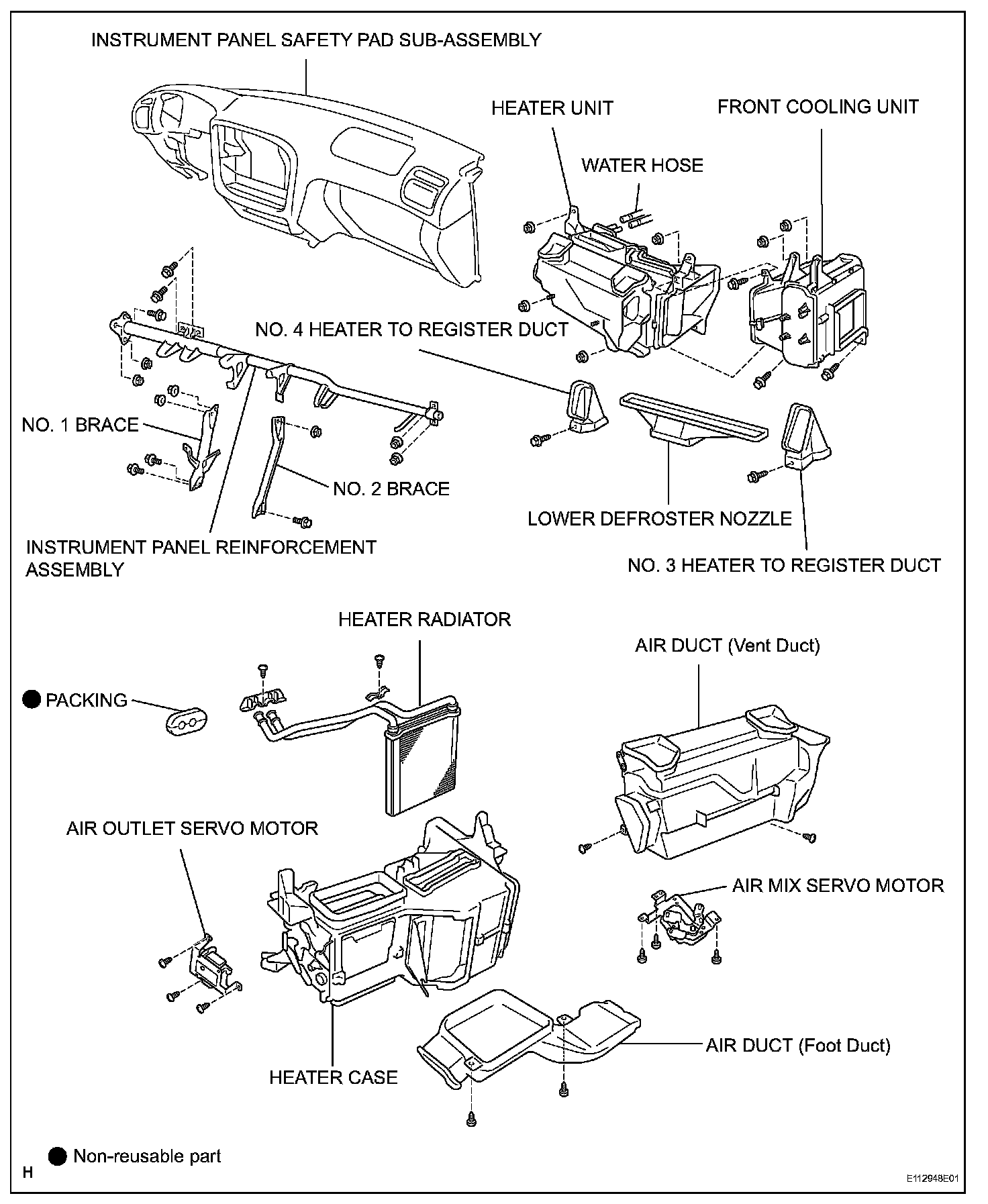

Front Heater Unit:

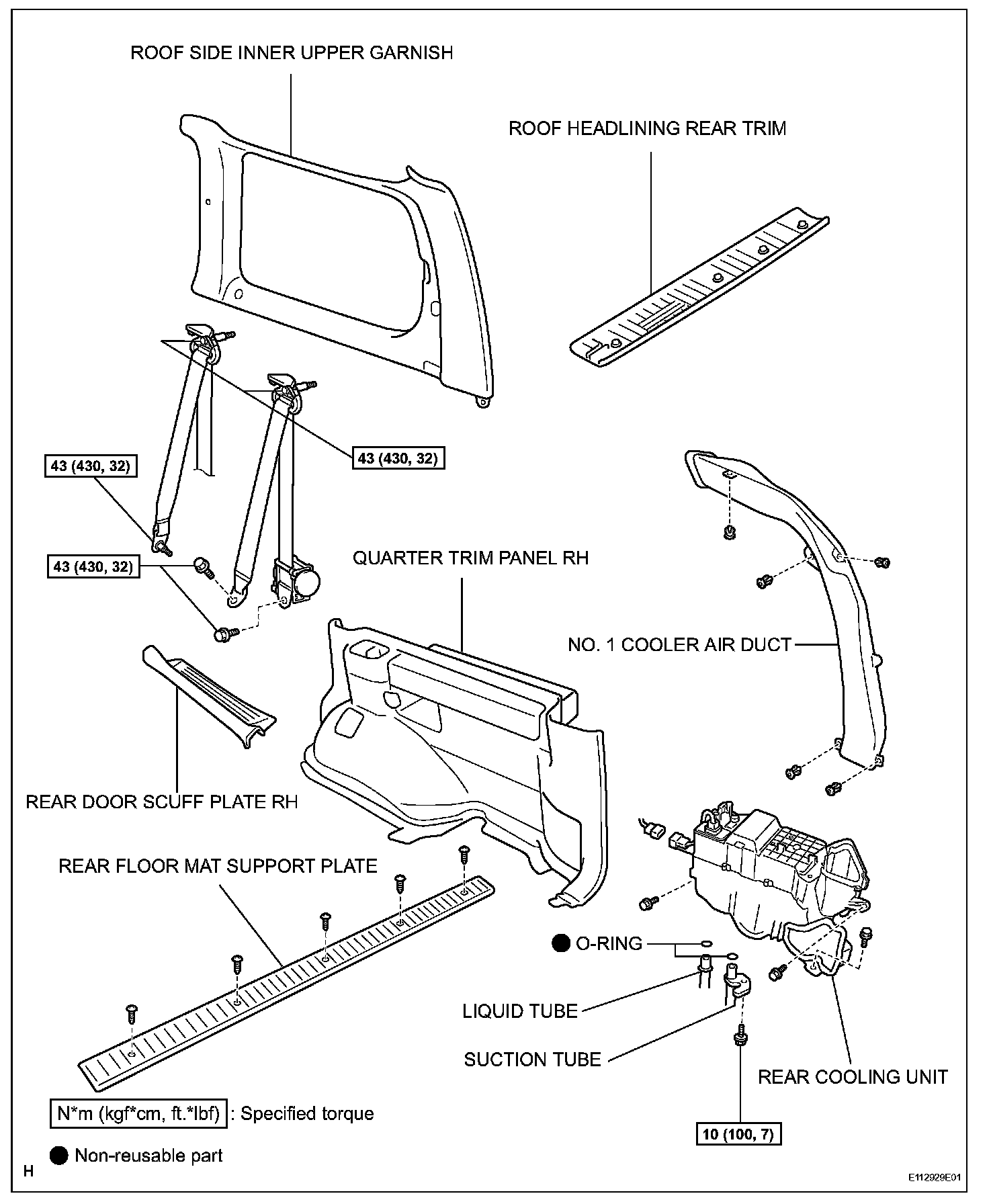

Rear Cooling Unit:
Rear Cooling Unit:

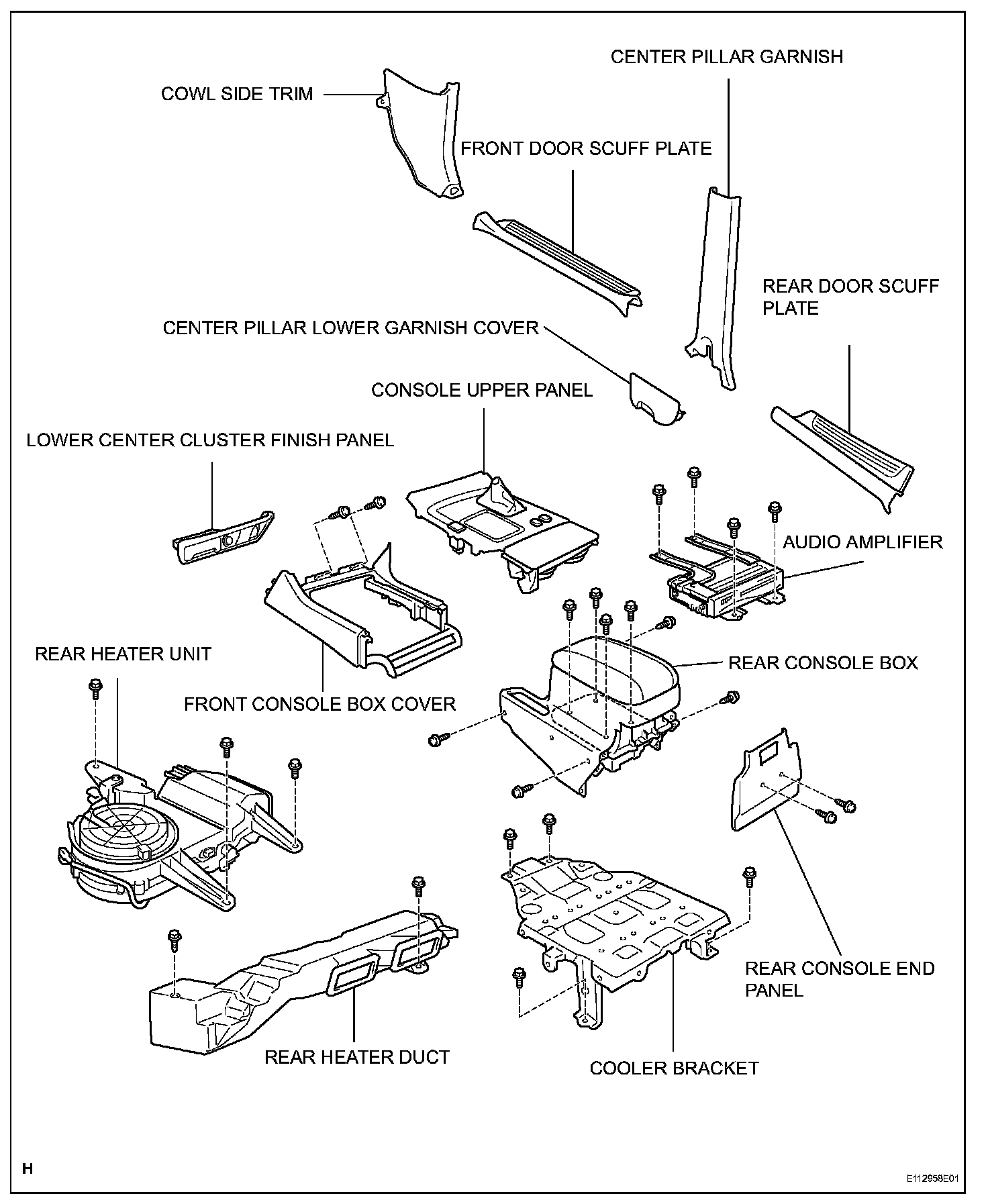

Rear Heater Unit:

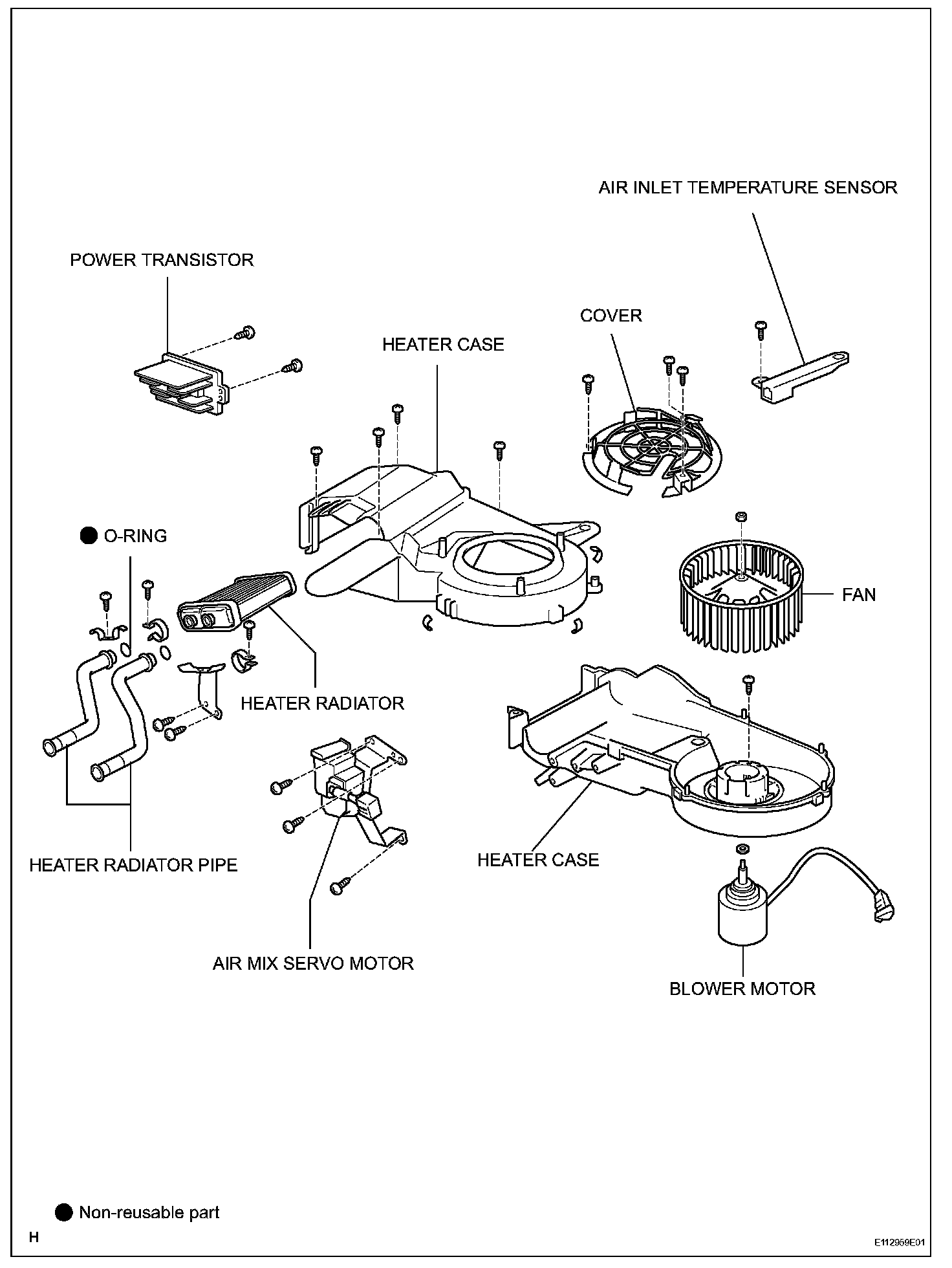

Rear Heater Unit:

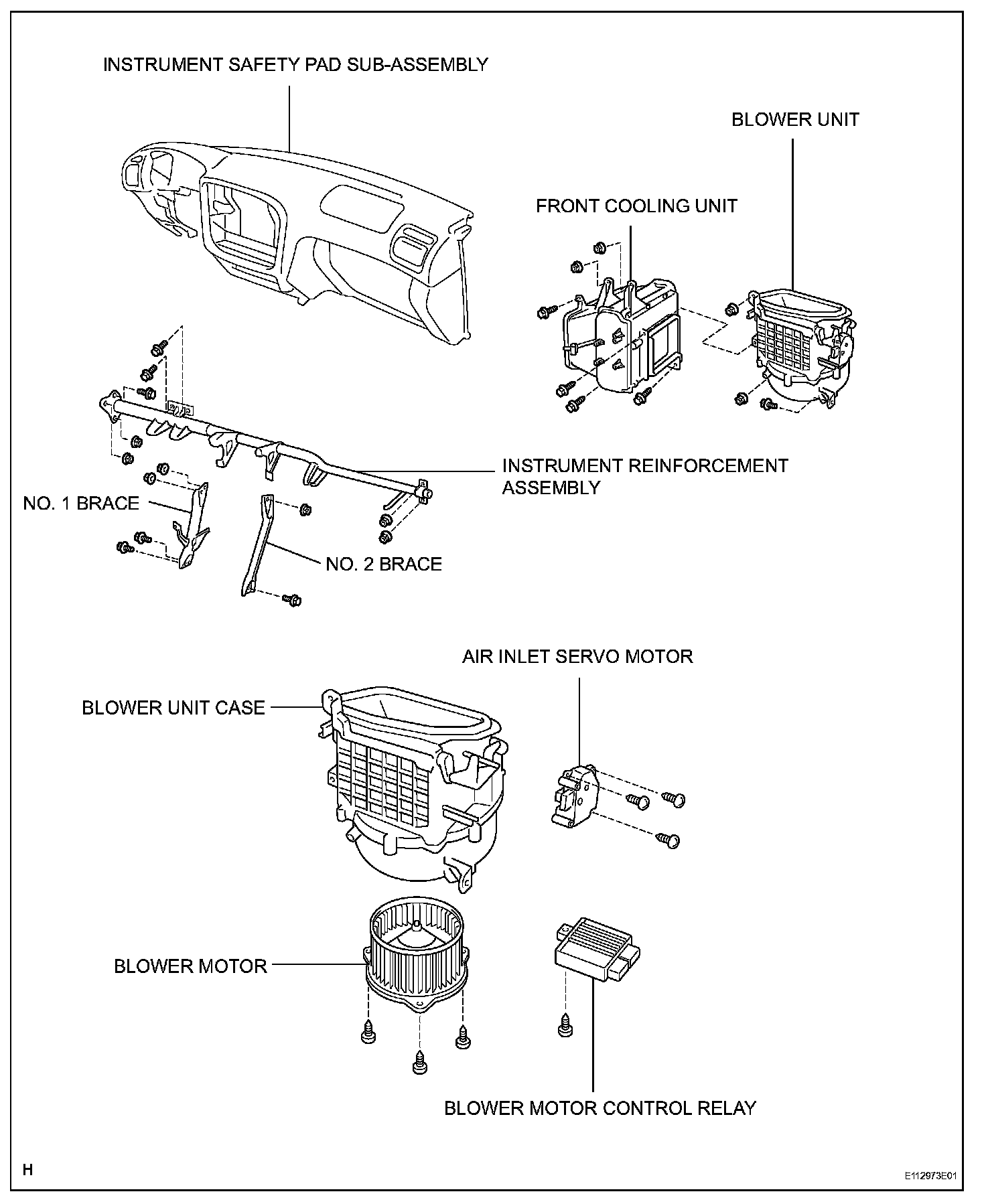

Blower Unit:
