Oil Pan, Engine

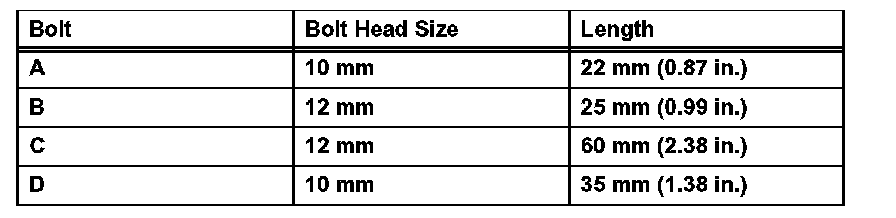

Bolt Length:

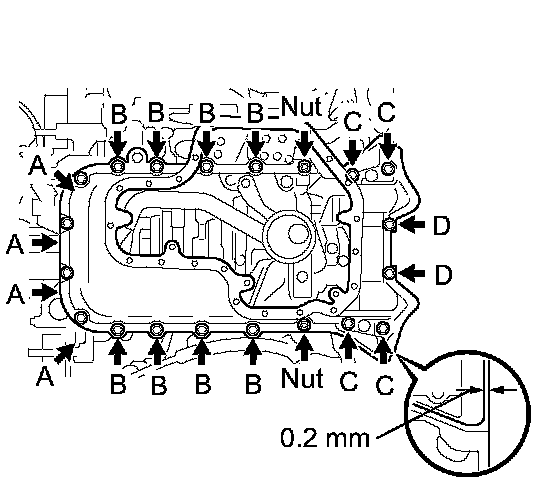

No. 1 Oil Pan Bolts, Stud Bolt & Nuts
Bolts A & D 7.5 Nm (76 kgf-cm, 66 inch lbs.)
Bolts B & C 28 Nm (286 kgf-cm, 21 ft. lbs.)
Nut 28 Nm (286 kgf-cm, 21 ft. lbs.)

Oil Pan Baffle Plate Bolts & Nut 7.5 Nm (76 kgf-cm, 66 inch lbs.)





No. 2 Oil Pan Bolts & Nuts 7.5 Nm (76 kgf-cm, 66 inch lbs.)
