Flex Plate

Flex Plate

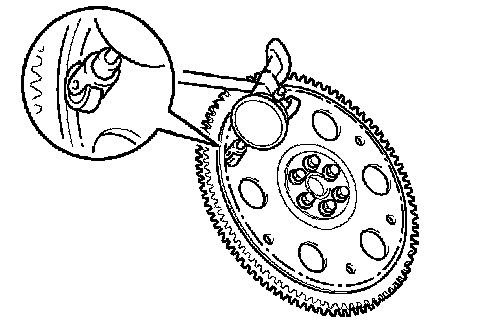

If the runout is greater than the maximum or if the ring gear is damaged, replace the drive plate. If installing a new drive plate, note the orientation of the spacers and tighten the bolts.






Flex Plate Bolts
First Pass 49 Nm (500 kgf-cm, 36 ft. lbs.)
Final Pass 90°
