Distance Sensor: Service and Repair
REMOVAL1. REMOVE ENGINE UNDER COVER NO.1
2. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH
3. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH
4. REMOVE FRONT BUMPER COVER
5. REMOVE FRONT BUMPER ENERGY ABSORBER
6. REMOVE FRONT BUMPER REINFORCEMENT

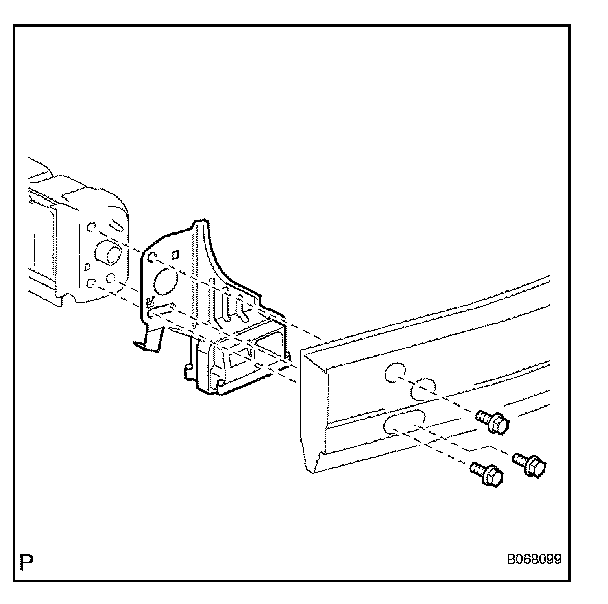

7. REMOVE LASER SENSOR
a. Disconnect the connector and remove the laser sensor.
INSTALLATION
1. INSTALL LASER SENSOR
NOTE: Do not install the laser sensor if it has been damaged or received some sort of shock.
2. INSTALL FRONT BUMPER REINFORCEMENT
3. ADJUST FOG LIGHT AIM
4. CHECK FOG LIGHT AIM
5. ADJUST LASER SENSOR
SST 09870-60000 (09870-60010, 09870-60020)
