Gateway ECU Communication Error

Gateway ECU Communication Error

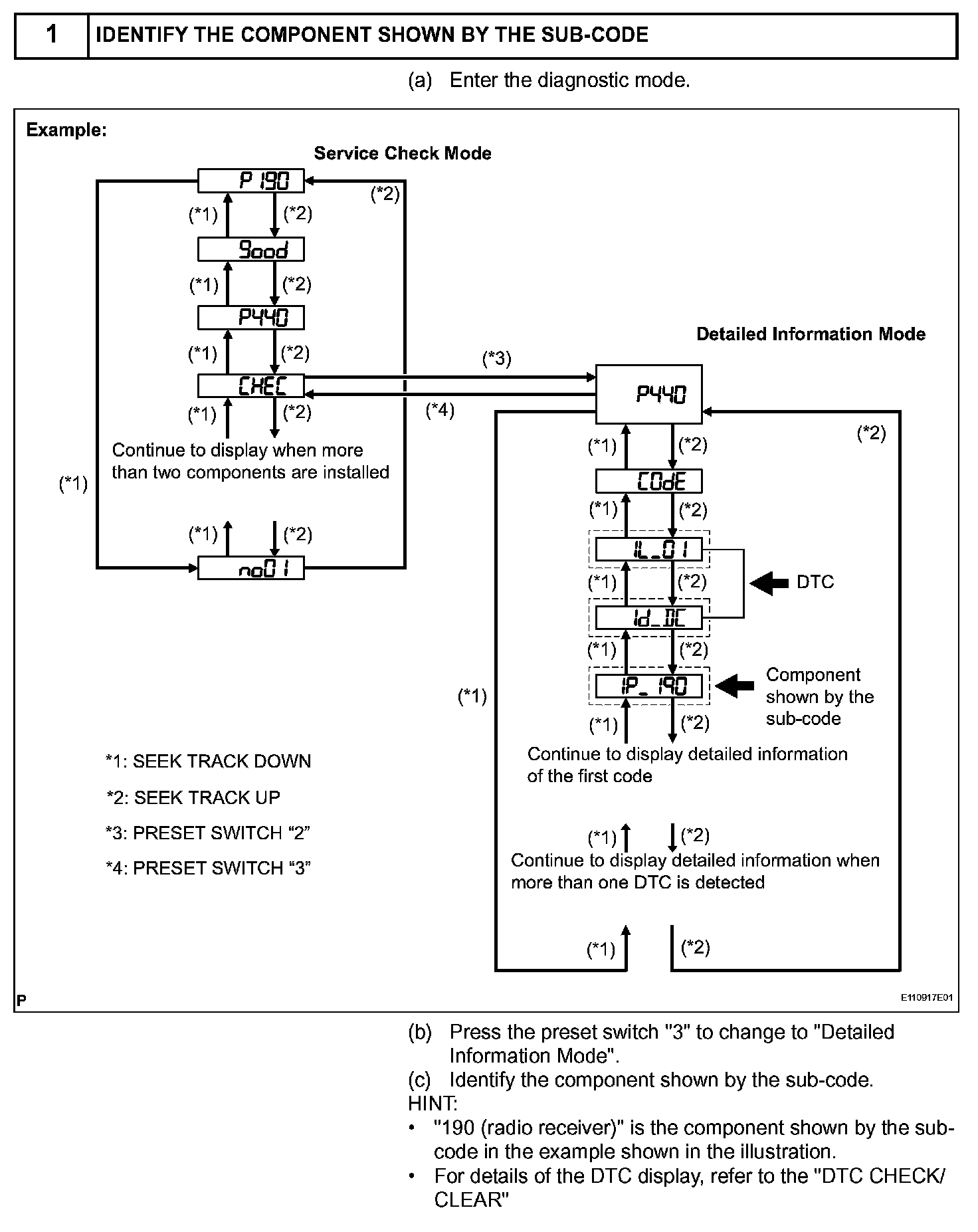

Step 1:

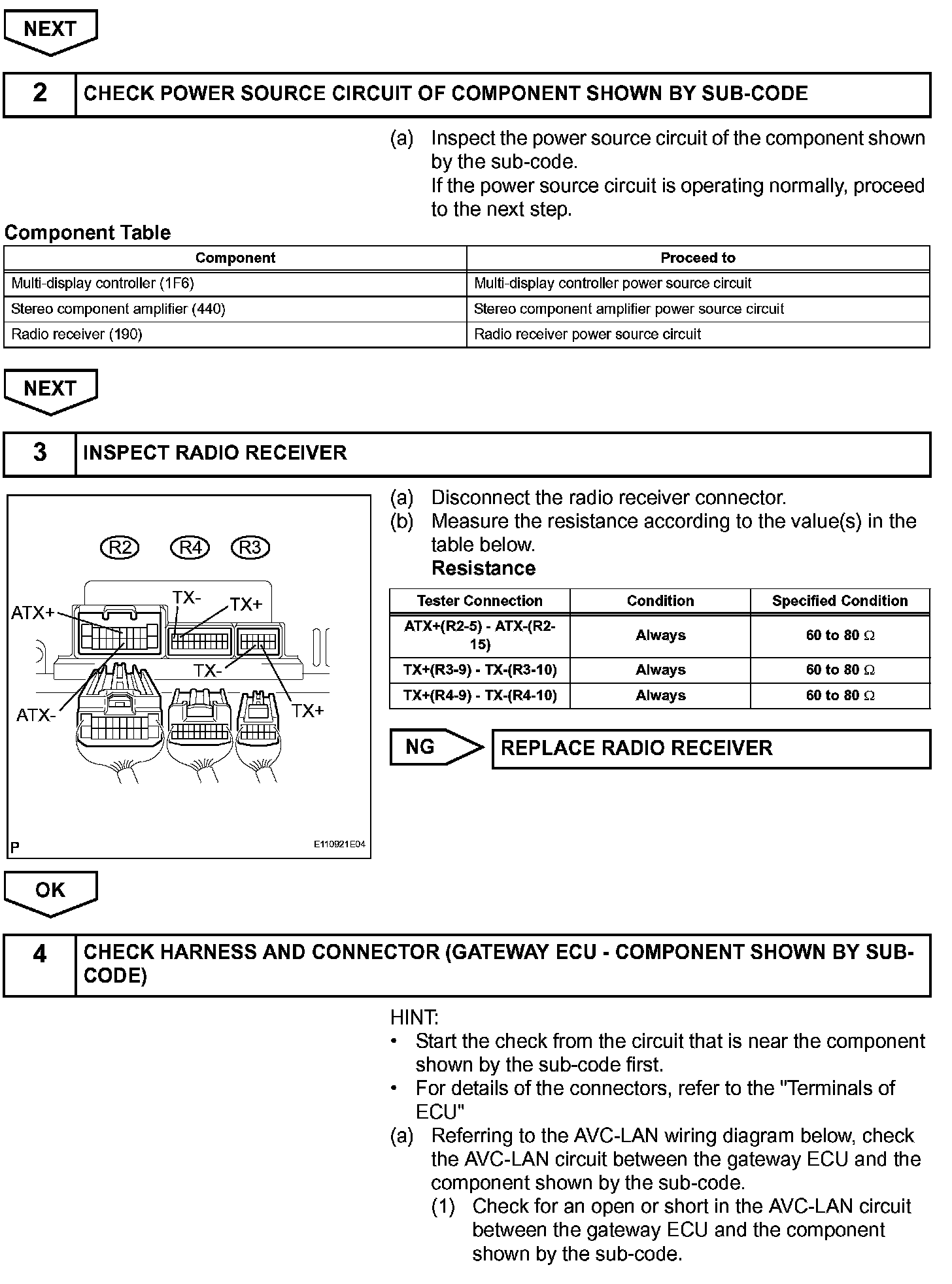

Step 1(Continued)-4:

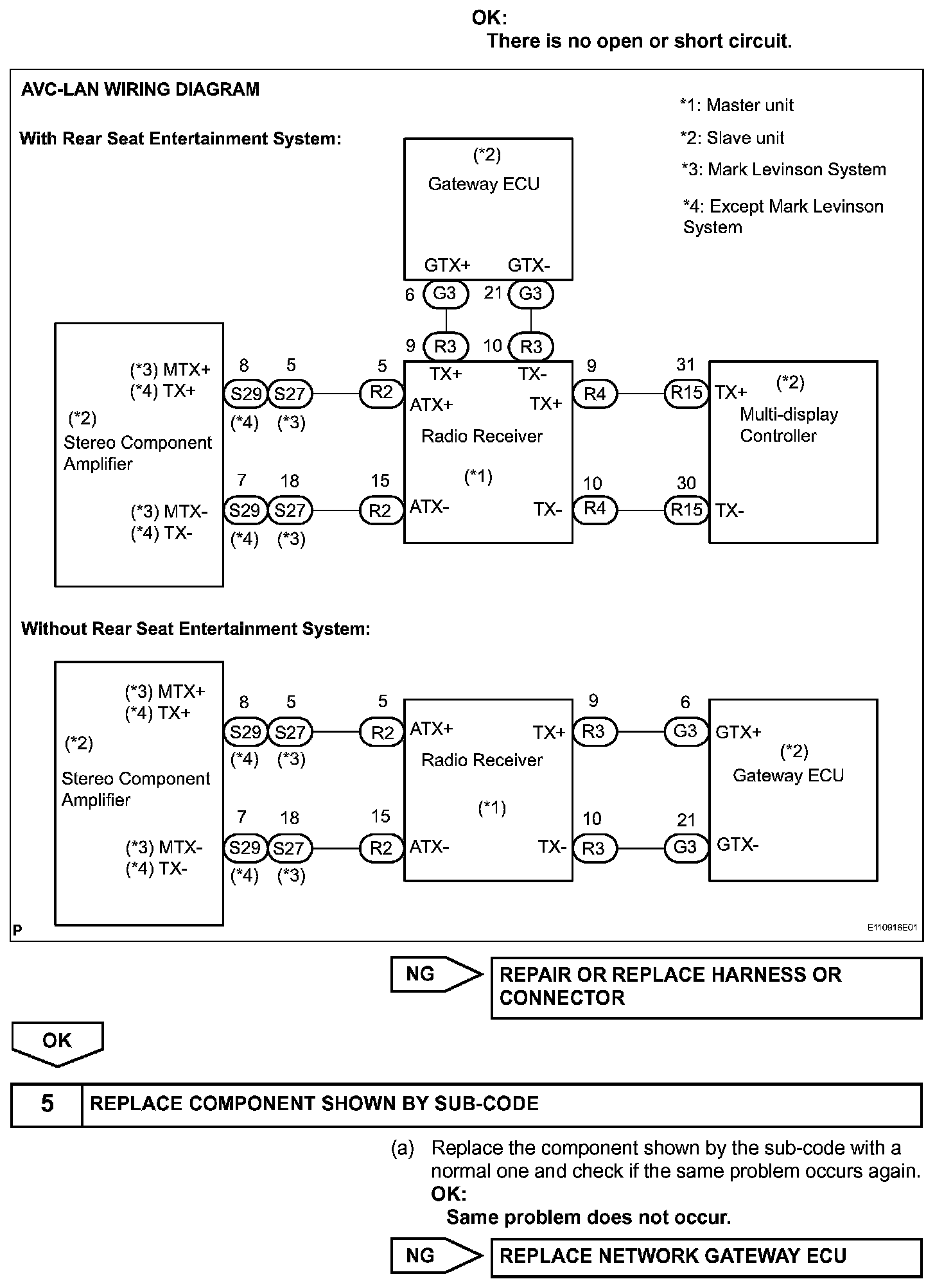

Step 4(Continued)-5:

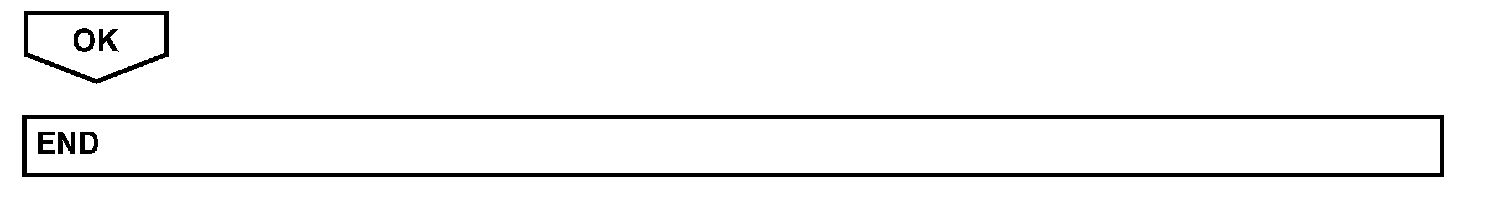

Step 5(Continued):




INSPECTION PROCEDURE
