Multi-Display Controller Power Source Circuit

Multi-display Controller Power Source Circuit

DESCRIPTION
This circuit provides power to the multi-display controller.

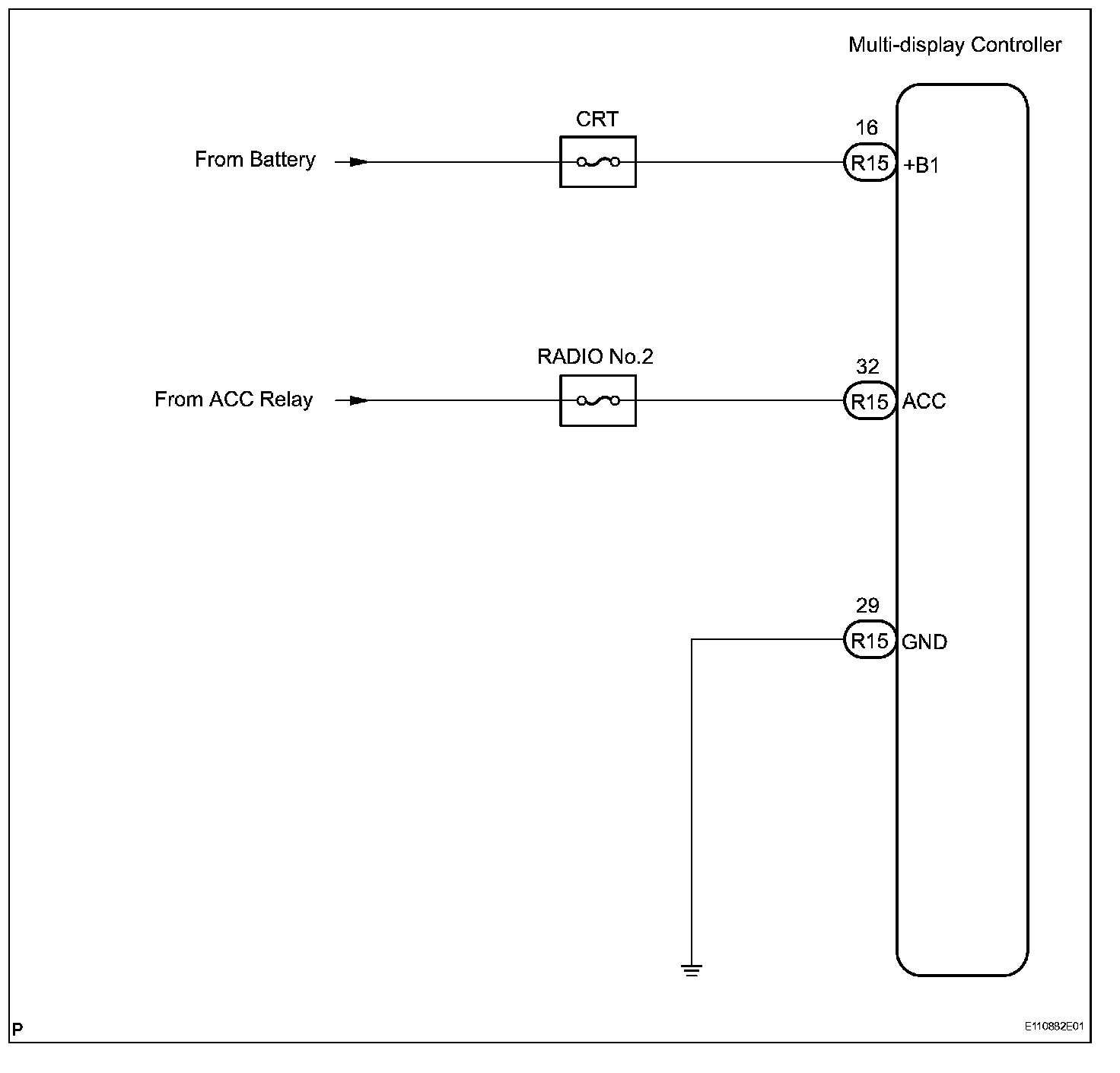

Wiring Diagram:

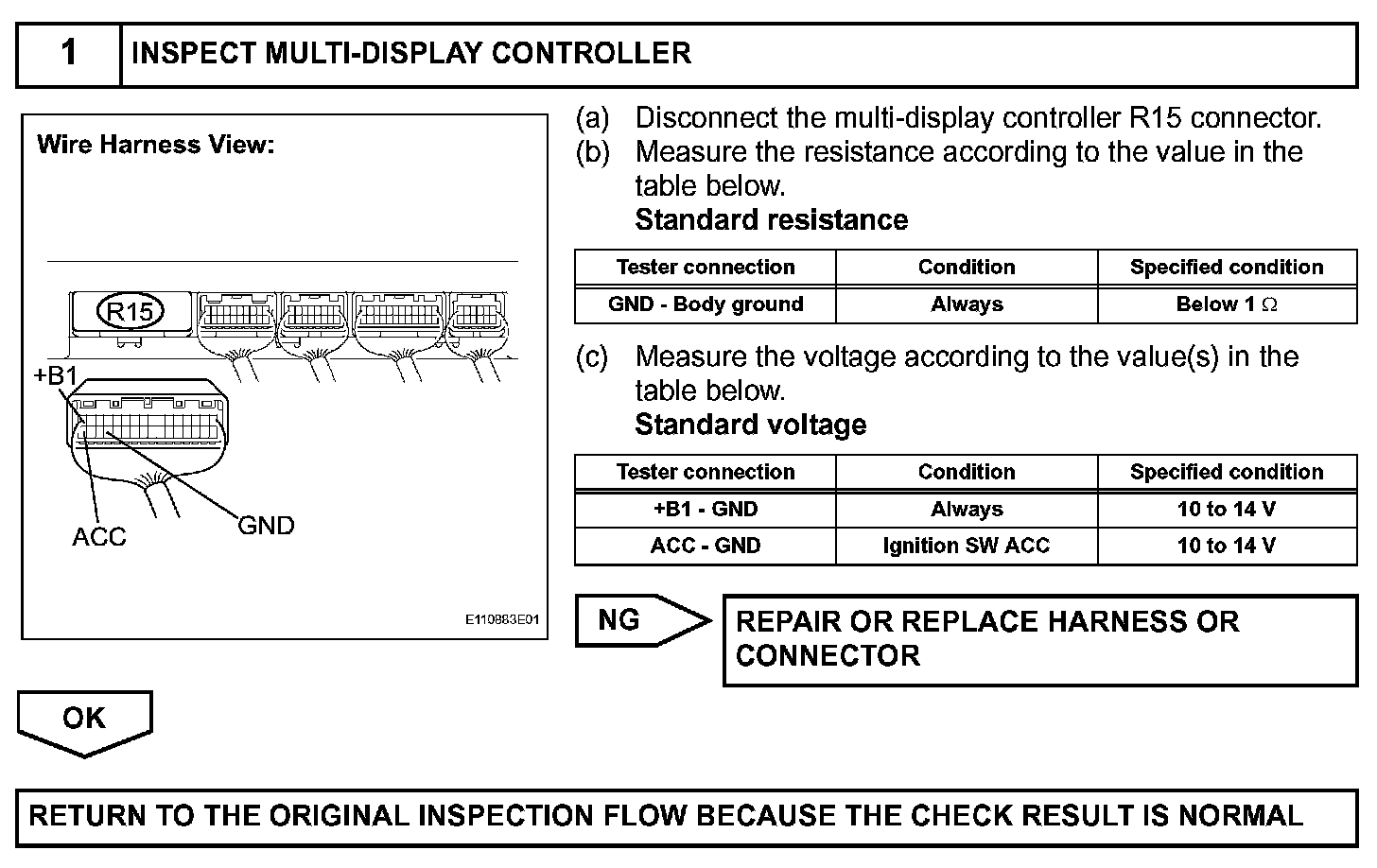

Step 1:




INSPECTION PROCEDURE
