Lumbar Support Adjuster Assembly

LUMBAR SUPPORT ADJUSTER ASSEMBLY

INSPECTION

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY

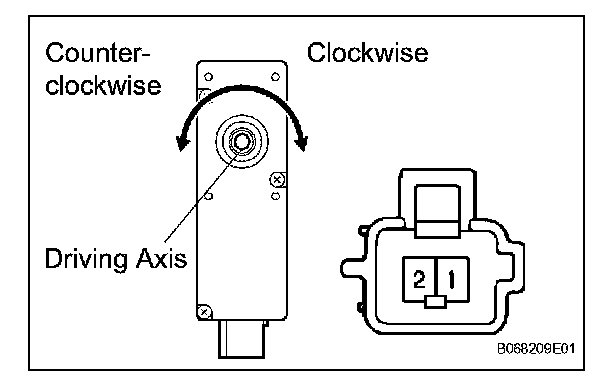

a. Check operation of the lumbar support adjuster motor.

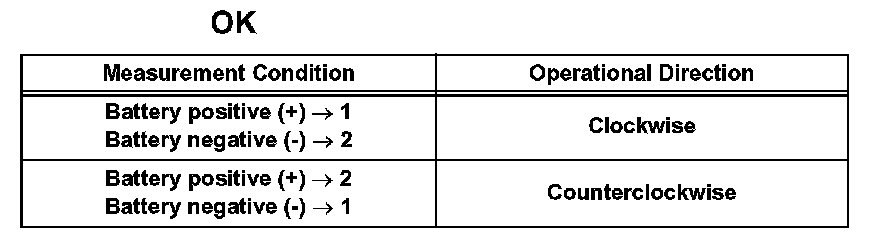

1. Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminal.
If the result is not as specified, replace the lumbar support adjuster assembly.
