Information

INFORMATION

HINT: Similar to freeze frame data, the HV control ECU also records vehicle and driving condition information as INFORMATION the moment a DTC is stored.

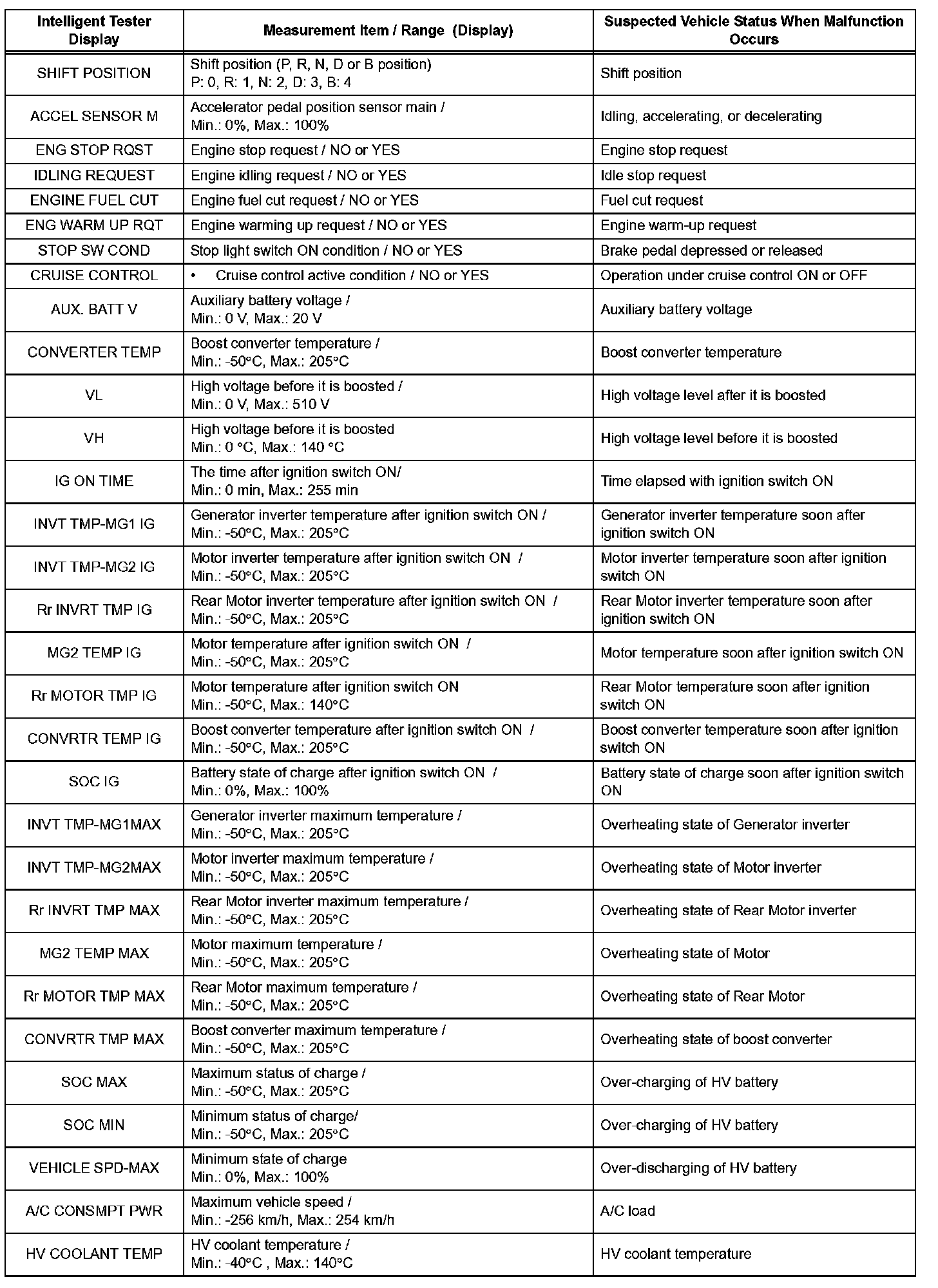

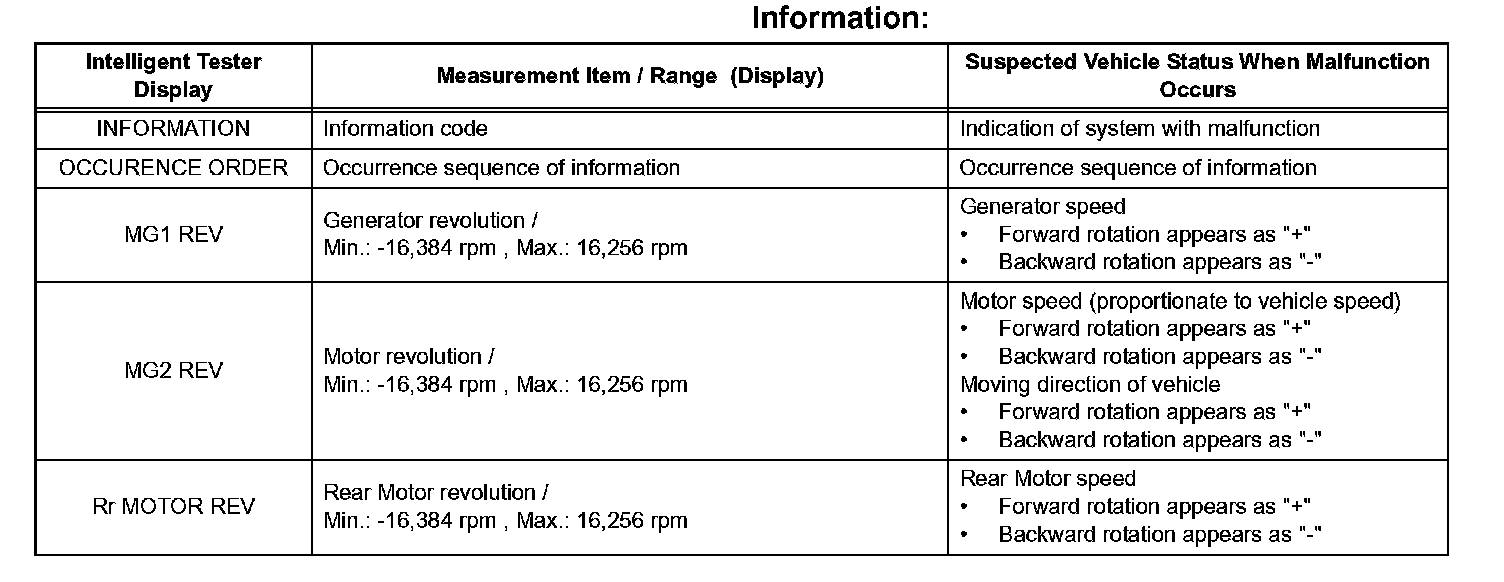

Part 1:

Part 2:

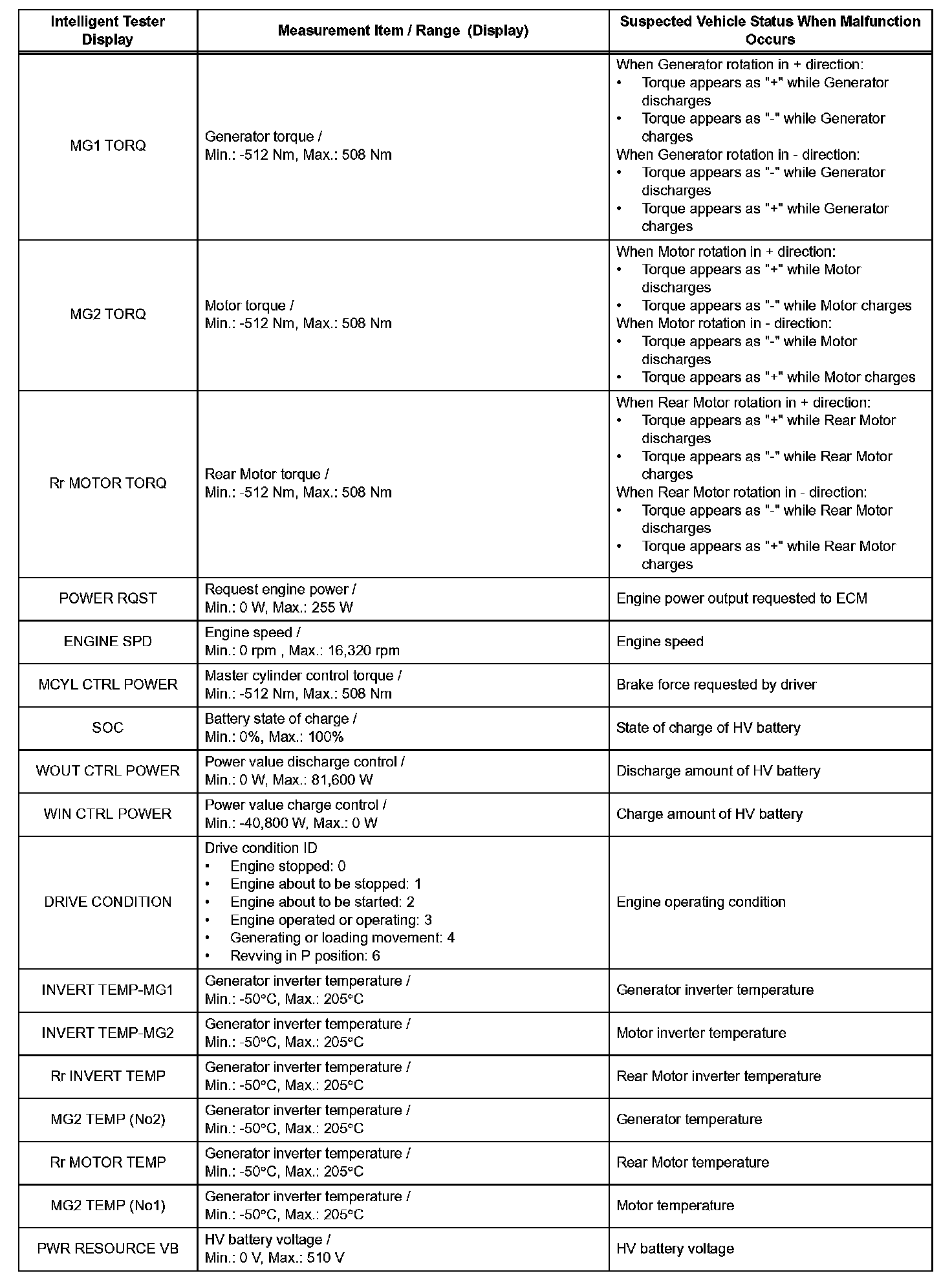

Part 3:

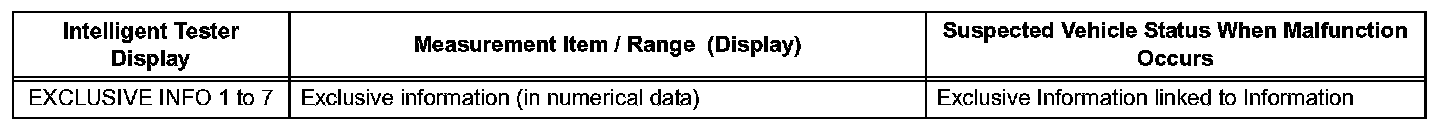

Part 4:

a. Select one which has an INF code from among INFORMATION 1 to 5.
b. Check the information of the DTC.
