Fog/Driving Lamp Relay: Testing and Inspection
FOG LIGHT RELAYON-VEHICLE INSPECTION
1. INSPECT FOG LIGHT RELAY
a. Remove the fog light relay

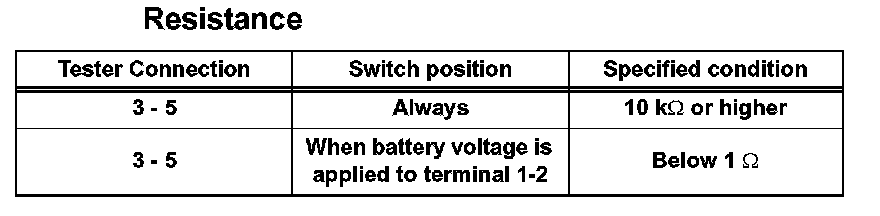

b. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the fog light relay.
