Back Door Courtesy Switch

INSPECTION

1. INSPECT BACK DOOR COURTESY SWITCH (W/O POWER BACK DOOR)




a. Remove the back door lock assembly (back door courtesy switch).

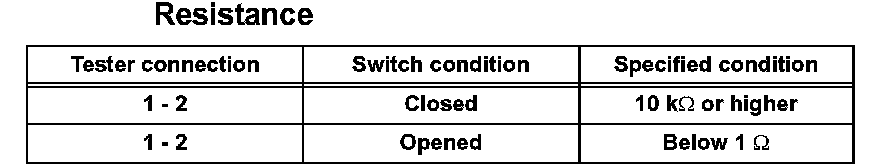

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the back door lock assembly (back door courtesy switch).

2. INSPECT BACK DOOR COURTESY SWITCH (W/ POWER BACK DOOR)




a. Remove the back door lock assembly (back door courtesy switch).

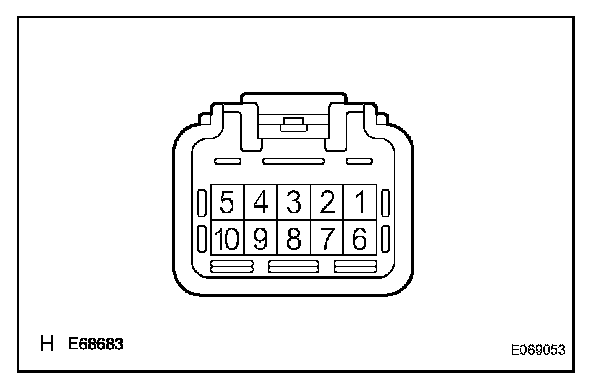

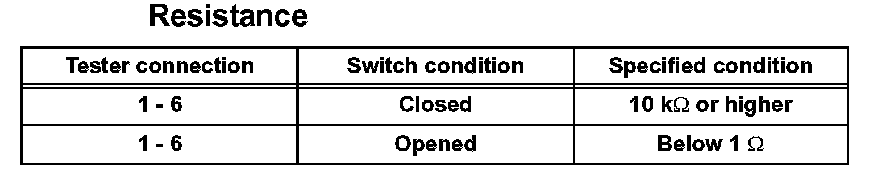

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the back door lock assembly (back door courtesy switch).
