Automatic Light Control Sensor Circuit
Automatic Light Control Sensor CircuitDESCRIPTION
The body ECU receives the signal from the automatic light control sensor.

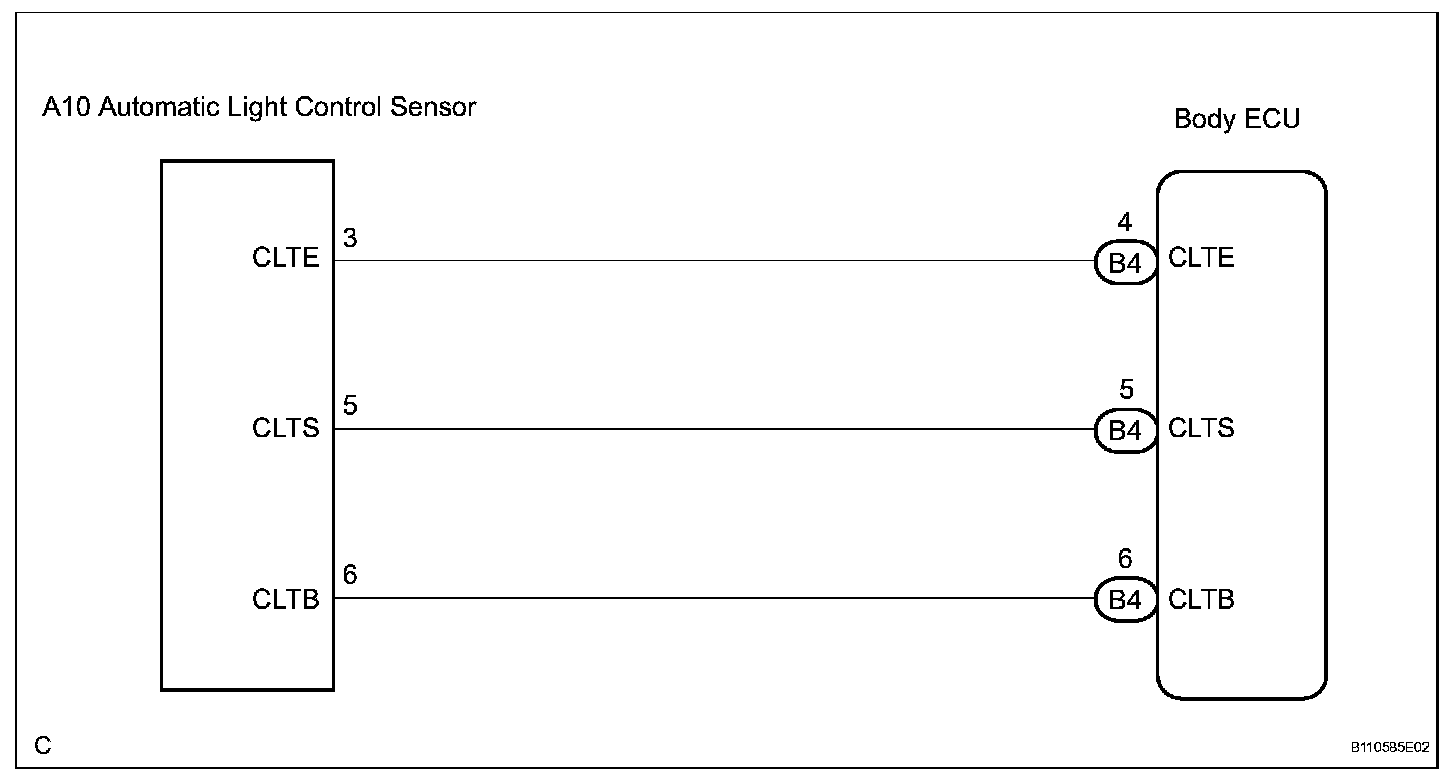

Wiring Diagram:

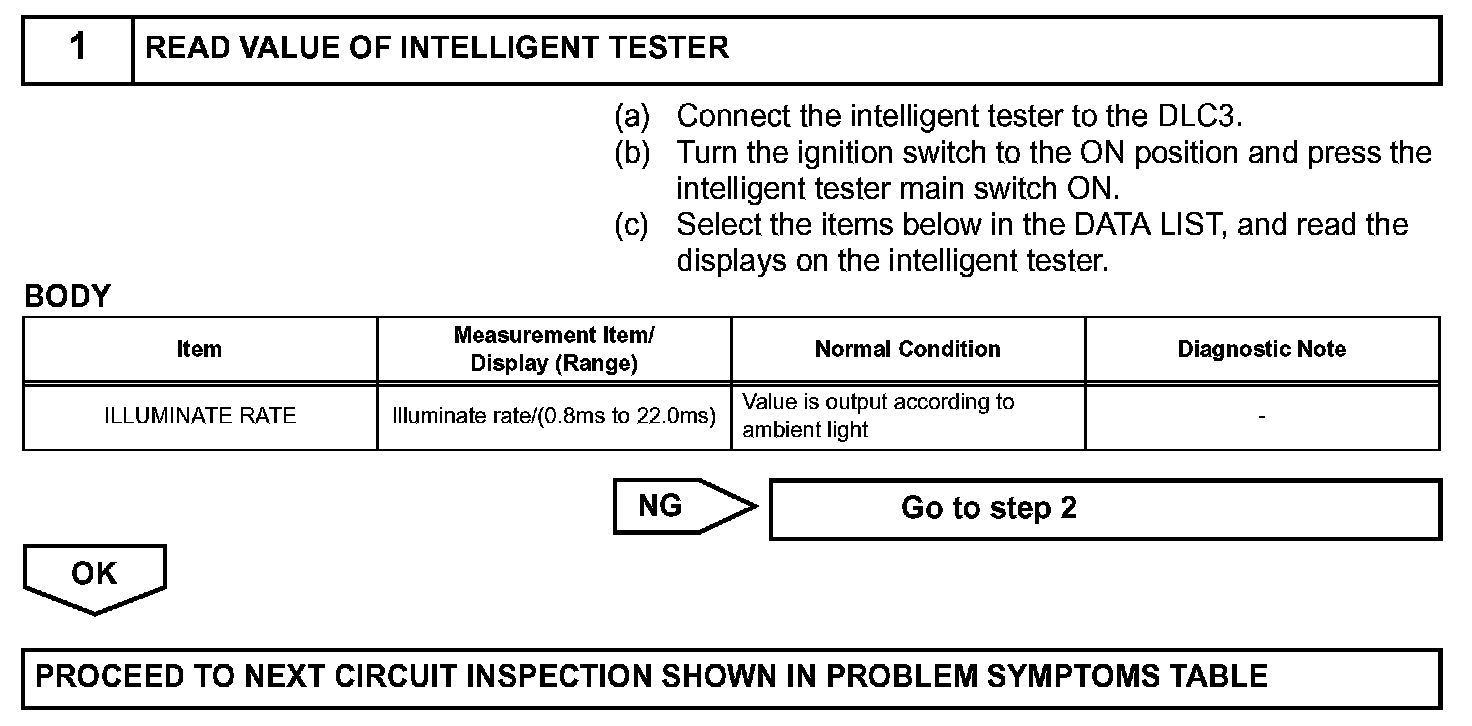

Step 1:

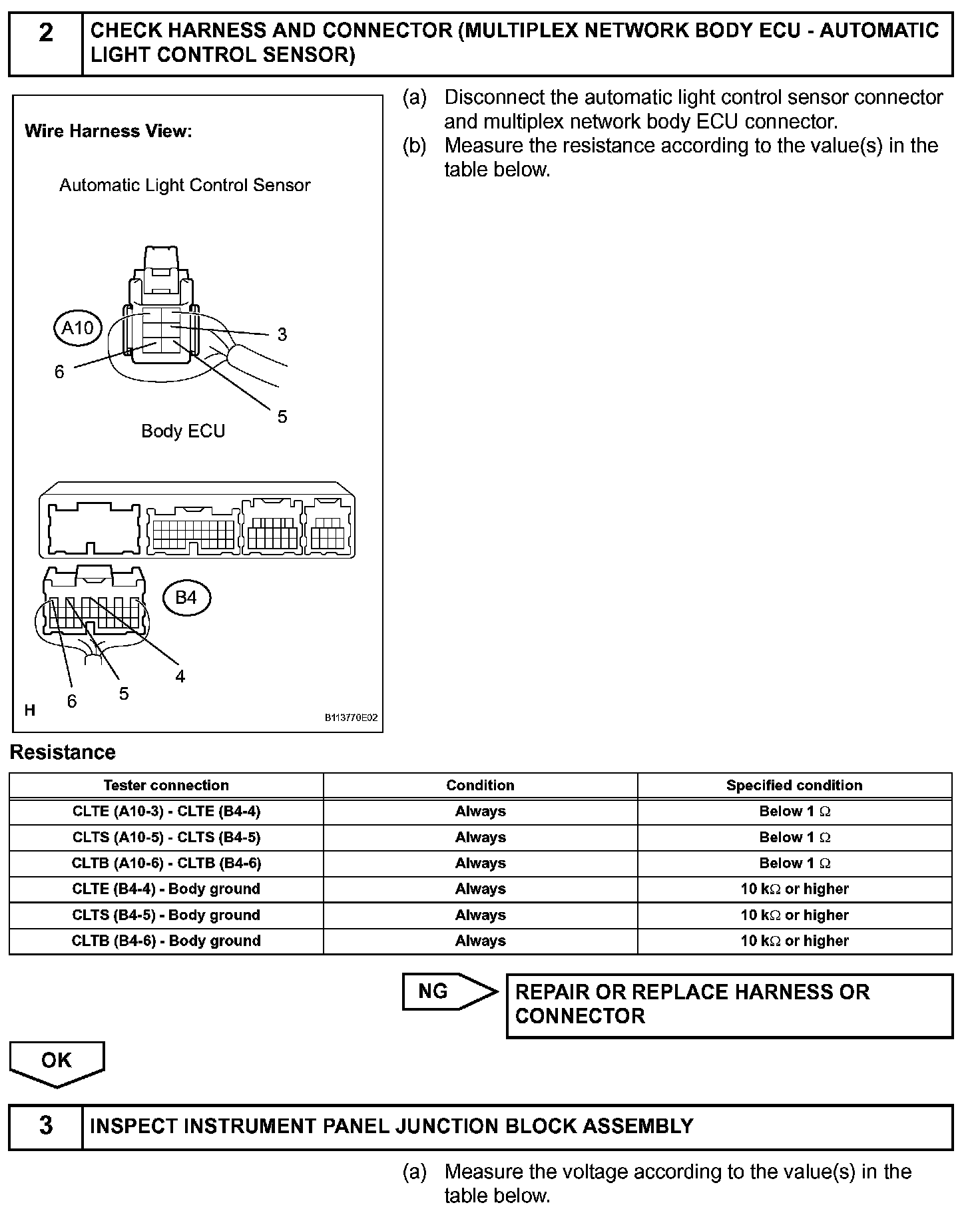

Step 2-3:

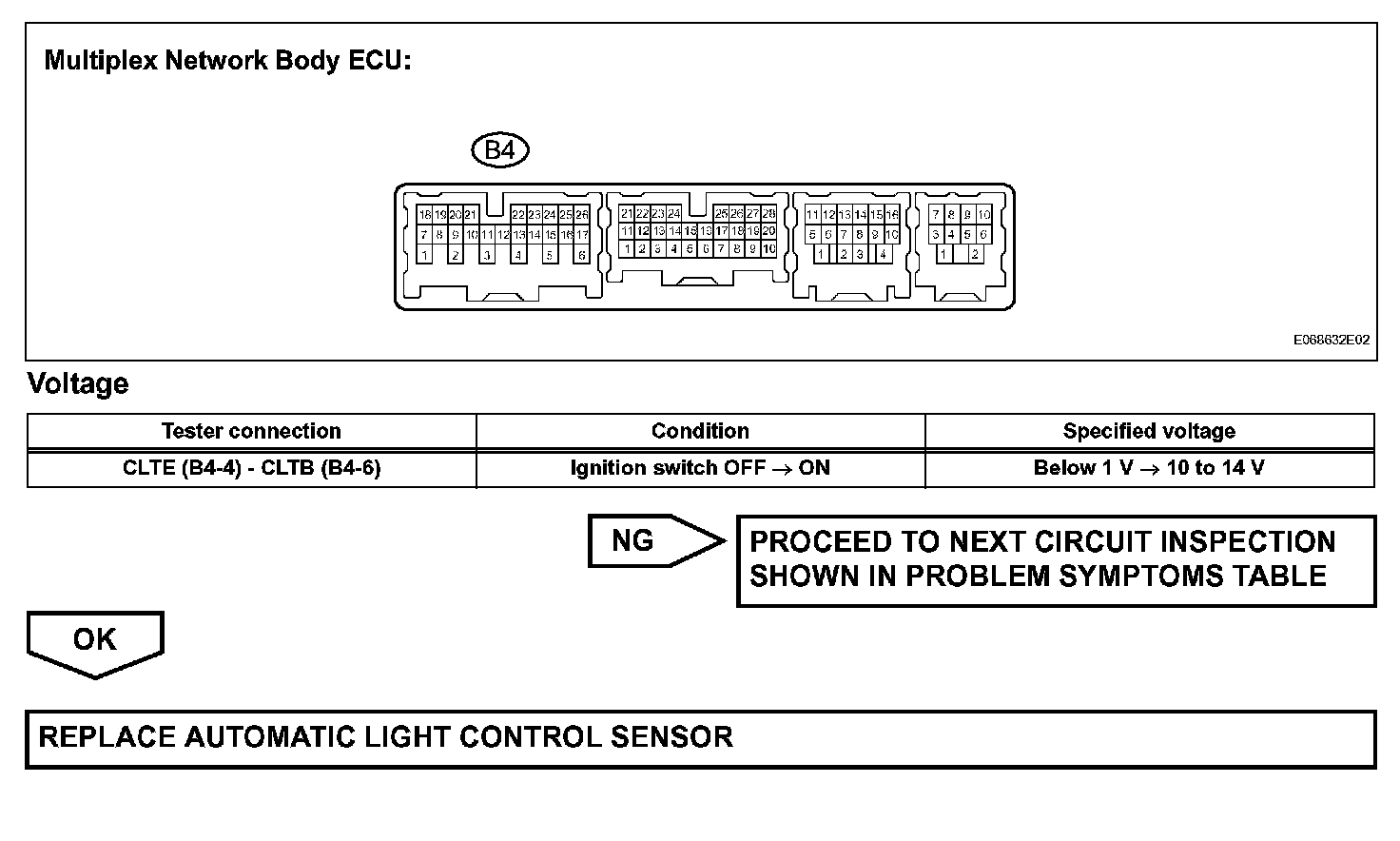

Step 3(Continued):
INSPECTION PROCEDURE
DESCRIPTION
The body ECU receives the signal from the automatic light control sensor.
INSPECTION PROCEDURE
