Light Control Switch Circuit

Light Control Switch Circuit

DESCRIPTION
This circuit detects the state of the headlight dimmer switch.

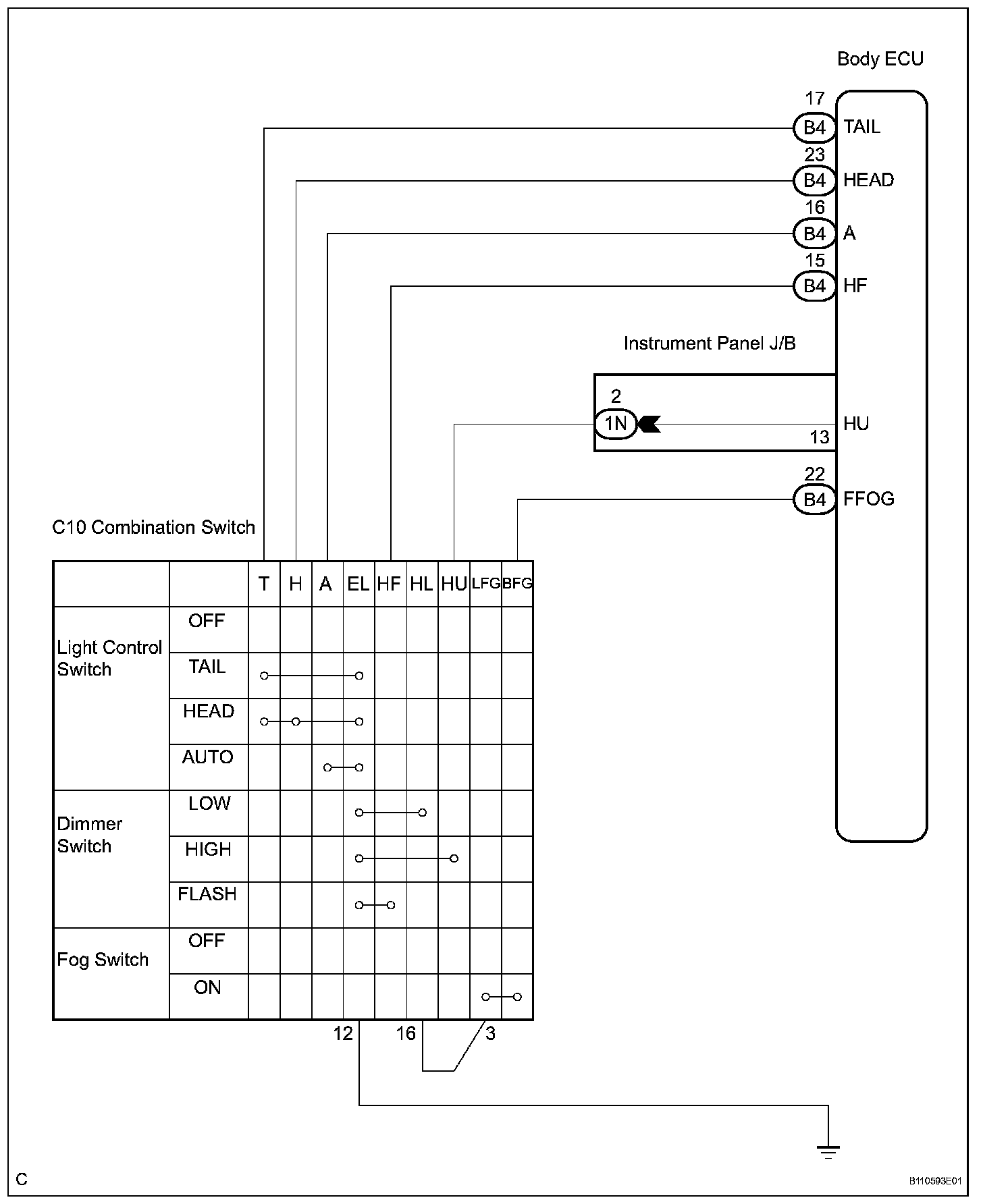

Wiring Diagram:

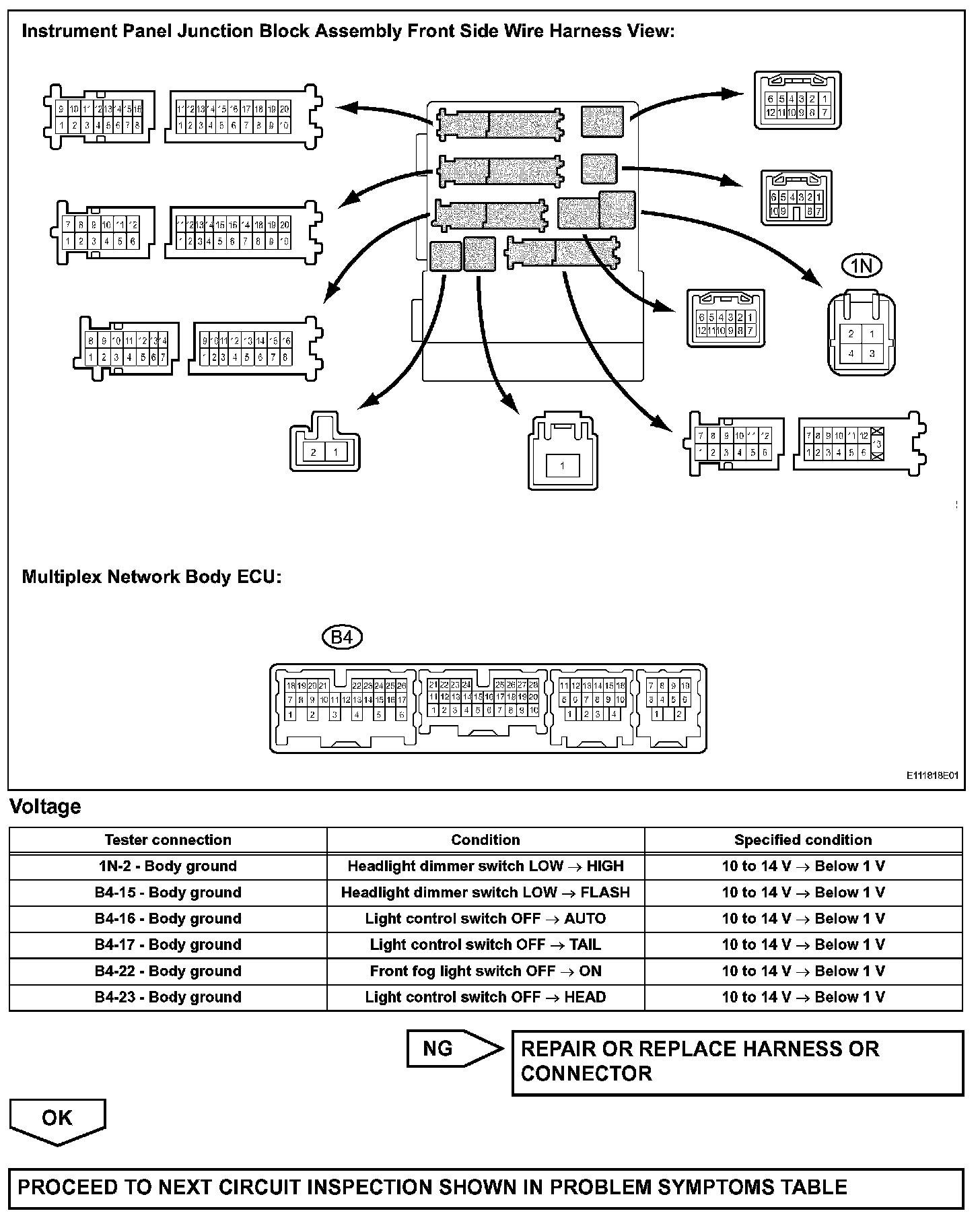

Step 1-3:

Step 3(Continued):

INSPECTION PROCEDURE
