Function of Passenger Airbag ON/OFF Indicator
FUNCTION OF PASSENGER AIRBAG ON/OFF INDICATORa. Initial check
1. Turn the ignition switch to the ON position.
2. The passenger airbag ON/OFF indicator comes on for approximately 4 seconds, then goes off for approximately 2 seconds.

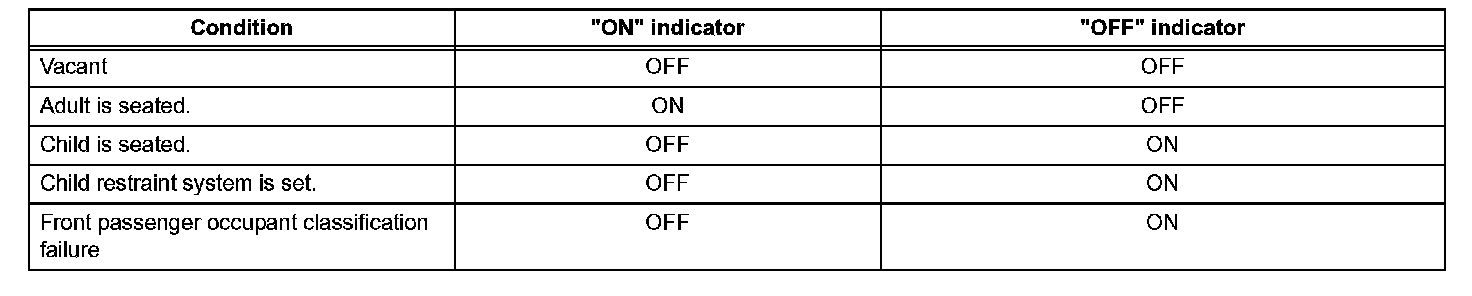

3. Approximately 6 seconds after the ignition switch is turned to the ON position, the passenger airbag ON/OFF indicator will be ON/ OFF depending on the conditions listed.

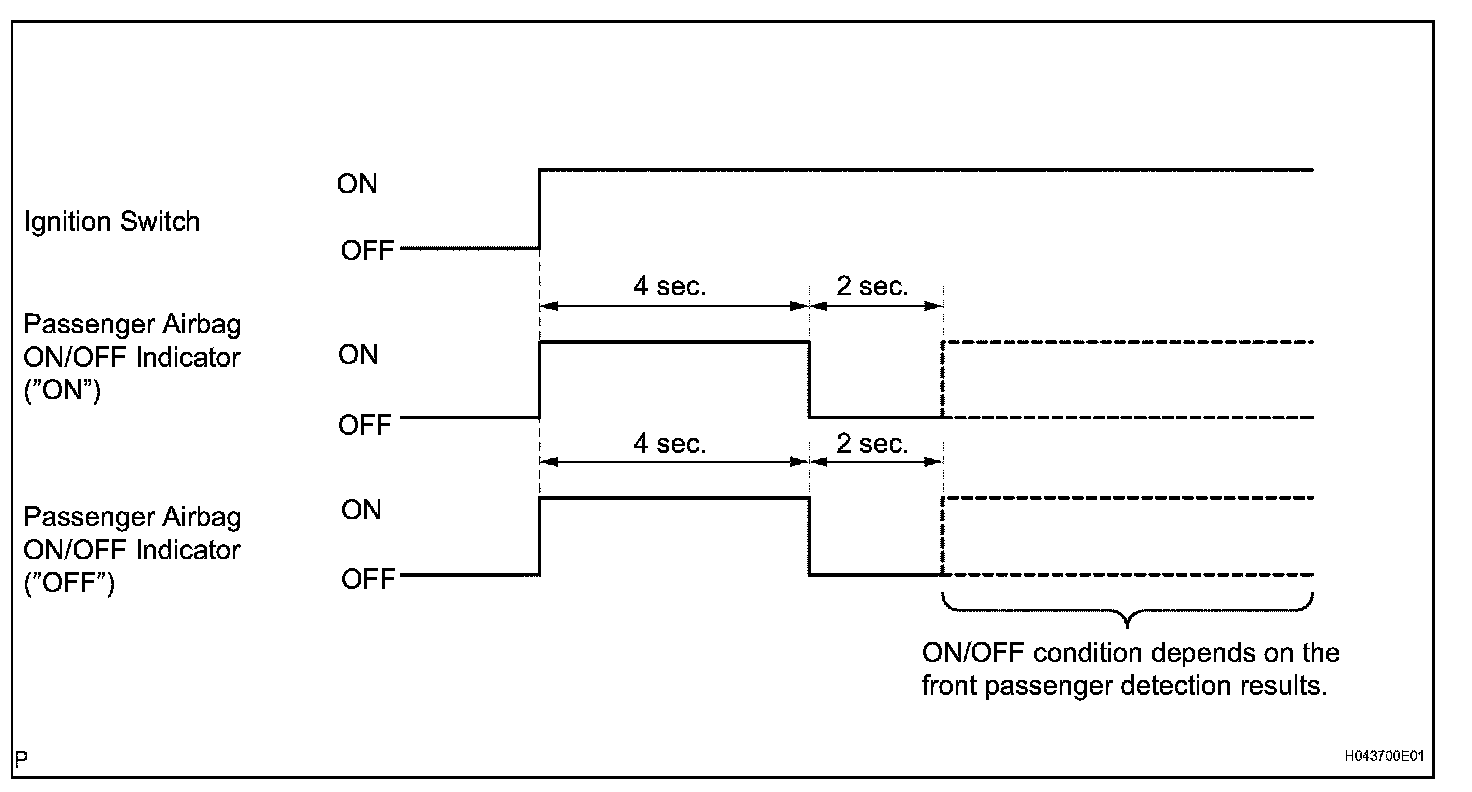

HINT: The passenger airbag ON/OFF indicator is based on the timing chart in order to check the indicator light circuit.
- When the front passenger occupant classification system has trouble, both the SRS warning light and the passenger airbag ON/OFF indicator come on. In this case, check the DTCs in the "AIRBAG SYSTEM" first. Then troubleshoot the occupant classification system if DTC B1150/23 is detected and troubleshoot the passenger airbag ON/OFF indicator if DTC B1152/28 is detected.
