Home >> Lexus >> 2006 >> RX 400h FWD V6-3.3L (3MZ-FE) Hybrid >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Locations

Ignition Switch: Locations

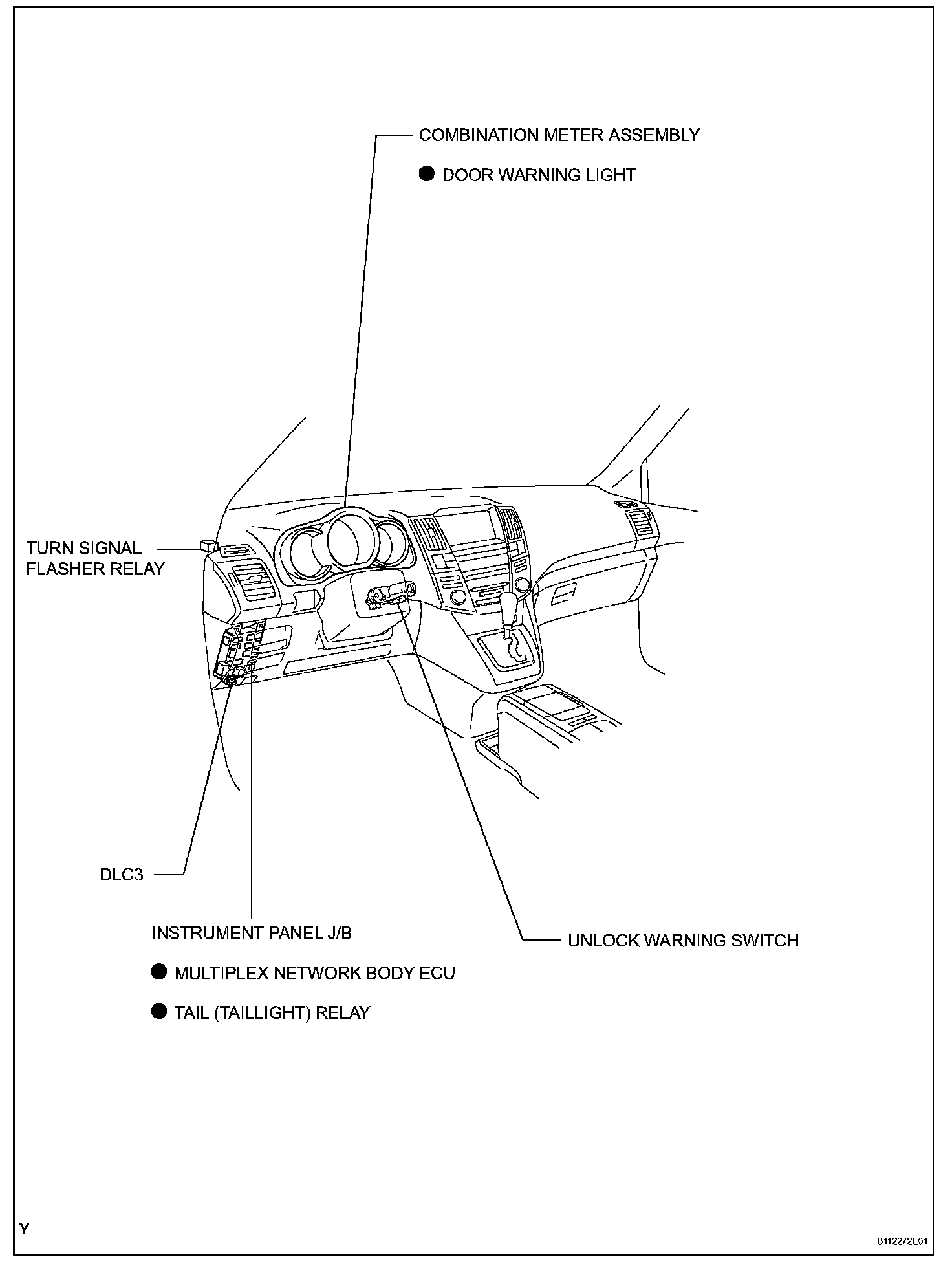

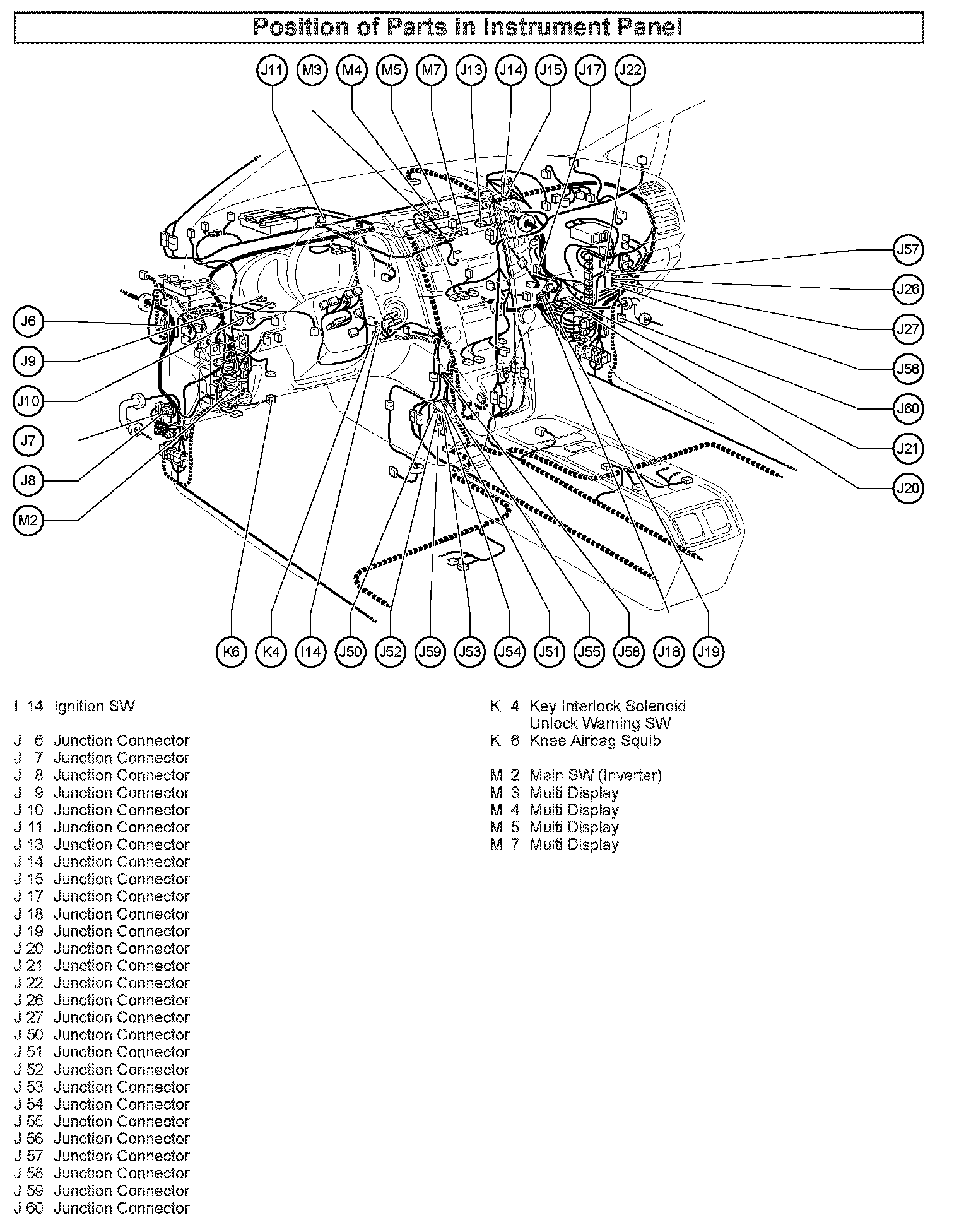

Ig - Mu:



Wireless Door Lock Control System:

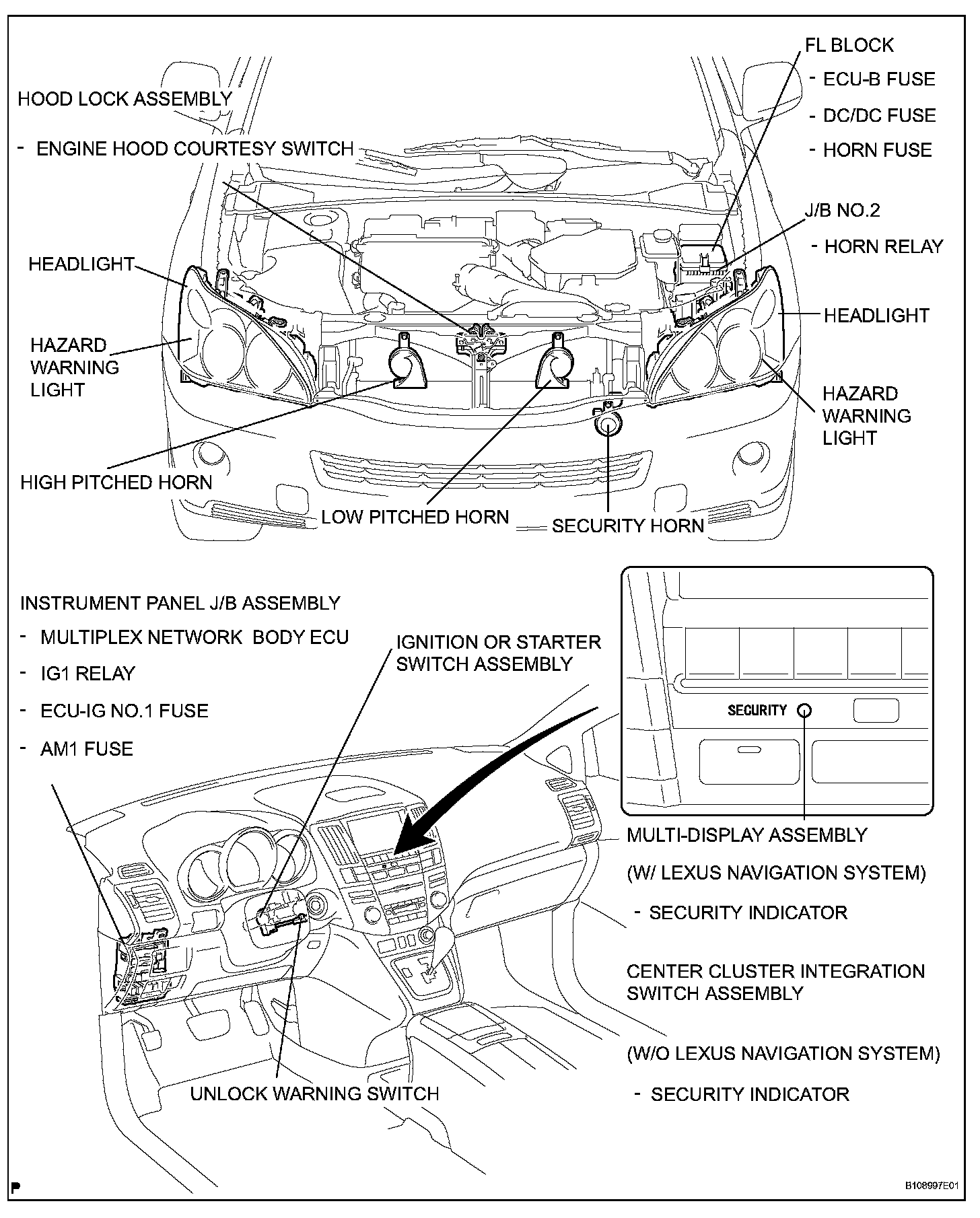

Theft Deterrent System:
