Power Window Regulator Motor Inspection
POWER WINDOW REGULATOR MOTORINSPECTION

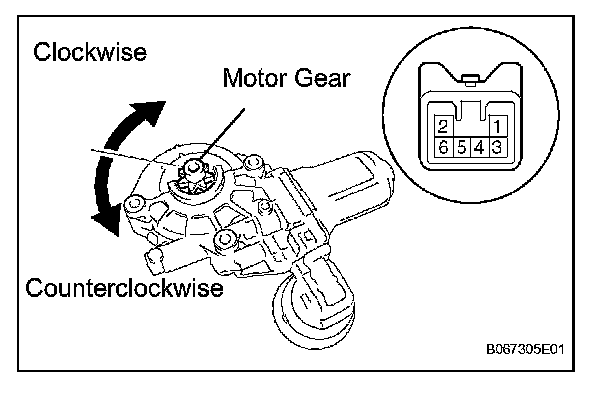

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)
a. Remove the power window regulator motor.

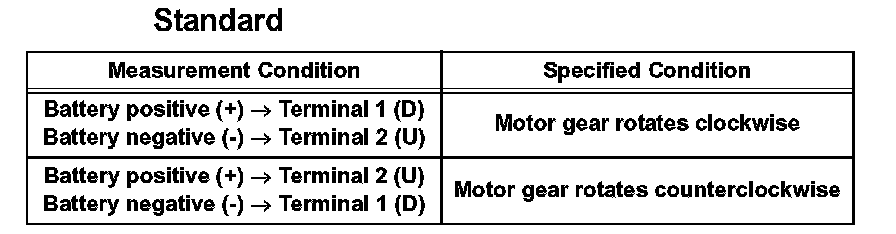

b. Apply battery voltage to the motor connector according to the table given.
NOTE: Do not apply battery to any terminals except terminals 1 and 2.

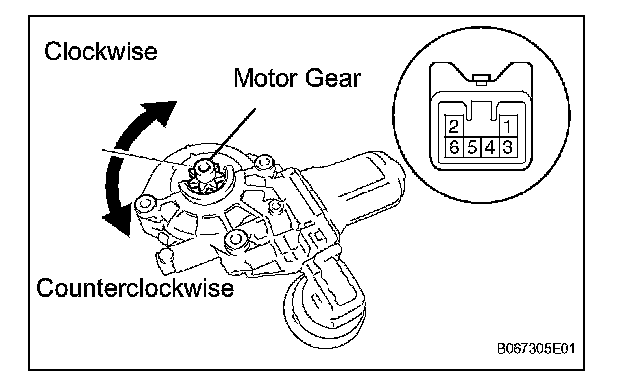

2. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)
a. Remove the power window regulator motor.

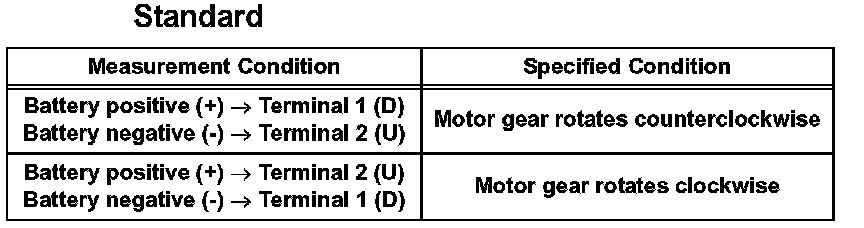

b. Apply battery voltage to the motor connector according to the table given.
NOTE: Do not apply battery to any terminals except terminals 1 and 2.

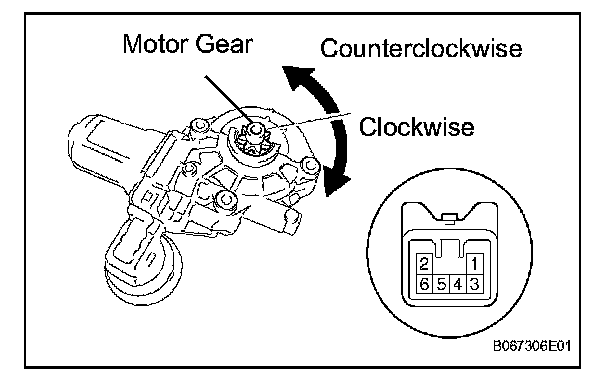

3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)
a. Remove the power window regulator motor.

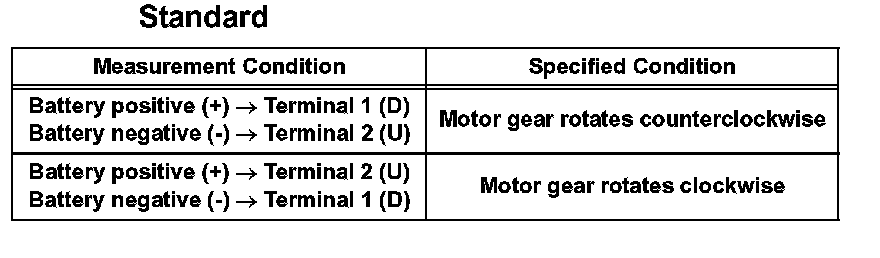

b. Apply battery voltage to the motor connector according to the table given.
NOTE: Do not apply battery to any terminals except terminals 1 and 2.

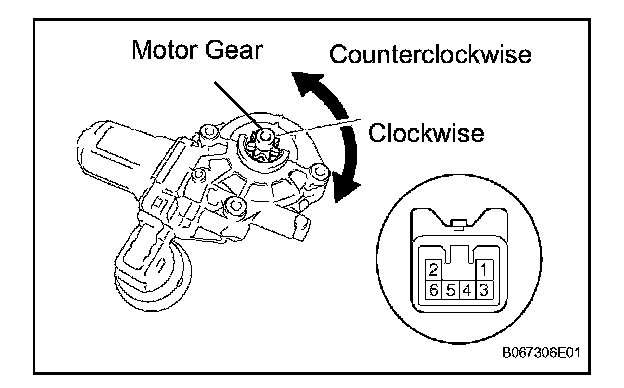

4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)
a. Remove the power window regulator motor.

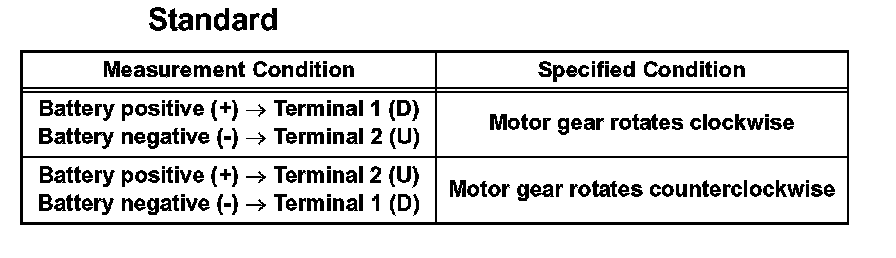

b. Apply battery voltage to the motor connector according to the table given.
NOTE: Do not apply battery to any terminals except terminals 1 and 2.
