Wiper and Washer Switch Circuit
Wiper and Washer Switch CircuitDESCRIPTION
This circuit detects the state of the wiper and washer switch and sends it to the windshield wiper relay assembly.

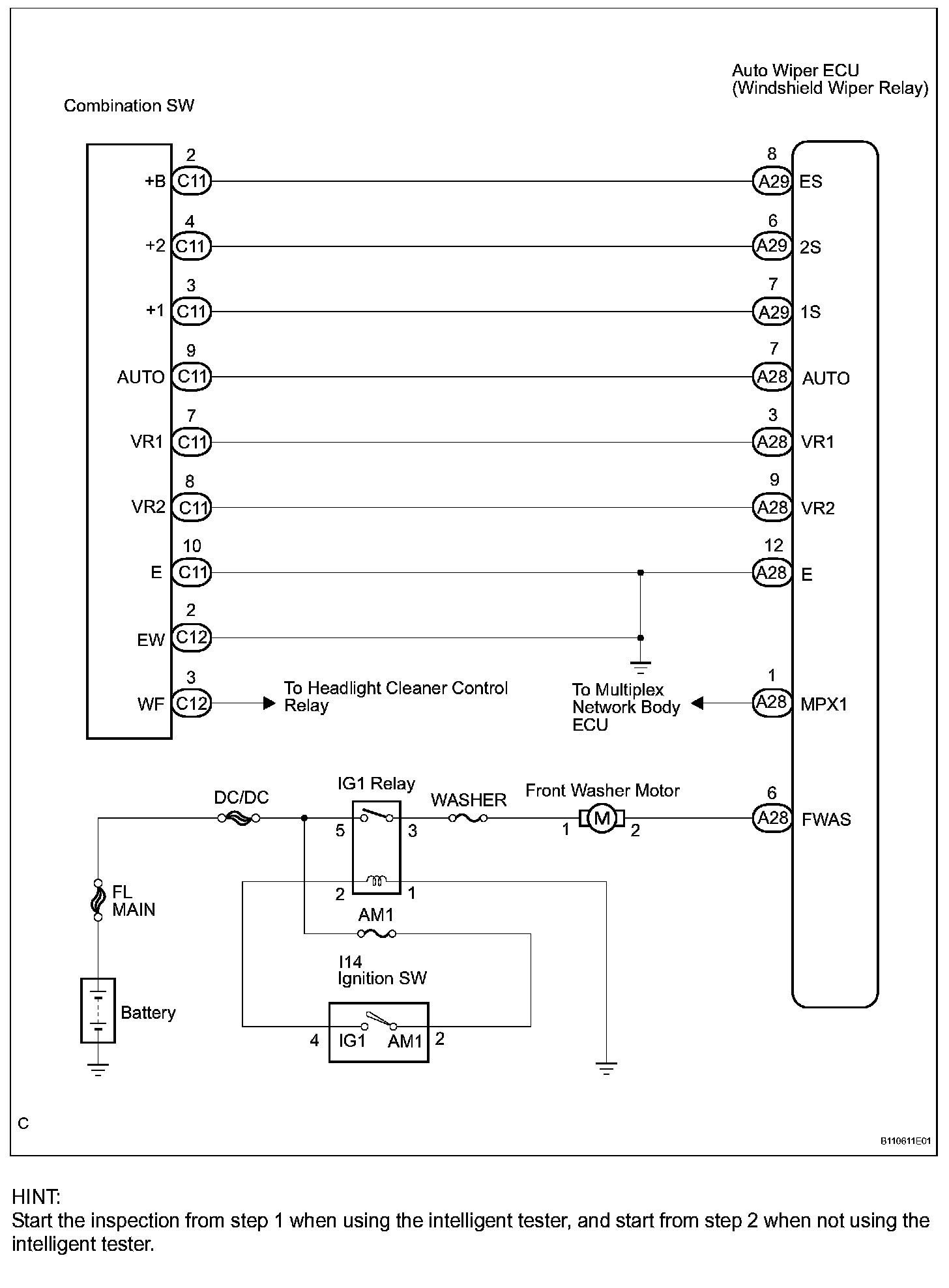

Wiring Diagram:

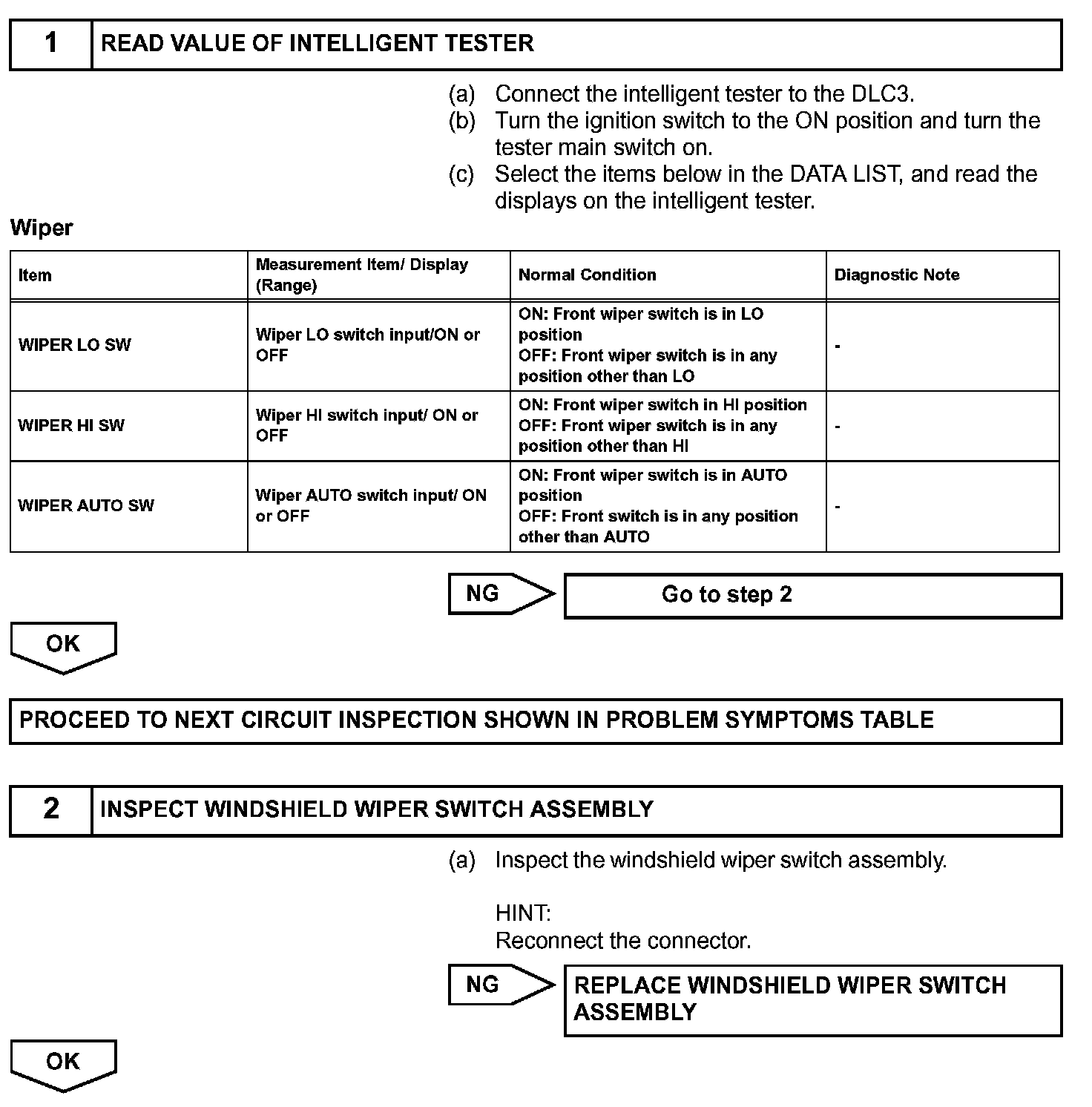

Step 1-2:

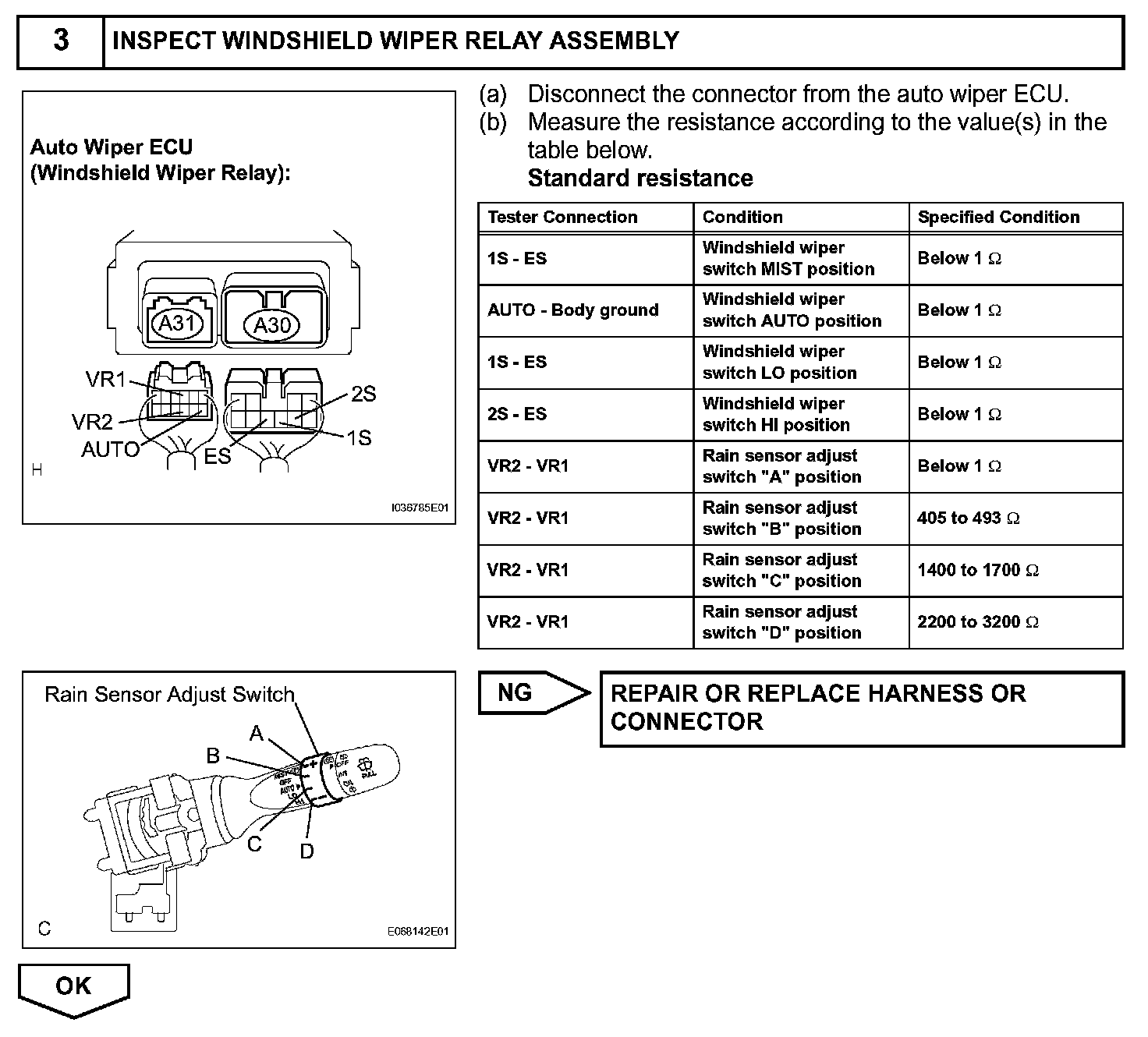

Step 3:

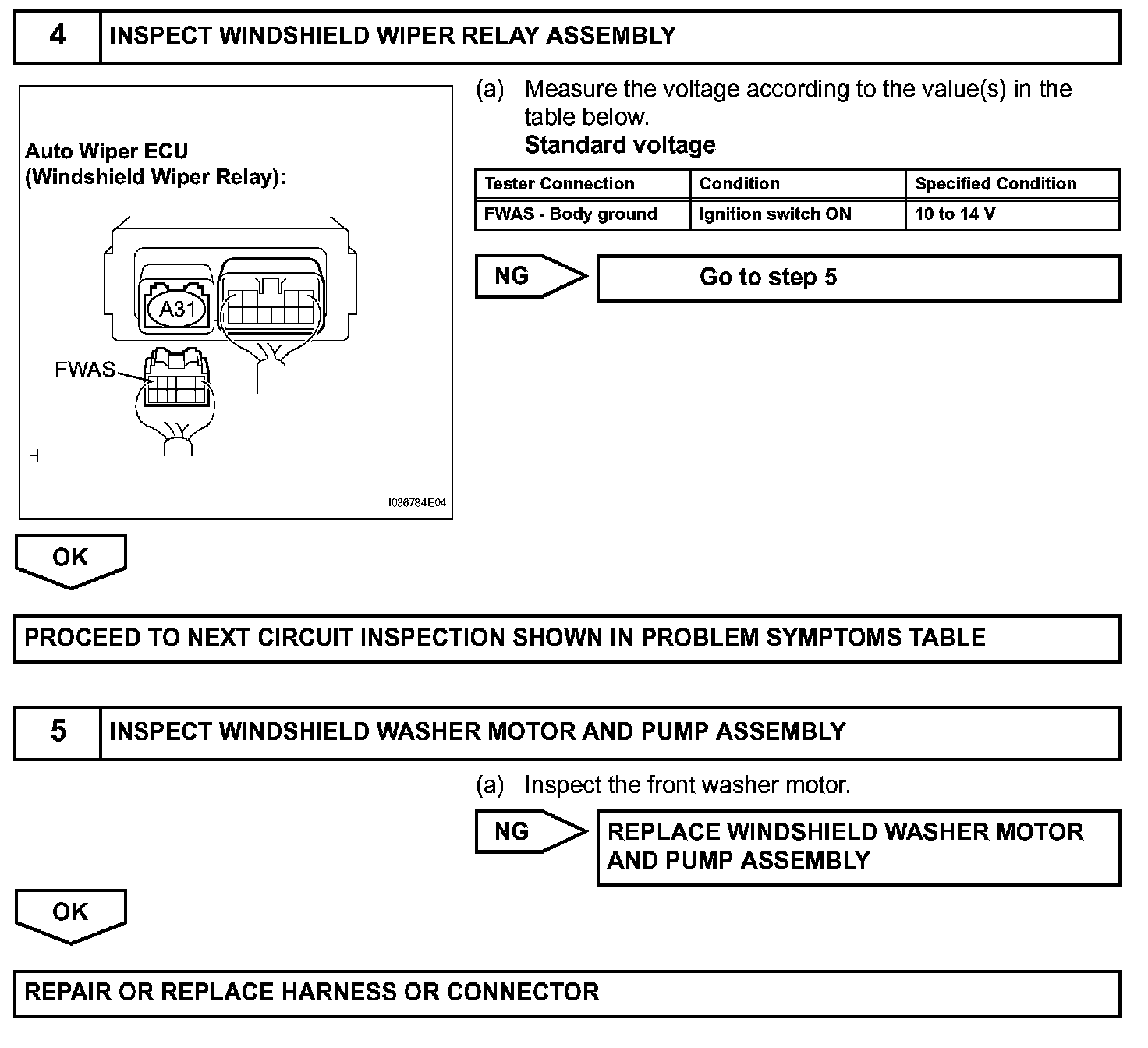

Step 4:
INSPECTION PROCEDURE
