B1243

DTC B1243 GSW Terminal Circuit Malfunction

DESCRIPTION

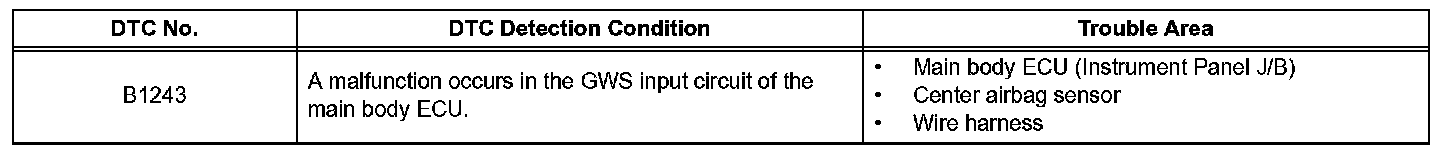

DTC Detection Condition:

If the collision door lock release function does not operate normally, or an open or short in the GWS input circuit of the main body ECU is detected, DTC B1243 will be output.

HINT: If DTC B1243 is output, the speed-sensitive automatic door lock function, shift-linked automatic door unlock function, and collision door lock release function will be prohibited.

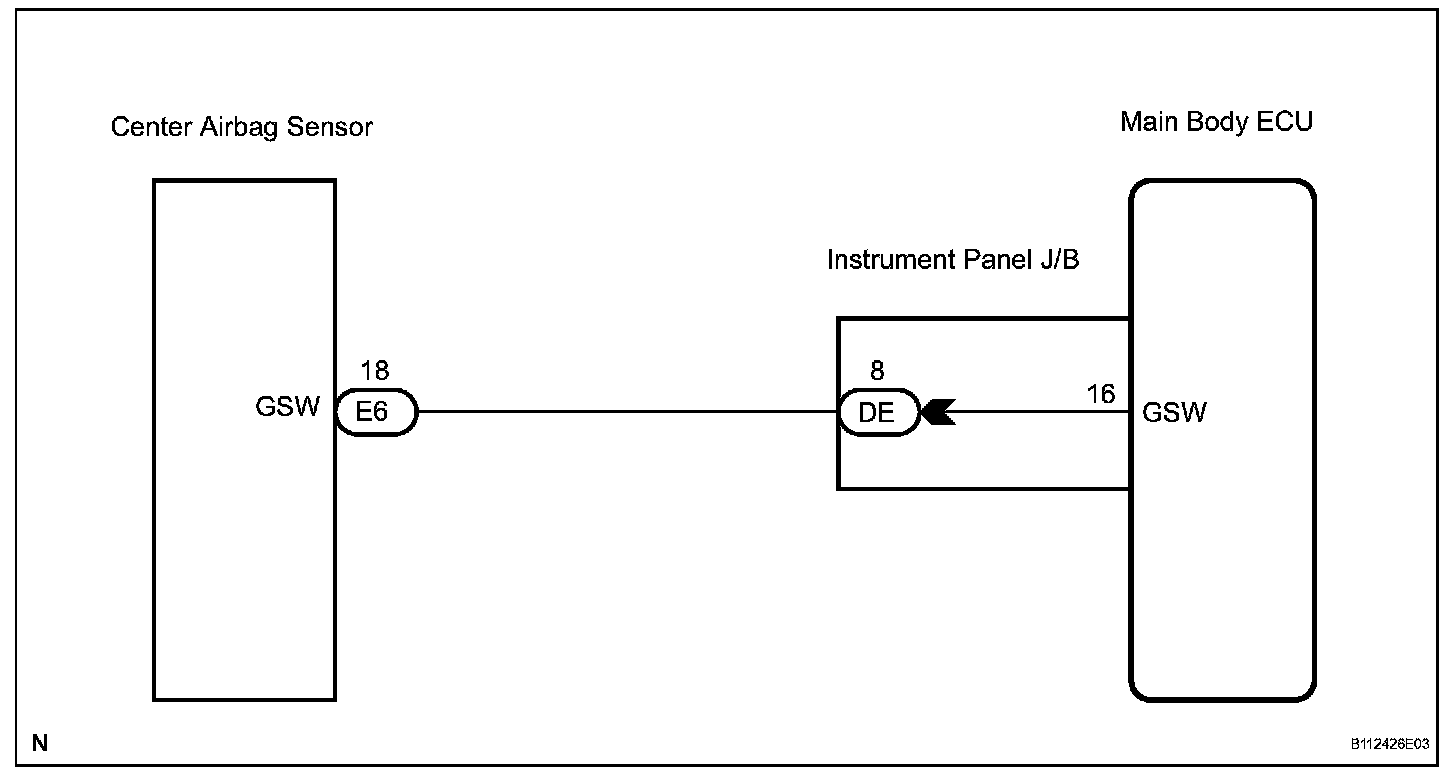

Wiring Diagram:

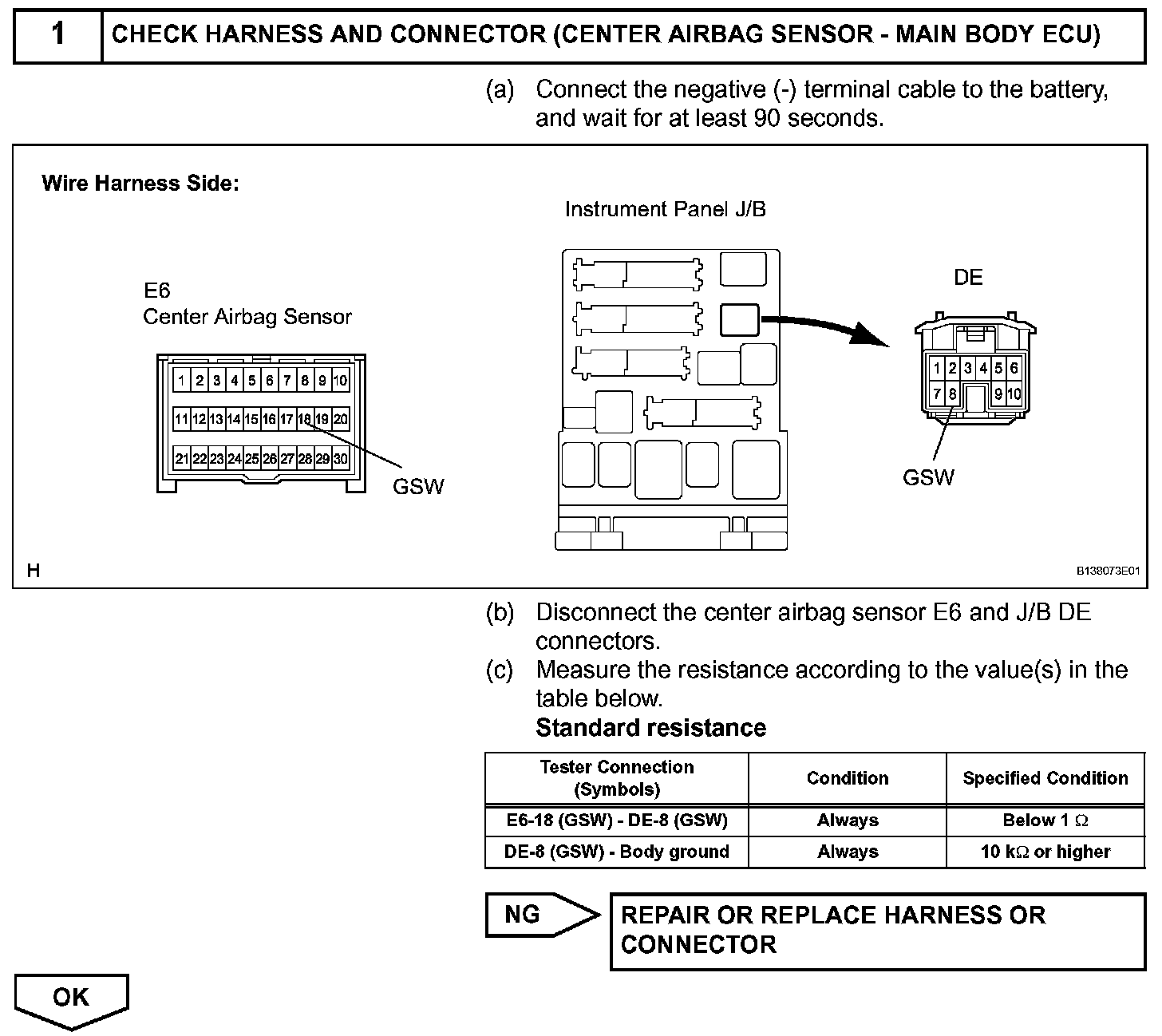

Step 1:

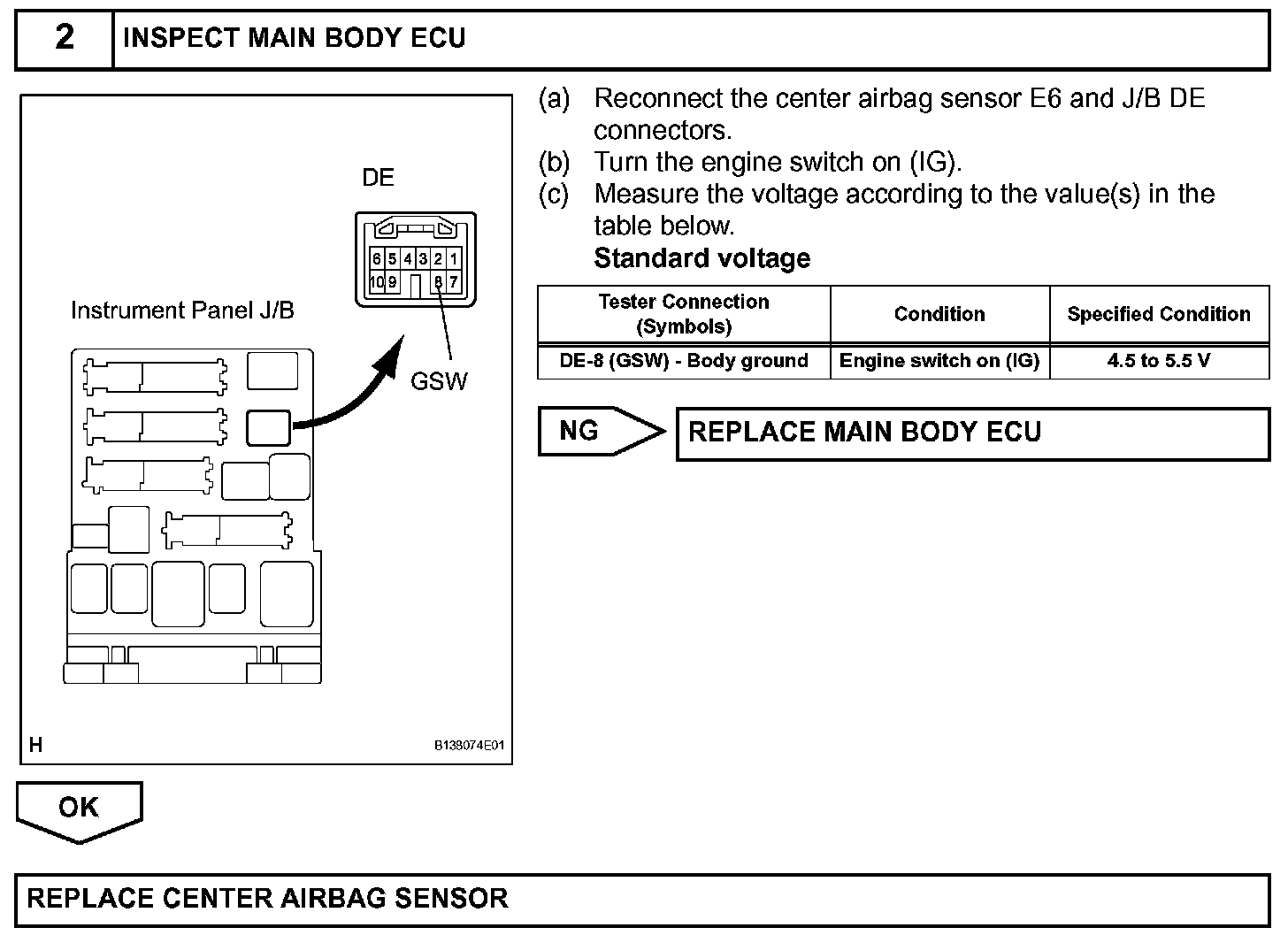

Step 2:

INSPECTION PROCEDURE
