B1625

DTC B1625/22 Front Passenger Side - Side Airbag Sensor Malfunction

DESCRIPTION

DTC Detection Condition:

The side airbag sensor RH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor assembly receives signals from the lateral deceleration sensor, it determines whether the SRS should be activated.

DTC B1625/22 is recorded when a malfunction is detected in the front passenger side-side airbag sensor circuit.

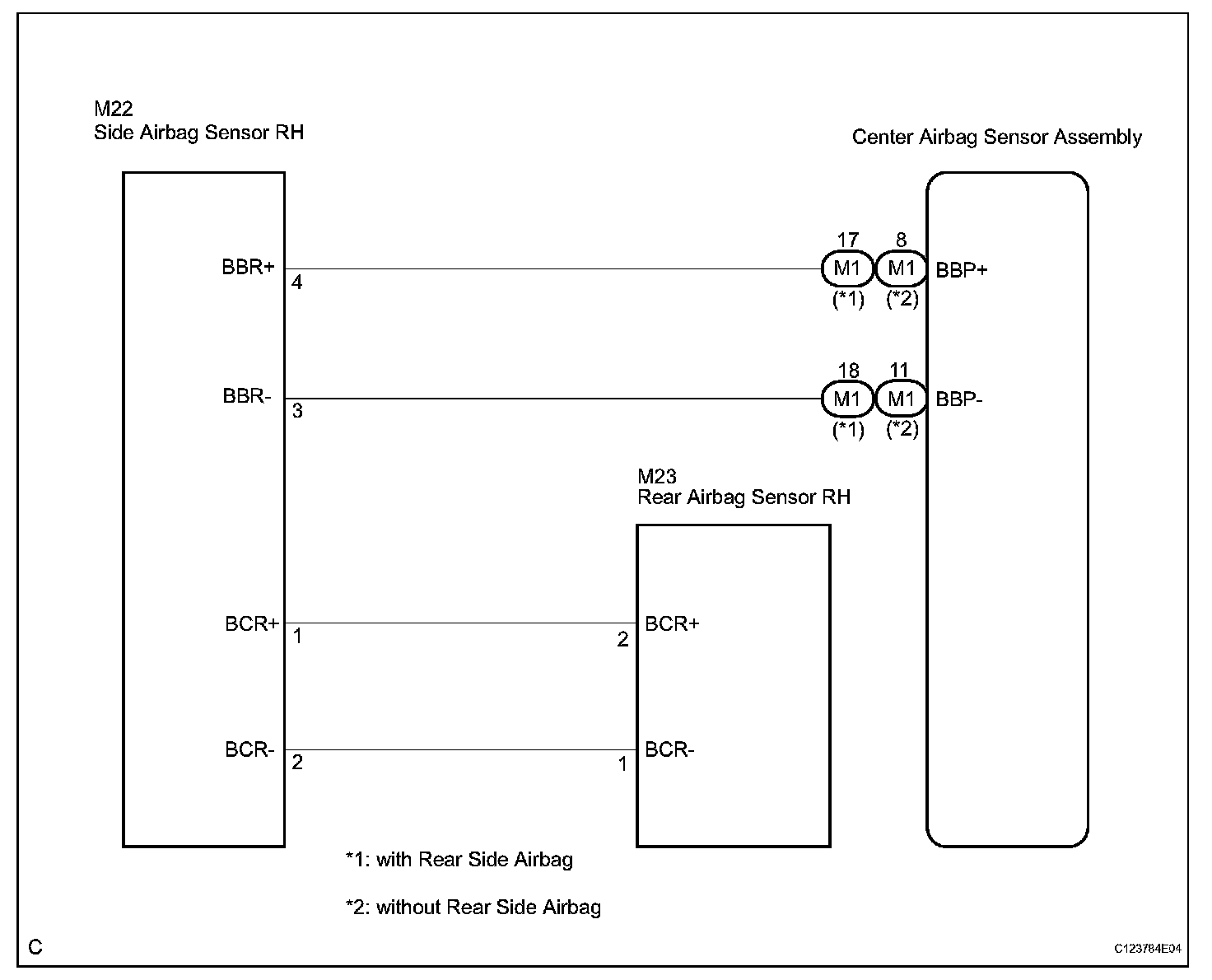

Wiring Diagram:

Step 1-2:

Step 3-4:

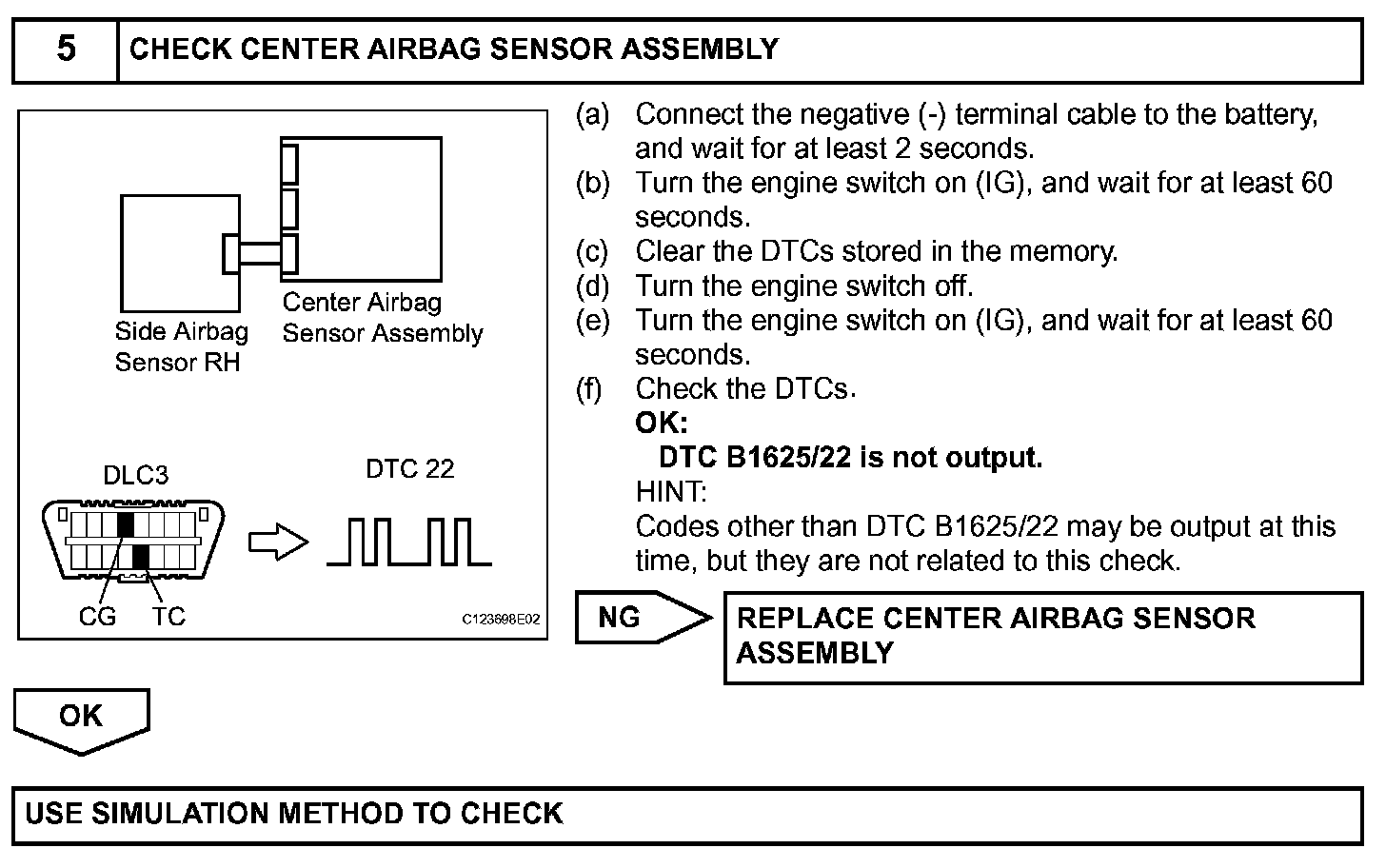

Step 5:

INSPECTION PROCEDURE
