B1633

DTC B1633/81 Driver Side Rear Airbag Sensor Initialization Incomplete

DESCRIPTION

DTC Detecting Condition:

The circuit for the side collision sensor LH (to determine deployment of the front seat side airbag assembly LH and curtain shield airbag assembly LH) is composed of the center airbag sensor assembly, side airbag sensor LH, and rear airbag sensor LH.

The side airbag sensor LH and rear airbag sensor LH detect impacts to the vehicle and send signals to the center airbag sensor assembly to determine if the airbag should be deployed

DTC B1622/81, B1623/81, B1632/81, B1633/81, B1642/81, or B1643/81 is recorded when a malfunction is detected in the circuit for the side collision sensor LH (to determine deployment of the front seat side airbag assembly LH and curtain shield airbag assembly LH).

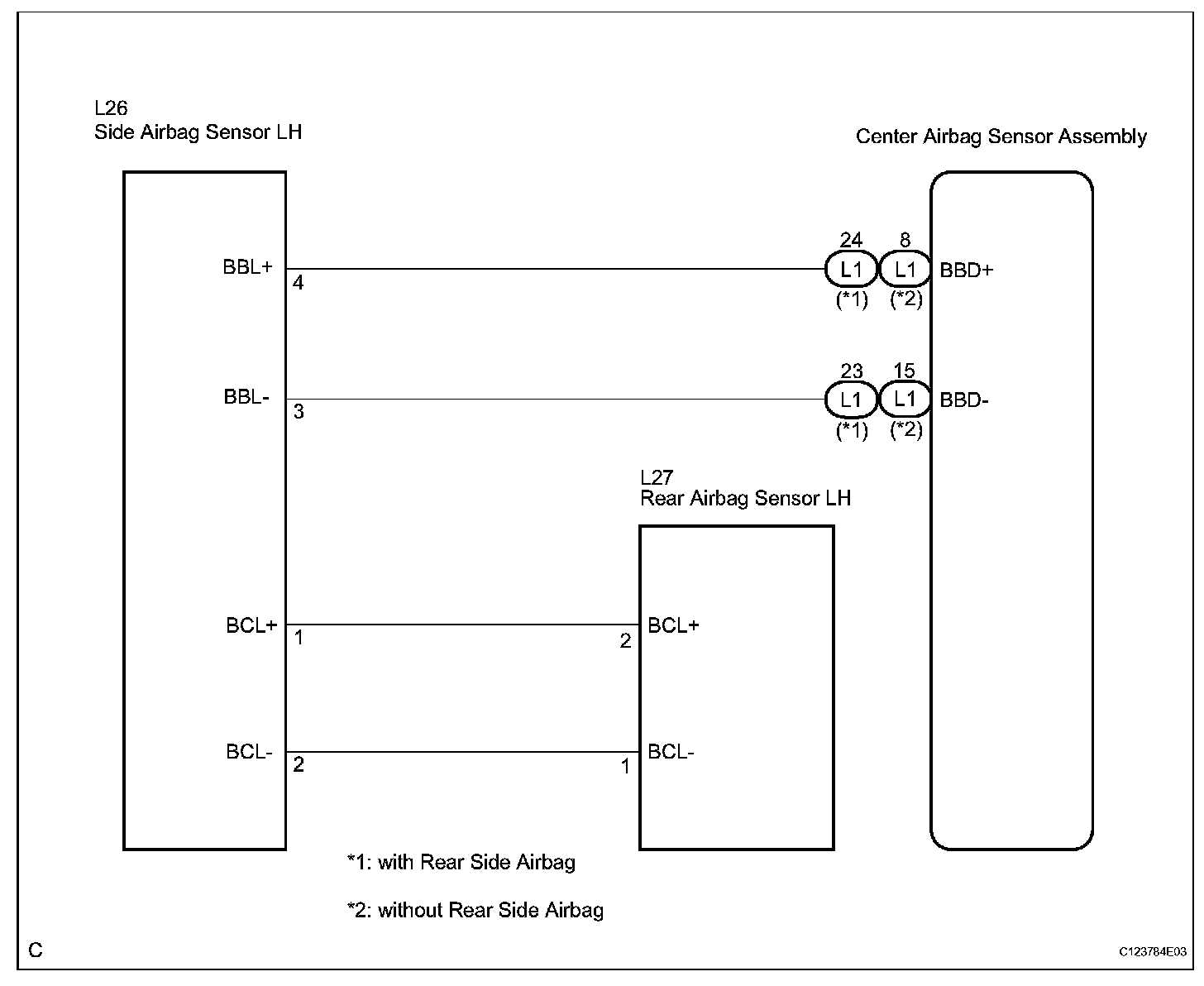

Wiring Diagram:

Step 1:

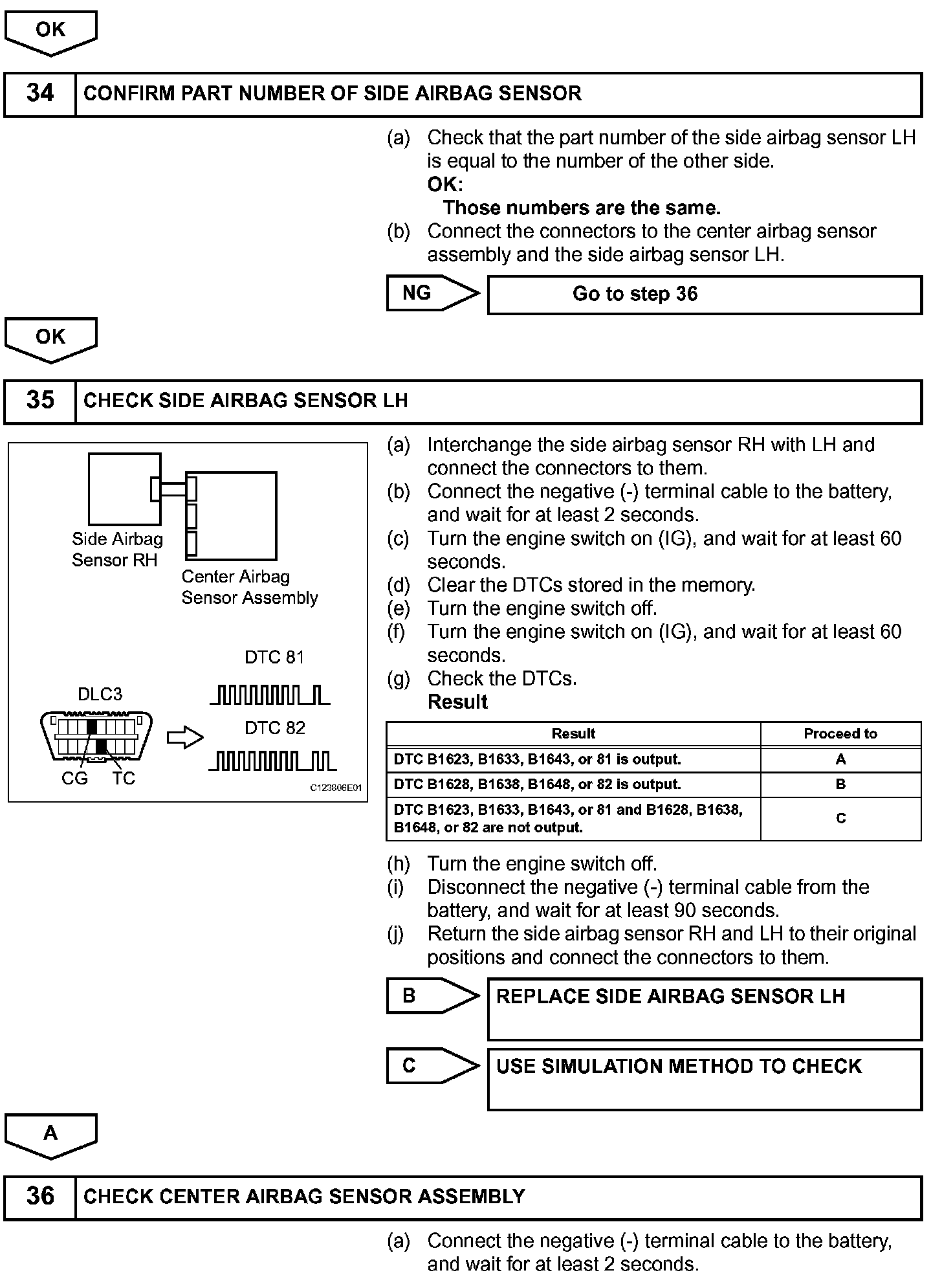

Step 1 (Continued)-3:

Step 3 (Continued)-5:

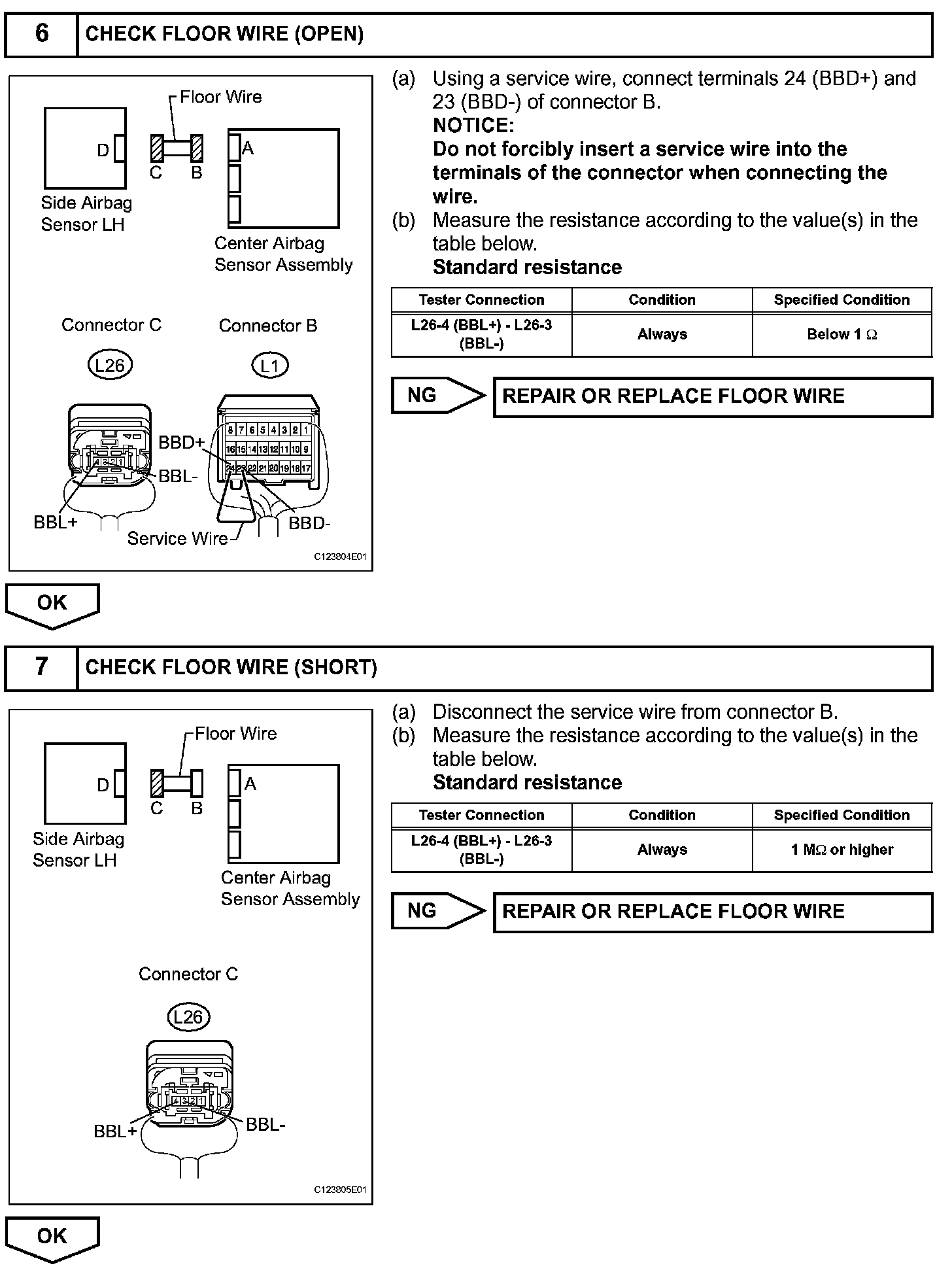

Step 6-7:

Step 8-9:

Step 10-11:

Step 12-13:

Step 14-15:

Step 16-18:

Step 18 (Continued)-20:

Step 21-22:

Step 23-24:

Step 25-26:

Step 26 (Continued)-29:

Step 29 (Continued)-31:

Step 31 (Continued)-33:

Step 33 (Continued)-36:

Step 36 (Continued)-37:

Step 38-39:

Step 40-41:

Step 42-43:

Step 43 (Continued):

INSPECTION PROCEDURE
