B2282

DTC B2282 Vehicle Speed Signal Malfunction

DESCRIPTION

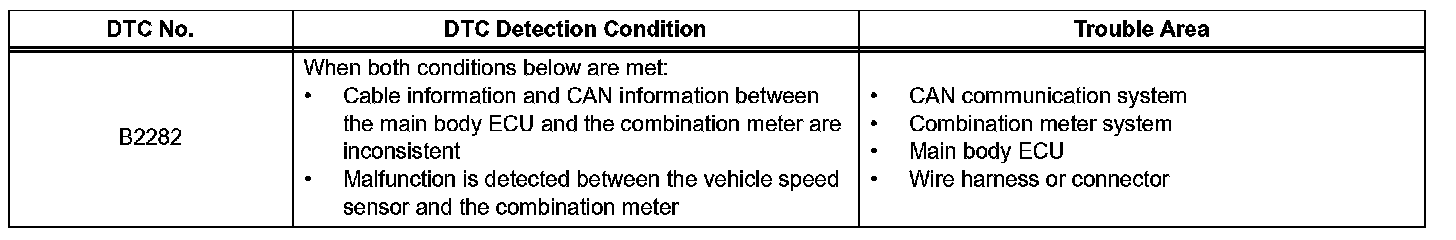

DTC Detection Condition:

The main body ECU and the combination meter are connected by a cable and the CAN. DTC B2282 is output when: 1) the cable information and CAN information are inconsistent; and 2) a malfunction is detected between the vehicle speed sensor and combination meter.

HINT: When the main body ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

After the main body ECU is replaced, perform the registration procedures for the engine immobilizer system.

HINT:

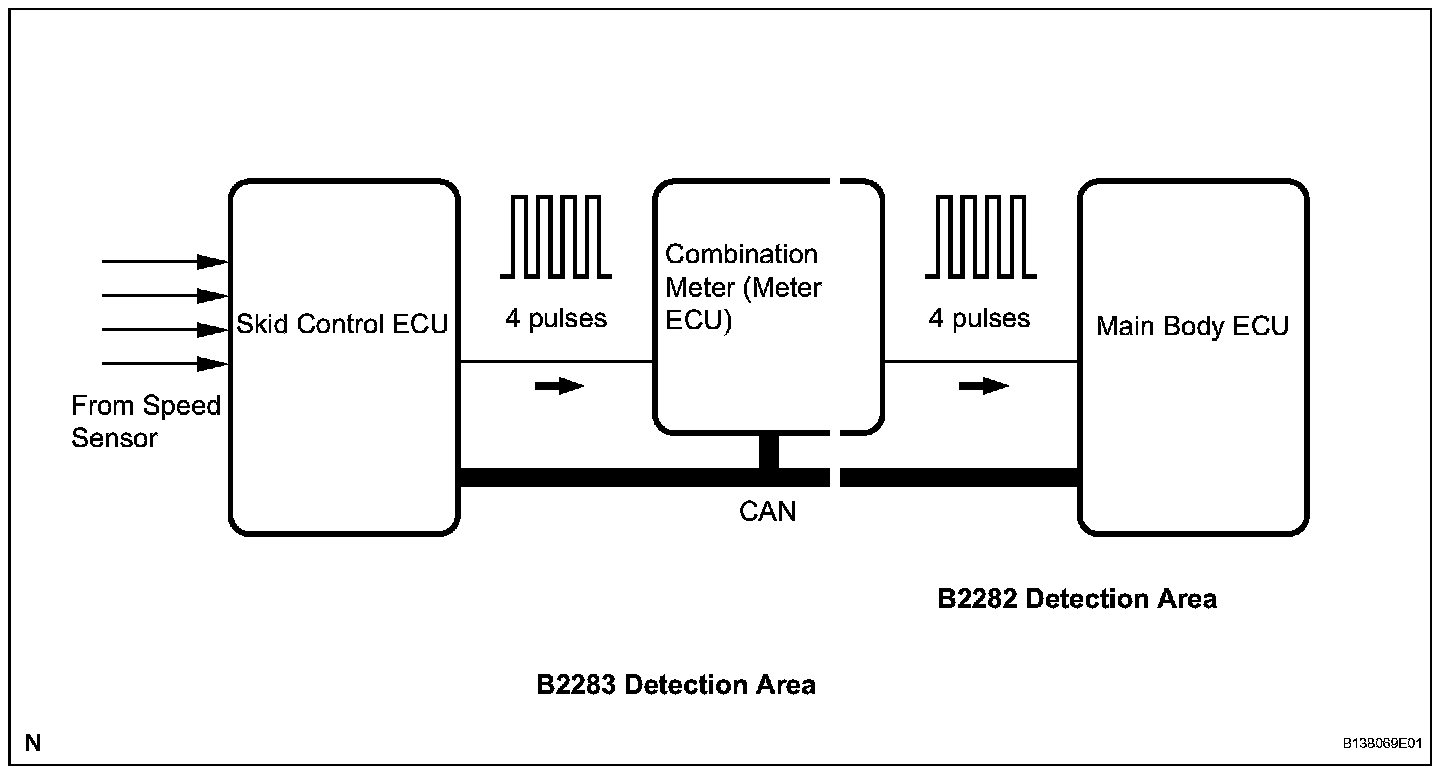

- A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter. The signal is changed to a pulse signal at the transistor in the combination meter. Each ECU controls the respective system based on the pulse signal.
- If a short occurs in an ECU, all systems in the diagram will not operate normally.

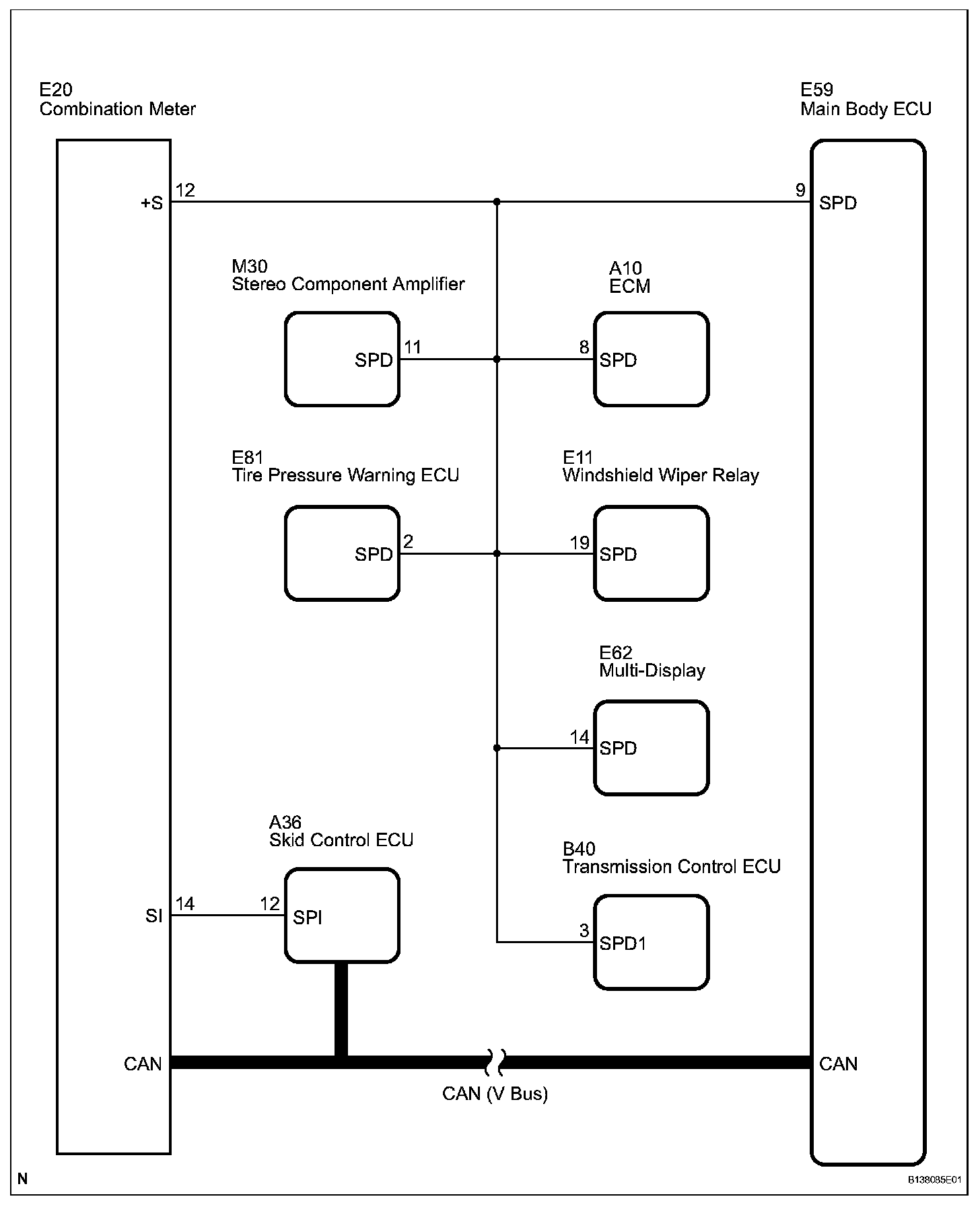

Wiring Diagram:

Step 1-3:

Step 3 (Continued):

Step 4-5:

Step 5 (Continued):

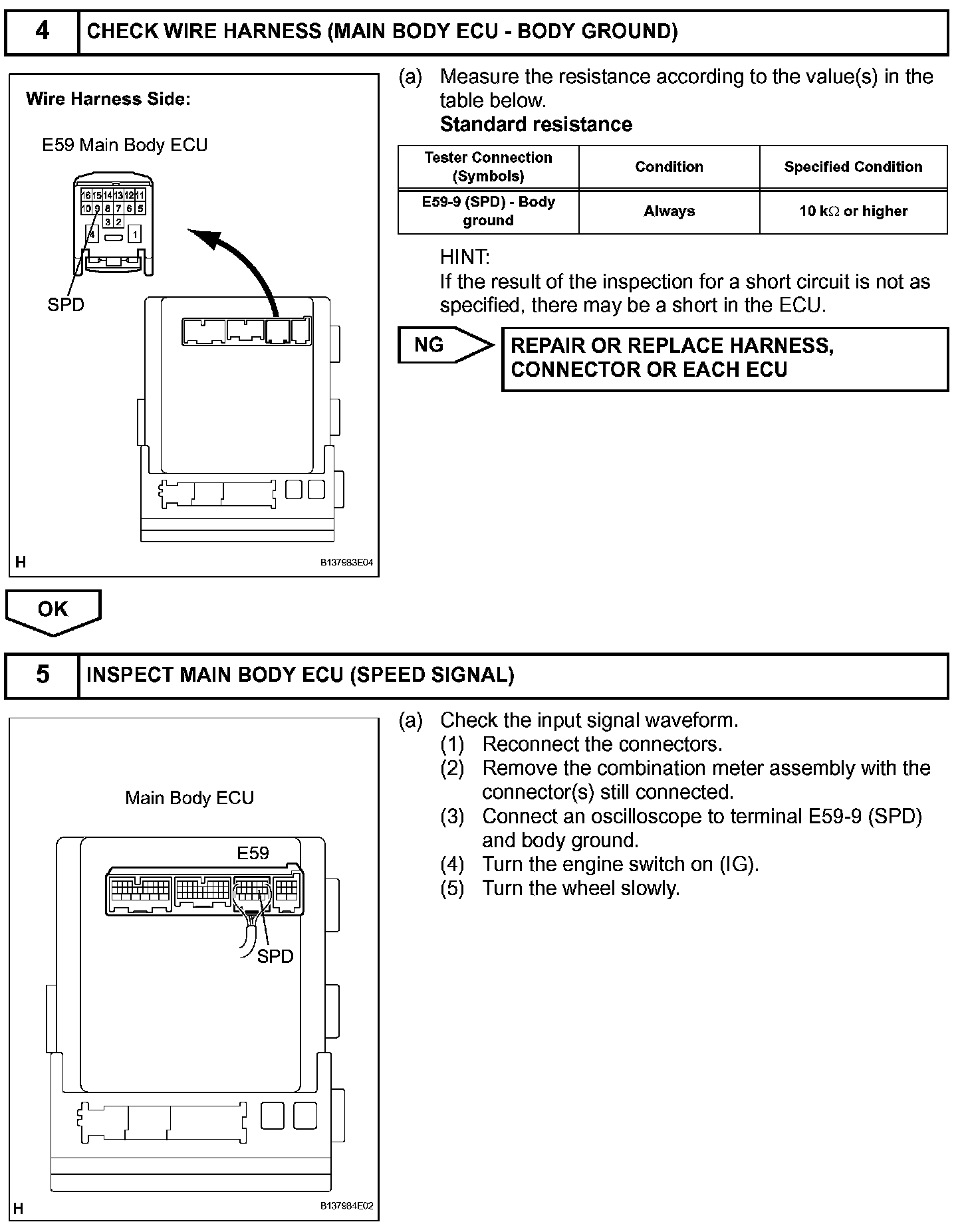

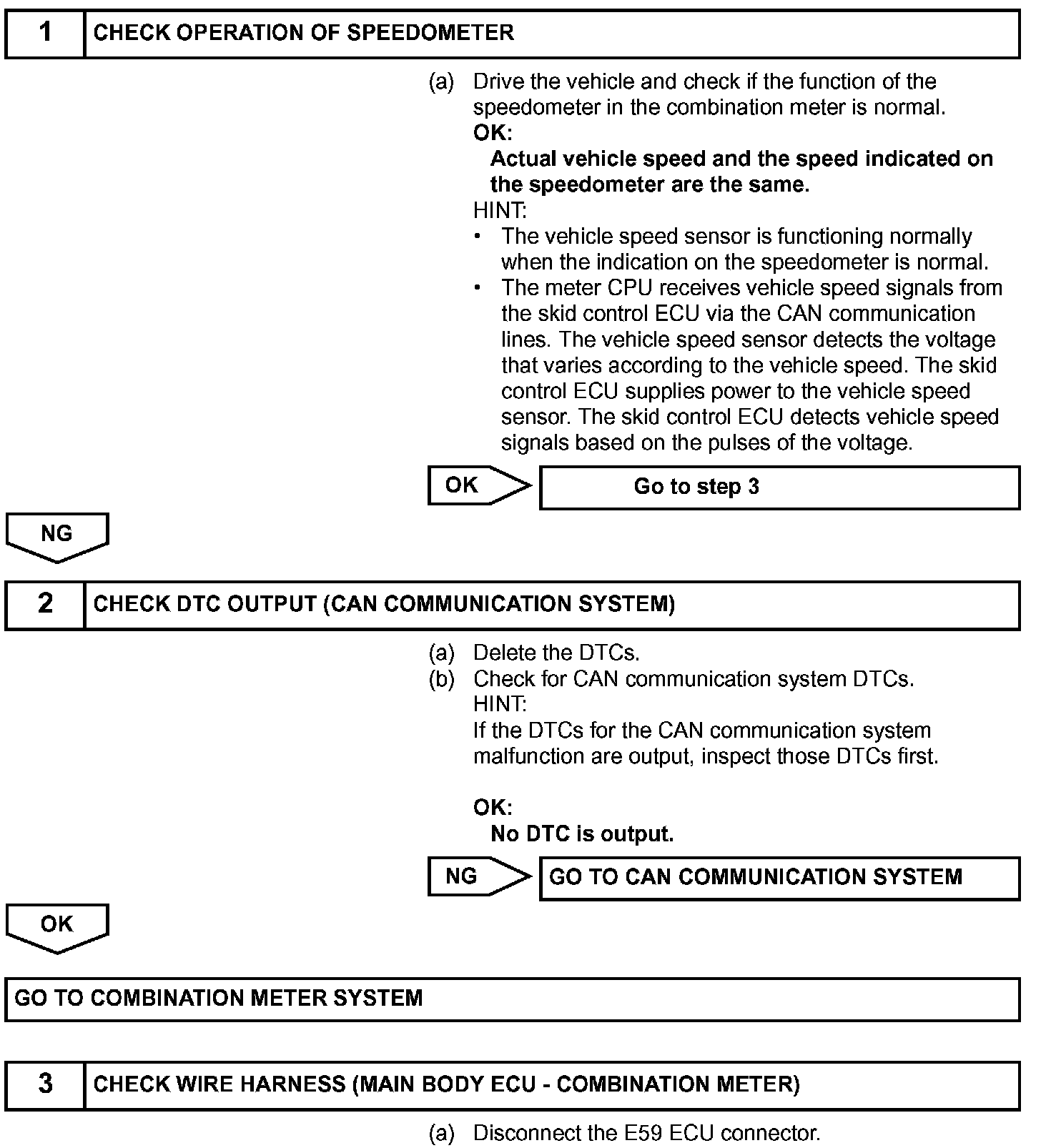

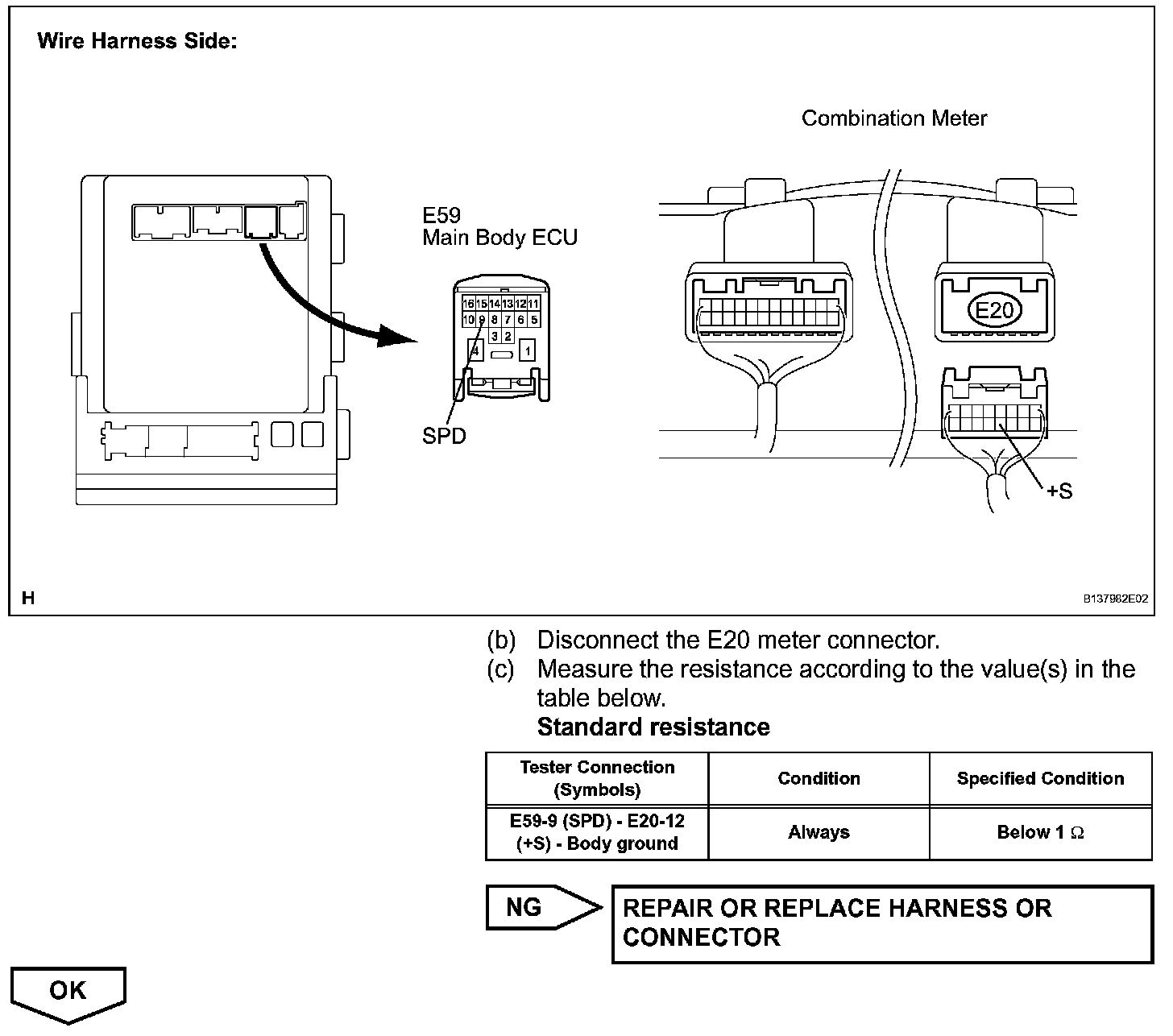

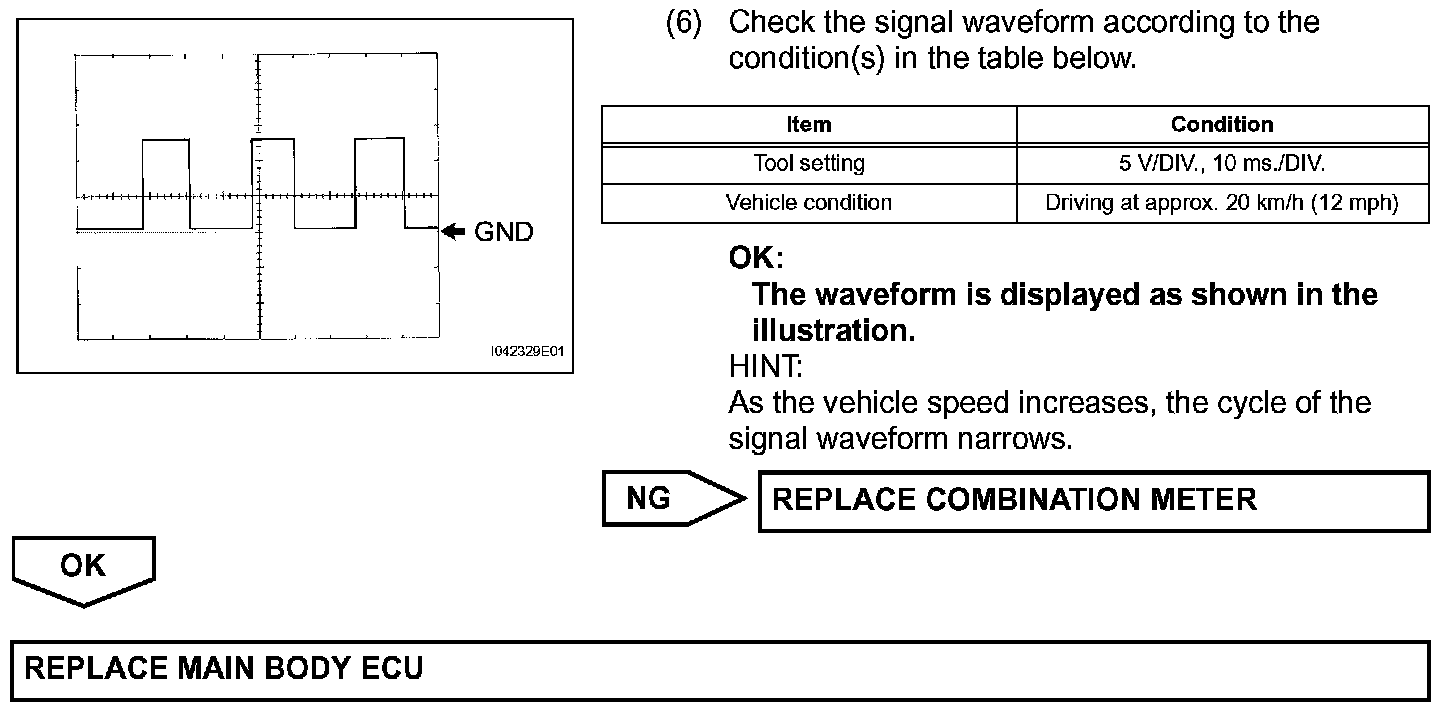

INSPECTION PROCEDURE
