C2112

DTC C2111/11 Transmitter ID1 Operation Stop

DTC C2112/12 Transmitter ID2 Operation Stop

DTC C2113/13 Transmitter ID3 Operation Stop

DTC C2114/14 Transmitter ID4 Operation Stop

DTC C2115/15 Transmitter ID5 Operation Stop

DESCRIPTION
The tire pressure warning valve and transmitters that are installed in the tire and wheel assemblies measure the air pressures of the tires. The measured values are transmitted to the tire pressure warning antenna and receiver on the body as radio waves and then sent to the tire pressure warning ECU. The ECU compares the measured air pressure values with the air pressure threshold. When the measured air pressure value is less than this threshold, the warning light in the combination meter comes on. The tire pressure warning ECU stores a DTC when the tire pressure warning valve and transmitter stops transmitting signals. At this time, forcibly transmit the signals by releasing the tire pressure rapidly. The stored DTC is cleared when the signal transmission is resumed.





HINT:
^ It is necessary to perform the procedure to identify the tire pressure warning valve and transmitter that is malfunctioning because it cannot be identified by the output DTC.
^ DTC C2115/15 are used only when the vehicle is equipped with a full-size spare tire.

INSPECTION PROCEDURE

NOTICE:
^ When replacing the tire pressure warning ECU, read the IDs stored in the old ECU using the intelligent tester and write them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU after the ECU and / or valve and Transmitter has been replaced.

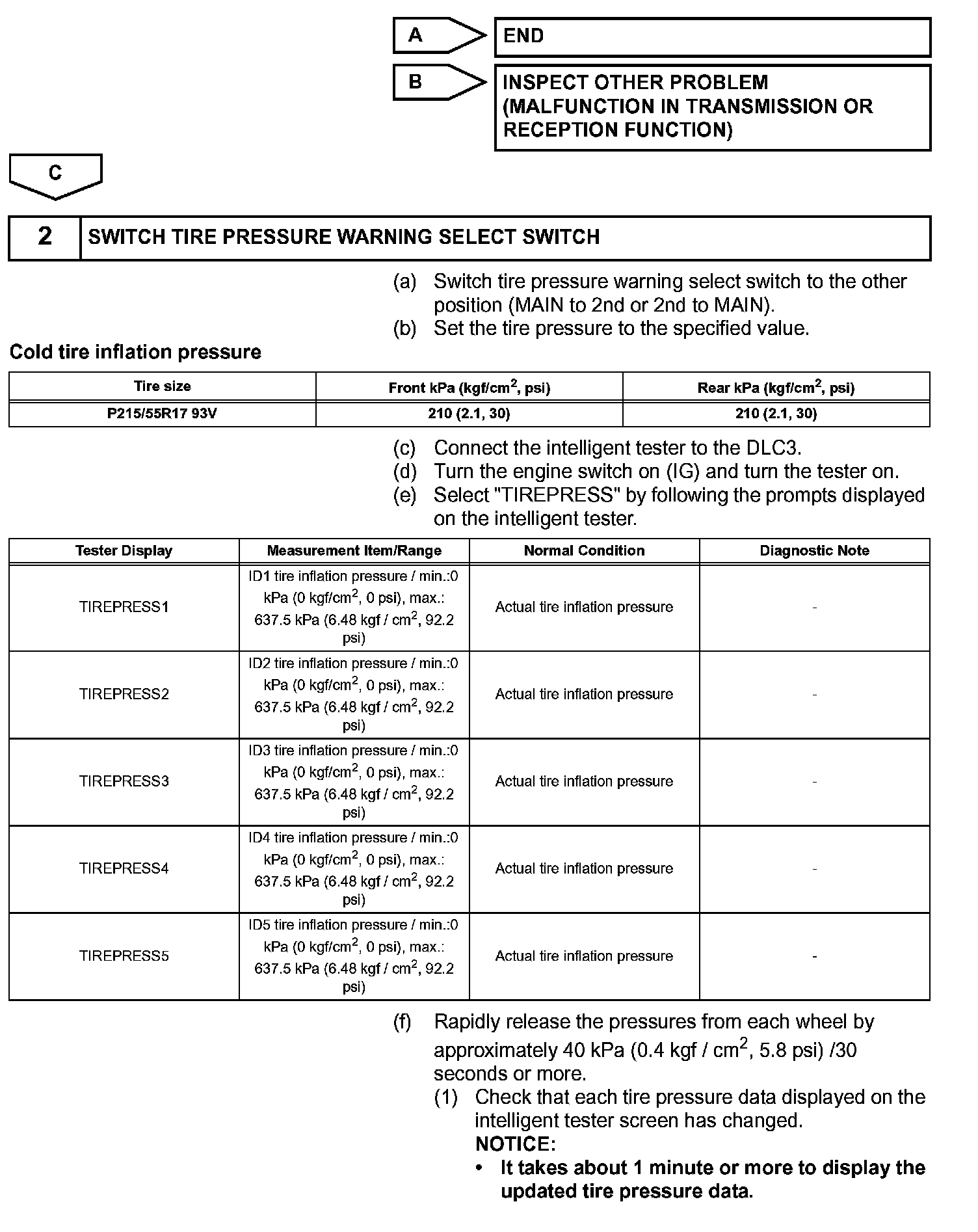

Step 1 (Part 1):

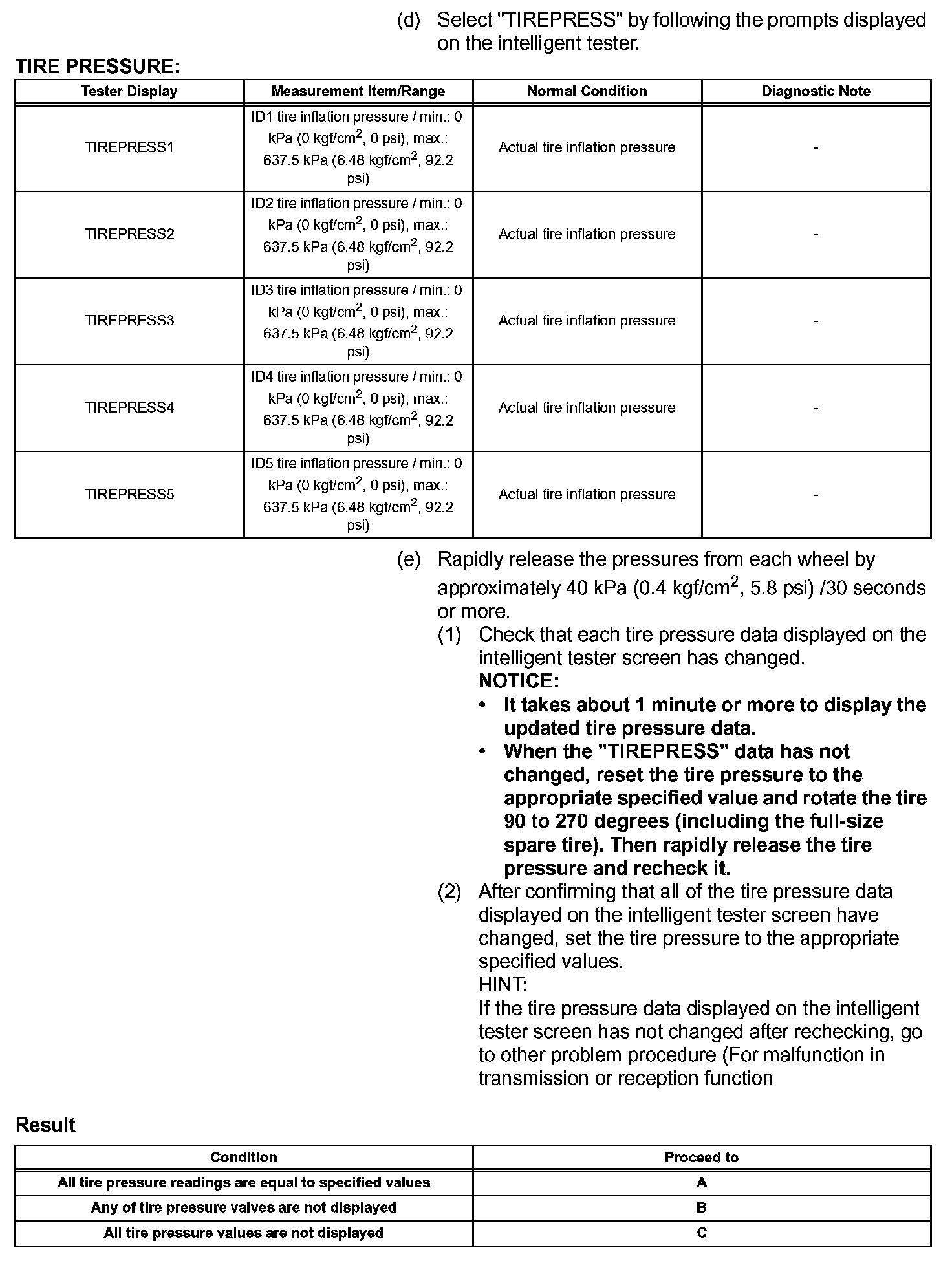

Step 1 (Part 2):

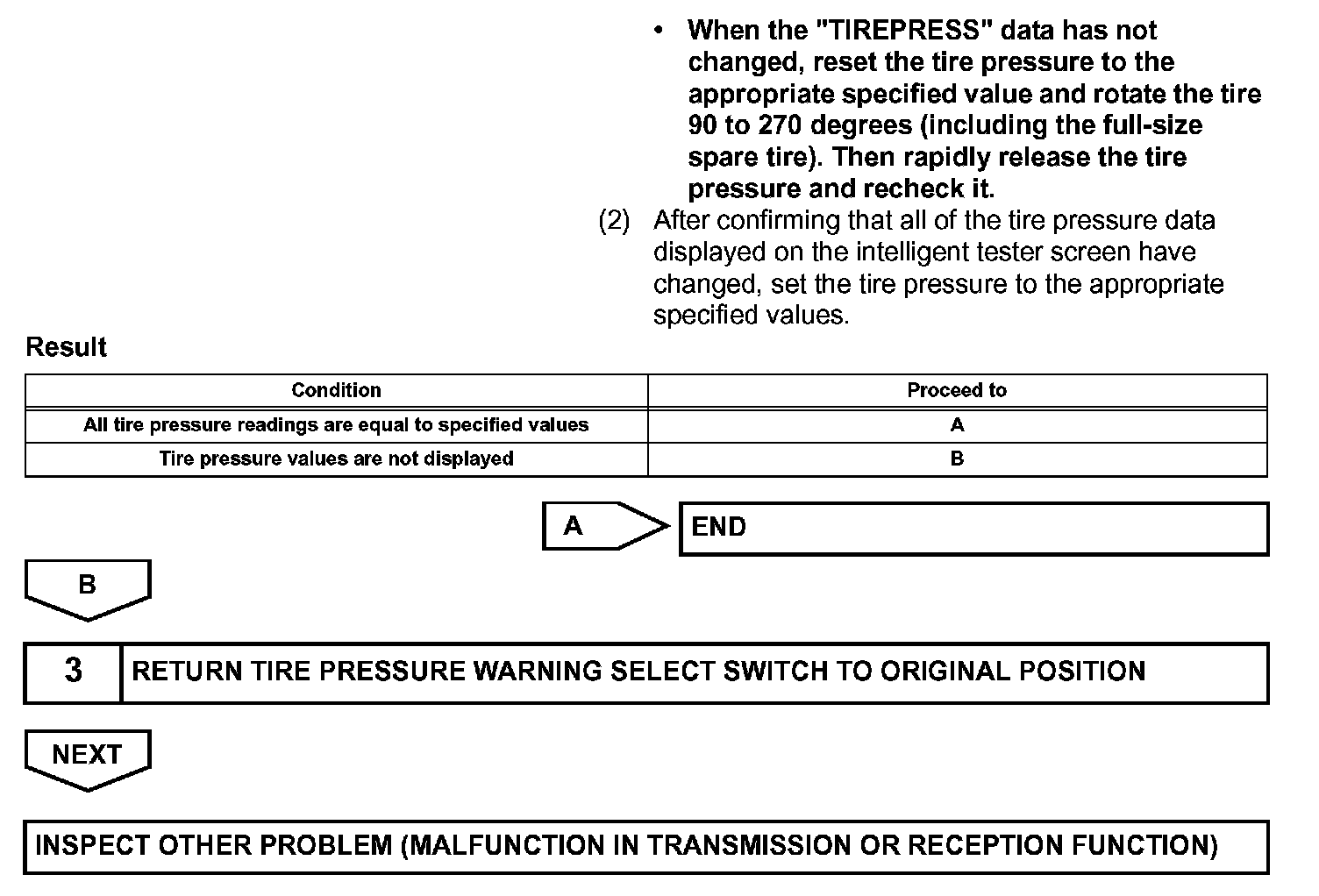

Step 1 (Part 3), Step 2 (Part 1):

Step 2 (Part 2), Step 3:
